Title: Chapter Overview

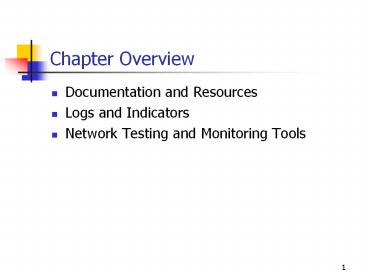

1
Chapter Overview
  • Documentation and Resources
  • Logs and Indicators
  • Network Testing and Monitoring Tools

2
Product Documentation
  • Hardware and software products usually include
    documentation in some form.
  • You should always keep all product documentation.
  • Although you may be familiar with the devices or
    software products you use, you might still need
    the documentation later when you need to
    reinstall, upgrade, or troubleshoot the network.

3
CD-ROM Documentation Formats
  • Text files. Many manufacturers use plain ASCII
    text files to provide late-breaking information
    about product problems, revisions, and
    compatibility issues.
  • Hypertext Markup Language Files. Some
    manufacturers create documentation in Hypertext
    Markup Language (HTML) format and include it with
    the product on a CD-ROM.
  • Adobe Acrobat Portable Document Format files.
    Acrobat creates and displays documents in a
    proprietary format called the Portable Document
    Format (PDF).
  • PDF files preserve all the original design
    elements, layout, and formatting characteristics
    of the original documents.
  • The .pdf format has become a de facto publishing
    standard in the computing industry.

4
An Example of an Adobe Acrobat PDF File
5
Telephone Support
  • Free telephone support is a thing of the past.
  • Some products include free technical support for
    a limited time or a limited number of incidents
    before the manufacturer begins charging a fee.
  • Because of the expense, determining when to call
    for help is more difficult than it used to be.
  • People are more likely to find other sources of
    support before paying for help.
  • Sometimes calling for technical support is
    necessary.
  • Look for help on the Web and Usenet first, and
    call technical support as a last resort.

6
Online Resources
  • Marketing collateral. Includes datasheets,
    features and benefits lists, product comparisons,
    product reviews, and other sales literature
  • Product manuals. Can be more valuable if the site
    has a search engine
  • Technical documents. Frequently more concerned
    with the theoretical aspects of the product than
    with day-to-day operations
  • Frequently asked questions (FAQs). Address common
    problems can be an excellent product evaluation
    resource
  • Technical support databases. Let you search for
    keywords or error messages, and provide
    information on solutions and links to software
    patches

7
Online Resources (Cont.)
  • File downloads. Let you see how many patches have
    been issued for a product, which is a good way of
    evaluating the product before buying it
  • Online messaging. The Web equivalent of the old
    bulletin board systems, where you leave a text
    message and receive a reply from a technical
    support representative
  • Live support. Usually a chat application that
    provides a live text-messaging link between users
    and company representatives
  • Manufacturers contact information. E-mail
    addresses and telephone numbers for technical
    support, and other contact information

8
Usenet
  • Usenet is a worldwide, text-based Internet
    bulletin board system that consists of newsgroups
    devoted to many topics.
  • Usenet is not as user-friendly as the Web, but it
    provides an enormous amount of valuable technical
    information.
  • To access Usenet newsgroups, you must have a
    newsreader client program and access to a news
    server.
  • The clients and servers communicate with each
    other by using a specialized TCP/IP protocol
    called the Network News Transfer Protocol (NNTP).
  • Most Internet service providers (ISPs) include
    access to a news server as part of a standard
    Internet access subscription, but the quality of
    the service varies.

9
The Usenet Newsgroup List
10
Usenet Message Headers
11
A Usenet Newsgroup Message
12
The Microsoft TechNet Interface
13
Books and Periodicals
  • Networking and computer books are an excellent
    resource for background information and
    networking theory.
  • Many books include a searchable electronic
    version on a CD-ROM.
  • Magazines and trade newspapers are good places to
    look for current technical information and
    industry news.
  • Keep in mind that information in a typical
    monthly magazine is written at least three to
    four months before you see the issue.
  • Weeklies usually provide more timely information.
  • Many weekly trade newspapers are now available
    online.

14
Link Pulse Lights
  • Most Ethernet network interface adapters that use
    unshielded twisted-pair (UTP) cable have a
    light-emitting diode (LED) that is lit when the
    adapter is connected to a functioning hub.
  • The hub usually has an additional LED for each
    port that indicates from either end of the patch
    cable whether the devices are connected.
  • Link pulse lights can tell you whether a computer
    is wired to the hub properly.
  • When an Ethernet adapter and a hub are properly
    connected, they exchange signals to test the
    connection.

15
The Link Pulse LED on a Network Interface Adapter
16
The Link Pulse LED on a Hub
17
Normal Link Pulse (NLP) Signals
  • On 10Base-T and 10Base-FL equipment, the signal
    exchanged by network interface adapters and hubs
    is called a normal link pulse (NLP).
  • The NLP signals
  • Last for 2 milliseconds
  • Repeat at intervals of 16.8 milliseconds
  • Occur only when the network is not busy
    transmitting data, so they do not interfere with
    normal operations
  • When the LEDs at both ends of the connection are
    lit, the NLP signals generated by each device are
    reaching the other device.

18
Fast Link Pulse Signals
  • Fast Ethernet and Gigabit Ethernet equipment that
    supports multiple speeds uses fast link pulse
    (FLP) signals.
  • FLP signals differ from NLP signals in that they
    include a 16-bit data packet that the devices use
    to autonegotiate their connection speed.
  • The data packet contains a link code word that
    consists of a selector field and a technology
    ability field.
  • The devices use these fields to advertise their
    capabilities, including the speeds they can run
    at and whether they support full-duplex
    communications.
  • By examining the link code word supplied by the
    other device, the network interface adapter and
    the hub both configure themselves to use the best
    transmission mode that they have in common.
  • FLP signals are fully compatible with the NLP
    signals that are used by devices that cannot
    operate at multiple speeds.

19
Error Displays
  • The most obvious indication of a computer problem
    is an error message.
  • Error messages are generated primarily by
    applications and operating systems.
  • In most cases, error messages cannot give you
    specific information about a problem with the
    network itself.
  • There is usually no way for the computer to test
    or communicate with network components except for
    other computers.
  • An error message generated by an operating system
    might tell you that the computer could not
    communicate with another computer on the network,
    but it usually cannot tell you why unless the
    problem is with the computer generating the
    message.
  • If you do not understand an error message, record
    the exact message, including all number and
    letter codes, memory addresses, and other types
    of information.

20
Event Logs
  • An event log is a running record of processes
    that documents an operational history of the
    product involved.
  • Many applications, operating systems, and
    networking components maintain logs of their
    activities.
  • You should check the logs on a regular basis.
  • Some applications let you specify whether you
    want them to log their activities and how much
    detail you want in the logs.
  • You should consider the amount of detail you want
    in the logs.
  • Selecting the most detailed option might not
    always be best.

21
The General Properties Tab in the IIS Extended
Logging Properties Dialog Box
22
The Extended Properties Tab in the IIS Extended
Logging Properties Dialog Box
23
The Windows 2000 Event Viewer
24
Event Viewer
  • Some logs are maintained and displayed by a
    separate application, such as the Event Viewer
    included in Microsoft Windows 2000 and Microsoft
    Windows NT.
  • To launch Event Viewer in Windows 2000, select
    Event Viewer on the Start menus
    Programs/Administrative Tools group.
  • By default, the application displays the logs for
    the current system.
  • You can also view the logs of another computer
    running Windows 2000.

25
Event Viewer (Cont.)
  • Event Viewer maintains lists of messages
    generated by various elements of the operating
    system.
  • Each log entry is listed as a separate item with
    the date and time that it was generated, the
    process that generated it, the event ID, and
    other important information.
  • By default, Microsoft Windows 2000 Professional
    contains three different logsan Application Log,
    a Security Log, and a System Logall of which are
    maintained independently.
  • The Microsoft Windows 2000 Server products
    include these three logs, plus others, depending
    on the services installed.
  • Each event in each log is classified as
    Information, Warning, or Error.

26
The Event Properties Dialog Box
27
Network Management Products
  • Error messages generated by network components,
    such as routers or computers at remote locations,
    can be difficult to monitor.
  • A stand-alone router does not have a screen to
    display error messages, but many networking
    devices can supply information about their
    status.
  • Network management products provide a
    comprehensive view of network systems and
    processes.
  • These products use a distributed architecture
    based on a specialized management protocol, such
    as the Simple Network Management Protocol (SNMP)
    or the Remote Monitoring (RMON) protocol.
  • Network management products often include other
    functions, such as software distribution and
    metering, network diagnostics, network traffic
    monitoring, and report generation.
  • Deploying a network management system is a
    complex undertaking.

28
SNMP
  • SNMP is a Transmission Control Protocol/Internet
    Protocol (TCP/IP) application layer protocol and
    query language that specially equipped networking
    devices use to communicate with a central
    console.
  • Many networking hardware and software products
    use SNMP agents to
  • Gather information about the product and deliver
    it to a computer designated as the network
    management console
  • Gather specific information about the network
    devices and store it as managed objects in a
    management information base (MIB)
  • SNMP agents transmit MIBs to the console using
    SNMP messages, which are carried inside User
    Datagram Protocol (UDP) datagrams.
  • The console collates the information received
    from the agents and provides a composite picture
    of the network and its processes.
  • An agent can generate a special message called a
    trap, which causes the console to alert of a
    potentially dangerous condition.

29
Windows 2000 System Monitor
30
The Add Counters Dialog Box in System Monitor
31
The Performance Console in System Monitor
32
The Performance Logs and Alerts Feature in the
Performance Console
33
The Novell Netware MONITOR.NLM Application
34
Protocol Analyzers
  • A protocol analyzer captures a sample of network
    traffic, decodes the packets into the language of
    the individual protocols that they contain, and
    lets you examine them in detail.
  • Capturing and displaying network traffic is
    relatively easy, but interpreting and using the
    information for troubleshooting requires a
    detailed understanding of networking protocols.
  • Protocol analyzers are useful tools, but they can
    also be used for malicious purposes.
  • A protocol analyzer can be either
  • A device with a proprietary interface that you
    connect to a network to capture traffic, or
  • A software program that runs on a computer that
    is already connected to the network
  • Protocol analyzers typically work by switching
    their network interface adapter into promiscuous
    mode.

35
The Network Monitor Capture Summary Window
36
The Network Monitor Detailed Information Display
37
An Expanded TCP Header
38
The Network Monitor Raw Data Display
39
Crossover Cables
  • A crossover cable is a good tool to use for
    eliminating the hub and the cables as possible
    sources of a network communications problem.
  • If two computers seem to be properly connected
    with a hub and prefabricated cables (or an
    internal cable run and patch cables), and they
    are not communicating, try connecting the
    computers with a crossover cable that you know
    works properly.
  • If the computers can communicate with the
    crossover cable, the problem is in either the hub
    or the cables connecting the computer to the hub.
  • If the computers fail to communicate with the
    crossover cable, the problem is in one or both of
    the computers or network interface adapters.

40
Hardware Loopback Connectors
  • A loopback connector is an inexpensive device
    that you plug into a jack.
  • The loopback connector redirects the outgoing
    signals from the device right back into it.
  • Many adapters have a diagnostic utility built
    into their configuration programs.
  • After plugging the loopback connector into the
    adapter port, you run the diagnostic program, and
    the loopback connector transmits a series of
    signals out through the adapter.
  • If the adapter receives the signals back in
    exactly the same format as they were sent, the
    adapter passes the test.

41
A Typical Tone Generator and Locator
42
Tone Generators and Locators
  • A basic way to identify and test a cable
    connection is to use a tone generator and
    locator, also known as a "fox and hound" cable
    tester.
  • You connect a tone generator to a cable at one
    end, and it transmits a signal over the cable.
  • The tone locator is a separate device that can
    detect the generator's signal, either by touching
    it to the conductor in the cable or by touching
    it to the cable insulation.
  • When the locator detects the generator's signal,
    it emits an audible tone.
  • You can use a tone generator and locator to test
    an entire cable or to test the individual wire
    connections inside a UTP cable.
  • Tone generators and locators are most commonly
    used to identify the cable that belongs to a
    particular connection.
  • The tone generator and locator is the simplest
    and most inexpensive type of cable tester.

43
Wire Map Testers
  • A wire map tester is similar in principle to the
    tone generator and locator, except that it tests
    all the wire connections in a UTP cable at once.
  • A wire map tester consists of two parts that you
    connect to the opposite ends of a cable.
  • The unit at one end transmits signals over all
    the wires, which are detected by the unit at the
    other end.
  • A wire map tester can detect transposed wires,
    open circuits, and shorts, just as a tone
    generator and locator can.
  • However, it does all the tests simultaneously and
    provides you with a simple readout telling you
    what is wrong.
  • The one common cable fault that a typical
    stand-alone wire map tester cannot detect is a
    split pair.
  • Wire map testers are relatively inexpensive
    stand-alone devices and are good investments for
    small- to medium-sized internal cable
    installations.

44
A Typical Multifunction Cable Tester
45
Multifunction Cable Testers
  • Handheld devices that test cable connections and
    compare the results to standard values that have
    been programmed into the unit
  • Display a list of pass or fail ratings for the
    individual tests
  • Can perform basic wire mapping tests in addition
    to testing length, attenuation, near end
    crosstalk (NEXT), power sum NEXT (PSNEXT), equal
    level far end crosstalk (ELFEXT), power sum
    ELFEXT (PSELFEXT), propagation delay, delay skew,
    and return loss

46
Multifunction Cable Testers (Cont.)
  • Multifunction cable testers can be dangerous
    because of the very strengths they advertise.
  • Some marketing materials imply that you can rely
    on the device to tell you if the cables are
    installed correctly, without knowing what the
    measurements mean.
  • This is true, if the tester is calibrated to the
    proper standards.
  • If you do not know what each test represents, you
    are relying on the manufacturer of the device to
    set it to the proper standards.
  • In some cases, official standards for certain
    cable types have not yet been ratified.

47
Chapter Summary
  • Documentation and resources
  • Product documentation can be a valuable network
    troubleshooting tool.
  • You should always keep all the documentation that
    comes with your hardware and software.
  • Web sites for many hardware and software
    manufacturers offer a variety of resources for
    the network administrator, including technical
    documents, FAQs, online messaging, and technical
    support databases.

48
Chapter Summary (Cont.)
  • Logs and indicators
  • LEDs and other lights are frequently useful
    indicators of a piece of a hardware components
    current status.
  • The link pulse LEDs on Ethernet hubs and network
    interface adapters indicate when these devices
    are connected properly.
  • Tools like the Windows 2000 Performance console
    enable you to monitor ongoing computer and
    network operations in real time.

49
Chapter Summary (Cont.)
  • Network testing and monitoring tools
  • A tone generator and locator is a simple
    cable-testing device that determines whether a
    cable is carrying a signal.
  • Wire map testers test all four of the wire pairs
    in a UTP cable at the same time.
  • Multifunction cable testers perform a
    comprehensive battery of tests on a cable
    connection and compare the results to established
    standards.
Write a Comment
User Comments (0)
About PowerShow.com
