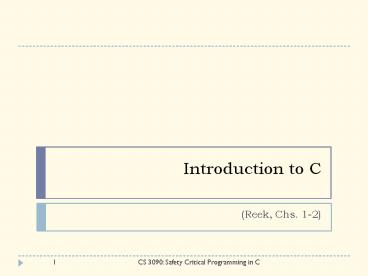

Introduction to C

1
Introduction to C

• (Reek, Chs. 1-2)

2
C History

• Developed in the 1970s in conjunction with
  development of UNIX operating system
• When writing an OS kernel, efficiency is crucial
• This requires low-level access to the underlying
  hardware
• e.g. programmer can leverage knowledge of how
  data is laid out in memory, to enable faster data
  access
• UNIX originally written in low-level assembly
  language but there were problems
• No structured programming (e.g. encapsulating
  routines as functions, methods, etc.) code
  hard to maintain
• Code worked only for particular hardware not
  portable

3
C Characteristics

• C takes a middle path between low-level assembly
  language
• Direct access to memory layout through pointer
  manipulation
• Concise syntax, small set of keywords
• and a high-level programming language like
  Java
• Block structure
• Some encapsulation of code, via functions
• Type checking (pretty weak)

4
C Dangers

• C is not object oriented!
• Cant hide data as private or protected
  fields
• You can follow standards to write C code that
  looks object-oriented, but you have to be
  disciplined will the other people working on
  your code also be disciplined?
• C has portability issues
• Low-level tricks may make your C code run well
  on one platform but the tricks might not work
  elsewhere
• The compiler and runtime system will rarely stop
  your C program from doing stupid/bad things
• Compile-time type checking is weak
• No run-time checks for array bounds errors, etc.
  like in Java

5
Separate compilation

• A C program consists of source code in one or
  more files
• Each source file is run through the preprocessor
  and compiler, resulting in a file containing
  object code
• Object files are tied together by the linker to
  form a single executable program

Preprocessor/ Compiler
Source code file1.c
Object code file1.o
Preprocessor/ Compiler
Source code file2.c
Object code file2.o
Linker
Libraries
Executable code a.out
6
Separate compilation

• Advantage Quicker compilation
• When modifying a program, a programmer typically
  edits only a few source code files at a time.
• With separate compilation, only the files that
  have been edited since the last compilation need
  to be recompiled when re-building the program.
• For very large programs, this can save a lot of
  time.

7
How to compile (UNIX)

• To compile and link a C program that is contained
  entirely in one source file
• cc program.c
• The executable program is called a.out by
  default.
• If you dont like this name, choose another
  using the o option
• cc program.c o exciting_executable
• To compile and link several C source files
• cc main.c extra.c more.c
• This will produce object (.o) files, that you can
  use in a later compilation
• cc main.o extra.o more.c
• Here, only more.c will be compiled the main.o
  and extra.o files will be used for linking.
• To produce object files, without linking, use -c
• cc c main.c extra.c more.c

8
The preprocessor

• The preprocessor takes your source code and
  following certain directives that you give it
  tweaks it in various ways before compilation.
• A directive is given as a line of source code
  starting with the symbol
• The preprocessor works in a very crude,
  word-processor way, simply cutting and pasting

• it doesnt really know anything about C!

Your source code
Enhanced and obfuscated source code
Object code
Preprocessor
Compiler
9
A first program Text rearranger

• Input
• First line pairs of nonnegative integers,
  separated by whitespace, then terminated by a
  negative integer
• x1 y1 x2 y2 xn yn -1
• Each subsequent line a string of characters
• Output
• For each string S, output substrings of S
• First, the substring starting at location x1 and
  ending at y1
• Next, the substring starting at location x2 and
  ending at y2
• Finally, the substring starting at location xn
  and ending at xn.

10
Sample input/output

• Initial input 0 2 5 7 10 12 -1
• Next input line deep C diving
• Output deeC ding
• Next input line excitement!
• Output exceme!
• continue ad nauseum
• Terminate with ctrl-D (signals end of keyboard
  input)

11
Use of comments

• /
• This program reads input lines from the
  standard input and prints
• each input line, followed by just some
  portions of the lines, to
• the standard output.
• The first input is a list of column numbers,
  which ends with a
• negative number. The column numbers are
  paired and specify
• ranges of columns from the input line that are
  to be printed.
• For example, 0 3 10 12 -1 indicates that only
  columns 0 through 3
• and columns 10 through 12 will be printed.
• /
• Only / / for comments no // like Java or C

12
Comments on comments

• Cant nest comments within comments
• / is matched with the very next / that comes
  along
• Dont use / / to comment out code it wont
  work if the commented-out code contains comments
• / Comment out the following code
• int f(int x)
• return x42 / return the result /
• /
• Anyway, commenting out code is confusing, and
  dangerous (easy to forget about) avoid it

Only this will be commented out
This will not!
13
Preprocessor directives

• include ltstdio.hgt
• include ltstdlib.hgt
• include ltstring.hgt
• The include directives paste the contents of
  the files stdio.h, stdlib.h and string.h into
  your source code, at the very place where the
  directives appear.
• These files contain information about some
  library functions used in the program
• stdio stands for standard I/O, stdlib stands
  for standard library, and string.h includes
  useful string manipulation functions.
• Want to see the files? Look in /usr/include

14
Preprocessor directives

• define MAX_COLS 20
• define MAX_INPUT 1000
• The define directives perform
• global replacements
• every instance of MAX_COLS is replaced with 20,
  and every instance of MAX_INPUT is replaced with
  1000.

15
Function prototypes

• int read_column_numbers( int columns, int max
  )
• void rearrange( char output, char const input,
• int n_columns, int const columns )
• These look like function definitions they have
  the name and all the type information but each
  ends abruptly with a semicolon. Wheres the body
  of the function what does it actually do?
• (Note that each function does have a real
  definition, later in the program.)

16
Function prototypes

• Q Why are these needed, if the functions are
  defined later in the program anyway?
• A C programs are typically arranged in
  top-down order, so functions are used (called)
  before theyre defined.
• (Note that the function main() includes a call to
  read_column_numbers().)
• When the compiler sees a call to
  read_column_numbers() , it must check whether the
  call is valid (the right number and types of
  parameters, and the right return type).
• But it hasnt seen the definition of
  read_column_numbers() yet!
• The prototype gives the compiler advance
  information about the function thats being
  called.
• Of course, the prototype and the later function
  definition must match in terms of type
  information.

17
The main() function

• main() is always the first function called in a
  program execution.
• int
• main( void )
• void indicates that the function takes no
  arguments
• int indicates that the function returns an
  integer value
• Q Integer value? Isnt the program just
  printing out some stuff and then exiting? Whats
  there to return?
• A Through returning particular values, the
  program can indicate whether it terminated
  nicely or badly the operating system can react
  accordingly.

18
The printf() function

• printf( "Original input s\n", input )
• printf() is a library function declared in
  ltstdio.hgt
• Syntax printf( FormatString, Expr, Expr...)
• FormatString String of text to print
• Exprs Values to print
• FormatString has placeholders to show where to
  put the values (note placeholders should match
  Exprs)
• Placeholders s (print as string), c (print as
  char),
• d (print as integer),
• f (print as floating-point)
• \n indicates a newline character

Make sure you pick the right one!
Text line printed only when \n encountered Dont
forget \n when printing final results
19
return vs. exit

• Lets look at the return statement in main()
• return EXIT_SUCCESS
• EXIT_SUCCESS is a constant defined in stdlib
  returning this value signifies successful
  termination.
• Contrast this with the exit statement in the
  function read_column_numbers()
• puts( Last column number is not paired. )
• exit( EXIT_FAILURE )
• EXIT_FAILURE is another constant, signifying that
  something bad happened requiring termination.
• exit differs from return in that execution
  terminates immediately control is not passed
  back to the calling function main().

20
Pointers, arrays, strings

• In this program, the notions of string, array,
  and pointer seem to be somewhat interchangeable
• In main(), an array of characters is declared,
  for purposes of holding the input string
• char inputMAX_INPUT
• Yet when its passed in as an argument to the
  rearrange() function, input has morphed into a
  pointer to a character (char )
• void
• rearrange( char output, char const input,

21
Pointers, arrays, strings

• In C, the three concepts are indeed closely
  related
• A pointer is simply a memory address. The type
  char pointer to character signifies that the
  data at the pointers address is to be
  interpreted as a character.
• An array is simply a pointer of a special kind
• The array pointer is assumed to point to the
  first of a sequence of data items stored
  sequentially in memory.
• How do you get to the other array elements? By
  incrementing the pointer value.
• A string is simply an array of characters
  unlike Java, which has a predefined String class.

22
String layout and access
p (char)
o (char)
i (char)
n (char)
t (char)
e (char)
r (char)
NUL (char)
NUL is a special value indicating end-of-string
(char )
How do we get to the n? Follow the input
pointer, then hop 3 to the right (input 3) -
or - input3
input
What is input? Its a string! Its a pointer to
char! Its an array of char!
