Title: Definition of Map Terms


1

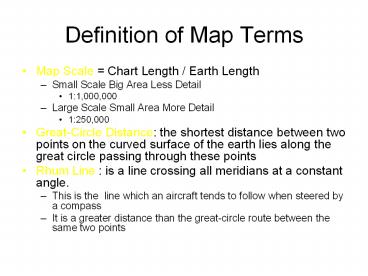

Definition of Map Terms
  • Map Scale Chart Length / Earth Length
  • Small Scale Big Area Less Detail
  • 11,000,000
  • Large Scale Small Area More Detail
  • 1250,000
  • Great-Circle Distance the shortest distance
    between two points on the curved surface of the
    earth lies along the great circle passing through
    these points
  • Rhum Line is a line crossing all meridians at a
    constant angle.
  • This is the line which an aircraft tends to
    follow when steered by a compass
  • It is a greater distance than the great-circle
    route between the same two points

2
Advantages to fly a Rhumb Line course instead of
great circle
  1. In low latitude, a R/L closely approximates a
    great circle
  2. Over short distances, a R/L and G.C. nearly
    coincide
  3. A R/L between points on or near the same meridian
    of longitude approximates a great circle

3
(No Transcript)
4
Definition of Map Terms
  • Conformality (correct representation of angles)
  • To be conformal, a chart must have uniform scale
    around any points, though not necessarily a
    uniform scale over the entire map.
  • 2. Meridians and Parallels must intersect at
    right angle
  • Mercator and Lambert are conformal

5
Developed and Undeveloped Surface
  • The surface of sphere or spheroid is said to be
    undevelopable because no part of it may be spread
    out flat without distortion
  • A plane, cylinder or cone which can be easily
    flattened, is called developable surface .
  • Projection on these surface are termed Conical,
    Cylindrical, and Azimuthal Projection

6
Develop for flat of the earth
2.Cylinder
3.Cone
1.Plane
Cylindrical
Conical
Azimuthal
7
Point of Tangency
  • Names of Charts are different due to point of
    tangency such as a plane of projection tangent.
  • Tangent at the Equator, called Equatorial Proj
  • Tangent at the Poles, called Polar Proj
  • Tangent at other places, called Oblique Proj

8
Point of Tangency
N
N
N
E
W
E
W
E
W
S
S
S
Tangent at Pole called POLAR
Tangent at Equator called EQUITORAIL
Tangent at other point called OBLIQUE
9
????????????????? Projection
  • The method of representing all or part of the
    surface of a sphere or spheroid on a plane
    surface is called a map or chart project.

10
Projection
Gnomonic Proj (Proj from the center of the sphere)
Stereo Proj (Proj from the opposite side of the
sphere)
Orthographic Proj (Proj from the infinity)
11
Azimuthal Projection
  1. Polar Tangency 3 names
  2. Polar Azimuthal Gnomonic Proj
  3. Polar Azimuthal Stergographic Proj
  4. Polar Azimuthal Orthographic Proj
  5. Oblique Tangency 3 names
  6. Oblique Azimuthal Gnomonic Proj
  7. Oblique Azimuthal Stergographic Proj
  8. Oblique Azimuthal Orthographic Proj

12
Azimuthal Projection
  • 3. Equitorail Tangency 3 names
  • Equitorail Azimuthal Gnomonic Proj
  • Equitorail Azimuthal Stergographic Proj
  • Equitorail Azimuthal Orthographic Proj

13
Common Charts Used in Navigation
  1. Map Reading
  2. Plotting and Measuring Course Directions and
    Distance

14
Ideal Chart
  • Comformality (?????????????????)
  • Parallels and meridians must intersect at 90
  • Scale or scale expansion must be the same along
    the meridians as it is along the parallels
  • Scale vary point to point but it is the same in
    all direction (Scale of any point independent
    from Azimuth)

15
Ideal Chart
  • 2. Constant and Correct Scale
  • Constant ratio to bear to distance on the earth
  • 3. Correct Shape Representation
  • 4. Correct Area Representation
  • 5. Coordinate Easy to Located
  • 6. Rhumd Lines as Straight Lines (Mercator map)
  • 7. True Azimuth

16
Cylindrical Projection (Mercator)
  • The only cylindrical projection used for air NAV
    is the MERCATOR
  • GERHARD MERCATOR design this type of chart first
    in 1569
  • The other types of the Mercator are Oblique
    Mercator and Transverse Mercator

N
S
Transverse Mercator Polar Cylindrical Gnomonic
Proj
Oblique Mercator
Plane Mercator
17
Mercator Projection
  • Its graticule can be imagined by visualizing a
    cylinder tangent at the equator to a translucent
    globe with a light source at the center.
  • All parallels and meridians on the globe will be
    projected on the cylinder as straight lines
    crossing at right angles
  • Meridians will be evenly spaced, whereas
    distance between parallels will increase rapidly
    with latitude.
  • Scale on a Mercator is true only along the
    equator. Elsewhere it expands as the secant of
    the latitude, so that at 60N or S , scale is
    twice that at the equator.

18
  • Best suited for use Mercator Projection is within
    25 - 30 of the equator
  • In low latitudes, rhumb line and great circle
    will be close together at middle and upper
    latitudes the amount of divergence becomes quite
    marked.
  • The great-circle route will always be shorter,
    and it is part of the navigators duty to
    determine whether the bother of plotting and the
    increased risk of error in flying a series of
    changing heading is justified by the saving in
    distance.

19
Characteristic of Mercator
  • Conformality
  • The meridians and parallel appear as straight
    lines, intersected together at right angle
  • Area
  • The area is not equal and are Greatly exaggerated
    in height Lat.
  • Scale
  • Scale correct only at the equator else where it
    expand as the secant of Lat .
  • Using mid-lat scale to measure distance
  • Great Circle appear as curve line convex to the
    nearest pole
  • RHUM Line appear as a straight lines (The
    meridian parallel together)
  • Rhum Line is the lines the success that cross the
    successive meridian at the same angle

20
  • Rhumb Line
  • Between 2 points, the shortest distance is the
    great circle
  • Fly by Rhum Line Track, the pilot must not change
    HDG all the time

21
The Advantage of Mercator
  1. Position in Lat and Long are easy to plot
  2. Easy to fly follow R/L track

22
The Disadvantage of Mercator
  1. Difficulty of measuring large distance accurately
  2. Conversion angle (C.A) must be applied to Great
    Circle bearing before plotting
  3. The chart is useless in polar region above 80N
    or S since the polar cannot be shown conversion
    angle

23
Conversion Angle
  • The meridians converge towards the poles . A
    Great Circle (GC) gives shortest distance between
    2 positions while R/L running between the same
    position cut meridian at the same angle.
  • It is spiral curve and therefore represent a
    longer distance that means that there will be a
    difference between the R/L angle which the GC
    angle at the start point and the ending point of
    the track

24
Conversion Angle
  • Conversion Angle (CA) is the angular difference
    between a great circle bearing and a R/L bearing
  • Or angle between a great circle are joining two
    places on earth and a R/L between the two places
  • CA (C(CH) Long /2) sin mean Lat

25
(No Transcript)
26
  • Difference of Long (D Long) is the angular
    difference between two longitude angle from 0
    Long to 180º E and 180º W Long such as from A
    to B DLong 150-15 135 W

Pri-meridian Greenwich Meridian
15ºW
DLong 135ºW
NP
150ºW
Anti-meridian
27
  • Change of Long (CH.Long) is the angular
    difference between two Longitude angles (In case
    of crossing prime-meridian or anti-meridian
  • From A to C CH.Long 15W 60E 75E
  • From C to B CH.Long 120E 30W 150W
  • (180-60)(180-150)

CH.Long 75ºE
A 15ºW
C 60ºE
Note Same Direction (-) Difference
Direction ()
East
West
CH.Long 150ºW
B 150ºW
28
  • Difference of Lat (DLat) is the angular
    difference between two Lat. Angle . For instance,
    the north pole and the equator have a DLat of
    90º from the north pole to the equator the DLat
    is 90ºS. If from the south pole to equator ,
    DLat is 90º N
  • From 20ºN to 40ºN DLat 20ºN
  • 1º 60 NM yield 20ºN 2060 1200 NM

40ºN
20ºN
0º
29
  • Change of Lat (CH.Lat) is the angular different
    between two Lat angle (in case of crossing
    equator) such as from 30ºN to 30ºS CH.Lat is
    60ºS. if from 30ºS to 30ºN CH.Lat 60ºN

CH.Lat 60ºN
30ºN
0º
30ºS
CH.Lat 60ºS
30
  • Example, When the A/C is in position Lat3515S
    Long 1045E and ground station is Lat 2545S
    Long 0215W what is conversion angle value?
  • Solve
  • CAD(CH) Long /2 sin mean Lat
  • CH Long 1045E 0215W
  • 13
  • Mean Lat (3515S 2545S) / 2
  • 61/2 3030 31
  • CA. (13 /2) sin 31
  • 3

31
Conic Projection
  • The Conic Projection bases on cone tangent reduce
    earth every place
  • The great majority of aeronautical chart in use
    today are based on conic projection
  • There are 2 classes of conic proj.
  • Simple Conic Proj with one Standard Parallel
    (S.P.) a lot of error
  • Conic Proj with 2 S.P. And expand out of S.P.

32
Lambert Conformal Conic Projection
  • In a simple conic project the cone is held
    tangent to the globe along a line of latitude
    called the standard parallel.
  • Scale is exact everywhere along this standard
    parallel, but increase rapidly above and below
  • Lambert visualized the cone as making a secant
    cut, thus giving two standard parallels
  • Scale along both is exact. Between them, scale is
    too small, beyond them too large.

33
  • For equal distribution of scale error, standard
    parallels are chosen at one-sixth and five-sixths
    of the total spread of latitude to be
    represented.
  • To map the U.S, whose lat is from 25 to 49 ,
    standard parallels of 29 and 45 (one-sixth
    and five-sixths of the total spread ) would
    produce an equal distribution of scale error.

34
Conic Projection
Simple Conic Proj with one Standard Parallel
(S.P.)
Lambert Conic Proj with two Standard Parallel
(S.P.)
35
101
100
98
100
36
The Lambert
  • All meridians are straight lines that meet in a
    common point beyond limits of the map
  • Parallels are concentric circles whose center is
    at the point of intersection of the meridians
  • Meridians and parallels intersect at right angles
  • Since scale is very nearly uniform around any
    point on a given chart, it is considered a
    conformal projection
  • For map reading and radio navigation the
    projection is unequaled , and most areas of the
    world through 80 latitude are covered by
    aeronautical charts with scale of 1500,000 and
    11,000,000
  • Above 80 , scale on a standard Lambert is too
    inaccurate for navigational use.

37
Characteristic of The Lambert
  • Conformal
  • Scale correct on S.P. contracted inside and
    expand outside
  • Area not an equal area
  • Shape distortion small
  • GC. curves concave to parallel of origin
    considered as straight line
  • Rhumb Line curves concave to nearer pole
  • Graticule meridians straight line ,
  • - parallel concentric circle

38
Polar Stereographic Projection
  • A flat surface is used, touching the N.P.
  • The light is at the S.P.
  • The polar sterographic is modified by using a
    secant plane instead of tangent plane
  • A secant ????????????????????????

NP
90N
SP
39
  • Modified polar stereographic proj. used secant
    plane as plane of tangency (Graticule)
  • The meridians are straight lines, radiating from
    the pole.
  • The parallels are concentric circles expands away
    from the pole

180
NP
090
270
0
Polar Sterographic Graticule
Greenwich Meridian
40
Characteristic of Stereographic
  1. Conformal
  2. Correct at pole tangency
  3. Shapes distorted away from pole
  4. Area distorted away from pole
  5. GC. Curve concave to pole to 90 N, considered as
    straight line about 70N
  6. Polar Stereographic used only 80N near north and
    south pole

41
Map Reading
  • Determination of the aircraft position by
    matching natural or built-up features with their
    corresponding symbol on a chart
  • Parallels and Meridians

Prime Meridian is 0 reference for Lat Pass
Greenwich
Parallel of Latitude
Equator is 0 reference for Lat
Longitude Meridian
42
  • Latitude and Longitude
  • Latitude range from 0 at the equator to 90N and
    90S at the pole
  • Longitude is measured around the earth both
    eastward and west ward from Prime meridian,
    through 180
  • Geographic Coordinate System
  • Read intersection of Latitude and Longitude
  • Lat first then Long
  • U-Tapao Lat 1240N Long 10104E

43
  • Grid System
  • GEOREF System (GEO GRAPHIC REFENCE SYSTEM)
  • Consist of 4 letters and 4 numbers
  • Divided meridian 360 / 15 24 spaces
  • Each 24 has letter run from A to Z except I and
    O, start from south pole 90S and Long 180
  • Divided Latitude 180 / 15 12 spaces
  • Each 12 space has letter run from A to M except I
  • Total 288 spaces (15 15 º) per each
  • 2. Each sqr (15 15 º) divided by 15º 1º
  • Define letter A to Q except I and O
  • Total 225 spaces (1 1 º) per each
  • 3. Each 1º divided by 60 second
  • Reading Right Up or Long - Lat

44
M N P Q R S T U V W X Y Z A B C D E F G H J K L
L
K
J
H
G
F
E
D
C
B
A
M N P Q R S T U V W X Y Z A B C D E F G H J K L
UG
45
Q
P
O
N
M
L
K
J
H
G
F
E
D
C
B
A B C D E F G H J K L M N P Q
UGEK3010
46
Aeronautical Chart
  • Charts for Visual Flight Rules (VFR)
  • World Aeronautical Charts (WAC) 11,000,000
  • Sectional Charts 1500,000
  • VFR Terminal Area Charts 1250,000
  • Charts for Instrument Flight Rules (VFR)
  • Enroute Chart
  • Standard Instrument Departure (SID)
  • Standard Terminal Arrival (STAR)

47
World Aeronautical Chart (WAC)
  • WACs are used for plotting and pilotage
  • WAC is published by the US.Coast and Geodetic
    Survey
  • Scale is 11,000,000 They are based on
  • Lambert conformal project 0 to 80N and 80S
  • Modified Polar Stereographic Project from 80N
    and 80S to the pole

48
?????????????????
  1. ??????????????????????? (Topographical Symbols)
  2. ????????????????????????? (Aeronautical Symbols)

49
??????????????????????? (Topographical Symbols)
  • ??????????????????????????? ?? ? ????
  • ????????????? (Contour Lines)
  • ??????????????????????????????????????????????????
    ???
  • ????????????????????????? ???????????????????????
  • ?????????????????????????? ???????????????????????
    ???????
  • ?????? (Gradients Tints)
  • S.L. 1,000 ft dark green
  • 1,000 2,000 ft weak green
  • 2,000 10,000 ft brown to dark brown

50
  • 3. ?????????? (Spot Elevation)
  • ?????????????????????????????? ???????????????
  • 4. ??????????????????? (Hachure or Shading)
  • ?????? ??????????????? ??????? ?????????
  • 5. ???????????????????? (Drainage or
    Hydrography)
  • Blue
  • 6. ?????????????????????????????????? (Cultural
    Features)
  • Chart Legend
  • 7. ????????????????????? (Vegetation)
Write a Comment
User Comments (0)
About PowerShow.com
