Rail-Volution 2002 Portland's Airport MAX Extension October

1

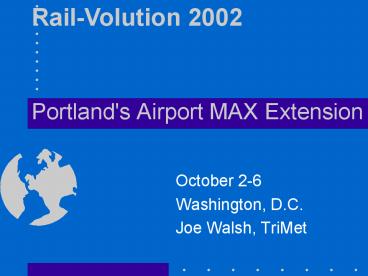

Portland's Airport MAX Extension
Rail-Volution 2002

• October 2-6
• Washington, D.C.
• Joe Walsh, TriMet

2
Airport MAX Logo Slide
3
Project Summary

• Added 5.5 miles to extg. 33 miles of LRT
• 125m fast track project
• Key innovative aspects
• expanding ground access options to PDX
• nontraditional funding - PFCs, private dollars
• design/build delivery
• Opened 9/10/01

4
(No Transcript)
5
Local Context

• PDX as economic growth engine
• Access challenges - roadway capacity and parking
• LRT key to land use/growth management
• 12 mile, 1 billion LRT measure rejected at the
  polls 11/98

6
(No Transcript)
7
Project Highlights

• Multi-jurisdiction and private partnership
• Prior planning
• Innovative funding
• Real estate venture
• Airport funds
• Risk allocation/management

8
The Deal

• Unsolicited proposal from Bechtel
• Mix of local funds, including PFCs
• Private participation
• Bechtel/Cascades to invest 28m in return
  lease/development deal on 100 acres
• Bechtel Infrastructure to design build
  project

9
Partnership

• TriMet
• City of Portland
• Port of Portland
• Bechtel/Cascades

• General Funds
• 46 m

• Urban Renewal
• 23 m

• Passenger Facilities Charges
• 28 m

• Real Estate Proceeds
• 28 m

10
(No Transcript)
11
Partnership, cont.

• Public funds - multiple sources
• No new revenues
• All locally directed
• Private participation
• Associated real-estate venture
• Regional buy-in

12
Partnership, cont.

• Project Dynamics
• Strong political leadership
• General alignment on goals
• Differing timelines

13
Partnership Mechanics

• Partners Framework Agreement
• Roles responsibilities
• Funding commitments
• Key Inter-party Agreements
• Port-Cascades Master Lease
• Cascades-City Development Agreement
• TriMet - Bechtel Design Build contract
• Numerous financing-related documents

14
Project Structure

• Risk allocation - play to strengths
• real estate risk - Cascades
• LRT construction risk - Tri-Met, Port
• FAA funding - Port
• Rolling commitments dollars at risk
• Financial guarantees on real estate
  infrastructure

15
Management Structure

• Policy group Mayor, General Manager, etc.
• Executive group formal project oversight
• Project Management group - informal
• Tri-Met manages LRT design/build

16
Cascade Station Development

• Bechtel contributes 28.3m from development
  proceeds
• 120 acre/85 year lease from Port of Portland
• 15 yr. development program- 400,000sf retail,
  1200 hotel rooms, 1million sf office
• Infrastructure funding assistance - City, Port

17
(No Transcript)
18
LRT Project Delivery Summary

• Unsolicited Proposal/Sole Source for LRT project
• Design/Build
• Fast Track

19
(No Transcript)
20
Schedule Summary

• 4/97 - Bechtel Proposal to local partners
• 9/98 - Local approvals, PE, price proposal,
  completed
• 10/98 - Sign Design/Build Contract
• 1/99 Complete NEPA
• 4/99 - Begin construction
• 7/99 - Close financing
• 9/01 - Line opens

21
Local approval steps

• Public Review Committee advises local partners
• Partner board/commission approvals - sole source,
  Design/Build contract, ground lease and
  development agreements
• Parties commit at risk dollars - total of 16m
  before closing

22
Key Strengths

• Prior planning
• PDX alignment in all adopted plans
• ROW reserved in freeway median
• Public experience with Airport congestion
• Partners past experience together

23
Key Challenges

• FAA Approval for PFC funds, land deal
• Design/Build
• Private participation through Unsolicited
  Proposal/Sole Source

24
FAA Approvals

• Revenue Use
• PFC Process
• Bond financing

25
Private participation

• Time value/Time constraints
• Profitability requirement
• Narrower focus than public partners

26
Design/Build Approach

• Preliminary documents by Tri-Met - concept
  design, specs, program narrative
• Two-step process to final package
• PE cost estimate by Bechtel
• D/B contract including fixed price

27
Design/Build Contract

• Lump sum, fixed price
• Unique risk allocation
• Special restrictions for Airport work

28
Unsolicited Proposal/Sole Source

• Established procedures for Tri-Met, City, Port
• Due diligence by each public partner
• Pricing fair?
• Benefits gt costs?
• Open Book for public critics

29
Current Status - CascadeStation

• Infrastructure complete
• Letter of Intent for 40 a. retail development
• Economic downturn, 9/11 have hurt leasing
  prospects

30
Current Status LRT

• Solid ridership 10 over projections, despite
  fewer airline passengers
• Higher proportion of leisure travelers than
  projected
• Terrific public acceptance

31
Challenges

• Deal complexity/deal fatigue
• Regulatory hurdles
• Size and scope of LRT implementation
• Complexity/profitability of real estate deal
• Driving decisions among all parties

32
Strategies for Success

• Public support
• Terrific political leadership
• Prior planning - design, land use plans
• Integrated, interagency project management -
  virtual organization
• Real partnering - financial stake, financial risk
  increase motivation

33
(No Transcript)
34
Lessons learned

• Solve a widely understood problem
• Pick good partners
• Move fast

35
(No Transcript)
36
Hiawatha Light Rail Project
19th Transportation Construction Roundtable

• Minneapolis, MN
• October 20-22, 2002

37
Project Summary

• 11.6 miles with 17 stations. Connects downtown
  Minneapolis, Minneapolis/St. Paul International
  Airport and the Mall of America
• 675.4 million (2002 dollars)
• Design/Build delivery
• Full revenue service to begin late 2004

38
(No Transcript)
39
Project Status

• Ground was broken January 17, 2001
• Bombardier-built vehicles are now in production
  with delivery of the first vehicle scheduled for
  early 2003
• Overall design/build project completion is more
  than 55 Oct. 2002

40
Funding Summary

• Federal Transit Administration 334.3 m
• State of Minnesota 100.0 m
• Metropolitan Airports Commission 87.0 m
• Hennepin County Regional Rail Authority 84.2 m
• Congestion Mitigation Air Quality Grant 49.8
  m
• MnDot 20.1 m
• Total 675.4 m

41
Project Details

• Ridership Projections
• 19,300 per day in 2004
• 24,800 per day by 2020
• Park Ride Locations
• 900 spaces near Fort Snelling Station
• 200 spaces at Mall of America
• Airport tunnel
• Two tunnels, 1.4 miles in length (north
  southbound)
• Yard Shop 26.5 acres including Metro Transit
  LRT Operations Maintenance Facility

42
Vehicle Details

• Bombardier Light Rail Vehicles
• 22 to 26 cars, 94 long low-floor, ADA compliant
• 66 seats per vehicle, maximum capacity 187
  passengers
• Equipped with luggage racks and bicycle storage
  hangers
• Power is 750 V DC
• Top speed is 55 miles per hour, average is 35
  MPH. Slower speed in downtown

43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
