Distributed Systems

1

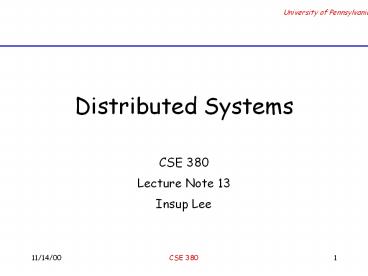

Distributed Systems

• CSE 380
• Lecture Note 13
• Insup Lee

2
Introduction to Distributed Systems

• Why do we develop distributed systems?
• availability of powerful yet cheap
  microprocessors (PCs, workstations), continuing
  advances in communication technology,
• What is a distributed system?
• A distributed system is a collection of
  independent computers that appear to the users of
  the system as a single system.
• Examples
• Network of workstations
• Distributed manufacturing system (e.g., automated
  assembly line)
• Network of branch office computers

3
Advantages of Distributed Systems over
Centralized Systems

• Economics a collection of microprocessors offer
  a better price/performance than mainframes. Low
  price/performance ratio cost effective way to
  increase computing power.
• Speed a distributed system may have more total
  computing power than a mainframe. Ex. 10,000 CPU
  chips, each running at 50 MIPS. Not possible to
  build 500,000 MIPS single processor since it
  would require 0.002 nsec instruction cycle.
  Enhanced performance through load distributing.
• Inherent distribution Some applications are
  inherently distributed. Ex. a supermarket chain.
• Reliability If one machine crashes, the system
  as a whole can still survive. Higher availability
  and improved reliability.
• Incremental growth Computing power can be added
  in small increments. Modular expandability
• Another deriving force the existence of large
  number of personal computers, the need for people
  to collaborate and share information.

4
Advantages of Distributed Systems over
Independent PCs

• Data sharing allow many users to access to a
  common data base
• Resource Sharing expensive peripherals like
  color printers
• Communication enhance human-to-human
  communication, e.g., email, chat
• Flexibility spread the workload over the
  available machines

5
Disadvantages of Distributed Systems

• Software difficult to develop software for
  distributed systems
• Network saturation, lossy transmissions
• Security easy access also applies to secrete
  data

6
Hardware Concepts

• Taxonomy (Fig. 9-4)
• MIMD (Multiple-Instruction Multiple-Data)
• Tightly Coupled versus Loosely Coupled
• Tightly coupled systems (multiprocessors)
• shared memory
• intermachine delay short, data rate high
• Loosely coupled systems (multicomputers)
• private memory
• intermachine delay long, data rate low

7
Bus versus Switched MIMD

• Bus a single network, backplane, bus, cable or
  other medium that connects all machines. E.g.,
  cable TV
• Switched individual wires from machine to
  machine, with many different wiring patterns in
  use.
• Multiprocessors (shared memory)
• Bus
• Switched
• Multicomputers (private memory)
• Bus
• Switched

8
Bus-based Multiprocessors

• Bus-based multiprocessors (Fig. 9-5)
• cache memory
• hit rate
• cache coherence
• write-through cache propagate write immediately
• snoopy cache monitor when its entry becomes
  obsolete

9
Switched Multiprocessors

• Switched Multiprocessors (Fig. 9-6)
• for connecting large number (say over 64) of
  processors
• crossbar switch n2 switch points
• omega network 2x2 switches for n CPUs and n
  memories, log n switching stages, each with n/2
  switches,
• total (n log n)/2 switches
• delay problem E.g., n1024, 10 switching stages
  from CPU to memory. a total of 20 switching
  stages. 100 MIPS 10 nsec instruction execution
  time need 0.5 nsec switching time
• NUMA (Non-Uniform Memory Access) placement of
  program and data
• building a large, tightly-coupled, shared memory
  multiprocessor is possible, but is difficult and
  expensive

10
Multicomputers

• Bus-Based Multicomputers (Fig. 9-7)
• easy to build
• communication volume much smaller
• relatively slow speed LAN (10-100 MIPS, compared
  to 300 MIPS and up for a backplane bus)
• Switched Multicomputers (Fig. 9-8)
• interconnection networks E.g., grid, hypercube
• hypercube n-dimensional cube

11
Software Concepts

• Software more important for users
• Three types
• Network Operating Systems
• (True) Distributed Systems
• Multiprocessor Time Sharing

12
Network Operating Systems

• loosely-coupled software on loosely-coupled
  hardware
• A network of workstations connected by LAN
• each machine has a high degree of autonomy
• rlogin machine
• rcp machine1file1 machine2file2
• Files servers client and server model
• Clients mount directories on file servers
• Best known network OS
• Suns NFS (network file servers) for shared file
  systems (Fig. 9-11)
• a few system-wide requirements format and
  meaning of all the messages exchanged

13
NFS

• NFS Architecture
• Server exports directories
• Clients mount exported directories
• NSF Protocols
• For handling mounting
• For read/write no open/close, stateless
• NSF Implementation

14
(True) Distributed Systems

• tightly-coupled software on loosely-coupled
  hardware
• provide a single-system image or a virtual
  uniprocessor
• a single, global interprocess communication
  mechanism, process management, file system the
  same system call interface everywhere
• Ideal definition
• A distributed system runs on a collection of
  computers that do not have shared memory, yet
  looks like a single computer to its users.

15
Multiprocessor Operating Systems

• (Fig. 9-12)
• Tightly-coupled software on tightly-coupled
  hardware
• Examples high-performance servers
• shared memory
• single run queue
• traditional file system as on a single-processor
  system central block cache
• Fig. 9-13 for comparisons

16
Design Issues of Distributed Systems

• Transparency
• Flexibility
• Reliability
• Performance
• Scalability

17
1. Transparency

• How to achieve the single-system image, i.e., how
  to make a collection of computers appear as a
  single computer.
• Hiding all the distribution from the users as
  well as the application programs can be achieved
  at two levels
• hide the distribution from users
• at a lower level, make the system look
  transparent to programs.
• 1) and 2) requires uniform interfaces such as
  access to files, communication.

18
Types of transparency

• Location Transparency users cannot tell where
  hardware and software resources such as CPUs,
  printers, files, data bases are located.
• Migration Transparency resources must be free to
  move from one location to another without their
  names changed.E.g., /usr/lee, /central/usr/lee
• Replication Transparency OS can make additional
  copies of files and resources without users
  noticing.
• Concurrency Transparency The users are not
  aware of the existence of other users. Need to
  allow multiple users to concurrently access the
  same resource. Lock and unlock for mutual
  exclusion.
• Parallelism Transparency Automatic use of
  parallelism without having to program explicitly.
  The holy grail for distributed and parallel
  system designers.
• Users do not always want complete transparency a
  fancy printer 1000 miles away

19
2. Flexibility

• Make it easier to change
• Monolithic Kernel systems calls are trapped and
  executed by the kernel. All system calls are
  served by the kernel, e.g., UNIX.
• Microkernel provides minimal services. (Fig
  9-15)1) IPC 2) some memory management 3) some
  low-level process management and scheduling 4)
  low-level i/oE.g., Mach can support multiple
  file systems, multiple system interfaces.

20
3. Reliability

• Distributed system should be more reliable than
  single system. Example 3 machines with .95
  probability of being up. 1-.053 probability of
  being up.
• Availability fraction of time the system is
  usable. Redundancy improves it.
• Need to maintain consistency
• Need to be secure
• Fault tolerance need to mask failures, recover
  from errors.

21
4. Performance

• Without gain on this, why bother with distributed
  systems.
• Performance loss due to communication delays
• fine-grain parallelism high degree of
  interaction
• coarse-grain parallelism
• Performance loss due to making the system fault
  tolerant.

22
5. Scalability

• Systems grow with time or become obsolete.
  Techniques that require resources linearly in
  terms of the size of the system are not scalable.
  e.g., broadcast based query won't work for
  large distributed systems.
• Examples of bottlenecks
• Centralized components a single mail server
• Centralized tables a single URL address book
• Centralized algorithms routing based on complete
  information

23
Communication Networks

• Computers are connected through a communication
  network
• Wide Area Networks (WAN)connect computers spread
  over a wide geographic areapoint-to-point or
  store-and-forward -- data is transferred between
  computers through a series of switchesswitch --
  a special purpose computer responsible for
  routing data (to avoid network congestion)data
  can be lost due to switch crashes, communication
  link failures, limited buffers at switches,
  transmission errors, etc.

24

• Packet Switching versus Circuit Switching
• i) circuit switching -- a dedicated path
  between a source and a destination e.g.,
  telephone connection. wastes bandwidth
  (bandwidth amount of data transmitted
  in a given time period)
• ii) packet switching -- message or data is
  broken into packets packets are routed
  independently better network utilization
  disassemble and assembler overheads The ISO
  OSI Reference Model
• Local Area Networks (LAN)
