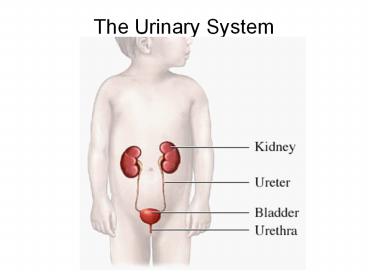

The Urinary System

1
The Urinary System
2
What does the urinary system do?

• Eliminates wastes
• Remove toxins, poisons
• Maintains homeostasis
• Regulate blood pH, electrolytes, blood pressure
  (volume), oxygen/carbon dioxide content
• Closely linked to reproductive system
• e.g. in males, urethra is transporter for both
  urine and sperm

3
What are the parts?

• Kidneys
• Ureters
• Bladder
• Recall what type of cells line the bladder?
• Urethra

4
What do the kidneys do?

• Filter plasma to remove wastes
• Detoxify free radicals and drugs
• Control blood volume/pressure
• Secrete renin
• Activates aldosterone, angiotensin to control bp
  and sodium balance

5
What do the kidneys do?

• Secretes erythropoitin
• Help lungs regulate CO2 balance and blood pH
• Gluconeogenesis during starvation
• Remove NH2 (secrete as ammoniaNH3) and make
  glucose from remainder of amino acid

6
What kinds of wastes do the kidneys remove?

• Metabolic waste metabolic processes produce
• Compare to feces (elimination)
• Nitrogenous waste
• Urea (50 of total) protein catabolism byproduct
• Liver converts ammonia (v. toxic) to urea (less
  toxic)
• Uric acids nucleic acid catabolism
• Creatinine creatinine phosphate catabolism
• Recall when does this happen and where?

7
What if the kidneys dont remove wastes?

• Azotemia nitrogenous wastes in blood
• Uremia progression of azotemia
• Vomiting, dyspnea (shortness of breath),
  arrhythmia
• Convulsions, coma, death

8
What is excretion?

• Separating wastes from body fluids and
  eliminating these wastes
• Compare to digestive elimination
• Skin water, salts, lactic acid, urea
• Lungs carbon dioxide, water
• Digestive tract water, bile, salts, cholesterol
• But eliminates unused food
• Kidneys urea, toxins, drugs, hormones, salts,
  water, H

9
What are the gross parts of the kidney?

• Renal fascia (under parietal peritoneum)
  outermost
• Then adipose capsule
• Then renal capsule innermost
• Review cortex, medullary pyramids, renal
  papilla, major calyx, minor calyx, renal columns,
  renal vein, renal artery, lobar and interlobar
  vessels, arcuate vessels, renal pelvis

10
What is the path of blood through the kidney?

• renal a., lobar a, interlobar a., arcuate a.,
  interlobular a., afferent arteriole, glomerulus,
  efferent arteriole, peritubular capillaries,
  interlobular v., arcuate v., interlobar v., lobar
  v., renal v., inf vena cava

11
What are the microscopic working units called?

• Nephron
• 1.2M in each kidney
• Two types
• Cortical (most common)
• Juxtamedullary (only 15 of all nephrons)
• Maintain salinity of renal pyramid
• Contains glomerular capsule, capillaries and
  collecting tubule
• Vasa recta

12
What is the glomerular capsule?

• AKA Bowmans capsule
• Two layers
• Parietal simple squamous
• Visceral podocytes (wrap around capillaries)
• Capsular space between two layers
• Glomerular filtrate collects here
• Capsule surrounds glomerular capillaries

13
What is the renal tubule?

• Connects to capsular space and contains
• Proximal tubule (also proximal convoluted tubule)
• Simple cuboidal with microvilli
• What does this mean?
• Nephron loop (Loop of Henle)
• Portions conserve water (thin segment), other
  parts reabsorb electrolytes (thick segment)
• Distal tubule (distal convoluted tubule)
• Juxtaglomerular apparatuswhere distal tubule
  touches afferent and efferent arterioles
• Collecting duct to papillary duct to minor calyx
  to major calyx to renal pelvis to ureter to
  bladder to urethra

14
How is urine formed?

• Glomerular filtration
• GFR how much filtrate formed per min.
• Tubular reabsorption
• Tubular secretion
• Water conservation

15
What is glomerular filtration?

• Blood plasma filtered out of glomerular
  capillaries
• High blood pressure from afferent arterioles
• Hypertension can destroy g. capillaries, cause
  scarring
• All but proteins, cells enter capsular space

16
What is glomerular filtration?

• Glomerular capillaries
• Fenestrated all but cells
• Basement membrane of epithelial cells
• Filters out large molecules
• proteins not allowed b/c of neg. charge of
  basement membrane
• Podocytes have negatively charged filtration
  slits
• Pedicels (plasma extensions wrapped around
  capillaries)
• repel large, negatively charged moleculessuch
  as?

17
What makes it into the capsular space?

• Small molecules
• Water, sodium, potassium, amino acids, glucose,
  urea (and other wastes), water-soluble vitamins
• Proteinuria if protein (albumin) in urine
• Hematuria if blood in urine
• Kidneys filter about 180 L of blood plasma/day!
• Produce about 2 L of urine/day

18
What is reabsorbed?

• Occurs in proximal tubule
• Returns substances to peritubular capillaries
• Via solvent drag and osmosis
• About 65 of all filtered
• Transcellular route
• Paracellular route
• Sodium
• Na/K pumps on basal side pump Na into ECF and
  then to peritubular caps
• Creates concentration gradient (for collecting
  duct)
• Glucose hitchhikes with Na
• Sodium-glucose transport proteins (SGLTs)

19
What is reabsorbed?

• Amino acids also hitchhikes with sodium
• Water follows sodium b/c ICF and ECF are
  hypertonic
• Aquaporins--H2O channel proteins
• ADH causes their addition in CD
• Blood is hypertonic to this, so water enters and
  carries sodium, etc. with it solvent drag
• Chloride follows positive charges
• Other electrolytes solvent drag
• 40-60 of urea reabsorbed
• Also reabsorbs almost all uric acid
• What didnt get reabsorbed?

20
What is the transport maximum?

• Limits amount can be reabsorbed
• If all transport proteins occupied, cant
  reabsorb more
• Glycosuria sugar levels too high

21
What happens in the nephron loop?

• Thin segment (descending)
• Permeable to water, but not to electrolytes
• Thick segment (ascending)
• Impermeable to water, but permeable to
  electrolytes

22
What is secreted?

• In proximal tubule and nephron loop
• secretes urea, uric acid, bile salts, ammonia
• Also penicillin, aspirin, other drugs
• Secretes hydrogen and bicarbonate ions
• In distal tubule and collecting duct
• Water reabsorption via hormonal control
  (principal cells)
• Aldosterone absorb more Na, secrete K
• ADH makes collecting duct more water permeable
• Alcohol inhibits ADH secretionresult?
• PTH
• encourages Ca2 absorption in ascending nephron
  loop
• inhibits P absorption in PCT

23
How is water conserved?

• Happens in collecting tubule w/help from
  juxtamedullary nephron loops
• In medulla, tissues surrounding reabsorb water to
  concentrate urine
• Walls water but not NaCl permeable
• See next slide!
• Medullary portion has high salt concentration
• b/c 15 of nephrons are juxtamedullary nephrons
• Very long nephron loops extend length of medulla
  and reabsorb salts into medullary tissue

24
(No Transcript)
25
Kidney regulation and diseases
26
How do the kidneys regulate urine output?

• Renal autoregulation
• If bp rose without this, too much urine made
• High bp afferent arterioles constrict
• Myogenic mechanism --gt smooth muscles constrict
• Less blood to glomerular capsule
• Or dilate efferent arterioles for faster flow
• Reverse if bp drops
• Note caffeine also causes afferent dilation

27
How do the kidneys regulate urine output?

• Juxtaglomerular apparatus
• Dilate/constrict afferent/efferent, secrete renin
  (raises bp)
• vasoconstrictor by proxy
• Macula densa monitors salinity of tubular fluid
• Sympathetic NS causes afferent constriction

28
How does renin work?

• If bp drops, juxtamedular cells secrete renin
• Splices angiotensinogen to angiotensin I
• Lung protein (angiotensin converting enzyme ACE)
  converts angiotensin I to angiotensin II causing
• Systemic vasoconstriction
• Increased tubular reabsorption (via ADH)
• Adrenal cortex to produce aldosterone
• Stimulates thirst response

29
What are properties of urine?

• Color due to urochrome
• Cloudy (pyuria) pus, possible kidney infection
• Red (hematuria) blood, poss. UTI, kidney stones,
  trauma
• Volume 1-2L/day
• Polyuria gt2L/day
• Oliguria lt500 ml/day
• Anuria 0-100 ml/day
• Kidney disease, shock, dehydration
• Also causes azotemia
• Diuretics
• Caffeine dilates afferent arterioles --gt
  ____________ GFR
• Alcohol inhibits ADH secretion --gt
  _______________

From http//www.bbc.co.uk/health/images/300/urine
30
What are renal calculi?

• Hard granule of calcium, phosphate, protein, uric
  acid
• Form in renal pelvis and can block r. pelvis or
  ureter
• passing causes painful contractions
• Causes hypercalcemia, frequent UTIs, dehydration
• lithotripsy

From http//www.medicinenet.com/images/STONES.JPG
31
What is hemodialysis?

• If renal insufficiency, need to filter blood
  mechanically
• Blood pumped from radial artery and returned via
  a vein
• Dialysis machine passes blood through
  semipermeable cellophane tube surrounded by
  dialysis fluid
• 3 sessions/week for 6-8 hrs each
• Alternative continuous ambulatory peritoneal
  dialysis

32
How is urine voided?

• AKA micturition reflex
• Detrusor muscle forms middle layer of bladder
• Thick near urethra to form internal urethral
  sphincter
• Smooth muscle, involuntary control
• External urethral sphincter where urethra passes
  through pelvic wall
• Skeletal muscle, voluntary control

33
What is the micturition reflex?

• As bladder fills, stretch receptors fire
• Parasympathetic reflex arc
• detrusor contraction
• Internal urethral sphincter relaxation
• Micturition center in pons
• Does same as parasympathetic reflex arc
• Also assesses appropriateness of urination
• Inappropriate constant nerve stimuli to external
  urethral sphincter
• Appropriate nerve stimuli inhibited
• Valsalva maneuver
