File System Basics

1

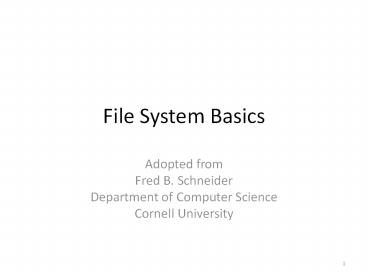

File System Basics

• Adopted from
• Fred B. Schneider
• Department of Computer Science
• Cornell University

2
Agenda

• Definition
• Position
• Responsibilities
• Design Principles
• Examples

3
Storing Information

• Applications can store it in the process address
  space
• Why is it a bad idea?
• Size is limited to size of virtual address space
• May not be sufficient for airline reservations,
  banking, etc.
• The data is lost when the application terminates
• Even when computer doesnt crash!
• Multiple process might want to access the same
  data
• Imagine a telephone directory part of one process

4
File Systems

• 3 criteria for long-term information storage
• Should be able to store very large amount of
  information
• Information must survive the processes using it
• Should provide concurrent access to multiple
  processes
• Solution
• Store information on disks in units called files
• Files are persistent, and only owner can
  explicitly delete it
• Files are managed by the OS
• File Systems How the OS manages files!

5
File System Definition

• A software component that imposes structure on
  the address space of one or more physical or
  virtual disks so that applications may deal more
  conveniently with abstract named data objects of
  variable size (files). SNIA
• A method of storing and organizing computer files
  and their data. Essentially, it organizes these
  files into a database for the storage,
  organization, manipulation, and retrieval by the
  computer's operating system. WIKI

SNIA http//www.snia.org/education/dictionary/f/
Wiki http//en.wikipedia.org/wiki/File_system

6
Storage Hierarchy
7
Abstraction Layer

• Typically, file systems are used on storage
  devices (e.g. hard drives) to maintain the
  physical locations of files.
• As an important software component of OS, a file
  system provides the OS abstraction that average
  user is most familiar with
• Files, Directories, Access controls,

8
Files

• A file is a collection of data with system
  maintained properties like
• Owner, size, name, last read/write time, etc.
• Files often have types which allow users and
  applications to recognize their intended use
• Some file types are understood by the file system
  (mount point, symbolic link, directory)
• Some file types are understood by applications
  and users (.txt, .jpg, .html, .doc, ...)

9
File Naming

• Motivation Files abstract information stored on
  disk
• You do not need to remember block, sector,
• We have human readable names
• How does it work?
• Process creates a file, and gives it a name
• Other processes can access the file by that name
• Naming conventions are OS dependent
• Usually names as long as 255 characters is
  allowed
• Digits and special characters are sometimes
  allowed
• MS-DOS and Windows are not case sensitive, UNIX
  family is

10
File Extensions

• Name divided into 2 parts, second part is the
  extension
• On UNIX, extensions are not enforced by OS
• However C compiler might insist on its extensions
• These extensions are very useful for C
• Windows attaches meaning to extensions
• Tries to associate applications to file
  extensions

11
File Attributes

• File-specific info maintained by the OS
• File size, modification date, creation time, etc.
• Varies a lot across different OSes
• Some examples
• Name only information kept in human-readable
  form
• Identifier unique tag (number) identifies file
  within file system
• Type needed for systems that support different
  types
• Location pointer to file location on device
• Size current file size
• Protection controls who can do reading,
  writing, executing
• Time, date, and user identification data for
  protection, security, and usage monitoring

12
Directories

• Directories provide a way for users to organize
  their files and a convenient way for users to
  identify and share data
• Logically directories store information like file
  name, size, modification time etc (Not always
  kept in the directory though..)
• Most file systems support hierarchical
  directories (/usr/local/bin or C\WINNT)
• People like to organize information hierarchically

13
Directories are special files

• Directories are files containing information to
  be interpreted by the file system itself
• List of files and other directories contained in
  this directory
• Some attributes of each child including where to
  find it

14
Path Name Translation

• To find file /foo/bar/baz
• Find the special root directory
• In special root directory file, look for entry
  foo and that entry will tell you where foo is
• Read special directory file foo and look for
  entry bar to tell you where bar is
• Find special directory file bar and look for
  entry baz to tell you where baz is
• Finally find baz
• FS can cache common prefixes for efficiency

15
Basic File Operations

• UNIX
• create (name)
• open (name, mode)
• read (fd)
• write(fd)
• sync(fd)
• seek(fd, pos)
• close(fd)
• unlink (name)
• rename(old,new)

16
Basic File Operations

• Windows
• CreateFile (name, CREATE)
• CreateFile (name, OPEN)
• ReadFile (handle)
• WriteFile (handle)
• FlushFileBuffers(handle)
• SetFilePointer(handle)
• CloseHandle(handl)
• DeleteFile (name)
• CopyFile (name)
• MoveFile(name)

17
Core Modules

• Data organization
• Freespace management
• Metadata management

18
Design Principles

• Data organization
• Sequentiality
• Spatial Locality

19
Unwritten Contract

• Sequential accesses are best, much better than
  non-sequential.
• An access to a block near the previous access in
  LBN space is usually considerably more efficient
  than an access to a block farther away.
• Ranges of the LBN space are interchangeable, such
  that bandwidth and positioning delays are
  affected by relative LBN addresses but not
  absolute LBN addresses.

Source MEMS-based storage devices and standard
disk interfaces A square peg in a round hole?
FAST04
20
Ext2 FS Data Layout
Source http//www.linux-tutorial.info/modules.php
?nameMContentpageid272
21
Freespace Management

• Freespace Allocation and Reclamation
• Linked list of free space
• Just put freed blocks on the end and pull blocks
  from front to allocate
• Hard to manage spatial locality
• Bitmap
• Divide all space into blocks
• Bit per block (0 free 1 allocated)
• Easy to find groups of nearby blocks
• Useful for disk recovery
• How big? If had 40 GB disk, then have 10M of 4K
  blocks is each needs 1 bit then 10M/8 1.2 MB
  for the bitmap

22
Metadata Management

• Metadata the data used to describe the data
• Superblocks, Block bitmaps, Inode bitmaps,
  Directories,
• Occupies a small amount of storage capacity
• Absorbs a large numbers of IO requests

23
File Buffer Cache

• Cache Data Read
• Exploit temporal locality of access by caching
  pathname translation information
• Exploit temporal locality of access by leaving
  recently accesses chunks of a file in memory in
  hopes that they will be accessed again
• Exploit spatial locality of access by bringing in
  large chunks of a file at once
• Data written is also cached
• For correctness should be write-through to disk
• Normally is write-behind
• FS periodically walks the buffer cache and
  flushes things older than 30 seconds to disk
• Unreliable!
• Usually LRU replacement

24
File Buffer Cache

• Typically cache is system wide (shared by all
  processes)
• Shared libraries and executables and other
  commonly accessed files likely to be in memory
  already
• Competes with virtual memory system for physical
  memory
• Processes have less memory available to them to
  store code and data (address space)
• Some systems have integrated VM/FS caches

25
Examples

• Ext2/Ext3/Ext4 (Linux)
• FAT/NTFS (Windows)
• HFS/HFS (Mac OS)
• UFS (FreeBSD)
• In development
• Btrfs snapshots, checksums, multi-disk spanning,
  optimized for SSD

26

• Disk FS
• Network FS NFS client-server
• Distributed FS Google FS
• Special-Purpose procfs /proc

27
Research Links

• File Systems and Storage Lab (FSL)
• http//www.fsl.cs.sunysb.edu/
• FiST, Tracefs, Avfs, VersionFS, I3FS, RAIF,
  UnionFS, NcryptFS,
• The ADvanced Systems Laboratory (ADSL)
• http//www.cs.wisc.edu/adsl/Publications/
• SDS, D-GRAID, IRON FS, EIO, SQCK, EnvyFS,

28
Acknowledgement

• http//www.cs.cornell.edu/Courses/cs414/2004su/sli
  des/11_fsbasics.pdf
