Title: 13.1Nuclear Reactions

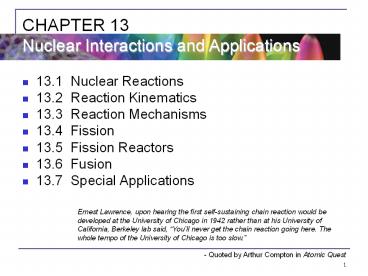

1
CHAPTER 13Nuclear Interactions and Applications
  • 13.1 Nuclear Reactions
  • 13.2 Reaction Kinematics
  • 13.3 Reaction Mechanisms
  • 13.4 Fission
  • 13.5 Fission Reactors
  • 13.6 Fusion
  • 13.7 Special Applications

Ernest Lawrence, upon hearing the first
self-sustaining chain reaction would be developed
at the University of Chicago in 1942 rather than
at his University of California, Berkeley lab
said, Youll never get the chain reaction going
here. The whole tempo of the University of
Chicago is too slow. - Quoted by Arthur Compton
in Atomic Quest
2
13.1 Nuclear Reactions
  • First nuclear reaction was a nitrogen target
    bombarded with alpha particles, which emitted
    protons. The reaction is written as
  • The first particle is the projectile and the
    second is the nitrogen target. These two nuclei
    react to form proton projectiles and the residual
    oxygen target.
  • The reaction can be rewritten in shorthand as
    14N(a, p)17O.
  • In general a reaction x X ? y Y can be
    rewritten as
  • X(x, y)Y

3
3 Important Technological Advances
  • The high-voltage multiplier circuit was developed
    in 1932 by J.D. Cockcroft and E.T.S. Walton. This
    compact circuit produces high-voltage,
    low-current pulses. High voltage is required to
    accelerate charged particles.
  • The Van de Graaff electrostatic accelerator was
    developed in 1931. It produces a high voltage
    from the friction between two different materials.

3) The first cyclotron (at left) was built in
1932. It accelerated charged particles using
large circular magnets.
4
Types of Reactions
  • Nuclear photodisintegration is the initiation of
    a nuclear reaction by a photon.
  • Neutron or proton radioactive capture occurs when
    the nucleon is absorbed by the target nucleus,
    with energy and momentum conserved by gamma ray
    emission.
  • The projectile and the target are said to be in
    the entrance channel of a nuclear reaction. The
    reaction products are in the exit channel.
  • In elastic scattering, the entrance and exit
    channels are identical and the particles in the
    exit channels are not in excited states.
  • In inelastic scattering, the entrance and exit
    channels are also identical but one or more of
    the reaction products is left in an excited
    state.
  • The reaction product need not always be in the
    exit channel.

5
Cross Sections
  • The probability of a particular nuclear reaction
    occurring is determined by measuring the cross
    section s. It is determined by measuring the
    number of particles produced in a given nuclear
    reaction.
  • The number of target nuclei is
  • The probability of the particle being scattered
    is
  • The cross section is the number of detected
    particles as a function of the incoming
    particles. At different scattering angles, they
    are differential cross sections.
  • Integrating over the whole range of scattering
    angles yields the total cross sections

6
13.2 Reaction Kinematics
  • Consider the reaction x X ? y Y. For a
    target X at rest, conservation of energy is
  • Rearranging this by separating mass from energy
    yields a quantity similar to the disintegration
    energy
  • The difference between the final and initial
    kinetic energies is the difference between the
    initial and final mass energies. This is called
    the Q value.
  • The energy released when Q gt 0 is from an
    exoergic (or exothermic) reaction. When Q lt 0,
    kinetic energy is converted to mass energy in an
    endoergic (or endothermic) reaction. Collisions
    in this reaction are inelastic. Elastic
    collisions have Q 0.
  • Threshold energy for an endoergic reaction

7
13.3 Reaction Mechanisms
  • The Compound Nucleus
  • For low energies of E lt 10 MeV, the Coulomb force
    dominates the reaction. This is described by the
    compound nucleus.
  • The compound nucleus is a composite of the
    projectile and target nuclei, usually in a high
    state of excitation.
  • The kinetic energy available in the center of
    mass frame
  • can excite the compound nucleus to even higher
    excitation energies than that from just the
    masses.
  • Once formed, the compound nucleus may exist for a
    relatively long time compared to the time taken
    by the bombarding particle to cross the nucleus.
    This latter time is sometimes referred to as the
    nuclear time scale tN.
  • When the compound nucleus finally does decay from
    its highly excited state, it decays into all the
    possible exit channels according to statistical
    rules consistent with the conservation laws.

8
Resonances
  • Nuclear physicists study nuclear excited states
    by varying the projectile bombarding energy Kx
    and measuring the cross section at each energy,
    generally at fixed angles for the outgoing
    particles. This is called an excitation function.
  • Sharp peaks in the excitation function of the
    reacting particles are called resonances, and
    they represent a quantum state of the compound
    nucleus being formed.
  • The uncertainty principle may be used to relate
    the energy width of a particular nuclear state
    (called G) to its lifetime (called t)

9
Resonances
  • Because neutrons have zero net charge, they
    interact more easily with nuclei at low energies
    than do charged particles, because of the Coulomb
    barrier. This process is called neutron
    activation and the reaction is called neutron
    radioactive transfer.
  • The average neutron capture cross section (at
    energies up to about 100 keV) varies empirically
    as 1/v, where v is the neutrons velocity. The
    1/v dependence can be explained in terms of the
    time the neutron spends near the nucleus.

10
Direct Reactions
  • For large bombarding energies, the bombarding
    particle spends less time within the range of the
    nuclear force. Stripping one or more nucleons off
    the projectile or picking up one or more nucleons
    from the target becomes more probable.
  • The projectile could also knock out energetic
    nucleons from the target nucleus.
  • These are called direct reactions.
  • The chief advantage of direct reactions is that
    the final residual nucleus may be left in any one
    of many low-lying excited states. By using
    different direct reactions, the nuclear excited
    states can be studied in a variety of ways to
    learn more about nuclear structure.

11
13.4 Fission
  • In fission a nucleus separates into two fission
    fragments. As we will show, one fragment is
    typically somewhat larger than the other.
  • Fission occurs for heavy nuclei because of the
    increased Coulomb forces between the protons.
  • We can understand fission by using the
    semi-empirical mass formula based on the liquid
    drop model. For a spherical nucleus of with mass
    number A 240, the attractive short-range
    nuclear forces offset the Coulomb repulsive term.
    As a nucleus becomes nonspherical, the surface
    energy is increased, and the effect of the
    short-range nuclear interactions is reduced.
  • Nucleons on the surface are not surrounded by
    other nucleons, and the unsaturated nuclear force
    reduces the overall nuclear attraction. For a
    certain deformation, a critical energy is
    reached, and the fission barrier is overcome.
  • Spontaneous fission can occur for nuclei with

12
Induced Fission
  • Fission may also be induced by a nuclear
    reaction. A neutron absorbed by a heavy nucleus
    forms a highly excited compound nucleus that may
    quickly fission.
  • An induced fission example is
  • The fission products have a ratio of N/Z much too
    high to be stable for their A value.
  • There are many possibilities for the Z and A of
    the fission products.
  • Symmetric fission (products with equal Z) is
    possible, but the most probable fission is
    asymmetric (one mass larger than the other).

13
Thermal Neutron Fission
  • Fission fragments are highly unstable because
    they are so neutron rich.
  • Prompt neutrons are emitted simultaneously with
    the fissioning process. Even after prompt
    neutrons are released, the fission fragments
    undergo beta decay, releasing more energy.
  • Most of the 200 MeV released in fission goes to
    the kinetic energy of the fission products, but
    the neutrons, beta particles, neutrinos, and
    gamma rays typically carry away 3040 MeV of the
    kinetic energy.

14
Chain Reactions
  • Because several neutrons are produced in fission,
    these neutrons may subsequently produce other
    fissions. This is the basis of the
    self-sustaining chain reaction.
  • If slightly more than one neutron, on the
    average, results in another fission, the chain
    reaction becomes critical.
  • A sufficient amount of mass is required for a
    neutron to be absorbed, called the critical mass.
  • If less than one neutron, on the average,
    produces another fission, the reaction is
    subcritical.
  • If more than one neutron, on the average,
    produces another fission, the reaction is
    supercritical.
  • An atomic bomb is an extreme example of a
    supercritical fission chain reaction.

15
Chain Reactions
  • A critical-mass fission reaction can be
    controlled by absorbing neutrons. A
    self-sustaining controlled fission process
    requires that not all the neutrons are prompt.
    Some of the neutrons are delayed by several
    seconds and are emitted by daughter nuclides.
    These delayed neutrons allow the control of the
    nuclear reactor.
  • Control rods regulate the absorption of neutrons
    to sustain a controlled reaction.

16
13.5 Fission Reactors
  • Several components are important for a controlled
    nuclear reactor
  • Fissionable fuel
  • Moderator to slow down neutrons
  • Control rods for safety and to control
    criticality of reactor
  • Reflector to surround moderator and fuel in order
    to contain neutrons and thereby improve
    efficiency
  • Reactor vessel and radiation shield
  • Energy transfer systems if commercial power is
    desired
  • Two main effects can poison reactors (1)
    neutrons may be absorbed without producing
    fission for example, by neutron radiative
    capture, and (2) neutrons may escape from the
    fuel zone.

17
Core Components
  • Fission neutrons typically have 12 MeV of
    kinetic energy, and because the fission cross
    section increases as 1/v at low energies, slowing
    down the neutrons helps to increase the chance of
    producing another fission. A moderator is used to
    elastically scatter the high-energy neutrons and
    thus reduce their energies. A neutron loses the
    most energy in a single collision with a light
    stationary particle. Hydrogen (in water), carbon
    (graphite), and beryllium are all good
    moderators.
  • The simplest method to reduce the loss of
    neutrons escaping from the fissionable fuel is to
    make the fuel zone larger. The fuel elements are
    normally placed in regular arrays within the
    moderator.

18
Core Components
  • The delayed neutrons produced in fission allow
    the mechanical movement of the rods to control
    the fission reaction. A fail-safe system
    automatically drops the control rods into the
    reactor in an emergency shutdown.
  • If the fuel and moderator are surrounded by a
    material with a very low neutron capture cross
    section, there is a reasonable chance that after
    one or even many scatterings, the neutron will be
    backscattered or reflected back into the fuel
    area. Water is often used both as moderator and
    reflector.

19
Energy Transfer
  • The most common method is to pass hot water
    heated by the reactor through some form of heat
    exchanger.
  • In boiling water reactors (BWRs) the moderating
    water turns into steam, which drives a turbine
    producing electricity.
  • In pressurized water reactors (PWRs) the
    moderating water is under high pressure and
    circulates from the reactor to an external heat
    exchanger where it produces steam, which drives a
    turbine.
  • Boiling water reactors are inherently simpler
    than pressurized water reactors. However, the
    possibility that the steam driving the turbine
    may become radioactive is greater with the BWR.
    The two-step process of the PWR helps to isolate
    the power generation system from possible
    radioactive contamination.

20
Types of Reactors
  • Power reactors produce commercial electricity.
  • Research reactors are operated to produce high
    neutron fluxes for neutron-scattering
    experiments.
  • Heat production reactors supply heat in some cold
    countries.
  • Some reactors are designed to produce
    radioisotopes.
  • Several training reactors are located on college
    campuses.

21
Nuclear Reactor Problems
  • The danger of a serious accident in which
    radioactive elements are released into the
    atmosphere or groundwater is of great concern to
    the general public.
  • Thermal pollution both in the atmosphere and in
    lakes and rivers used for cooling may be a
    significant ecological problem.
  • A more serious problem is the safe disposal of
    the radioactive wastes produced in the fissioning
    process, because some fission fragments have a
    half-life of thousands of years.
  • Two widely publicized accidents at nuclear
    reactor facilitiesone at Three Mile Island in
    Pennsylvania in 1979, the other at Chernobyl in
    Ukraine in 1986have significantly dampened the
    general publics support for nuclear reactors.
  • Large expansion of nuclear power can succeed only
    if four critical problems are overcome lower
    costs, improved safety, better nuclear waste
    management, and lower proliferation risk.

22
Breeder Reactors
  • A more advanced kind of reactor is the breeder
    reactor, which produces more fissionable fuel
    than it consumes.
  • The chain reaction is
  • The plutonium is easily separated from uranium by
    chemical means.
  • Fast breeder reactors have been built that
    convert 238U to 239Pu. The reactors are designed
    to use fast neutrons.
  • Breeder reactors hold the promise of providing an
    almost unlimited supply of fissionable material.
  • One of the downsides of such reactors is that
    plutonium is highly toxic, and there is concern
    about its use in unauthorized weapons production.

23
13.6 Fusion
  • If two light nuclei fuse together, they also form
    a nucleus with a larger binding energy per
    nucleon and energy is released. This reaction is
    called nuclear fusion.
  • The most energy is released if two isotopes of
    hydrogen fuse together in the reaction.

24
Formation of Elements
  • The proton-proton chain includes a series of
    reactions that eventually converts four protons
    into an alpha particle.
  • As stars form due to gravitational attraction of
    interstellar matter, the heat produced by the
    attraction is enough to cause protons to overcome
    their Coulomb repulsion and fuse by the following
    reaction
  • The deuterons are then able to combine with 1H to
    produce 3He
  • The 3He atoms can then combine to produce 4He

25
Formation of Elements
  • As the reaction proceeds, however, the
    temperature increases, and eventually 12C nuclei
    are formed by a process that converts three 4He
    into 12C.
  • Another cycle due to carbon is also able to
    produce 4He. The series of reactions responsible
    for the carbon or CNO cycle are
  • Proton-proton and CNO cycles are the only nuclear
    reactions that can supply the energy in stars.

26
Hydrostatic Equilibrium
  • A hydrostatic equilibrium exists in the sun
    between the gravitational attraction tending to
    contract a star and a gas pressure pushing out
    due to all the particles.
  • As the lighter nuclides are burned up to
    produce the heavier nuclides, the gravitational
    attraction succeeds in contracting the stars
    mass into a smaller volume and the temperature
    increases. A higher temperature allows the
    nuclides with higher Z to fuse.
  • This process continues in a star until a large
    part of the stars mass is converted to iron. The
    star then collapses under its own gravitational
    attraction to become, depending on its mass, a
    white dwarf star, neutron star, or black hole. It
    may even undergo a supernova explosion.

27
Nuclear Fusion on Earth
  • Among the several possible fusion reactions,
    three of the simplest involve the three isotopes
    of hydrogen.
  • Three main conditions are necessary for
    controlled nuclear fusion
  • The temperature must be hot enough to allow the
    ions, for example, deuterium and tritium, to
    overcome the Coulomb barrier and fuse their
    nuclei together. This requires a temperature of
    100200 million K.
  • The ions have to be confined together in close
    proximity to allow the ions to fuse. A suitable
    ion density is 23 1020 ions/m3.
  • The ions must be held together in close proximity
    at high temperature long enough to avoid plasma
    cooling. A suitable time is 12 s.

28
Fusion Product
  • The product of the plasma density n and the
    containment time t must have a minimum value at a
    sufficiently high temperature in order to
    initiate fusion and produce as much energy as it
    consumes. The minimum value is
  • This relation is called the Lawson criterion
    after the British physicist J. D. Lawson who
    first derived it in 1957. A triple product of ntT
    called the fusion product is sometimes used
    (where T is the ion temperature).
  • The factor Q is used to represent the ratio of
    the power produced in the fusion reaction to the
    power required to produce the fusion (heat). This
    Q factor is not to be confused with the Q value.
  • The breakeven point is Q 1, and ignition occurs
    for Q gtgt 1. For controlled fusion produced in the
    laboratory, temperatures on the order of 20 keV
    are satisfactory.

29
Controlled Thermonuclear Reactions
  • Because of the large amount of energy produced
    and the relatively small Coulomb barrier, the
    first fusion reaction will most likely be the D
    T reaction. The tritium will be derived from two
    possible reactions
  • The problem of controlled fusion involves
    significant scientific and engineering
    difficulties. The two major schemes to control
    thermonuclear reactions are magnetic confinement
    fusion (MCF) and inertial confinement fusion
    (ICF).
  • Magnetic confinement of plasma is done in a
    tokomak, which has many confinement boundaries.
  • Heating of the plasma to sufficiently high
    temperatures begins with the resistive heating
    from the electric current flowing in the plasma.
    There are two other schemes to add additional
    heat (1) injection of high-energy (40120 keV)
    neutral (so they pass through the magnetic field)
    fuel atoms that interact with the plasma, and (2)
    radio-frequency (RF) induction heating of the
    plasma (similar to a microwave oven).

30
Inertial Confinement
  • The concept of inertial confinement fusion is to
    use an intense high-powered beam of heavy ions or
    light (laser) called a driver to implode a
    pea-sized target (a few mm in diameter) composed
    of D T to a density and temperature high enough
    to cause fusion ignition.
  • The National Ignition Facility at Livermore will
    use 192 lasers to create a thermonuclear burn for
    research purposes.
  • Sandia National Laboratories has used a device
    called a Z-pinch that uses a huge jolt of current
    to create a powerful magnetic field that squeezes
    ions into implosion and heats the plasma. Sandia
    has proposed an upgrade that may be a serious
    contender in the fusion race.

31
13.7 Special Applications
  • A specific isotope of a radioactive element is
    called a radioisotope.
  • Radioisotopes are produced for useful purposes by
    different methods
  • By particle accelerators as reaction products
  • In nuclear reactors as fission fragments or decay
    products
  • In nuclear reactors using neutron activation
  • An important area of applications is the search
    for a very small concentration of a particular
    element, called a trace element.
  • Trace elements are used in detecting minute
    quantities of trace elements for forensic science
    and environmental purposes.

32
Medicine
  • Over 1100 radioisotopes are available for
    clinical use.
  • Radioisotopes are used in tomography, a technique
    for displaying images of practically any part of
    the body to look for abnormal physical shapes or
    for testing functional characteristics of organs.
    By using detectors (either surrounding the body
    or rotating around the body) together with
    computers, three-dimensional images of the body
    can be obtained.
  • They use single-photon emission computed
    tomography, positron emission tomography, and
    magnetic resonance imaging.

33
Archaeology
  • Investigators can now measure a large number of
    trace elements in many ancient specimens and then
    compare the results with the concentrations of
    components having the same origin.
  • Radioactive dating indicates that humans had a
    settlement near Clovis, New Mexico 12,000 years
    ago. Several claims have surfaced in the past few
    years, especially from South America, that
    dispute this earliest finding, but no conclusive
    proof has been confirmed.
  • The Chauvet Cave, discovered in France in 1995,
    is one of the most important archaeological finds
    in decades. More than 300 paintings and
    engravings and many traces of human activity,
    including hearths, fiintstones, and footprints,
    were found. These works are believed, from 14C
    radioactive dating, to be from the Paleolithic
    era, some 32,000 years ago.

34
Art
  • Neutron activation is a nondestructive technique
    that is becoming more widely used to examine oil
    paintings. A thermal neutron beam from a nuclear
    reactor is spread broadly and evenly over the
    painting. Several elements within the painting
    become radioactive. X-ray films sensitive to beta
    emissions from the radioactive nuclei are
    subsequently placed next to the painting for
    varying lengths of time. This method is called an
    autoradiograph.
  • It was used to examine Van Dycks Saint Rosalie
    Interceding for the Plague-Stricken of Palermo,
    from the New York Metropolitan Museum of Art
    collection and revealed an over-painted
    self-portrait of Van Dyck himself.

35
Crime Detection
  • The examination of gunshots by measuring trace
    amounts of barium and antimony from the gunpowder
    has proven to be 100 to 1000 times more sensitive
    than looking for the residue itself.
  • Scientists are also able to detect toxic elements
    in hair by neutron activation analysis.

36
Mining and Oil
  • Geologists and petroleum engineers use
    radioactive sources routinely to search for oil
    and gas. A source and detector are inserted down
    an exploratory drill hole to examine the material
    at different depths. Neutron sources called PuBe
    (plutonium and beryllium) or AmBe (americium and
    beryllium) are particularly useful.
  • The neutrons activate nuclei in the material
    surrounding the borehole, and these nuclei
    produce gamma decays characteristic of the
    particular element.

37
Materials
  • Natural silicon consists of 3.1 of the isotope
    30Si, which undergoes the reaction
  • Phosphorus-doped silicon can be produced with
    fast-neutron irradiation. Apparently the neutrons
    reduce the intrinsic resistivity in the silicon
    substrate so that the extraneous ionization
    caused later is much less likely to reset a bit.
  • Neutrons are particularly useful because they
    have no charge and do not ionize the material, as
    do charged particles and photons. They penetrate
    matter easily and introduce uniform lattice
    distortions or impurities. Because they have a
    magnetic dipole moment, neutrons can probe bulk
    magnetization and spin phenomena.

38
Small Power Systems
  • Alpha-emitting radioactive sources have been used
    as power sources in heart pacemakers.
  • Smoke detectors use 241Am sources of alpha
    particles as current generators. The scattering
    of the alpha particles by the smoke particles
    reduces the current flowing to a sensitive
    solid-state device, which results in an alarm.
  • Spacecraft have been powered by radioisotope
    generators (RTGs) since the early 1960s.

39
New Elements
  • No transuranic elementsthose with atomic number
    greater than Z 92 (uranium)are found in
    nature because of their short half-lives.
  • Reactors and especially accelerators have been
    able to produce 22 of these new elements up to Z
    116.
  • Over 150 new isotopes heavier than uranium have
    been discovered.
  • Physicists have reasons to suspect from shell
    model calculations that superheavy elements with
    atomic numbers of 110120 and 184 neutrons may be
    particularly long-lived.
Write a Comment
User Comments (0)
About PowerShow.com
