Title: Enantiomers


1

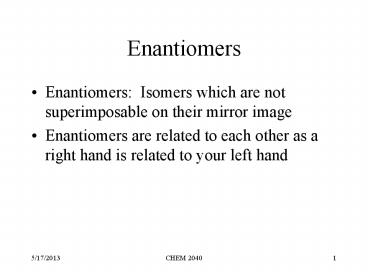

Enantiomers
  • Enantiomers Isomers which are not
    superimposable on their mirror image
  • Enantiomers are related to each other as a right
    hand is related to your left hand

2
Enantiomers (cont.)
  • Enantiomers usually (but not always) result when
    a tetrahedral carbon atom has four different
    substituents around it (e.g. CHXYZ) in which
    X,Y, and Z constitute different substituents

3
Chirality
  • Isomers that exist in two enantiomeric forms are
    said to be chiral (comes from the Greek work
    hand)
  • Compounds that are chiral lack a plane of
    symmetry (i.e., one half of the molecule is not a
    mirror image of the other half)

4
Chirality (cont.)
  • A molecule that has a plane of symmetry in the
    molecule is said to be achiral (not chiral)
  • A carbon atom that has four different
    substituents attached to it called a chiral
    carbon. Also known as a chiral center ,
    stereogenic center, or an asymmetric center

5
Sequence Rules for Specifying Configuration
  • Configurations for optically active isomers are
    assigned either an R (rectus) or an S (sinister)

6
Sequence Rules for Assigning R, S Configuration
  • Priority is given to the substituent atom
    directly attached to the chiral carbon which has
    the highest atomic number.

7
Sequence Rules (cont.)
  • Double or triple bonds are treated as if they had
    duplicate or triplicate single bonds
  • Once priority is assigned, then stereochemical
    configuration (R or S) can be assigned.

8
Sequence Rules (cont.)
  • If a decision cannot be reached based on the
    above rule then second atoms of each substituent
    are compared, continuing on if necessary until an
    atom of higher atomic number is reached

9
Assigning R and S Configuration
  • When assigning R,S configuration, use the
    steering wheel approach
  • The lowest priority group is placed in the rear
    of the molecule. This should act like a
    steering wheel column
  • The remaining groups are placed in a manner that
    they serve as spokes on the wheel.

10
Assigning R and S Configuration(cont.)
  • Count the substituents by decreasing priority
    (decreasing rank). If the decrease occurs in a
    clockwise direction (to the right, as in the hand
    of a clock), then the configuration is assigned a
    R, if the decrease occurs in a counterclockwise
    direction, then the configuration is assigned an S

11
Assigning R and S configuration (cont.)
  • Important note The R and S configuration and
    the sign of rotation () or (-) are not related
    to each other

12
Optical Activity
  • A substance is considered to be optically active
    when it can rotate plane-polarized light
  • Plane-polarized light is obtained when ordinary
    light, which consists of radiation oscillating in
    an infinite number of planes, passes through a
    device called a polarizer, in which light that
    oscillates through a single plane passes through

13
Optical Activity (cont.)
  • Optically active molecules can rotate
    plane-polarized light to the right
    (dextrorotatory) or to the left (levorotatory)
  • Rotation to the right is given a () sign,
    whereas rotation to the left is given a (-) sign

14
Optical Activity (cont.)
  • Optical activity is measured by a device called a
    polarimeter
  • A polarimeter consists of the following 1) a
    light source, usually a sodium lamp 2) a sample
    cell 3) a polarizer, in order to convert ordinary
    light into polarized light and 4) an analyzer

15
Specific Rotation
  • Optical activity can be measured quantitatively
    by using a parameter called specific rotation
    (aD)
  • Specific rotation is measured based on the
    relationship of the cell pathlength (measured in
    dm), concentration (g/mL) and the optical
    rotation of the compound

16
Racemic Mixtures
  • A racemic mixture ( or a racemate) is a mixture
    that contains a equal amount of two enantiomers.
    Given the symbol ()
  • A racemic mixture is considered to be optically
    inactive because the specific rotation of the two
    enantiomers will cancel out each other

17
Optical purity
  • The ratio of its rotation to the rotation of a
    pure enantiomer

18
Enantiomeric excess
  • The excess of one enantiomer in a mixture of
    enantiomers expressed as a percentage of the
    mixture
  • E.e. excess of one over the other/mixture x 100

19
Racemic Mixtures Resolution (cont.)
  • The diastereomers can be separated by ordinary
    physical methods (why?), and then each can be
    converted to the enantiomers that originated from
    the racemic mixture

20
Fischer projections
  • Fischer projections are the standard means of
    depicting projections at chiral centers
  • Fischer projections by sets of horizontal and
    vertical lines. Horizontal lines indicate that
    the groups are pointed towards the plane, whereas
    vertical lines indicate groups that are pointed
    away from the plane

21
Fischer projections (cont.)
  • In testing to determine whether two Fischer
    projections are identical or enantiomers, either
    one of the two motions are allowed
  • Rotating the entire molecule by 180o

22
Fischer projections (cont.)
  • A Fischer projection can have one group held
    steady, while rotating the other three clockwise
    or counterclockwise
  • After performing either one of these motions with
    the molecule, the final projection is compared
    with the previous projection in order to
    determine whether the projection formulas are
    identical or enantiomers

23
Assigning R,S Configurations to Fischer
projections
  • The rules for assigning R and S configurations
    for Fischer projections are similar to those of
    previous stereoisomers
  • Assign priorities to each functional group
    attached to the chiral carbon
  • Orient the molecule such that the lowest priority
    group is in the rear of the molecule. This will
    place that group on top

24
Assigning R,S conventions to Fischer projections
(cont.)
  • Assign the R or S configuration based on the
    direction of rotation of the remaining three
    groups

25
Enantiomers Diastereomers
  • Recall that enantiomers are optically active
    compounds which are superimposable mirror images
    of each other
  • Enantiomers have the same identical physical
    properties and chemical reactivities. They
    differ only in the direction they rotate
    plane-polarized light and configuration on the
    chiral carbon

26
Enantiomers Diastereomers (cont.)
  • Keep in mind that the mirror image of a clockwise
    rotation is a counterclockwise rotation (Hint
    try twirling your finger in a clockwise direction
    in the mirror, and see which direction the mirror
    image moves. Also, the mirror image of a R
    configuration on that chiral carbon is a S
    configuration

27
Diasteromers
  • Diastereomers are optical isomers which are not
    mirror images of each other
  • Chiral carbons have opposite configurations at
    some chiral carbons, but have same configuration
    at some others. Enantiomers, on the other hand
    have opposite configuration at all chiral carbons

28
Diastereomers
  • Diastereomers have different physical properties
    and similar (but not identical) chemical
    properties.
  • In terms of specific rotation, they can same or
    different signs or different magnitudes, whereas
    enantiomers have the same magnitude, but
    different signs

29
Molecules with multiple chiral centers
  • A molecule with n chiral centers can have a
    maximum of 2n stereoisomers. For instance, a
    molecule that has 3 chiral centers can have a
    maximum of 23 or 8 possible stereoisomers

30
Meso Compounds
  • Meso compounds are stereoisomers in which a plane
    of symmetry exists within the molecule itself,
    even though the molecule can have one or more
    chiral carbons.
  • They are considered to be achiral and optically
    inactive.

31
Resolution
  • Since enantiomers have identical chemical and
    physical properties, one cannot separate a
    racemic mixture by ordinary physical methods but
    instead, must be done by resolution
  • Resolution is based on the concept of reacting an
    optically active (e.g. chiral) reagent with the
    racemic mixture.

32
Resolution (cont.)
  • A racemic mixture of chiral acids can be
    separated by using an optically pure chiral base,
    whereas a racemic mixture of chiral bases can be
    separated by using an optically pure chiral acid.
    In both cases, a mixture of diastereomeric salts
    is formed, which can be separated physically and
    converted to the original enantiomer

33
Resolution (cont.)
  • Optically active compounds can be obtained from
    natural sources, since most living organisms can
    usually produce one enantiomer in a pair.

34
Chirality and Nature
  • Enantiomers can have different biological
    properties. In many cases, one enantiomer
    usually possess biological activity, whereas the
    other does not
  • In organisms, enzymes can distinguish two
    enantiomers from each other
