Toxicology Basics

1

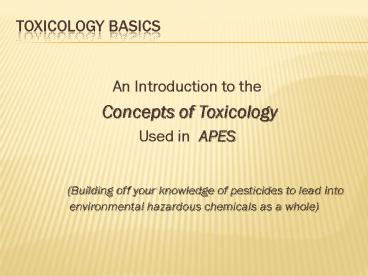

Toxicology Basics

• An Introduction to the
• Concepts of Toxicology
• Used in APES
• (Building off your knowledge of pesticides to
  lead into environmental hazardous chemicals as a
  whole)

2
Units Used to Measure Chemicals in the
Environment

• PPM Parts per million (1 in per 1,000,000 ,
  10-6 )
• PPB Parts per billion (1 part in 1,000,000,000
  , 10-9 )
• PPT Parts per trillion (1 in 1,000,000,000,000
  , 10-12 )
• Since parts-per notations are quantity-per-quantit
  y measures, they are known as dimensionless
  quantities that is, they are pure numbers with
  no associated units of measurement.

3
Consider A simple cube 1 cubic meter in volume
1m
1m
1m
4
formed of 1,000,000 cubes, 1 cubic centimeter
each
100cm
100cm x 100cm x 100cm 1,000,000 cc
100cm
In 1 m3 block 1cc 1ppm
100cm
5
One part per million is

• 1 inch in 16 miles
• 1 minute in two years
• 1 cent in 10,000
• 1 ounce of salt in 31 tons of potato chips
• 1 bad apple in 2,000 barrels of apples

6
NOWDivide each 1CC block into 1,000 blocks
0.1cM on a side
1cm
0.1cm x 0.1cm x 0.1cm 0.001cm3
In 1 m3 block 0.001cm3 0.001cc or 1/1000 of a
cc 1ppb
1cm
1cm
7
One part per billion is

• 1 inch in 16,000 miles
• 1 second in 32 years
• 1 cent in 10,000,000
• 1 pinch of salt in 10 tons of potato chips
• 1 lob in 1,200,000 tennis matches
• 1 bad apple in 2,000,000 barrels of apples

8
Next, divide each 0.1cc block into 1,000 blocks
0.01cm on a side
0.1cm
0.01cm x 0.01cm x 0.01cm 0.000001cm3
In 1 m3 block .000,000,001m3 0.000,001cc
or 1/1,000,000 of a cc 1ppt
0.1cm
0.1cm
9
One part per trillion is

• 1 postage stamp in the area of the city of Dallas
• 1 inch in 16 million miles (more than 600 times
  around the earth)
• 1 second in 320 centuries
• 1 flea on 360 million elephants
• 1 grain of sugar in an Olympic sized pool
• 1 bad apple in 2 billion barrels

10
Important Concept

• On the left side of the decimal point (? . )
• 1 trillion is bigger than 1 billion
• 1 billion is bigger than 1 million
• 1 million is bigger than 1 thousand
• On the right side of the decimal point ( . ?)
• 1 part per trillion is smaller than 1 part per
  billion
• 1 part per billion is smaller than 1 part per
  million
• 1 part per million is smaller than 1 part per
  thousand

11
Important Relationship

• For water at STP (standard temperature 23oC and
  pressure 15 psi)
• 1 cc 1ml 1g

12
Which means that

• (1000 ml or cc ) ? 1 liter of water 1 kg ?
  (1000 g)
• (1/1000 g) ? 1 mg / kg ? (1000 g) 1 ppm
• (1/1000 cm3 ) ? 1 mm3 / liter ? (1000 cm3 )
  1 ppm
• (1/1000 g) ? 1 mg / liter ? (1000 g) 1 ppm

13
Measures of Toxicity

• Toxicity of chemicals is determined in the
  laboratory
• The normal procedure is to expose test animals
• By ingestion, application to the skin, by
  inhalation, gavage (forced feeding) or some other
  method which introduces the material into the
  body, or
• By placing the test material in the water or air
  of the test animals environment

14
Measures of Toxicity

• Toxicity is measured as clinical endpoints
  which include
• Mortality (death)
• Teratogenicity (ability to cause birth defects)
• Carcinogenicity (ability to cause cancer), and,
• Mutagenicity (ability to cause heritible change
  in the DNA)
• When using mortality as a clinical endpoint, 2
  measures of mortality the LD50 and the LC50

15
Measures of Toxicity The Median Lethal Dose

• LD50
• The amount (dose) of a chemical which produces
  death in 50 of a population of test animals to
  which it is administered by any of a variety of
  methods
• Substance (1/1000 g) ? mg/kg ? (1000 g) body
  weight
• Normally expressed as milligrams of substance per
  kilogram of animal body weight (same as ppm)

16
Measures of Toxicity The Median Lethal
Concentration

• LC50
• The concentration of a chemical in an environment
  (generally air or water) which produces death in
  50 of an exposed population of test animals in a
  specified time frame
• Substance (1/1000 ml) ? mg/L ? (1000 ml) body
  weight
• Normally expressed as milligrams of substance per
  liter of air or water (or as ppm)

17
Primary Routes of Exposure to Pesticides

• There are three primary routes by which organisms
  are exposed to pesticides
• Oral
• Dermal
• Inhalation

18
Primary Routes of Exposure Oral Exposure

• Any exposure to pesticide which occurs when the
  chemical is taken in through the mouth and passes
  through the gastrointestinal tract
• During oral exposure, although carried within the
  body, the pesticide is still outside of the body
  proper until it passes through epithelial
  cellular membranes.

19
Primary Routes of Exposure Dermal Exposure

• Exposure of the skin to a pesticide
• Most common route of human exposure
• With proper hygiene this type of exposure is
  generally not serious unless there is a specific,
  rapid toxicological effect (often eye effects)
  which is of concern

20
Primary Routes of Exposure Inhalation Exposure

• Occurs when a pesticide is breathed into the
  lungs through the nose or mouth
• Significant route of exposure for aquatic
  organisms
• Not of toxicological concern until it crosses
  from the lung into the body (unless the chemical
  is corrosive)

21
Duration of Exposure

• Three terms are commonly used to describe the
  duration of dose(s)
• Acute single exposure of short duration
• Chronic repeated long-term contact
• Subchronic repeated exposure over a
  short period

22
Duration of Exposure Acute Exposure

• Application of a single or short-term (generally
  less than a day) dosing by a chemical
• If toxic symptoms are expressed, they are
  referred to as symptoms of acute toxicity

23
Duration of Exposure Chronic Exposure

• Expression of toxic symptoms only after repeated
  exposure to a chemical in doses regularly applied
  to the organism for a time greater than half of
  its life-expectancy
• If toxic symptoms are expressed, they are
  referred to as symptoms of chronic toxicity

24
Duration of Exposure Subchronic Exposure

• Toxic symptoms are expressed after repeated
  applications for a timeframe less than half the
  life expectancy of the organism but more often
  than a single dose or multiple doses applied for
  only a short time
• If toxic symptoms are expressed, they are
  referred to as symptoms of subchronic toxicity

25
Remember

• For pesticides less is more when dealing with
  toxicity
• The less you need to cause a toxic effect the
  more toxic the substance is
• Thus an LD50 of 25 mg/kg is more toxic than is
  one of 7,000 mg/kg

26
Words again

• Safe

Low Risk
27
Signal Words

• The relative acute toxicity of a pesticide is
  reflected on the label in the form of a signal
  word
• The (toxicologically) appropriate signal word
  MUST appear on every pesticide label
• The three possible signal words are
• CAUTION
• WARNING
• DANGER

28
Signal Words CAUTION

• Caution reflects the lowest degree of relative
  toxicity
• All pesticides with an LD50 of greater than 500
  mg/kg must display this word on their label
• Actually includes two groups of pesticides
  those classed by the EPA as
• Relatively nontoxic (gt5,000 mg/kg)
• and those classed as
• Slightly toxic (500 5,000 mg/kg)

29
Signal Words WARNING

• Warning reflects an intermediate degree of
  relative toxicity
• All pesticides with an LD50 of greater than 50
  and less than 500 mg/kg must display this word on
  their label
• Pesticides in this category are classed as
• Moderately toxic (gt50 but lt500 mg/kg)

30
Signal Words DANGER

• Danger reflects the highest degree of relative
  toxicity
• All pesticides with an LD50 of less than 50
• mg/kg must display this word on their label
• Pesticides here are classed as
• Highly toxic (lt 50 mg/kg)

31
POISON!!!

• Legally defined term not just anything you
  dont like
• Any pesticide with an LD50 of 50 mg/kg or less
• Labels must reflect this classification
• Label must have the signal word DANGER plus the
  word POISON
• Label also must display the skull and crossbones
  icon

32
Relative toxicity

• Organisms cant differentiate between natural
  and synthetic chemicals
• Synthetic does not mean toxic or poisonous
• Natural does not mean safe or even low risk
• Chemicals must be evaluated in their biological
  context of behavior in organisms
• Mode of action, not source, is the concern of
  toxicologists and informed users of pesticides

33
Relative toxicity

• Most herbicides act on biological pathways not
  present in humans
• Those approved for use in the Region (much more
  about these later!!) have LD50s of 50 mg/kg or
  greater they have intermediate or relatively
  low toxicity
• Some of the insecticides used are highly toxic

34
Relative toxicity

• Some examples of pesticides and other chemicals
  are given to show relative risk of pesticides in
  the environment in which we live
• This is NOT to trivialize the pesticides
• Always treat them with caution and respect
• But, have a realistic recognition of their
  relative risk in a world of risks

35
Relative toxicity Insecticides

• TCDD (Dioxin) 0.1 mg/kg
• Parathion 13.0 mg/kg
• Nicotine 50.0 mg/kg
• Carbaryl 270.0 mg.kg
• Malathion 370.0 mg/kg

36
Relative Toxicity Herbicides and Additives

• mg/kg
• Paraquat 95
• 2,4-D 375
• 2,4-DP 532
• Triclopyr 630
• Tebuthiuron 644
• Dicamba 757
• Hexazinone 1,690
• Glyphosate 4,320

• mg/kg
• Limonene 5,000
• Clopyralid gt5,000
• Sulfometuron Met.. gt5,000
• Imazapyr gt5,000
• Diesel oil 7,380
• Picloram 8,200
• Fosamine am.. 24,400
• Kerosene 28,000

37
Relative Toxicity Comparative information

• Highly toxic chemicals
• 0 50 mg/kg range
• (taste 1 teaspoonful)
• mg/kg
• Botulinus toxin 0.00001
• Dioxin 0.1
• Parathion 13.0
• Strychnine 30.0
• Nicotine 50.0

• Moderately toxic chemicals
• 50- - 500 mg/kg range
• (teaspoonful 1 ounce)
• mg/kg
• Paraquat 95
• Caffeine 200
• Carbaryl 270
• Malathion 370
• 2,4-D 375

38
Relative Toxicity Comparative Information

• Slightly toxic chemicals
• 500 5,000 mg/kg range
• (1 ounce 1 pint)
• mg/kg
• 2,4-DP 532
• Triclpoyr 630
• Tebuthiuron 644
• Dicamba 757

• mg/kg
• Formaldehyde 800
• Hexazinone 1,690
• Asprin 1,700
• Vitamin B3 1,700
• Household bleach 2,000
• Table salt 3,750
• Glyphosate 4,320
• etc.

39
Relative Toxicity Are all substances toxic?

• YES!
• All are toxic to some quantifiable degree
• Sugar has an LD50 of
• 30,000 mg/kg
• Ethanol, a party favorite, has an LD50 of only
• 13,700 mg/kg
• Water has a recognized LD50 of slightly greater
  than 80,000 mg/kg

40
Relative Toxicity The Last Word

• Pesticides are chemicals introduced into the
  environment to perform a function
• The source of a chemical (synthetic vs. natural)
  is irrelevant when considering its toxicity
• Pesticides should be treated with care and
  proper respect but so should household
  cleaners, gasoline and kerosene, bleaches,
  paints and all other chemicals
