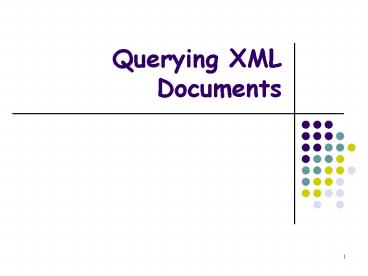

Querying XML Documents

1
Querying XML Documents
2
Objectives

• How XML generalizes relational databases
• The XQuery language
• How XML may be supported in databases

3
Only Some Trees are Relations

• They have height two
• The root has an unbounded number of children
• All nodes in the second layer (records) have a
  fixed number of child nodes (fields)
• Trees are ordered, while both rows and columns of
  tables may be permuted without changing the
  meaning of the data

4
An XML tree
5
Relational Tables
6
Query Usage Scenarios

• Data-oriented
• to query XML data, like using SQL to query
  relational databases
• Document-oriented
• to retrieve parts of documents
• to provide dynamic indexes
• to perform context-sensitive searching
• to generate new documents as combinations of
  existing documents
• Programming
• to automatically generate documentation, similar
  to the Javedoc tool
• Hybrid
• to retrieve information from hybrid data, such as
  patient records

7
XQuery Design Requirements

• XML syntax and human-readable
• Declarative
• Namespace aware
• Coordinate with XML Schema
• Support simple and complex data types
• Can combine multiple documents
• Can transform and create XML trees

8
What is XQuery?

• XQuery is the language for querying XML data
• XQuery 1.0 is a strict superset of XPath 2.0
• XQuery 1.0 and XPath 2.0 share the same data
  model and support the same functions and
  operators
• XQuery has the extra expressive power to
• join information from different sources and
• generate new XML fragments
• XQuery and XSLT are both domain-specific
  languages for combining and transforming XML data
  from multiple sources
• XQuery is designed from scratch, XSLT is an
  intellectual descendant of CSS
• Technically, they may emulate each other
• XQuery is defined by the W3C
• XQuery is supported by all the major database
  engines (IBM, Oracle, Microsoft, etc.)

9
XQuery Prolog

• XQuery expressions are evaluated relatively to a
  context, which is explicitly provided by a prolog
• Declarations specify various parameters for the
  XQuery processor, such as
• xquery version "1.0"
• declare xmlspace preserve
• declare xmlspace strip
• declare default element namespace URI
• declare default function namespace URI
• import schema at URI
• declare namespace NCName URI

10
Implicit Declarations

• Declarations implicitly defined in any XQuery
  implementation
• declare namespace xml
• "http//www.w3.org/XML/1998/namespace"
• declare namespace xs
• "http//www.w3.org/2001/XMLSchema"
• declare namespace xsi
• "http//www.w3.org/2001/XMLSchema-instance"
• declare namespace fn
• "http//www.w3.org/2005/11/xpath-functions"
• declare namespace xdt
• "http//www.w3.org/2005/11/xpath-datatypes"
• declare namespace local
• "http//www.w3.org/2005/11/xquery-local-functions"


11
XPath vs. XQuery

• XPath expressions are also XQuery expressions
• XPath expressions are required to be evaluated in
  a static context, which must be provided by the
  invoking application
• The XQuery prolog gives the required static
  context
• The initial context node, position, and size are
  undefined because an XQuery expression may work
  on multiple XML documents
• Only axes child, descendant, parent, attribute,
  self, and descendant-of-self are required to be
  implemented in XQuery.

12
Datatype Expressions

• Same atomic values as XPath 2.0
• Also lots of primitive simple values
• xsstring("XML is fun")
• xsboolean("true")
• xsdecimal("3.1415")
• xsfloat("6.02214199E23")
• xsdateTime("1999-05-31T132000-0500")
• xstime("132000-0500")
• xsdate("1999-05-31")
• xsgYearMonth("1999-05")
• xsgYear("1999")
• xshexBinary("48656c6c6f0a")
• xsbase64Binary("SGVsbG8K")
• xsanyURI("http//www.brics.dk/ixwt/")
• xsQName("rcprecipe")

13
XML Expressions

• XQuery expressions may compute new XML nodes
• Expressions may denote element, character data,
  comment, and processing instruction nodes
• Each node is created with a unique node identity

• Constructors may be either direct or computed

14
Direct Constructors

• Uses the standard XML syntax
• The expression
• ltfoogtltbar/gtbazlt/foogt
• evaluates to the given XML fragment
• Note that nodes are created with unique identity
  and therefore ltfoo/gt is ltfoo/gt evaluates to
  false (operators is, ltlt, gtgt are used to compare
  nodes on identity and document order)

15
Same Namespace Declarations (1/3)

• declare default element namespace
  "http//businesscard.org"
• ltcardgt
• ltnamegtJohn Doelt/namegt
• lttitlegtCEO, Widget Inc.lt/titlegt
• ltemailgtjohn.doe_at_widget.comlt/emailgt
• ltphonegt(202) 555-1414lt/phonegt
• ltlogo uri"widget.gif"/gt
• lt/cardgt

16
Same Namespace Declarations (2/3)

• declare namespace b "http//businesscard.org"
• ltbcardgt
• ltbnamegtJohn Doelt/bnamegt
• ltbtitlegtCEO, Widget Inc.lt/btitlegt
• ltbemailgtjohn.doe_at_widget.comlt/bemailgt
• ltbphonegt(202) 555-1414lt/bphonegt
• ltblogo uri"widget.gif"/gt
• lt/bcardgt

17
Same Namespace Declarations (3/3)

• ltcard xmlns"http//businesscard.org"gt
• ltnamegtJohn Doelt/namegt
• lttitlegtCEO, Widget Inc.lt/titlegt
• ltemailgtjohn.doe_at_widget.comlt/emailgt
• ltphonegt(202) 555-1414lt/phonegt
• ltlogo uri"widget.gif"/gt
• lt/cardgt

18
Enclosed Expressions

• Expressions create an element named numbers which
  has a single character data node with value 1 2 3
  4 5 (if boundary-space is set to strip)
• lt numbers gt1 2 3 4 5lt/ numbers gt
• lt numbers gt1, 2, 3, 4, 5lt/ numbers gt
• lt numbers gt1, "2", 3, 4, 5lt/ numbers gt
• lt numbers gt1 to 5lt/ numbers gt
• lt numbers gt1 11 " " "3" " " 4 to 5lt/
  numbers gt
• Enclosed expressions are allowed inside attribute
  values
• ltfoo bar"1 2 3 4 5"/gt
• ltfoo bar"1, 2, 3, 4, 5"/gt
• ltfoo bar"1 2 to 4 5"/gt

19
Explicit Constructors

• The constant expression
• ltcard xmlns"http//businesscard.org"gt
• ltnamegtJohn Doelt/namegt
• lttitlegtCEO, Widget Inc.lt/titlegt
• ltemailgtjohn.doe_at_widget.comlt/emailgt
• ltphonegt(202) 555-1414lt/phonegt
• ltlogo uri"widget.gif"/gt
• lt/cardgt
• Can be written as
• element card
• namespace "http//businesscard.org" ,
• element name text "John Doe" ,
• element title text "CEO, Widget Inc." ,
• element email text "john.doe_at_widget.com"
  ,
• element phone text "[phone]" ,
• element logo attribute uri "widget.gif"

20
Computed QNames

• Qualified names can be replaced by enclosed
  expressions evaluating to equivalent strings
• element "card"
• namespace "http//businesscard.org" ,
• element "name" text "John Doe" ,
• element "title" text "CEO, Widget Inc."
  ,
• element "email" text "john.doe_at_widget.co
  m" ,
• element "phone" text "[phone]"
  ,
• element "logo"
• attribute "uri" "widget.gif"

21
Biliingual Business Cards

• Controlled by a global variable lang
• element if (lang"Danish") then "kort" else
  "card"
• namespace "http//businesscard.org" ,
• element if (lang"Danish") then "navn" else
  "name"
• text "John Doe" ,
• element if (lang"Danish") then "titel" else
  "title"
• text "CEO, Widget Inc." ,
• element "email"
• text "john.doe_at_widget.inc" ,
• element if (lang"Danish") then "telefon"
  else "phone"
• text "[phone]" ,
• element "logo"
• attribute "uri" "widget.gif"

22
FLWOR Expressions

• Used for general queries
• ltdoublesgt
• for s in fndoc("students.xml")//student
• let m s/major
• where fncount(m) ge 2
• order by s/_at_id
• return ltdoublegt
• s/name/text()
• lt/doublegt
• lt/doublesgt

23
The Difference Between For and Let (1/4)

• A FLWOR expression
• for x in (1, 2, 3, 4)
• let y ("a", "b", "c")
• return (x, y)
• Output
• 1, a, b, c, 2, a, b, c, 3, a, b, c, 4, a, b, c

24
The Difference Between For and Let (2/4)

• A FLWOR expression
• let x in (1, 2, 3, 4)
• for y ("a", "b", "c")
• return (x, y)
• Output
• 1, 2, 3, 4, a, 1, 2, 3, 4, b, 1, 2, 3, 4, c

25
The Difference Between For and Let (3/4)

• A FLWOR expression
• for x in (1, 2, 3, 4)
• for y in ("a", "b", "c")
• return (x, y)
• Output
• 1, a, 1, b, 1, c, 2, a, 2, b, 2, c, 3, a, 3, b,
  3, c, 4, a, 4, b, 4, c

26
The Difference Between For and Let (4/4)

• A FLWOR expression
• let x (1, 2, 3, 4)
• let y ("a", "b", "c")
• return (x, y)
• Output
• 1, 2, 3, 4, a, b, c

27
An XML Example Document books.xml

• lt?xml version"1.0" encoding"ISO-8859-1"?gt
• ltbookstoregt
• ltbook category"COOKING"gt
• lttitle lang"en"gtEveryday Italianlt/titlegt
• ltauthorgtGiada De Laurentiislt/authorgt
• ltyeargt2005lt/yeargt
• ltpricegt30.00lt/pricegt
• lt/bookgt
• ltbook category"CHILDREN"gt
• lttitle lang"en"gtHarry Potterlt/titlegt
• ltauthorgtJ K. Rowlinglt/authorgt
• ltyeargt2005lt/yeargt
• ltpricegt29.99lt/pricegt
• lt/bookgt

28
An XML Example Document books.xml (cont.)

• ltbook category"WEB"gt
• lttitle lang"en"gtXQuery Kick Startlt/titlegt
• ltauthorgtJames McGovernlt/authorgt
• ltauthorgtPer Bothnerlt/authorgt
• ltauthorgtKurt Caglelt/authorgt
• ltauthorgtJames Linnlt/authorgt
• ltauthorgtVaidyanathan Nagarajanlt/authorgt
• ltyeargt2003lt/yeargt
• ltpricegt49.99lt/pricegt
• lt/bookgt
• ltbook category"WEB"gt
• lttitle lang"en"gtLearning XMLlt/titlegt
• ltauthorgtErik T. Raylt/authorgt
• ltyeargt2003lt/yeargt
• ltpricegt39.95lt/pricegt
• lt/bookgt
• lt/bookstoregt

29
Path Expressions

• The following path expression is used to select
  all the title elements in the "books.xml" file
• doc("books.xml")/bookstore/book/title
• The XQuery above will extract the following
• lttitle lang"en"gtEveryday Italianlt/titlegt
• lttitle lang"en"gtHarry Potterlt/titlegt
• lttitle lang"en"gtXQuery Kick Startlt/titlegt
• lttitle lang"en"gtLearning XMLlt/titlegt

30
Predicates

• The following predicate is used to select all the
  book elements under the bookstore element that
  have a price element with a value that is less
  than 30
• doc("books.xml")/bookstore/bookpricelt30
• The XQuery above will extract the following
• ltbook category"CHILDREN"gt
• lttitle lang"en"gtHarry Potterlt/titlegt
• ltauthorgtJ K. Rowlinglt/authorgt
• ltyeargt2005lt/yeargt
• ltpricegt29.99lt/pricegt
• lt/bookgt

31
FLOWR Expressions

• The following FLWOR expression will select all
  the title elements under the book elements that
  are under the bookstore element that have a price
  element with a value that is higher than 30
• for x in doc("books.xml")/bookstore/book
• where x/pricegt30
• return x/title
• The result will be
• lttitle lang"en"gtXQuery Kick Startlt/titlegt
• lttitle lang"en"gtLearning XMLlt/titlegt

32
Conditional Expressions

• Notes on the "if-then-else" syntax parentheses
  around the if expression are required. else is
  required, but it can be just else ().
• for x in doc("books.xml")/bookstore/book
• return if (x/_at_category"CHILDREN")
• then ltchildgtdata(x/title)lt/childgt
• else ltadultgtdata(x/title)lt/adultgt
• The result of the example above will be
• ltadultgtEveryday Italianlt/adultgt
• ltchildgtHarry Potterlt/childgt
• ltadultgtLearning XMLlt/adultgt
• ltadultgtXQuery Kick Startlt/adultgt

33
Comparisons

• General comparisons , !, lt, lt, gt, gt
• Value comparisons eq, ne, lt, le, gt, ge
• bookstore//book/_at_q gt 10
• The expression above returns true if any q
  attributes have values greater than 10.
• bookstore//book/_at_q gt 10
• The expression above returns true if there is
  only one q attribute returned by the expression,
  and its value is greater than 10. If more than
  one q is returned, an error occurs.

34
Selecting and Filtering Elements

• The at keyword can be used to count the
  iteration
• for x at i in doc("books.xml")/bookstore/book/t
  itle
• return ltbookgti. data(x)lt/bookgt
• Result
• ltbookgt1. Everyday Italianlt/bookgt
• ltbookgt2. Harry Potterlt/bookgt
• ltbookgt3. XQuery Kick Startlt/bookgt
• ltbookgt4. Learning XMLlt/bookgt
• It is also allowed with more than one in
  expression in the for clause. Use comma to
  separate each in expression
• for x in (10,20), y in (100,200)
• return lttestgtxx and yylt/testgt
• Result
• lttestgtx10 and y100lt/testgt
• lttestgtx10 and y200lt/testgt
• lttestgtx20 and y100lt/testgt
• lttestgtx20 and y200lt/testgt

35
Computing Joins

• fridge.xml
• ltfridgegt
• ltstuffgteggslt/stuffgt
• ltstuffgtolive oillt/stuffgt
• ltstuffgtketchuplt/stuffgt
• ltstuffgtunrecognizable moldy thinglt/stuffgt
• lt/fridgegt
• Find recipes that use some ingredients in the
  refrigerator
• declare namespace rcp "http//www.brics.dk/ixwt
  /recipes"
• for r in fndoc("recipes.xml")//rcprecipe
• for i in r//rcpingredient/_at_name
• for s in fndoc("fridge.xml")//stufftext()i
• return fndistinct-values(r/rcptitle/text() )

36
Inverting a Relation

• declare namespace rcp "http//www.brics.dk/ixwt/
  recipes"
• ltingredientsgt
• for i in distinct-values(
• fndoc("recipes.xml")//rcpingredient/_at_name
• )
• return ltingredient name"i"gt
• for r in fndoc("recipes.xml")//rcprecipe
• where r//rcpingredient_at_namei
• return lttitlegtr/rcptitle/text()lt/titlegt
• lt/ingredientgt
• lt/ingredientsgt

37
Sorting the Results

• declare namespace rcp "http//www.brics.dk/ixwt/
  recipes"
• ltingredientsgt
• for i in distinct-values(fndoc("recipes.xml")
  //rcpingredient/_at_name)
• order by i
• return ltingredient name"i"gt
• for r in fndoc("recipes.xml")//rcprecipe
• where r//rcpingredient_at_namei
• order by r/rcptitle/text()
• return lttitlegtr/rcptitle/text()lt/titlegt
• lt/ingredientgt
• lt/ingredientsgt

38
A More Complicated Sorting

• for s in document("students.xml")//student
• order by
• fncount(
• s/results/resultfncontains(_at_grade,"A")
• ) descending,
• fncount(s/major) descending,
• xsinteger(s/age/text()) ascending
• return s/name/text()

39
Using Functions

• declare function localgrade(g)
• if (g"A") then 4.0 else if (g"A-") then 3.7
  else if (g"B") then 3.3
• else if (g"B") then 3.0 else if (g"B-") then
  2.7 else if (g"C") then 2.3
• else if (g"C") then 2.0 else if (g"C-") then
  1.7 else if (g"D") then 1.3
• else if (g"D") then 1.0 else if (g"D-") then
  0.7 else 0
• declare function localgpa(s)
• fnavg(for g in s/results/result/_at_grade return
  localgrade(g))
• ltgpasgt
• for s in fndoc("students.xml")//student
• return ltgpa id"s/_at_id" gpa"localgpa(s)
  "/gt
• lt/gpasgt

40
Extend the Expressive Power

• Using recursive function to generate an XML tree
  of a given height
• declare function gen(n)
• if (n eq 0) ltbar/gt
• else ltfoogt gen(n - 1), gen(n - 1) lt/foogt
• Compute the height of an XML tree
• declare function localheight(x)
• if (fnempty(x/)) then 1
• else fnmax(for y in x/ return
  localheight(y))1

41
A Textual Outline

• Cailles en Sarcophages
• pastry
• chilled unsalted butter
• flour
• salt
• ice water
• filling
• baked chicken
• marinated chicken
• small chickens, cut up
• Herbes de Provence
• dry white wine
• orange juice
• minced garlic
• truffle oil
• ...

42
Computing Textual Outlines

• declare namespace rcp "http//www.brics.dk/ixwt/
  recipes"
• declare function localingredients(i,p)
• fnstring-join(
• for j in i/rcpingredient
• return fnstring-join((p,j/_at_name,"x0A",
• localingredients(j,fnconcat(p,"
  "))),""),"")
• declare function localrecipes(r)
• fnconcat(r/rcptitle/text(),"x0A",localingre
  dients(r," "))
• fnstring-join(
• for r in fndoc("recipes.xml")//rcprecipe5
• return localrecipes(r),""
• )

43
XML Databases

• How can XML and databases be merged?
• Several different approaches
• extract XML views of relations
• use SQL to generate XML
• shred XML into relational databases

44
Automatic XML Views (1/2)

• ltStudentsgt
• ltrecord id"100026" name"Joe Average"
  age"21"/gt
• ltrecord id"100078" name"Jack Doe" age"18"/gt
• lt/Studentsgt
• xmlelement(name, "Students",
• select xmlelement(name,
• "record",
• xmlattributes(s.id, s.name, s.age))
• from Students
• )

45
Automatic XML Views (2/2)

• ltStudentsgt
• ltrecordgt
• ltidgt100026lt/idgt
• ltnamegtJoe Averagelt/namegt
• ltagegt21lt/agegt
• lt/recordgt
• ltrecordgt
• ltidgt100078lt/idgt
• ltnamegtJack Doelt/namegt
• ltagegt18lt/agegt
• lt/recordgt
• lt/Studentsgt

• xmlelement(name, "Students",
• select xmlelement(name,
• "record",
• xmlforest(s.id, s.name, s.age))
• from Students
• )

46
Storing XML Documents

• Designing a specialized system for storing native
  XML data
• Using a DBMS to store the whole XML documents as
  text fields
• Using a DBMS to store the document contents as
  data elements
• It must support the XMLs ordered data model

47
Using a DBMS Relational DTD

• Schema-aware
• An element that can occur at most once in its
  parent is stored as a column of the table
  representing its parent

48
Using a DBMS Edge

• Schema-less
• A single table is used to store the entire
  document
• Each node is assigned an ID in depth first order

1
root
2
references
3
4
book
book

author
author
author
title
year
author

2000
Data on the Web
S. Abiteboul
D. Suciu
P. Buneman
49
Using a DBMS Edge (cont.)
