Title: Vibrio Cholera


1

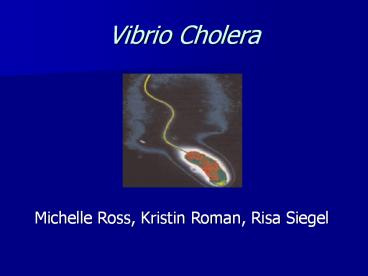

Vibrio Cholera
Michelle Ross, Kristin Roman, Risa Siegel
2
Clinical Manifestation and DefensesCHOLERA
3
Clinical Manifestations
  • Cholera victims are infected when they ingest an
    infectious
  • dose of the bacterium V. cholerae
  • Most V. Cholera infections are asymptomatic (75)
  • 1 case per 30 to 100 infections in the E1 biotype
  • 1 case per 2 to 4 infections with the classical
    biotype

4
Cholera is not transmissible person-to-person,
but can easily be spread through contaminated
food and water
5
Incubation Period
  • Ranging from a few hours to 5 days
  • Most cases presenting within 1-3 days
  • As expected for organisms passing through the
    gastric barrier, the incubation period is
    shortest when
  • highest dose of ingested organsim
  • High gastric pH

6
Infectious Dose
  • Infectious dose ranges from 106 1011 colonizing
    units
  • The high level is necessary as the bacteria must
    survive the gastric acid barrier as the bacterium
    is sensitive to acidic conditions
  • Additionally, V. cholerae must penetrate the
    mucus lining the coats the intestinal epithelium,
    the bacterium adheres to and colonizes the
    epithelial cells of the small intestine.

7
(No Transcript)
8
Symptoms
  • Diarrhea may be sudden or gradual
  • Rapid onset of water associated with stool
  • Vomiting, frequently watery, is common and may
    begin before or after diarrhea.
  • Abdominal cramping

Fever is infrequent since cholera is not
invasive infection
9
Severe Disease
  • Cholera Gravis
  • Notable for how quickly healthy person becomes
    ill
  • Patients present after a few hours with massive
    volume loss
  • 500 1000 ml per hour, can rapidly lose more
    than 10 of their body weight
  • Mortality
  • Circulatory collapse from dehydrating effects of
    the pathogen

10
Cholera Gravis
  • Severest form of cholera
  • Infection in 2 of infected individuals
  • Patients with blood type O most susceptible
  • Characterized by voluminous expulsion of
    electrolyte-rich fluid in patients stool
  • Amounts greater or equal to patients blood volume
  • Responds well to rehydration therapies
  • In areas where not available, death rates are
    astronomical

11
Complications Severe Disease
  • Complications result from massive volume and
    electrolyte loss as the Cholera stool contains
    high concentrations of sodium, potassium,
    chloride, and bicarbonate
  • Therefore in addition to volume depletion, which
    can cause renal failure, additional complications
    can occur
  • Hypokalemia causes arrhythmias, ileus, leg
    cramps
  • Metabolic Acidosis due to phosphate moving out
    of cells
  • Hypoglycemia mental status changes and seizures
  • Hypotension due to water loss
  • Hypofusion of critical organs

12
Mortality
  • In untreated patients, mortality can reach 50-70
  • Risk much higher in children
  • 10x greater than adults
  • As well as pregnant women
  • 50 risk of fetal death in 3rd trimester
  • Patients can die within 2-3 hours of first sign
    of illness also seen from 10 hours- several days

13
Diagnosis
  • Cholera should be considered in all cases with
    severe watery diarrhea and vomiting
  • However, there are no clinical manifestations
    that can distinguish cholera from other
    infectious causes of severe diarrhea
  • Differential Diagnosis include
  • Enterotoxigenic e. Coli
  • Bacterial food poisoning
  • Viral gastroenteritis

14
Visible Symptoms
  • These include
  • Sunken eyes and cheeks
  • Decreased skin suppleness
  • Dry mucous membranes
  • Urine production is sharply
  • decreased or stopped altogether
  • Renal failure is the most common
  • complication seen in recent outbreaks

15
Diagnosis continued
  • Dehydrating diarrhea may be more common in
    children but adults should be questioned as to
    recent trips to Africa, Asia and central America
  • Additional questions asked about ingestion of
    undercooked or raw shellfish

16
Laboratory Diagnosis
  • Made through isolation of bacteria from extra-
    intestinal environment or stool samples
  • Specimens are collected
  • Gram Stain show sheets of curved Gram negative
    rods
  • Untreated patients have 106 to 108 organisms / mL
  • Important to start treatment before the cause of
    infection is identified death can occur within
    hours

17
Labroratory Diagnosis Cont.
  • Vibrios often detected by dark field or phase
    contrast microscopy of stool
  • Organisms are motile, appearing like shooting
    stars
  • When plated on sucrose dishes, yellow colonies
    appear confirming cholera present
  • Additional methods of detection include PCR and
    monoclonal antibody-based stool tests.

18
(No Transcript)
19
Treatment
  • The course of treatment is decided by the degree
    of dehydration
  • Three options prove most effective
  • Oral Rehydration
  • Intravenous Rehydration
  • Antimicrobial Therapy

20
Oral Rehydration
  • Oral Rehydration Solutions (ORS) have reduced
    mortality from cholera from over 50 to less than
    1.
  • ORS utilizes the fact that sodium and water
    absorption in the small intestine is facilitated
    by glucose and occurs in the presence of cholera
    toxin
  • Used when the dehydration is less than 10 of
    body weight

21
O.R.S.
  • The World Health Organization recommends a
    solution containing
  • 3.5 g sodium chloride
  • 2.9 g trisodium citrate/ sodium
  • bicarbonate
  • 1.5 g potassium chloride
  • 20 g glucose or 40 g sucrose
  • Per liter of water
  • Min. of 1.5 x the stool volume losses should be
    administered
  • Commercially sold over-the-counter as
  • rehydralyte

22
ORS
23
Intravenous Rehydration
  • Used in patients who lost more than 10 of body
    weight from dehydration or are unable to drink
    due to vomiting
  • Ringers Lactate used commercially in hospitals
    with appropriate electrolyte concentrations
    specified to patients needs

24
Intravenous Rehydration Additional Options
  • Saline can be used, however, bicarbonate and
    potassium losses are not being replaced
  • Glucose in water this does not replace the
    sodium, bicarbonate, or potassium losses

Dosage
25
Antimicrobial Therapy
  • Seen as an adjunct to appropriate rehydration
  • Reduce the volume of diarrhea by a half and the
    duration of excretion to about 1 day, therefore,
    they lower the expense of treatment and play a
    role in cholera control.
  • Due to short duration of illness, antibiotics not
    highly recommended
  • High cost -- Antibiotic Resistance
  • Limited gain from usage

26
Dosage Antibiotic Agents
  • Given orally when vomiting stops.
  • Tetracycline is the standard treatment
  • Administered in single dose
  • primarily to prevent spread
  • of secondary infection

WHO guidelines
27
Tetracycline Resistance
  • Many strains of V. Cholerae now harbor plasmids
    carrying multiple antibiotic resistances.
  • Fluoroquinolones are now an effective alternative
    in regions where tetracycline resistance is common

28
Prevention
  • V. Cholerae is spread through contaminated food
    and water, therefore, prevention depends upon the
    interruption of fecal-oral transmission
  • Anti-biotic prophylaxis, vaccines and
    surveillance of new cases are the answer to
    preventing the spread of disease.

29
Sari Cloth FiltrationPreventative Measure
Using Sari cloth to filter Water
30
Antibiotic prophylaxis
  • The World Health Organization recommends
    prophylaxis if 1 household member in a family
    becomes ill.
  • Mass administration of antibiotics to a whole
    community is not effective nor recommended

31
Vaccines
  • Two types of cholera vaccines are currently
    approved for use in humans.
  • Killed-whole-cell formulation killed bacterial
    cells from both biovars of serovar 01 and
    purified B subunit of the cholera toxin.
  • Provides immunity to only 50 of adult victims
    and to less than 25 of child victims.
  • Live-attenuated vaccine, genetically engineered
  • Provides gt90 protection against classical biovar
    and 65-80 agaisnt E1Tor biovar.

32
Vaccines Problems
  • The live vaccine is associated with certain
    problems
  • Side Effects
  • Cause mild diarrhea, abdominal cramping and
    slight fever
  • Possible virulence of live strain
  • Upon infection of the vaccine strain by cholera
    toxin

33
Surveillance
  • In the United States, cases of cholera must be
    reported to local and state health departments
  • Bacterial isolates sent to the state health
    department and Centers for Disease Control (CDC)
    for testing and conformation of Cholera toxin
  • World wide surveillance is monitored by the World
    Health Organization (WHO), tracking potential
    outbreaks

34
Weaponization Task Force on Cholera
  • 1992
  • WHO Global Task Force on Cholera Control
  • aim was to reduce mortality and morbidity
    associated with the disease and to address the
    social and economic consequences of cholera

35
Weaponization Preventative Measures
  • Global Water Quality Monitoring Project
    (GEMS/WATER)
  • addresses global issues of water quality through
    a network of monitoring statins in rivers, lakes,
    reservoirs, and groundwater on all continents

36
Weaponization Historical Perspective
  • WWI
  • allegations that Germany tried to spread cholera
    in Italy
  • 1930s
  • Japan dropped bombs on Chinese that released
    cholera, among other biological pathogens.
  • 1980-1993
  • S. Africa Biological Weapons Program
  • included Bacillus anthracis, Vibrio cholera, and
    Clostridium species

37
Weaponization Means to Increase Virulence
  • amplify and insert virulent portion of the genome
    into another pathogen for either dispersion via
    aerosolization or water contamination that is
    contagious
  • V. cholerae is particularly well adapted to its
    lifestyle in both the aquatic environment and as
    an enteric pathogen.

38
Risk to New York
  • Over 8 million people rely on water supply
  • 1.3 billion gallons of drinking water daily
