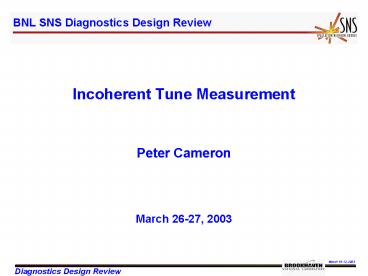

Incoherent Tune Measurement

1
Incoherent Tune Measurement
BNL SNS Diagnostics Design Review

• Peter Cameron

March 26-27, 2003
2
Outline

• Action Items
• AP Requirements
• Incoherent Tune Measurement Options
• Schottky/BTF Measurement
• Quadrupole Measurement
• Layout and Lattice
• ICD, Process Variables, Acceptance Criteria
• Summary and Conclusions

3
Action Items from the July Design Review

• Refine day one requirements - in progress,
  related to handoff issues
• Use turn-by-turn mode available in BPM system -
  Will be done at App level, in addition to stand
  alone system
• Dedicated tune/Schottky detectors are a good idea
  - will be present
• Short on implementation details - this and
  following presentation
• Incoherent tune from injection oscillations are
  problematic - agree, capability will be
  available, but this is neither of the baseline
  systems
• Zero in on areas requiring early decisions - done

4
AP Requirements for Tune Measurement

• Coherent tune
• accuracy .001
• Resolution .0005
• Incoherent tune
• accuracy .005
• Resolution .0025
• Both measurements will require averaging

5
Tune Footprints - blue dot is coherent tune
halo
halo
core
core
Footprints for 3 intensities (0.1, 1, and
2x1014) at cycle end
Footprints after 263, 526, and 1060 turns, 1014
beam
6
Incoherent Tune Measurement Options

• Incoherent Tune - RF portion of Dual AFE, measure
  tune of 400 MHz microbunches before decoherence -
  requires Injection and Orbit Apps
• Incoherent Tune - Schottky - resonant pickup
  DAQ
• Incoherent Tune - Beam Transfer Function
• Use resonant kicker to reduce power requirements
• Use resonant transverse pickup to improve
  sensitivity, reduce common-mode dynamic range
  problem
• Resonate above coherent spectrum (40MHz) to
  reduce common-mode dynamic range problem
• Incoherent Tune - Quadrupole Oscillations,
  common-mode dynamic range problem
• Use resonant kicker to reduce power requirements
• Use resonant pickup to improve sensitivity,
  reduce common-mode dynamic range problem
• Resonate above coherent spectrum (40MHz) to
  reduce common-mode dynamic range problem
• Resonance crossing - at App level by AP guys

7
Incoherent Tune Measurement

• Two methods are being implemented, Schottky/BTF
  and Quadrupole
• Schottky/BTF is the more conventional - were it
  not for strong input from AP group, this would be
  the only system chosen by Diagnostics
• Quadrupole gives a separate method to measure
  incoherent tune, and in addition provides a
  diagnostic for other things that interest the AP
  group (parametric resonances, emittance, )
• SY Lee, Quadrupole Mode Measurements and their
  Applications, presented at the ORNL ICFA
  Diagnostics Workshop http//www.sns.gov/icfa/prese
  ntations/

8

• Schottky/BTF System

9
Schottky Signal Relative to RHIC Au
Power spectral density Nx2q2fk2g/nhdp/p
10
Linewidths, Chromaticity, Space Charge,

• Tune spreads at the lower sideband due
  to chromaticity (f0xdp/p) and revolution harmonic
  (f0nhdp/p) cancel at about 40MHz for nominal SNS
  conditions, leaving only the space charge
  contribution. This would be a good frequency for
  the resonant kicker and resonant pickup

11
Resonant BPM

• M. Kesselman et al - PAC 2001
• Stub-tuned 1/4 wave resonator
• Simulated in Spice
• frequency 240MHz (8.5xRF)
• Qloaded 100 optimal coupling
• In-tunnel hybrid for S and D
• Resonate difference mode - not sum mode signal
  at revolution line
• Moveable - minimize difference mode signal at
  revolution line
• Resonate above coherent spectrum

12
BTF Block Diagram
13
RHIC BTF Measurement
14
UAL Simulation Preliminary result

• Beam response (without space charge) to
  narrowband kick continuous thru accumulation
  cycle. Each peak corresponds to one cycle. Result
  is reasonable picture of tune spread due to
  chromaticity

15
Filter, filter, filter,

• FFT of RHIC PLL output, 30dB S/N on a few
  109 debunched deuterons with 100 micron 1.2Hz
  radial modulation

16
Kicker Power

• Need to know BTF to specify kicker power!
• Scale from experience
• RHIC coherent kicker - 4m long, 3KV
• RHIC BTF kicker - 0.25m long, 1mW, Q100
• relative kick strengths - coherent/BTF .000003
• SNS strength
• SNS BIG kicker - 4.5m long, 14KV, 15 kicks to
  collimator
• 0.01 x BIG requires 10W, gives factor x3000
  relative to RHIC
• spec 50W

17
Hardware Status - Schottky/BTF

• Resonant Pickup - frequency 40MHz with Q 100
• prototype in the lab, not yet resonated
• Resonant Kicker - same f and Q
• strength 0.01 x BIG requires 10W, spec 50W for
  some margin
• Prototype in the lab
• Rad hard preamp - attenuation is 2dB/100m at
  40MHz for 3/8 heliax
• no in-tunnel preamp or filter
• Analog Filter - specified, design has begun
• Digitizer - BPM IFE w/ 100MS/s A/D
• Timing - in the gate array
• NCO - in the gate array
• Power Amplifier - Amplifier Research 50W1000B, to
  be located in HV room (avoid bleedthru)

18
Software Status - Schottky/BTF

• Existing DSP code from RHIC PLL/LF Schottky/BTF
  system was written by the same person (Joe Mead)
  who programs the SNS BPM gate array
• Existing LabVIEW code from RHIC PLL/LF
  Schottky/BTF system was written by the same
  person (Chris Degen) who writes the LabVIEW code
  for this system
• Wims LabVIEW template

19

• Quadrupole System

20
QMM Block Diagram
21
Basic Method - Quadrupole Oscillations

• Incoherent tune shift in x plane is related to
  measured quadrupole frequency by
• Q2 2Q0 - (1.5-0.5ax/(axay))dQinc
• Where
• Q2 measured quadrupole frequency
• Q0 coherent tune
• dQinc incoherent tune shift
• ax horizontal beam dimension
• ay vertical beam dimension
• Delivers a number - rms incoherent tune spread.
• In addition, Quadrupole BTF possible with this
  system.

22
Dynamic Range Problem

• Dynamic range problem - need to see the
  Quadrupole mode signal in the presence of sum and
  difference mode signals. The approach is
• Excite the beam in quadrupole mode only, above
  the coherent spectrum to minimize sum and
  difference mode signals
• Use a resonant kicker to minimize amplifier power
  requirement
• Use a resonant pickup to enhance sensitivity to
  quadrupole mode
• Use phase cancellation to minimize response to
  dipole
• Filter, filter, filter
• Ring beam is large compared aperture - this is a
  big help

23
Kicker Power/Pickup Sensitivity

• Problem is same as Schottky/BTF - need to know
  BTF, so again we resort to scaling
• Non-Intercepting Emittance Monitor, Clendenin
  et al, PAC 87
• Relative strengths
• monopole 1
• dipole 2 x/a
• quadrupole 2(xwidth2 - ywidth2)/a2 (x2 -
  y2)/a2

24
Kicker and Pickup locations
25
Lattice

• Beta fcns at kicker - not so good

Beta fcns at pickup - very nice
26
Status

• Hardware is essentially the same as for BTF
  system, substituting quadrupole kicker and pickup
  for dipole
• Software essentially the same as for BTF system,
  with the addition of accelerator physics input at
  the application level
• Pickup has been resonated in quadrupole mode
• Pickup has been installed in RHIC, will attempt
  to take data this run
• BIG/Tune kicker can also be fired in quadrupole
  mode, opening possibility of using IPM for the
  same measurement - at the moment not included in
  baseline, but we do intend to pursue this

27
Resonant Quadrupole Plumbing
28
Quadrupole mode resonance

• Stub-tuned 1/8 wave resonator
• Simulated in Spice
• frequency 117MHz ( .5 x dipole)
• Q 65
• Suppression of dipole mode via phase cancellation

29
QMM BTF - CERN(LEAR)
30

• Schottky/BTF and Quadrupole Systems

31
ICD/Process Variables

• Inputs from control system
• Plane to kick - Selects plane in BTF mode
• Amplifier Power
• Gain
• Filter BW
• Center Tune
• Tune Window
• Timing - cycle start? (resonant system)
• Outputs to control system
• Schottky spectrum - updated cycle-by-cycle
• Tune slice - thru the accumulation, updated
  cycle-by-cycle
• BTF - Calculated result from LabVIEW

32
Acceptance

• Traveller for each pickup and kicker
• Leakcheck
• Impedance check
• S21 of resonant response
• Electronics
• Vertical integration at BNL (on resonator)
• Vertical Integration at ORNL (on resonator)
• System with beam
• red items not in present scope

33
Summary and Conclusions

• Move to BPM IFE simplifies life both at BNL and
  ORNL
• LabVIEW template simplifies life both at BNL and
  ORNL
• Existing RHIC PLL software and hardware has
  considerable similarity to the SNS systems
• Acceptance criterion is major concern - handoff
  has the potential to be a serious problem, must
  be addressed soon at the project level
