Title: CS 2710, ISSP 2610

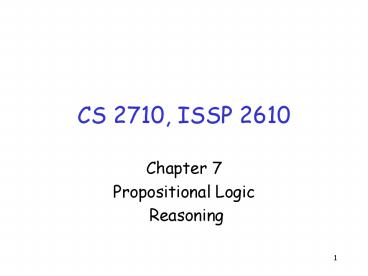

1
CS 2710, ISSP 2610
  • Chapter 7
  • Propositional Logic
  • Reasoning

2
Knowledge Based Agents
  • Central component knowledge base, or KB.
  • A set of sentences in a knowledge representation
    language
  • Generic Functions
  • TELL (add a fact to the knowledge base)
  • ASK (get next action based on info in KB)
  • Both often involve inference, which is?
  • Deriving new sentences from old

3
Note
  • Were all familiar with logic from mathematics
  • In AI, we need to think about things we usually
    can take for granted
  • To use the notion of prime number, you dont have
    to think about what prime means or number, for
    that matter
  • In AI, we create knowledge representation
    schemes, which define the objects, predicates,
    and functions which exist

4
The Wumpus World
  • Game is played in a MxN grid
  • One player, one wumpus, one or more pits
  • Goal find gold while avoiding wumpus and pits
  • Percepts
  • Glitter (gold is in this square)
  • Stench (wumpus is within 1 square N,E,S,W)
  • Breeze (pit is within 1 square N, E, S, W)
  • Bump (agent walks into a wall)
  • Scream (when Wumpus dies hear it anywhere)

5
Wumpus Example
0
0
6
Wumpus
  • Main difficulty player doesnt know the
    configuration
  • Reason about configuration
  • Knowledge evolves as new percepts arrive and
    actions are taken.

7
Examples of reasoning
  • If the player is in square (1, 0) and the percept
    is breeze, then there must be a pit in (0,0) or a
    pit in (2,0) or a pit in (1,1).
  • If the player is now in (0,0) and still alive,
    there is not a pit in (0,0).
  • If there is no breeze percept in (0,0), there is
    no pit in (0,1)
  • If there is also no breeze in (0,1) then there is
    no pit in (1,1).
  • Therefore, there must be a pit in (2,0)

8
Fundamental Concepts of logical representation
and reasoning
  • Information is represented in sentences, which
    must have correct syntax
  • ( 1 2 ) 7 21 vs. 2 ) 7 ( 1 21
  • The semantics of a sentence defines its truth
    with respect to each possible world an
    interpretation assigning T or F to all
    propositions
  • W is a model of S means that sentence S is true
    under interpretation W
  • What do the following mean?
  • X Y
  • X entails Y
  • Y logically follows from X

9
Which are true?Which are not true but useful?
  • Man, Man ? Mortal Mortal
  • Raining,Dog? Mammal Mammal
  • Raining,Raining ? Wet Wet
  • Smoke, Fire ? Smoke Fire
  • Tall Silly Tall
  • Tall v Silly Silly
  • Tall, Silly Tall Silly
  • (On board E.g. with Wumpus world)

10
Entailment
  • A B
  • Under all interpretations in which A is true, B
    is true as well
  • All models of A are models of B
  • Whenever A is true, B is true as well
  • A entails B
  • B logically follows from A

11
Inference
  • KB -i A
  • Inference algorithm i can derive A from KB
  • i derives A from KB
  • i can derive A from KB
  • A can be inferred from KB by i

12
Inference Algorithm Examples
  • A,B - (intro) A B
  • A, A?B - (MP) B
  • A, B ? A - (abduction) B
  • A - (some religions) GodExists
  • SunnyDay - (some students) NoClass
  • (Italics used for constants here)

13
Inference Algorithms
  • A. Definition of soundness of inference algorithm
    i?
  • B. Definition of completeness of inference
    algorithm i?
  • Notes
  • implication, piece of syntax
  • entailment, used to describe semantics
  • Inference algorithm, inference procedure, rule of
    inference, inference rule procedure that
    derives sentences from sentences

14
Monotonicity
  • A logic is monotonic if

15
Propositional Logic Syntax
  • Sentence -gt AtomicSent complexSent
  • AtomicSent -gt truefalse P, Q, R
  • ComplexSent -gt
  • ?sentence
  • ( sentence ? sentence )
  • ( sentence ? sentence )
  • ( sentence ?sentence )
  • ( sentence ? sentence )
  • ( sentence )
  • no predicate or function symbols

16
Propositional Logic Sentences
  • If there is a pit at 1,1, there is a breeze at
    1,0
  • P11 ? B10
  • There is a breeze at 2,2, if and only if there
    is a pit in the neighborhood
  • B22 ? ( P21 ? P23 ? P12 ? P32 )
  • There is no breeze at 2,2
  • ?B22

17
Semantics of Prop Logic
  • In model-theoretic semantics, an interpretation
    assigns elements of the world to sentences, and
    defines the truth values of sentences
  • Propositional logic easy! Assign T or F to each
    proposition symbol then assign truth values to
    complex sentences in the obvious way

18
Logical Equivalences
  • Sentences A and B are logically equivalent if
  • they are true under exactly the same
    interpretations
  • A B and B A

19
Validity
  • A sentence (or set of sentences) is valid if
  • it is true under all interpretations
  • P v P

20
Satisfiability
  • A sentence (or set of sentences) is satisfiable
    if
  • there exists some interpretation that makes it
    true
  • An interpretation satisfies a set of sentences if
    it makes them true

21
Entailment
  • A B
  • In all worlds in which A is true, B is true as
    well
  • All models of A are models of B
  • Whenever A is true, B is true as well
  • A entails B
  • B logically follows from A
  • All interpretations that satisfy A also satisfy B

22
Propositional Logic Inference
  • Question Does KB entail S?
  • Method 1 Truth Table Entailment
  • Construct a truth table whose columns are all
    propositions used in the sentences in KB.
  • If S is true everywhere all sentences in KB are
    true, then KB entails S (otherwise not)
  • Method 2 Proof
  • Proof by deduction
  • Proof by contradiction
  • Etc.

23
AC, C does not entail B?C
A,B, Entails A?B
24
Rules for Deductive Proofs
  • Modus Ponens
  • Given S1 ? S2 and S1, derive S2
  • And-elimination
  • Given S1 ? S2, derive S1
  • Given S1 ? S2, derive S2
  • DeMorgans Law
  • Given ?( A ? B) derive ?A ? ?B
  • Given ?( A ? B) derive ?A ? ?B
  • See p. 249 (for review if needed)

25
Example Proof by Deduction
  • Knowledge
  • S1 B22 ? ( P21 ? P23 ? P12 ? P32 ) rule
  • S2 ?B22 observation
  • Inferences
  • S3 (B22 ? (P21 ? P23 ? P12 ? P32 ))? ((P21
    ? P23 ? P12 ? P32 ) ? B22) S1,bi elim
  • S4 ((P21 ? P23 ? P12 ? P32 ) ? B22) S3, and
    elim
  • S5 (?B22 ? ?( P21 ? P23 ? P12 ? P32 )) contrapos
  • S6 ?(P21 ? P23 ? P12 ? P32 )
    S2,S5, MP
  • S7 ?P21 ? ?P23 ? ?P12 ? ?P32 S6,
    DeMorg

26
Proofs
  • A derivation
  • A sequence of applications of (usually sound)
    rules of inference
  • Reasoning by Search
  • Successor function all possible applications of
    inference rules
  • Monotonicity means search can be local, and more
    efficient

27
Resolution
  • Resolution allows a complete inference mechanism
    (search-based) using only one rule of inference
  • Resolution rule
  • Given P1 ? P2 ? P3 ? Pn, and ?P1 ? Q1 ? Qm
  • Conclude P2 ? P3 ? Pn ? Q1 ? Qm
  • Complementary literals P1 and ?P1 cancel out

28
Resolution
  • winter v summer
  • winter v cold
  • Either winter or winter is true, so we know that
    summer or cold is true
  • Resolution rule
  • Given P1 ? P2 ? P3 ? Pn, and ?P1 ? Q1 ? Qm
  • Conclude P2 ? P3 ? Pn ? Q1 ? Qm
  • Complementary literals P1 and ?P1 cancel out

29
Resolution in Wumpus World
  • There is a pit at 2,1 or 2,3 or 1,2 or 3,2
  • P21 ? P23 ? P12 ? P32
  • There is no pit at 2,1
  • ?P21
  • Therefore (by resolution) the pit must be at 2,3
    or 1,2 or 3,2
  • P23 ? P12 ? P32

30
Resolution
  • Any complete search algorithm, applying only the
    resolution rule, can derive any conclusion
    entailed by any KB in propositional logic.

31
Proof using Resolution
  • To prove P, apply res until either
  • No new clauses can be added, (KB does not entail
    P)
  • The empty clause is derived (KB does entail P)
  • Proof by contradiction prove KB ? ?P is
    contradictory (empty clause) to prove P
  • Sentences need to be in CNF
  • To carry out the proof, need a search mechanism
    that will enumerate all possible resolutions.

32
B22 ? ( P21 ? P23 ? P12 ? P32 )
  • Eliminate ? , replacing with two implications
  • (B22 ? ( P21 ? P23 ? P12 ? P32 )) ? ((P21 ? P23 ?
    P12 ? P32 ) ? B22)
  • Replace implication (A ? B) by ?A ? B
  • (?B22 ? ( P21 ? P23 ? P12 ? P32 )) ? (?(P21 ? P23
    ? P12 ? P32 ) ? B22)
  • Move ? inwards (unnecessary parens removed)
  • (?B22 ? P21 ? P23 ? P12 ? P32 ) ? ( (?P21 ? ?P23
    ? ?P12 ? ?P32 ) ? B22)
  • 4. Distributive Law
  • (?B22 ? P21 ? P23 ? P12 ? P32 ) ? (?P21 ? B22) ?
    (?P23 ? B22) ? (?P12 ? B22) ? (?P32 ? B22)

33
Previous Slide Sentence is in CNF
  • Next step (with simpler example)
  • (P1 v P2 v P3) P4 P5 (P2 v P3)
  • Create a separate clause corresponding to each
    conjunct
  • P1 v P2 v P3
  • P4
  • P5
  • P2 v P3

34
Finally
  • Add the negation of the goal to the set of
    clauses, and perform resolution. If you reach
    the empty clause, you have proved the goal

35
Simple Resolution EG
  • When the agent is in 1,1, there is no breeze, so
    there can be no pits in neighboring squares
  • (B11 ?? (P12 v P21)) B11
  • Prove P12.

36
Horn Clauses
  • A Horn Clause is a CNF clause with at most one
    positive literal
  • Horn Clauses form the basis of forward and
    backward chaining
  • The Prolog language is based on Horn Clauses
  • Deciding entailment with Horn Clauses is linear
    in the size of the knowledge base

37
Reasoning with Horn Clauses
  • Forward Chaining
  • For each new piece of data, generate all new
    facts, until the desired fact is generated
  • Data-directed reasoning
  • Backward Chaining
  • To prove the goal, find a clause that contains
    the goal as its head, and prove the body
    recursively
  • (Backtrack when you chose the wrong clause)
  • Goal-directed reasoning
