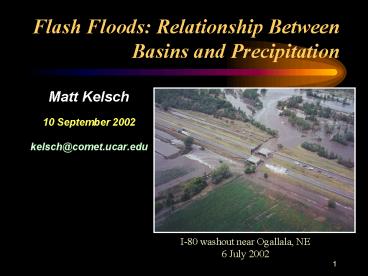

Flash Floods: Relationship Between Basins and Precipitation

1
Flash Floods Relationship Between Basins and
Precipitation

• Matt Kelsch
• 10 September 2002
• kelsch_at_comet.ucar.edu

I-80 washout near Ogallala, NE 6 July 2002
2
Some Generalizations on Flash Floods

• Intense rainfall rate
• High precipitation efficiency, warm rain
  processes
• Small basins
• Pre-saturation
• Impermeability
• Steep slopes

Fort Collins, CO, 28 July 1997
3
More Specifically

• It is the relationship between precipitation and
  basin response that leads to rapid rises in
  stormwater
• Rainfall is intense with respect to the basins
  ability to accommodate it
• Impermeable (urban)
• Altered (fires, deforestation)
• The basin is small relative to the wet footprint
  of the precipitating system

Flash flooding in Las Vegas within an hour of a
rainburst
4
Defining a flash flood (NWS)

• NWS A flood which follows within a few hours
  (usually less than 6 hours) of heavy or excessive
  rainfall, dam or levee failure, or the sudden
  release of water impounded by an ice jam.
• NWS currently claims a 52-min lead time on flash
  floods but how do we know when it starts what
  is the standard deviation?
• NATO Advanced Study Institute (1999) A flood in
  which the causative rainfall and subsequent
  runoff are occurring on the same time and space
  scales.

5
Basin Size versus Intense Precip Area
Larger intense precip footprint can lead to
greater flash flood threat ?
? Minimal flash flood threat
Increased flash flood risk for small basins
completely covered by intense precip area ?
6
Dallas (5 May 1995) Intense Precip Impacts Small
(12 mi2) Urban Basins
7
Dallas (5 May 1995) Intense Precip Impacts Small
(12 mi2) Urban Basins
8
Basin Size versus Intense Precip Area and its
Movement
? ? ? ? ?
Greater flash flood risk when the precip area is
moving downstream with time.
9
Rapidan River, Virginia (27 June 1995) Intense
Rain Moving Slowly Downstream
10
Virginia Topography
Radar-derived accumulation 27 June 1995
11
Basin Size versus Intense Precip Area Movement
and Propagation
Rapid regeneration or training can result in a
greater wet footprint in a short time and
enhance flash flood risk over somewhat larger
basins
12
Aurora, IL (18 July 1996) Rapid and Vigorous
Regeneration and Training
13
Aurora, IL (18 July 1996) Large Wet Footprint,
Even Some Larger Basins Impacted
14
Aurora, IL (18 July 1996) Large Wet Footprint,
Even Some Larger Basins Impacted
gt16
Illinois State Water Survey
Isohyet Analysis as of 1200 UTC 18 July 1996
15
(No Transcript)
16
Fire and Flash Flood

• Burn area considerations in sloped pine forests
• High-intensity fires increase the sand fraction
  of the surface soil layer
• Oils from the trees can infused into the soil
  beneath the sandy layer
• Top (sandy) layer erodes during heavy rainfall
  large sediment transport

17
Buffalo Creek, Colorado (12 July 1996) 45-50 min
of Intense Rain on Fire Scar
18
1-h Accumulation, 12 July 1996
?Fire Scar
Buffalo Creek, CO, flash flood
Purples50-75mm
19
Just before severe weather in Fort Worth
42 kft?

Cross section ?

?Cross section
Dallas
23Z 5 May 1995 DFW Radar Reflectivity and Cross
Section
20
Deadly rainstorm in Dallas
42 kft?
Dallas
02Z 5 May 1995 Reflectivity and Cross Section
21
Moist ambient environment
Intense Storm?
12 August 2000, 14-inch totals 8 inch/hr rates
Enhanced low-level flowintersecting a boundary
22
Sparta, NJ (12 August 2000) Low-centroid
(Warm-topped) Storm High Rainfall Rates
