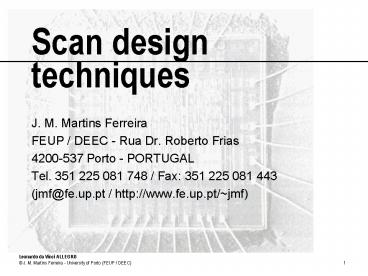

Scan design techniques

1
Scan design techniques

• J. M. Martins Ferreira
• FEUP / DEEC - Rua Dr. Roberto Frias
• 4200-537 Porto - PORTUGAL
• Tel. [phone] / Fax [phone]
• (jmf_at_fe.up.pt / http//www.fe.up.pt/jmf)

2
Objectives

• To introduce the basic concepts in design for
  test
• To prepare the introduction of the standard
  boundary-scan test architecture

3
Outline

• Testability and test generation in sequential
  circuits
• Testability improvement via ad hoc solutions
• Structured approaches to design for testability

4
Test generation for sequential circuits

• Direct application of the D-algorithm leads to
  the combinational circuit inputs and outputs, not
  necessarily to primary inputs or outputs

5
Test generation - step 1
6
Test generation - step 2
7
Test generation - step 3
The second clock cycle is applied with

A1 and guarantees fault detection,
because the circuit is now brought to a
state where fault activation and fault
propagation are simultaneously
possible.
8
The general case is however much more complex...

• The D-algorithm does not necessarily lead to
  circuit primary inputs and outputs
• Knowledge of the state transition diagram is
  required
• It may happen that the fault affects the state
  transition diagram, in which case the required
  sequence at the circuit primary inputs becomes
  even harder to find

9
The case of Y s_at_0

• Test vector generation for a fault that affects
  the state transition diagram will help us to
  understand the problem

10
The case of Y s_at_0 (cont.)

• Modification in the state transition diagram

Q1
Q0
11
Ad hoc testability improvements

• Design rules or amendments to avoid or minimise
  test vector generation problems
• Major drawbacks
• Not always reusable
• Testability depends largely on the type of circuit

12
Some ad hoc testability rules

• Split counters to avoid high numbers of clock
  cycles until the required output combination is
  achieved
• Include reset and preset lines (synchronous or
  asynchronous)
• Partition large circuits and add extra inputs and
  outputs for direct controllability and
  observability of internal nodes

13
Structured Design for Testability (DfT)

• Structured DfT methodologies enable a simple way
  to drive the circuit to any given state in a
  fixed (and short) number of clock cycles
• Does structured DfT have drawbacks?
• Design rules (design styles) have to accepted
• Additional silicon area, more pins and higher
  propagation delays but is this an additional
  cost?

14
The scan design principle

• The scan design principle consists of inserting a
  21 multiplexer between the input of every D
  flip-flop and its driving logic

15
Scan design advantages (1)

• Problem Part of the combinational circuit inputs
  are not directly controllable, since they come
  from the D-FF outputs (these nodes define the
  present state of the circuit)
• Solution Scan flip-flops enable direct
  controllability of the D-FF outputs through a
  simple procedure with a fixed number of clock
  cycles

16
Better controllability through scan design (1)
Example Take the circuit to state 110, starting
from state 100 (intrusive)
17
Better controllability through scan design (2)
18
Better controllability through scan design (3)
19
Better controllability through scan design (4)
20
Better controllability through scan design (5)
21
Scan design advantages (2)

• Problem Part of the combinational circuit
  outputs are not directly observable, since they
  go to the D-FF inputs (these nodes define the
  circuit next state)
• Solution Scan flip-flops enable direct
  observability of the D-FF inputs through a simple
  procedure with a fixed number of clock cycles

22
Better observability through scan design (1)
Example Observe the next state (eventually
non-intrusive)
23
Better observability through scan design (2)
24
Better observability through scan design (3)
25
Better observability through scan design (4)
26
Better observability through scan design (5)
27
DfT Eventually an overhead

• The 21 muxs increase the propagation delay and
  require additional silicon area and pins, but
  will this increase cost?
• How do we quantify the benefits of easier test
  vector generation and application?
• Design freedom was traded for higher testability,
  but partial scan design might be a preferred
  intermediate solution
