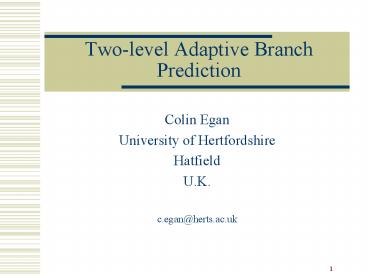

Two-level Adaptive Branch Prediction

• Colin Egan
• University of Hertfordshire
• Hatfield
• U.K.
• c.egan_at_herts.ac.uk

2
Presentation Structure

• Two-level Adaptive Branch Prediction
• Cached Correlated Branch Prediction
• Neural Branch Prediction
• Conclusion and Discussion
• Where next?

3
Two-level Adaptive Branch Prediction Schemes

• First level
• History register(s) record the outcome of the
  last k branches encountered.
• A global history register records information
  from other branches leading to the branch.
• Local (Per-Address) history registers record
  information of specific branches.

4
Two-level Adaptive Branch Prediction Schemes

• Second level
• Is termed the Pattern History Table (PHT).
• The PHT consists of at least one array of two-bit
  up/down saturating counters that provide the
  prediction.

5
Two-level Adaptive Branch Prediction Schemes

• Global schemes
• Exploit correlation between the outcome of the
  current branch and neighbouring branches that
  were executed leading to this branch.
• Local schemes
• Exploit correlation between the outcome of the
  current branch and its past behaviour.

6
Global Two-level Adaptive Branch Prediction

• GAg Predictor Implementation

prediction
7
Global Two-level Adaptive Branch Prediction

• GAp / GAs Predictor Implementation

8
Local Two-level Adaptive Branch Prediction

• PAg

9
Local Two-level Adaptive Branch Prediction

• PAs / PAp

10
Problems with Two-level Adaptive Branch Prediction

• Size of PHT
• Increases exponentially as a function of HR
  length.
• Use of uninitialised predictors
• No tag fields are associated with PHT prediction
  counters.
• Branch interference (aliasing)
• In GAg and PAg all branches share a common PHT.
• In GAs and PAs each branch is shared by a set of
  branches.

11
Cached Correlated Branch Prediction

• Minimises the number of initial mispredictions.
• Eliminates branch interference.
• Is used in a disciplined manner.
• Is cost-effective.

12
Cached Correlated Branch Prediction

• Today we are going to look at two types of cached
  correlated predictors
• A Global Cached Correlated Predictor.
• A Local Cached Correlated Predictor.
• We have also developed a combined predictor that
  uses both global and local history information.

13
Cached Correlated Branch Prediction

• The first level history register remains the same
  as conventional two-level predictors.
• Uses a second level Prediction Cache instead of a
  PHT.

14
Cached Correlated Branch Prediction

• Uses a secondary default predictor (BTC).
• Both predictors provide a prediction.
• A priority selector chooses the actual prediction.

15
Cached Correlated Branch Prediction

• The Prediction Cache predicts on the past
  behaviour of the branch with the current history
  register pattern.
• The Default Predictor predicts on the overall
  past behaviour of the branch.

16
Prediction Cache

• Size is not a function of the history register
  length.
• Size is determined by the number of prediction
  counters that are actually used.
• Requires a tag-field.
• Is cost effective as long as the cost of
  redundant counters removed from a conventional
  PHT exceeds the cost of the added tags.

17
A Global Cached Correlated Branch Predictor
18
A Local Cached Correlated Branch Predictor

• Problem
• A Local predictor will require two sequential
  clock access
• One to access the BTC to furnish HRl.
• Second to access the Prediction Cache.
• Solution
• Cache the next prediction for each branch in the
  BTC.
• Only one clock access is therefore needed.

19
A Local Cached Correlated Branch Predictor
PC
BTC
Prediction Cache
hrl
hash
Default prediction
Prediction Cache prediction
Correlated hit
prediction selector
BTC hit
actual prediction
20
Simulations

• Stanford Integer Benchmark suite.
• These benchmarks are difficult to predict.
• Instruction traces were obtained from the
  Hatfield Superscalar Architecture (HSA).

21
Global Simulations

• A comparative study of misprediction rates
• A conventional GAg, a conventional GAs(16) and a
  conventional GAp.
• Against a Global Cached Correlated predictor (1K
  64K).

22
Global Simulation Results
23
Global Simulation Results

• For conventional global two-level predictors the
  best average misprediction rate of 9.23 is
  achieved by a GAs(16) predictor with a history
  register length of 26.
• In general there is little benefit from
  increasing the history register length beyond
  16-bits for GAg and 14-bits for GAs/GAp.

24
Global Simulation Results

• A 32K entry Prediction Cache with a 30-bit
  history register achieved the best misprediction
  rate of 5.99 for the global cached correlated
  predictors.
• This represents a 54 reduction over the best
  misprediction rate achieved by a conventional
  global two-level predictor.

25
Global Simulations

• We repeated the same simulations without the
  default predictor.

26
Global Simulations Results(without default
predictor)
27
Global Simulation Results(without default
predictor)

• The best misprediction rate is now 9.12.
• The high performance of the cached predictor
  depends crucially on the provision of the
  two-stage mechanism.

28
Local Simulations

• A comparative study of misprediction rates.
• A conventional PAg, a conventional PAs(16) and a
  conventional PAp.
• Against a local cached correlated predictor (1K
  64K), with and without the default predictor.

29
Local Simulation Results(with default predictor)
30
Local Simulation Results(without default
predictor)
31
Local Simulation Results

• For conventional local two-level predictors the
  best average misprediction rate of 7.35 is
  achieved by a PAp predictor with a history
  register length of 30.
• The best misprediction rate achieved by a local
  cached correlated predictor (64K HR 28) is
  6.19.
• This is a 19 improvement over the best
  conventional local two-level predictor.
• However, without the default predictor the best
  misprediction rate achieved is 8.21 (32K HR12).

32
Three-Stage Predictor

• Since, the high performance of a cached predictor
  depends crucially on the provision of the
  two-stage mechanism we were led to the
  development of the three-stage predictor.

33
Three-Stage Predictor

• Stages
• Primary Prediction Cache.
• Secondary Prediction Cache.
• Default Predictor.
• The predictions from the two Prediction Caches
  are stored in the BTC so that a prediction is
  furnished in a single clock cycle.

34
Three-Stage Predictor Simulations

• We repeated the same set of simulations.
• We varied the Primary Prediction Cache size (1
  64K).
• The Secondary Prediction Cache was always half
  the size of the Primary Prediction Cache and used
  exactly half of the history register bits.

35
Global Three-Stage Predictor Simulation Results
36
Global Three-Stage Predictor Simulation Results

• The global three-stage predictor consistently
  outperforms the simpler global two-stage
  predictor.
• The best misprediction rate is now 5.57 achieved
  with a 32K Prediction Cache and a 30-bit HR.
• This represents a 7.5 improvement over the best
  global two-Stage predictor.

37
Local Three-Stage Predictor Simulation Results
38
Local Three-Stage Predictor Simulation Results

• The local three-stage predictor consistently
  outperforms the simpler local two-stage
  predictor.
• The best misprediction rate is now 6.00 achieved
  with a 64K Prediction Cache and a 28-bit HR.
• This represents a 3.2 improvement over the best
  local two-stage predictor.

39
Conclusion So Far

• Conventional PHTs use large amounts of hardware
  with increasing history register length.
• The history register size of a cached correlated
  predictor does not determine cost.
• A Prediction Cache can reduce the hardware cost
  over a conventional PHT.

40
Conclusion So Far

• Cached correlated predictors provide better
  prediction accuracy than conventional two-level
  predictors.
• The role of the default predictor in a cached
  correlated predictor is crucial.
• Three-stage predictors consistently record a
  small but significant improvement over their
  two-stage counterparts.

41
Neural Network Branch Prediction

• Dynamic branch prediction can be considered to be
  a specific instance of a general Time Series
  Prediction.
• Two-level Adaptive Branch Prediction is a very
  specific solution to the branch prediction
  problem.
• An alternative approach is to look at other
  applications areas and fields for novel solutions
  to the problem.
• At Hatfield, we have examined the application of
  neural networks to the branch prediction problem.

42
Neural Network Branch Prediction

• Two neural networks are considered
• A Learning Vector Quantisation (LVQ) Network,
• A Backpropagation Network.
• One of our main research objectives is to use
  neural networks to identify new correlations that
  can be exploited by branch predictors.
• We also wish to determine whether more accurate
  branch prediction is possible and to gain a
  greater understanding of the underlying
  prediction mechanisms.

43
Neural Network Branch Prediction

• As with Cached Correlated Branch Prediction, we
  retain the first level of a conventional
  two-level predictor.
• The k-bit pattern of the history register is fed
  into the network as input.
• In fact, we concatenate the 10 lsb of the branch
  address with the HR as input to the network.

44
LVQ prediction

• The idea of using an LVQ predictor, was to see if
  respectable prediction rates could be delivered
  by a simple LVQ network that was dynamically
  trained after each branch prediction.

45
LVQ prediction

• The LVQ predictor contains two codebook
  vectors
• Vt is associated with a taken branch.
• Vnt is associated with a not taken branch.
• The concatenated PC HR form a single input
  vector.
• We call this vector X.

46
LVQ prediction

• Modified Hamming distances are then computed
  between X, Vt and Vnt.
• The winning vector, Vw, is the vector with the
  smallest HD.

47
LVQ prediction

• Vw is used to predict the branch.
• If Vt wins then the branch is predicted as taken.
• If Vnt wins then the branch is predicted as not
  taken.

48
LVQ prediction

• LVQ network training
• At branch resolution, Vw is adjusted
• Vw (t 1) Vw (t) /- a(t)X(t) - Vw(t)
• To reinforce correct predictions, the vector is
  incremented whenever a prediction was proved to
  be correct, and decremented whenever a prediction
  was proved to be incorrect.
• The factor a(t) represents the learning factor
  and was (usually) set to a small constant of
  lt0.1.
• The losing vector remains unchanged.

49
LVQ prediction

• LVQ network training
• Training is therefore dynamic.
• Training is also adaptive since the codebook
  vectors reflect the outcomes of the most recently
  encountered branches.

50
Backpropagation prediction

• Prediction information is fed into a
  backpropagation network.

51
Backpropagation prediction

• There are two steps through the backpropagation
  network.
• First Step (forward step)
• From the input layer to the output layer.
• Propagates the input vector of the net into the
  first layer, outputs from this first layer are
  fed as inputs to the next layer and so on to the
  final layer.
• The outputs from the final layer are the output
  signals of the net.
• In the case of branch prediction there is a
  single output signal the prediction.
• Second step (backward step)
• Is similar to the forward step.
• Except that error values are backpropagated
  through the network.
• These error values are used to train the net by
  changing the weights.

52
Backpropagation prediction

• Inputs into the net can be coded in two different
  ways
• Binary (0 for not taken, 1 for taken).
• Bipolar (-1 for not taken, 1 for taken).
• Two different activations functions are required
• Sigmoid function for binary inputs.
• Bipolar sigmoid function for bipolar inputs.

53
Backpropagation prediction

• Sigmoid function
• 1/(1 e-?x)
• Bipolar Sigmoidal function
• 2/(1 e-?x) 1
• N.B. At the moment we are not considering
  implementation costs when we do we will have to
  consider a simpler/cheaper function.
• The factor ? controls the degree of linearity
  between the two functions.

54
Backpropagation prediction

• Binary inputs
• A value greater than or equal to 0.5 is predicted
  as taken.
• A value greater less than 0.5 is predicted as not
  taken.
• Bipolar inputs
• A value greater than or equal to 0 is predicted
  as taken.
• A value less than 0 is predicted as not taken.

55
Backpropagation prediction

• A backpropagation network is not initially
  trained.
• Random values between -2/X, 2/X are used to
  initialise the net.
• X corresponds to the number of inputs into the
  net.
• The selection of weights guarantees that both the
  weights and their average value will be close to
  0.
• This ensures that the net is initially not biased
  towards taken or not taken.

56
Simulations

• We simulated 3 LVQ predictors
• global LVQ,
• local LVQ,
• combined (global local) LVQ.
• Inputs were
• global LVQ PC HRg,
• local LVQ PC HRl,
• combined LVQ PC HRg HRl.
• The learning step a(t) was standardised at 0.001.

57
Simulations

• We simulated 2 types of Backpropagation
  predictors
• global Backpropagation,
• local Backpropagation.
• Inputs were either
• binary (0, 1),
• bipolar (-1, 1).

58
Simulations

• We simulated therefore simulated 4
  Backpropagation predictors
• global Backpropagation binary,
• global Backpropagation bipolar,
• local Backpropagation binary,
• local Backpropagation bipolar.
• A learning rate of 0.125 was used throughout.

59
Simulation Results

• global LVQ
• Achieved an average misprediction rate of 13.54
  - worse than the BTC!
• Only modest improvements with increasing HR
  length beyond HR4.
• local LVQ
• Achieved an average misprediction rate of 10.91
  - better than the BTC, but not as good as
  conventional two-level local prediction.
• Only modest improvements with increasing HR
  length beyond HR6.
• combined LVQ
• Was marginally better than the local LVQ.

60
Simulation Results

• LVQ prediction

61
Simulation Results

• global Backpropagation with binary inputs
• Achieved an average misprediction rate of 11.28.
• Not as good as conventional global two-level.
• global Backpropagation with bipolar inputs
• Achieved an average misprediction rate of 8.77
• Better than conventional global two-level.

62
Simulation Results

• local Backpropagation with binary inputs
• Achieved an average misprediction rate of 10.46.
• Not as good as conventional local two-level.
• local Backpropagation with bipolar inputs
• Achieved an average misprediction rate of 8.47.
• Not as good as conventional local two-level.

63
Simulation Results

• Backpropagation prediction

64
Simulation Results

• Backpropagation and conventional two-level
  prediction

65
Conclusion for NNs

• LVQ predictors do not compete with conventional
  two-level predictors.
• Backpropagation predictors with bipolar inputs
  compare well with conventional two-level
  predictors.
• The results suggest that in some cases neural
  network predictors may be able to exploit
  correlation information more effectively than
  conventional two-level predictors.

66
Conclusion for NNs

• We are looking at new composite input vectors
  that will outperform conventional two-level
  predictors.
• We are considering hardware implementations of
  NNs that work quickly and within sensible silicon
  budget cost.

67
So where next?

• With deeper pipelines and increasing MII the
  branch prediction problem is going to be
  exacerbated further.
• Is dynamic branch prediction worth improving?
• Individual benchmarks have an upper limit of
  prediction accuracy.
• Have conventional predictors reached those
  ceilings?
• Cost can be expensive even CCP.
• Will NNs only achieve diminishing returns?
• So where next?

68
So where next?

• Why not remove branches from the instruction
  stream?
• Aggressive schedulers can remove branch
  instructions by guarded or predicated instruction
  executions (HSA and IA-64).
• In fact it is the difficult to predict branch
  instructions that are removed.
• But not all IA-64 claim about 50, at Hatfield
  we say about 30!
• Why not multithread difficult to predict
  branches?
• Dynamically predict the simple to predict
  branches.
• Identify the difficult to predict branches and
  multithread them.

69
So where next?

• So why dont we apply a combination of
  techniques?
• Remove branches from the instruction stream by
  aggressive scheduling.
• Those that remain
• Dynamically predict the easy to predict
  branches.
• Multithread the difficult to predict branches.
• c.egan_at_herts.ac.uk
