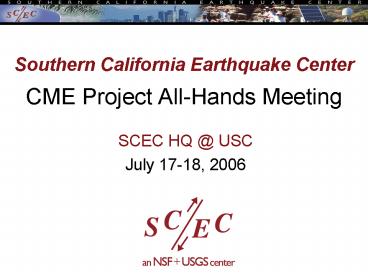

Southern California Earthquake CenterCME
Project All-Hands Meeting
  • SCEC HQ _at_ USC
  • July 17-18, 2006

2
Meeting Goals
  • End-game plan for the NSF/ITR CME project
  • Final report due Jan 1, 2007
  • Input to SCEC3 science plan
  • Promote further integration of CME into SCEC
    organization
  • Revised plan for new PetaSHA project
  • 2-yr funding period
  • More specific CS objectives and budget
  • For selling to NSF/OCI

3
Topics
  • Earthquake System Science
  • Need for Physics-Based Seismic Hazard Analysis
    (SHA)
  • SCEC2-3 Transition
  • SHA Computational Pathways
  • SCEC Community Modeling Environment (CME)
  • Need for petascale resources
  • CME Computational Platforms
  • OpenSHA, CyberShake, TeraShake, PetaShake
  • SCEC Path from Terascale to Petascale
  • PetaSHA Milestone Simulations

4
Earthquake System Science
  • The science of complex natural systems (system
    science) seeks to represent nature by models
    that describe system-level (emergent) phenomena
    and predict their future behavior
  • Challenges in predicting earthquake phenomena
    exemplify those encountered in the study of other
    natural systems
  • SCEC has become a national leader in the
    development of system science
  • The system is defined by the behavior it seeks to
    explain
  • In seismic hazard analysis, the defining behavior
    is the shaking intensity at a geographic site
  • SHA drives SCEC efforts in earthquake system
    science
  • Model-based prediction of emergent behaviors
    plays an essential role in a continually iterated
    cycle of data gathering and analysis, hypothesis
    testing, and model improvement
  • System-specific models are the basis for
    synthesize knowledge from different disciplines
    into a common understanding
  • California is the natural laboratory developing
    the SCEC community models

5
Seismic Hazard Analysis
  • Definition Specification of the maximum
    intensity of shaking expected at a site during a
    fixed time interval
  • Example National seismic hazard maps
  • Intensity measure peak ground acceleration (PGA)
  • Interval 50 years
  • Probability of exceedance 2

6
Phenomena poorly represented by standard
probabilistic seismic hazard analysis (PSHA)
  • Source directivity
  • Amplification of ground motions in sedimentary
    basins
  • Rupture complexity and scattering by 3D geologic
    structure
  • Magnitude saturation

Physics-based simulations ? computational
platforms
San Andreas fault
7
  • Southern California Earthquake Center
  • Involves 500 scientists at 55 institutions
    worldwide
  • Focuses on earthquake system science using
    Southern California as a natural laboratory
  • Translates basic research into practical products
    for earthquake risk reduction

SCEC Focus Groups
8
Science Plan in SCEC3 Proposal
  • P1. Earthquake Source Physics
  • Discover the physics of fault failure and
    dynamic rupture that will improve predictions of
    strong ground motions and the understanding of
    earthquake predictability.
  • P2. Fault System Dynamics
  • Develop representations of the postseismic and
    interseismic evolution of stress, strain, and
    rheology that can predict fault system behaviors
    within the Southern California Natural
    Laboratory.
  • P3. Earthquake Forecasting and Predictability
  • Improve earthquake forecasts by understanding
    the physical basis for earthquake predictability.
  • P4. Ground Motion Prediction
  • Predict the ground motions from realistic
    rupture models at frequencies up to 10 Hz for all
    sites in Southern California.

9
SCEC3 Science Priority Objectives
  • Improve the unified structural representation and
    employ it to develop system-level models for
    earthquake forecasting and ground motion
    prediction
  • Develop an extended earthquake rupture forecast
    to drive physics-based PSHA
  • Define slip rate and earthquake history of
    southern San Andreas fault system for last 2000
    years
  • Determine the origin and evolution of on- and
    off-fault damage as a function of depth
  • Test hypotheses for dynamic fault weakening
  • Assess predictability of rupture extent and
    direction on major faults
  • Investigate implications of geodetic/geologic
    rate discrepancies for earthquake forecasting
  • Develop a system-level deformation and
    stress-evolution model for earthquake forecasting
  • Map seismicity and source parameters in relation
    to known faults
  • Develop a geodetic network processing system that
    will detect anomalous strain transients
  • Test of scientific prediction hypotheses against
    reference models to understand the physical basis
    of earthquake predictability
  • Predict broadband ground motions for a
    comprehensive set of large scenario earthquakes
  • Develop pseudo-dynamic source models consistent
    with dynamic rupture models
  • Determine the upper limits of extreme ground
    motion
  • Investigate the upper frequency limit of
    deterministic ground motion predictions
  • Validate earthquake simulations
  • Collaborate with earthquake engineers to develop
    rupture-to-rafters simulation capability for
    physics-based risk analysis
  • Prepare post-earthquake response

10
(No Transcript)
11
SCEC Initiatives
  • Networks as Research Tools (e.g., Earthquake
    Early Warning)
  • Southern San Andreas Initiative
  • Working Group on California Earthquake
    Probabilities (WGCEP)
  • Next Generation Attentuation (NGA) Project
  • End-to-End (Rupture-to-Rafters) Simulation
  • Collaboratory for the Study of Earthquake
    Predictability (CSEP)
  • National Partnerships through EathScope
  • Multinational Partnership in Earthquake System
    Science (MPRESS)
  • Extreme Ground Motions
  • Petascale Cyberfacility for Physics-Based Seismic
    Hazard Analysis (PetaSHA)
  • Advancement of Cyberinfrastructure Careers
    through Earthquake System Science (ACCESS)

12
SCEC Initiatives
Funded
  • Networks as Research Tools (e.g., Earthquake
    Early Warning)
  • Southern San Andreas Initiative
  • Working Group on California Earthquake
    Probabilities (WGCEP)
  • Next Generation Attentuation (NGA) Project
  • End-to-End (Rupture-to-Rafters) Simulation
  • Collaboratory for the Study of Earthquake
    Predictability (CSEP)
  • National Partnerships through EathScope
  • Multinational Partnership in Earthquake System
    Science (MPRESS)
  • Extreme Ground Motions
  • Petascale Cyberfacility for Physics-Based Seismic
    Hazard Analysis (PetaSHA)
  • Advancement of Cyberinfrastructure Careers
    through Earthquake System Science (ACCESS)

13
SCEC Initiatives
Funded
Pending
  • Networks as Research Tools (e.g., Earthquake
    Early Warning)
  • Southern San Andreas Initiative
  • Working Group on California Earthquake
    Probabilities (WGCEP)
  • Next Generation Attentuation (NGA) Project
  • End-to-End (Rupture-to-Rafters) Simulation
  • Collaboratory for the Study of Earthquake
    Predictability (CSEP)
  • National Partnerships through EathScope
  • Multinational Partnership in Earthquake System
    Science (MPRESS)
  • Extreme Ground Motions
  • Petascale Cyberfacility for Physics-Based Seismic
    Hazard Analysis (PetaSHA)
  • Advancement of Cyberinfrastructure Careers
    through Earthquake System Science (ACCESS)

14
Role of Simulation in Earthquake System Science
  • System-level models are now important tools for
    basic earthquake science
  • Facilitate for knowledge integration across
    different disciplines
  • Quantify behaviors that emerge from complex
    interactions
  • System-specific simulations are playing an
    increasingly important role in assessing
    earthquake hazard and risk
  • Provide a quantitative framework for comparing
    hypotheses about earthquake behavior with
    observations
  • Provide a physical basis for predictions in
    situations where little or no data exist

Empirical models
Intensity Measures
Earthquake Rupture Forecast
Attenuation Relationship
1
P(IMk)
P(IMk  Sn)
P(Sn)
15
SHA Computational Pathways
Standard seismic hazard analysis
1
Empirical models
Intensity Measures
Attenuation Relationship
Earthquake Rupture Forecast
Extended Earthquake Rupture Forecast
1
16
Physics-based PSHA requires prediction of
directivity and other rupture parameters
(extended ERF)
TeraShake Platform
Rupture direction NW?SE
Southernmost San Andreas M7.7 (Olsen et al. 2006)
Rupture direction NW?SE
Olsen et al. (2006)
17
  • Southern California Earthquake Center
  • Involves 500 scientists at 55 institutions
    worldwide
  • Focuses on earthquake system science using
    Southern California as a natural laboratory
  • Translates basic research into practical products
    for earthquake risk reduction
  • SCEC Collaboratory
  • Grid-enabled Community Modeling Environment (CME)
    developed under NSFs ITR Program
  • Partnership with IT organizations in
    physics-based seismic hazard analysis

18
SCEC Community Modeling EnvironmentA
collaboratory for system-level earthquake science
Cyberinfrastructure layering of the SCEC
Collaboratory
19
CME Platforms
Implementations of computational pathways using
vertically integrated computational
configurations (hardware software wetware)
for physics-based seismic hazard analysis
P2 and P3 models P3 databases
TeraShake
PetaShake
P2 databases
capability computing
capability computing
CyberShake
Delivery to Users
Capacity data-intensive computing
  • Attributes
  • System-level scale range
  • High-performance hardware
  • IT/geoscience collaboration
  • Validated software framework
  • Workflow management tools
  • Well-defined interface

OpenSHA
Data-intensive computing
20
Pathway 1 OpenSHA Platform
Time Span
OpenSHA A Computational Platform Seismic Hazard
Analysis
Earthquake- Rupture Forecast
IM
Rupn,i
Site
Type, Level
Sourcei
Intensity-Measure Relationship
Field, Jordan Cornell (2003)
21
TeraShake PlatformKinematic vs. Dynamic Rupture
22
CyberShake Platform
  • Simulates ground motions for potential fault
    ruptures within 200 km of each site
  • 12,700 sources in SoCal from USGS 2002 ERF
  • Extends ERF to multiple hypocenters and slip
    models for each source
  • 100,000 ground motion simulations for each site

23
CyberShake Platform
24
CyberShake Platform
25
SCEC3 Science Issues
  • How reliable is the current generation of
    low-frequency ground-motion predictions
    (TeraShake, CyberShake)?
  • Can large-event predictions be verified before
    the fact?
  • What is the upper frequency limit for
    deterministic ground-motion prediction?
  • How far can we extend this limit by improving 3D
    models of elastic structure?
  • Is full-3D waveform tomography the most
    appropriate method for data assimilation into the
    CVM?
  • Should new CVMs be based on the CBMs?
  • What new data-gathering activities can elucidate
    key structural features?
  • How should we deploy stochastic extensions for
    predicting ground motions at higher frequencies?
  • What the physical limits of strong ground motions
    produced by large fault ruptures?
  • How important are near-surface nonlinear effects?
  • Are 1D models sufficient for ground-motion
    prediction?
  • How do we convince earthquake engineers (and
    ourselves) that we can reliability predict strong
    motions?

26
PetaSHA Goals
  • G1. Transform SHA into a physics-based science by
    deploying a cyberfacility that can execute SHA
    computational pathways and manage data volumes
    using the nations petascale computing resources
  • G2. Use this cyberfacility to implement
    physics-based PSHA and validate the results with
    data from Southern California

27
Science Thrust Areas
  • Investigate upper frequency limit of
    deterministic simulation
  • Extend ground motion simulations to 3 Hz
  • Investigate dynamic rupture complexity of large
    earthquakes
  • Extend dynamic rupture simulations to outer/inner
    scale ratios of 104.5
  • Compute physics-based PSHA maps for Southern
    California
  • Validate them using seismic and paleoseismic data

28
PetaSHA Geoscience Objectives
  • O1. Extend the upper frequency bound of
    ground-motion simulations (Pathway 2) from the
    current value of 0.5 Hz to 3 Hz. Investigate the
    upper frequency limit of deterministic
    ground-motion prediction by comparing the
    simulations with seismic data from Southern
    California earthquakes.
  • O2. Extend the outer/inner scale ratio of dynamic
    rupture simulations (Pathway 3) from the current
    value of 103.5 to 104.5. Investigate the effects
    of realistic friction laws, geologic
    heterogeneity, and near-fault stress states on
    seismic radiation improve pseudo-dynamic rupture
    models and validate rupture models with seismic
    data.
  • O3. Extend Pathway-2 simulations to broadband
    (0-10 Hz) using pseudo-dynamic rupture models
    improved via Pathway 3 and stochastic wave
    propagation methods. Provide broadband
    simulations to SCEC validation projects.

29
PetaSHA Geoscience Objectives
  • O4. Incorporate additional geologic complications
    into the Pathway-2 and Pathway-3 simulations,
    including surface topography, non-planar faults,
    and nonlinear wave propagation effects, and
    assess their effects on simulation-derived hazard
    curves.
  • O5. Demonstrate physics-based PSHA by calculating
    seismic hazard maps for Southern California using
    Pathway-2 simulations that adequately sample the
    NSHMP-2002 and WGCEP-2007 ERFs. Compare
    simulation-based hazard maps with those predicted
    by conventional PSHA. Validate the hazard curves
    using seismic data and paleoseismic constraints
    from SCEC studies of precarious rocks.
  • O6. Provide digital libraries and computational
    capabilities that will facilitate the inversion
    of ground-motion data for 3D crustal structure
    and earthquake sources (Pathway 4), including the
    receiver Green tensors for rapid imaging of
    earthquake sources and the simulation capability
    needed for full-3D tomography.

30
Validation Using Seismic Data
Fontana 01/06/05
Yorba Linda 09/03/02
PGV Data (SH)
PGV Synthetic (SH)
31
Validation Using Precarious Rocks
UNR Database
32
PetaSHA Computer Science Objectives
  • O7. Integrate PSHA workflows into the evolving
    national cyberinfrastructure, extending the
    scalability, usability, and robustness of the
    current CME. Achieve geoscience objectives by
    exploiting new high-end computing and storage
    resources.
  • O8. Develop SHA codes that can efficiently
    utilize the tera-to-petascale computing resources
    that become available during the project.
  • O9. Operate a distributed, high-capacity digital
    library that can manage petascale datasets from
    SHA simulations. Include facilities for
    replicating data, managing metadata and
    maintaining its integrity, and providing users
    with consolidated access across distributed
    storage resources.
  • O10. Vertically integrate available
    cyberinfrastructure to create high-capability and
    high-capacity SHA computational platforms with
    workflow tools, grid-based middleware, advanced
    SHA application software, data analysis and
    visualization tools, digital libraries, and
    high-performance hardware (computing, networking,
    storage).
  • O11. Develop science gateways utilizing
    service-oriented interfaces to enable seamless
    integration of SHA and PSHA data products and
    processes into the broader SCEC, EarthScope, and
    NEES Communities.

33
PetaSHA Workforce Development Objectives
  • O13. Improve the CME successful collaborations
    between geoscientists and computer scientists
    directed toward socially relevant hazards
    research.
  • O14. Cross-train diverse groups of undergraduate
    interns and early-career scientists in geoscience
    and computer science and motivate them to solve
    fundamental problems.

34
Petascale computing will be needed for SHA
simulations
Simulation Volumes V1 Northridge
domain V2 PSHA site volume V3 regional M7.7
domain V4 regional M8.1 domain
35
Meeting Goals
  • End-game plan for the NSF/ITR CME project
  • Final report due Jan 1, 2007
  • Input to SCEC3 science plan
  • Promote further integration of CME into SCEC
    organization
  • Revised plan for new PetaSHA project
  • 2-yr funding period
  • More specific CS objectives and budget
  • For selling to NSF/OCI

36
End
Write a Comment
User Comments (0)
About PowerShow.com
