A Dimension Abstraction Approach to Vectorization in Matlab

1

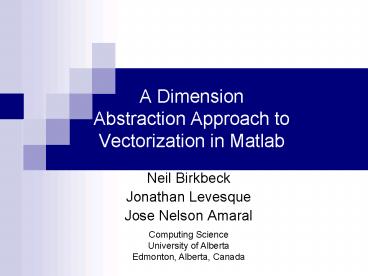

A Dimension Abstraction Approach to Vectorization
in Matlab

• Neil Birkbeck
• Jonathan Levesque
• Jose Nelson Amaral

Computing ScienceUniversity of AlbertaEdmonton,
Alberta, Canada
2
Problem

• Problem Statement
• Generate equivalent, error-free vectorized source
  code for Matlab source while utilizing higher
  level matrix operations when possible to improve
  efficiency.

3
Motivation

• Loop-based code is slower than vector code in
  Matlab.
• Why?
• interpretive overhead (type/shape checking,)
• resizing of arrays in loops

n1000 for i1n, A(i)B(i)C(i) end
5x faster!
n1000 A(1n)B(1n)C(1n)

• Vectorization also useful for compiled Matlab
  code, where optimized vector routines could be
  substituted.

4
Related Work

• Data dependence vectorization
• Allen Kennedys Codegen algorithm
• Build data dependence graph
• Topological visit strongly connected components
• Abstract Matrix Form (AMF) Menon Pingali
• axioms used to transform array code
• take advantage of matrix multiplication
• Not clear if it is easily extensible or allows
  for vectorization of irregular access (e.g.,
  access to the diagonal)

5
Incorrect Vectorization

• Example 1

Pull out of loop. Index variable substitution
(i?1n)
for i1n, a(i)b(i)c(i) end
a(1n)b(1n)c(1n)

• Vectorization correct if a,b, and c are row
  vectors or column vectors

6
Incorrect Vectorization

• Example 2

for i1n, x(i)y(i,h)z(h,i) end

• Matlab is untyped
• Vectorization depends on whether h is a vector or
  scalar.
• If h is a scalar
• Otherwise

x(1n)y(1n,h).z(h,1n)
x(1n)sum(y(1n,h).z(h,1n),2)
7
Overview of Solution
Data dependence-based vectorizer
Vectorizable statement
Knowledge of Shape of variables
Propagate dimensionality up parse tree
Dimensions Agree?
Yes
Perform Transformations
No
Leave statement in loop
Output Vector statement
8
More Specifically
Examples

• Represent dimensionality of expressions as list
  of symbols 1 or (gt1)
• Assume known for variables.

• Propagate up parse tree according to Matlab rules
• Compatibility
• dim(A)dim(B) when the lists are equivalent
  (after removal of redundant 1s)

9
Vectorized Dimensionality

• Vectorized dimensionality
• representation of dimensions after vectorization
  of a loop
• denoted dimi for loop with index variable i
• Introduce new symbol ri for index variable i

for i1n, a(i)10i end
10
Vectorized Dimensionality

• Expressions with incompatible vectorized
  dimensionality should not be vectorized.
• When do dimensionalities agree?
• Assignment expressions elhserhs
• dimi(elhs)dimi(erhs) erhs(1)
• Element-wise binary operators eelhsTerhs
• dimi(elhs) (1)dimi(erhs)(1)dimi(elhs)dim(er
  hs)

T in ,-,.,
Dimensionalities are compatible or erhs is scalar
Dimensionalities are compatible or either is
scalar
11
Vectorized Dimensionality

• Rules very restrictive
• Assume dim(A)dim(B)dim(C)(,)

dimi,j(B)(rj,ri) dimi,j(C)(ri,rj) Vectorization
fails because (ri,rj) is not compatible with
(rj,ri)
for i1100, for j1100 A(i,j)B(j,i)C(i,j
) end end
12
Transpose Transformation

• Extension to utilize transpose when necessary is
  straightforward
• For assignment
• if dimi(A)reverse(dimi(B)) then ABT is allowable

for i1m, for j1n A(i,j)B(j,i)
end end
dimi,j(A)reverse(dimi,j(B))(ri,rj) A(1m,1n)(B
(1n,1m))
13
Transpose Transformation

• Extension to utilize transpose when necessary is
  straightforward
• Similar for pointwise operations
• if dimi(A)reverse(dimi(B)) then ATBT is
  allowable, propagate dimi(ATBT)dimi(A)
• if dimi(reverse(A))dimi(A) then ATTB is
  allowable, propagate dimi(ATTB)dimi(B)

14
Pattern Database

• Dimensionality disagreement at binary operators
  inhibits vectorization.
• Recognizing patterns (consisting of operator type
  and operand dimensionalities) can be used to
  identify a transformation enabling vectorization.

lhs operation rhs output (ri, rj)
T (ri,1) (ri, rj)
Pattern
for i1m, for j1n, A(i,j)B(i,j)C(i)
end end
Transformed Result
B(i,j)C(i)
B(1m,1n)repmat(C(1m),1,n)
15
Pattern Database

• Diagonal access pattern

lhs operation rhs output (ri, ri)
(index) nil (1, ri)
Pattern
for i1n, a(i)A(i,i)b(i) end
a(1n)A((1n)size(A,1)((1n)-1)).b(1n)
Column major indexing of A
16
Additive Reduction Statements

• Additive-reduction statements use a loop variable
  to perform an accumulation.
• Not all loop nest index variables appear in
  output dimensionality

17
Additive Reduction (Solution)

• Maintain/propagate dimensionality and reduced
  variables for an expression.
• ?(E) denotes the reduced variables for
  expression E
• When checking statement A(J)A(J)E
• ensure dimi1,i2,,ikA(J)dimi1,i2,,ik(E) and
  ?(E)I-J
• any variable ri in I-J but not in ?(E) must be
  reduced

18
Additive Reduction via Matrix Multiplication

• Matrix multiplication can be used to perform
  reductions on eelhserhs , provided
• dimi1,,ik(elhs)(Sl,rk)
• dimi1,,ik(erhs)(rk,Sr)
• rk is a reduction variable.
• Implies
• dimi1,,ik(e)(Sl,Sr)
• ?(e)union(?(elhs), ?(erhs),rk)

19
Additive Reduction Example

• Additive reduction example

?(a(i,j)), dimi,j(a(i,j))(ri,rj) ?(b(j)),
dimi,j(b(j))(rj) rj is reduction variable
for i1m, for j1n, d(i)d(i)a(i,j)b(j)
c(i,j) end end
?(c(i,j)), dimi,j(c(i,j))ri,rj
Need to reduce rj c(i,j)?sum(c(i,j),2)
?(a(i,j)b(j)sum(c(i,j),2))rj,
dimi,j(a(i,j)b(j)sum(c(i,j),2)(ri,rj)
Dimensionality and reduced variables agree, now
replace index variables
d(1m)d(1m)a(1m,1n)b(1n)sum(c(1m,1n),2)
20
Implementation Prototype
Vectorized Loop
Original Loop
Vectorizer
Embedded Control Statements
Code Generator
Octave Parser
yes
Dimension Check Success
no
no
Create DDG
Vectorize Statement
yes

• Pattern database and corresponding
  transformations are specified in modular end-user
  extensible manner.

21
Results

• Source-to-source transformation
• Timing results averaged over 100 runs
• Platform
• Matlab 7.2.0.283
• 3.0 GHz Pentium D Processor

22
Results

• Histogram Equalization

Input source
Vectorized Result
hhist(im(),0255)histogram heq255cumsum(h(
))/sum(h()) for i1size(im,1), for
j1size(im,2), im2(i,j)heq(im(i,j)1)
end end
hhist(im(),(0255)) heq255cumsum(h())/sum(
h()) im2(1size(im,1),1size(im,2))...
heq(im(1size(im,1),1size(im,2))1)

• For monochrome 8-bit 800x600 image
• original/vectorized
• Entire routine 0.178s/0.114s (speedup 1.56)
• Loop Portion only 0.0814s/0.0176s (speedup 4.6)

23
Results (Menon Pingali Examples)
for k1p, for j1(i-1), X(i,k)X(i,k)-L(i,j)X(
j,k) end end
X(i,1p)X(i,1p)-L(i,1i-1)X(1i-1,1p)
for i1N,for j1N phi(k)phi(k)a(i,j)x_se(i)
f(j) end end
phi(k)phi(k)sum(a(1N,1N)
x_se(1N).f(1N),1)
for i1n,for j1n, for k1n,for l1n
y(i)y(i)x(j)A(i,k)
B(l,k)C(l,j) end end end end
y(1n)y(1n)x(1n)... (A(1n,1n)B(1n,1
n)C(1n,1n))
24
Remaining Issues/Future Work

• Each pattern transformation is local no
  optimization over entire statement.
• e.g., we do not optimize and distribute
  transposes
• Control flow within loop
• Function calls
• functions are treated as pointwise operators
  (correct for many predefined arithmetic
  functions)
• Incorporate our analysis directly with shape
  analysis

25
Summary

• Contributions
• A simple method to prevent incorrect
  vectorization in Matlab
• A user extensible operator/dimensionality pattern
  database can be used to improve vectorization
• These patterns can make use of higher level
  semantics (e.g., matrix multiplication) or
  diagonal accesses in vectorization.

26
Acknowledgements

• Funding provided by NSERC
• Grateful for reviewers comments and suggestions

27
Thank You

• Questions?
