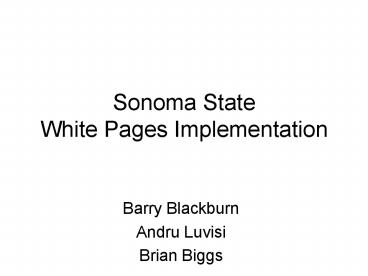

Sonoma State White Pages Implementation

1
Sonoma StateWhite Pages Implementation

• Barry Blackburn
• Andru Luvisi
• Brian Biggs

2
Functional Objectives

• Low maintenance (automate when possible)
• Allow hiding and alternate information
  (receptionist phone number or email address)
• Correctly handle multiple jobs and phone numbers
• Web based interface
• LDAP based interface for email clients

3
Data To Track

• cn, sn, givenName (Name)
• title
• telephoneNumber
• ou (Department)
• buildingName
• roomNumber
• mail (Email Address)
• labeledURI

4
Challenges

• No authority for office location
• Unreliable Job Title information in CMS
• Difficult to match phone records
• Deciding which department to display
• Order of values in a multi-valued attribute in
  LDAP is unreliable

5
Solutions

• Broke White Pages information out into a separate
  branch of the DIT
• Multiple jobs? Multiple White Pages objects.
• Each White Pages entry contains a RegID
  indicating the person it belongs to
• People maintain their own information via a web
  page (department is selected from drop-down list)
• The helpdesk can edit anyone's information
• Periodic reminders sent out via email

6
Directory Information Tree
osonoma,oedu
ouwp
oupeople
ssuWPUniqueID2805 sonomaEduPersonRegIdsonaaaafxm
telephoneNumber... email... ...
uidluvisi sonomaEduPersonRegIdsonaaaafxm ...
7
Custom Development

• CGI for searching directory
• CGI for users to maintain their information
• Script to email out reminders
• Auto-populate name and email for employees with
  no existing entries (to enable email client
  lookups)

8
Extra Information Needed

• ssuWPDisplay (To show or not to show?)
• ssuWPUniqueID (Identify WP entry)
• sonomaEduPersonRegId (To link back to
  authentication object)
• sonomaEduPersonDeptId (to auto-update "ou" when a
  department name changes)

9
PDF Output

• Perl script generates PostScript
• ps2pdf creates PDF version
• PDF placed on web site for download
• Same process used for both
• "At A Glance" (Just name and phone number)
• Full White Pages

10
Current Status
It Works!
