Title: SOIL DEVELOPMENT

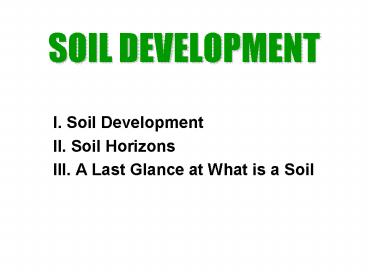

1
SOIL DEVELOPMENT
  • I. Soil Development
  • II. Soil Horizons
  • III. A Last Glance at What is a Soil

2
SOILS
  • Soils and weathering
  • Soils and plants
  • Soils and you

3
Soil Formation
Learn NC. North Carolina Teachers Network.
http//www.learnnc.org/LearnNC/lessonp.nsf/88547a4
f82c4ca6585256b2300826c70/1b7d1f4fd25488bc85256a7a
0047ad0b/FILE/stages20of20soil20formation.gif
4
SOILS CONTENTS
  • Soils parent material organics water
  • soil horizons - distinct soil layers
  • soil profile - sequence of layers

5
Soil profile
6
Soil Horizons
O horizon mostly organic material
A horizon Topsoil dark color, lots of
organics.
E horizon Lighter colored because of
dissolution of minerals by water moving downward
(leaching/eluviation) (Quartz sand left behind is
lighter colored.
B horizon deposition of material (iron,
aluminumleached out of the E horizon (iluviation)
R horizon Regolith (Weathered bedrock)
7
SOILS
eluviation
illuviation
8
Soil profile
O horizon mostly organic material
A horizon Topsoil, dark color, lots of
organics.
E horizon Lighter colored because of
dissolution of minerals by water moving downward
(leaching/eluviation) (Quartz sand left behind is
lighter colored.
B horizon deposition of material (iron,
aluminumleached out of the E horizon (iluviation)
R horizon Regolith (Weathered bedrock)
http//earthquake.usgs.gov/image_glossary/images/s
9
O horizon mostly organic material
A horizon Topsoil, dark color, lots of
organics.
E horizon Lighter colored because of
dissolution of minerals by water moving downward
(leaching/eluviation) (Quartz sand left behind is
lighter colored.
B horizon deposition of material (iron,
aluminumleached out of the E horizon (iluviation)
R horizon Regolith (Weathered bedrock)
10
O horizon
A horizon loess
E horizon
B horizon
R horizon
11
SOILS CONTENTS
  • Inorganic materials - sediments (minerals)
    solutions (dissolved elements)
  • Organic materials plants and animals

12
SOILS CONTENTS
  • Inorganic materials - sediments (minerals)
    solutions (dissolved elements)
  • Resistant residue
  • (sediments)
  • Secondary minerals
  • Weathering solution

Quartz sand
13
SOILS CONTENTS
  • b. Secondary minerals
  • Minerals precipitated from water
  • Halite, gypsum, calcium carbonate.
  • Minerals transformed from. other minerals.

K Feldspar
Kaolin
Gypsum precipitation
14
SOILS CONTENTS
  • Inorganic materials come from parent material
  • 4 Major sources of parent material
  • loess - aeolian (transported parent material)
  • alluvium - fluvial (transported parent material)
  • till - glacial (transported parent material)
  • bedrock- derived from underlying rock (local)

15
SOILS CONTENTS
  • 2) Organic matter - material derived from living
    or formerly living material
  • Two types of organic matter
  • humus
  • living organisms

16
(No Transcript)
17
SOILS CONTENTS
  • 3) Water - important to plants, solutions, and
    chemical reactions.
  • Types of water in soils
  • Gravitational water
  • Capillary water
  • Hygroscopic water

http//www.denislindsell.demon.co.uk/pasture/soils
/index.htm
18
SOILS CONTENTS
  • 3) Water - important to plants, solutions, and
    chemical reactions.
  • Types of water in soils
  • Gravitational water
  • Capillary water
  • Hygroscopic water

http//www.ianr.unl.edu/pubs/fieldcrops/g964.htm
19
SOILS CONTENTS
  • 3) Water - important to plants, solutions, and
    chemical reactions.
  • Types of water in soils
  • Gravitational water
  • Capillary water
  • Hygroscopic water

20
Soil Water
Figure 13.2
21
SOILS CONTENTS
  • 4) Gasses - void space in soil, with air making
    up to 50.

22
WHAT IS A SOIL?
  • Complex and 3-dimensional
  • A soil is a natural body consisting of layers
    (horizons) of mineral and/or organic constituents
    of variable thickness. Each layer differs from
    the parent material in their morphological,
    physical, chemical, and mineralogical properties
    and their biological characteristics (Birkeland,
    1974).

23
Soil description
  • Color
  • Texture
  • Structure
  • Porosity
  • Moisture
  • Consistence (cohesion)
  • Chemistry

24
Color
  • Color
  • Indicative of chemical composition
  • Reds and yellows ? high iron oxides
  • Black ? High organic content
  • White/pale ? silicates and aluminum oxides

California http//rocknfish.com/BlackSoil.html
25
  • Texture size of the particles
  • Affects the transmission of water through soil

26
  • Structure
  • Arrangement of soil particles
  • Ped smallest natural lump of soil

27
  • Porosity space between sediment grains and
    peds.
  • Volume of water in soil
  • Ability of water to pass through the soil

28
  • Moisture
  • Field capacity maximum amount of water
    available for plants after large pores are
    drained.

29
  • Chemistry
  • Soil is made of sediment, water and air.
  • Plants use nutrients dissolved in water in soil
  • Acid soils versus Alkaline soils (pH)
