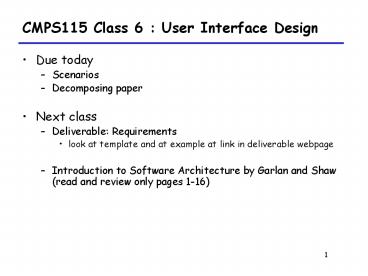

CMPS115 Class 6 : User Interface Design

1
CMPS115 Class 6 User Interface Design

• Due today
• Scenarios
• Decomposing paper
• Next class
• Deliverable Requirements
• look at template and at example at link in
  deliverable webpage
• Introduction to Software Architecture by Garlan
  and Shaw (read and review only pages 1-16)

2
User Interface Design Principles ideas for this
and following slides from Pressmans Software
Engineering, 6/e 2005

• Put the user in control
• Keep the users memory load controlled
• Consider issues of consistency

3
User Quote (user in control)

• What I really would like is a system that reads
  my mind.
• It knows what I want to do before I need to do it
  and makes it very easy for me to get it done.
• Thats all, just that.

4
Control

• Whos in Control?
• Does user adapt to computers model of task?
• Does computer adapt to users model of task?
• Consider the novice user
• Consider the knowledgeable, intermittent user
• Consider the knowledgeable, frequent user

5
User maintains control when

• Youve provided for flexible interaction
• Youve allowed for interaction to be interrupted
  and undoable
• Youve allowed for interface to be customized to
  users skill level
• Youve hidden technical internals (no OS commands
  needed)
• You dont force user into unnecessary actions
• Youve designed for direct interaction with
  objects on the screen

6
Users memory load

• Make UI show state with visual cues
• Use meaningful defaults that can be reset/set
• Provide meaningful shortcuts
• Make visual layout reflect real world task

7
Consistency

• Use the same design standard throughout all
  screens
• Use the same input techniques throughout all
  screens

8
UI analysis and design

• Model the user, task, and environment
• Design the interface
• Construct the interface
• Validate the interface
• Iterate through these, with each pass elaborate
  additional requirements and resulting design

9
User analysis

• Interview the users or representatives of the
  users
• Interview sales, marketing, or support staff
  about user characteristics

10
Ask questions to understand the users

• Trained professionals, technicians, clerical,
  manufacturing users?
• Level of education
• Learn from written materials or is class needed?
• Expert typists or phobic
• Age range
• One gender predominates?
• Compensation for users for their work is how?
• Use during normal work hours or until job is
  done?
• Integral part of job or infrequent use?
• What is primary language of users?
• What are consequences of mistakes?
• Are users subject matter experts?
• Knowledge about underlying technology needed?

11
Environment analysis

• What will be the physical location of the sw?
• Will user be sitting, standing, walking?
• Will user be dedicated to this task/multi-users
  required for this task?
• Will there be noise, light, or space impairments?

12
Task analysis

• What tasks will be done while user is working?
• What work is performed in special circumstances?
• What special domains are used during work?
• What is the sequence of workflow?

13
Using use cases - identify tasks and
subtasksExample - computer-aided design for
interior design

• Tasks
• Furniture layout
• Fabric selection
• Wall/widow coverings sel.
• Presentation to user
• Costing
• Shopping

• Subtasks for furn. layout
• Floor plan drawing given room dimensions
• Locate windows and doors
• Scaled drawings of furn.
• Move furniture around floor plan
• Provide 3-D view of floor plan with furniture for
  user

14
Objects derived from use cases

• Select physical objects from use case narratives
• Categorize into classes
• Define details of the attributes of each class
• Determine operations on each of these objects

15
Task workflow analysis

• When different user groups and user roles are to
  use software
• Use flow diagram called swimlane diagram
• Column for each role
• Bubbles for processes, flows for data
• Flows between columns represent interactions
  between processes of different roles
• Look and feel of UI for different roles may be
  different

16
Analysis for presentation of content

• Content may be from
• Other parts of the application
• Database accessible from application
• External to application
• Format of content
• Consistent location for same types?
• Customizable location?
• Identification of content?
• Handling of large datasets? Summary available?
• Color?
• Error handling?

17
Steps for UI design

• Parse use cases - objects (nouns) and operations
  (verbs)
• Sketch set of screens
• Test UI
• Iterate last 2 steps

18
Common design issues

• Response time
• Help
• Error handling
• Command and menu labeling
• Consider accessibility for special needs - www
  consortium Web Content Accessibility Guidelines
• Internationalization guidelines are available -
• www-306.ibm.com/able/access_ibm/disability.html

19
responsiveness

• Length of response time
• 1 sec acceptable
• More than that - use progress bar and busy icon
• Variability
• 1 sec is better than from 0.2 sec to 3.0 sec

20
Design of help features

• Provided for all features or just subset?
• Available at all times?
• How to request?
• How presented? Window, print doc, 2-lines
• How to return to normal operations?
• How is help info structured? Flat, hierarchical,
  hypertext

21
Command and menu labels

• Easy to remember labels? How to remind?
• What is form of commands? Control seq or typed
  word?
• Will all menu items have commands?
• Customizable and shortcuts available?
• Self-explanatory labels
• Do submenu items fit logically under menu items?

22
Test the UI

• Review material from M. Rettigs paper
  Prototyping For Tiny Fingers

23
Summary

• Weak UI may cause failure of acceptance of system
• Follow 3 principles of UI design
• User in control
• Reduce memory load
• Consistency
• Development involves
• Analysis (user, task, environment)
• Design (use cases drive sketches)
• Evaluate and iterate

24
Bjarne Stronstrup (designer and implementor of
C)

• I have always wished that my computer would be
  as easy to use as my telephone.
• My wish has come true.
• I no longer know how to use my telephone.

25
Client/Server Responsiveness Design project issues

• Local/Remote awareness
• Server may balk client should keep running
  smoothly
• Optimistic response (correct if server updates
  otherwise)
• Threading
• User thread services UI
• collects events, changes control state, posts
  events
• not to be used for game action!
• Game thread runs engine
• calculates local world based on local events and
  server data
• I/O thread handles network
