Title: Basic Constructions


1

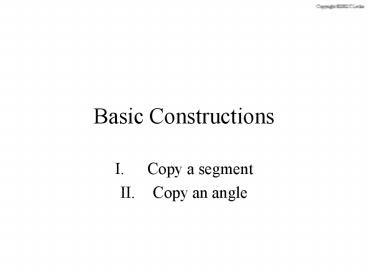

Basic Constructions
  • Copy a segment
  • Copy an angle

2
What is a Construction?
  • Uses TWO instruments only
  • Compass
  • Straightedge
  • Since a compass measures the radius of a circle,
    and radii of a circle are congruent, then we can
    use it to construct congruent segments.
  • A straightedge is used to connect two points. A
    ruler may not be used to measure distances in
    constructions.

3
What is a Construction?
  • Definition
  • An arc is any part of a circle.
  • When we draw using a compass we will be drawing
    arcs. We rarely need to complete the entire
    circle. The radii will still be congruent even
    if a complete circle is not present.

4
Construction 1 Copy a Segment
Step 1 Use the straightedge to draw a line and
label it l
Step 2 Choose any point on l and label it C.
Step 3 Set the compass at A and make an arc at
B.
Step 4 Using the same opening, set your compass
at C and make an identical arc so that it
intersects line l. Label this point D.
5
Construction 2 Copy an Angle
Step 1 You need to start with a line l and a
point F which corresponds to C.
E
Step 2 Opening your compass to any comfortable
distance, set the compass at C and make an arc
that intersects both sides of the angle. Label
these points E and D.
D
Step 3 Using the same opening, set the compass
at F and make an identical arc which intersects
the line l. Label this point G.
Step 4 On the original angle, set the compass
at D and make an arc that intersects the other
side of the angle at E.
G
6
Construction 2 Copy an Angle
Step 5 Using the same opening, set your compass
at G and make an identical arc so that it
intersects the arc from step 3. Label this point
H.
H
