Title: ESMF Requirements Overview


1

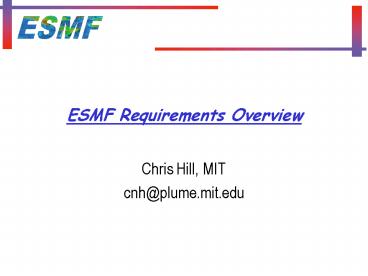

ESMF Requirements Overview
  • Chris Hill, MIT
  • cnh_at_plume.mit.edu

2
Current Status
  • Contributions drawn from applications of all
    groups
  • ?200 pages of raw material, http//www.esmf.ucar.e
    du/development
  • Seeking community input, comments and feedback

3
What are Requirements?
  • Prelude to detailed design
  • What to do, not precisely how to do it
  • Set scope of what gets built
  • Draft ESMF requirements
  • Glossary of common terms ? common language
  • General requirements
  • Ten chapters (so far) of detailed requirements
    for key concepts.

4
Table of Contents
ESMF Superstructure
User Code
ESMF Infrastructure
Fields Grids
Utilities
BLAS, MPI, NetCDF,
  • Pages 1 - 17

5
Introduction and Glossary
  • Introduction (pages 19-23)
  • ESMF architecture overview
  • Glossary of terms (pages 23-27)
  • Component A large-scale computational entity
    associated with a particular physical process or
    computational function, such as a land model.
    Components may be generic or user-supplied. See
    also gridded component, coupler component.
  • Application A coherent computational entity run
    as a single executable or set of communicating
    executables. It typically consists of a set of
    interacting components.

6
General Requirements GR
  • Requirements that are framework wide, examples
  • language interfaces F90, C, C - GR1.1.n
  • OS compatibility/hardware neutrality unices -
    GR1.2.n
  • performance and scalability low-overhead lt10 -
    GR1.3
  • Apply to all areas that ESMF covers
  • Pages 29-33

7
Superstructure
  • Control
  • Coupler and Gridded Components

8
Control - CTL
  • Connecting components, mapping components to
    resources
  • Requirements
  • SPMD and MPMD support - CTL1.1 CTL1.2
  • Control of resources - CTL2 3
  • Component startup and shutdown CTL4 5
  • Component interactions CTL7, 8 9
  • Pages 34-53

9
Coupler and Gridded Components - CGC
  • Containers for user code
  • Requirements
  • Creation, deletion, start, stop - CGC2
  • Exports and imports - CGC2
  • Gridded and coupler flavors CGC4 5
  • Pages 54-63
  • Superstructure (CTL and CGC) QA this afternoon

10
Infrastructure Fields and Grids
  • Fields
  • Physical Grids
  • Distributed Grids
  • Regridding

11
Fields- FLD
  • Containers for component data
  • Requirements
  • Creation, deletion - FLD1
  • Attributes, metadata FLD1
  • Collections of fields, bundles - FLD2
  • Pages 64-75

12
Physical Grids- PG
  • Discrete representations of a continuous
    coordinate system
  • Requirements
  • Structured (f-diff, f-vol, wave) - PG1
  • Horizontal specification PG1.1
  • Vertical specification PG1.2
  • Locations Streams (obs, lagrangian), background
    grid PG2
  • Topologies (cartesian, lat-lon, gen. orth),
    staggering, - PG3
  • Pages 76-102

13
Distributed Grids- DG
  • Decomposition based on grids. Source of scalable
    parallelism.
  • Requirements
  • Setup 1-D, 2-D decomposition, periodicity - DG1
  • Queries ranges, topology, ownership DG2
  • Operations halo, transpose/redistribute,
    aggregate communication, sums and checksums
    DG4-10
  • Individual grid specifics spectral, regioned
    DG14
  • Pages 103-126

14
Regridding- RG
  • Interpolation, redistribution/transposition.
  • Requirements
  • Setup create, delete, query - RG1
  • Algorithms conservation, accuracy order RG3
  • Extensibility user extensions RG3
  • Pages 127-137
  • Fields and Grids (FLD, PG, DG, RG) QA this
    afternoon.

15
Infrastructure Utilities
  • Time manangement
  • Performance profiling
  • Log
  • I/O

16
Time Management- TMG
  • Common simulated-time
  • Requirements
  • Units, resolution, range - TMG1
  • Calendars TMG2
  • Clocks and alarms - TMG3, TMG4
  • Pages 138-156

17
Performance Profiling- PP
  • Built-in capabilities for tracking resource use
  • Requirements
  • Timers - PP1
  • Hardware counters PP2
  • Process and thread granularity - PP3
  • Queries PP4
  • Pages 157-161

18
Log- LG
  • Built-in capabilities for recording progress,
    events
  • Requirements
  • Interface LG2
  • Parallelism LG5, LG6
  • Pages 162-164

19
I/O- IO
  • Compatibility with standard disk I/O mechanisms
  • Requirements
  • Metadata IO1
  • Standard formats and libraries IO2
  • Parallelism IO3
  • Pages 165-175
  • Utilities (TMG, PP, LG, IO) QA this afternoon.
