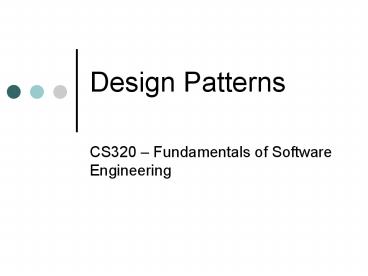

Design Patterns

• CS320 Fundamentals of Software Engineering

2
Patterns

• Principles and idioms codified in a structured
  format describing the problem, solution, and
  given a name are called patterns.

3
Definition of Pattern

• Pattern is a named problem/solution pair that can
  be applied in new contexts,with advice on how to
  apply it in novel situations and discussion of
  its trade-offs.
• Gang of Four Design Patterns Book

4
Naming Patterns

• All Patterns have suggestive names. Naming a
  pattern, technique, or a principle has the
  following advantages
• It supports chunking and incorporating that
  concept into our understanding and memory
• It facilitates communication .

5
Introduction

• The following Gang of Four (4 authors) design
  patterns are explored in the subsequent sections

• Adapter
• Analysis
• Factory
• Singleton
• Strategy
• Composite
• Publish-Subscribe

6
Adapter Pattern (GOF)

• Context/problem
• How to resolve incompatible interfaces or provide
  a stable interface to similar components with
  different interfaces?
• Solution
• Convert the original interface of a component
  into another interface through an intermediate
  adapter object.

7
The Adapter Pattern

• Adapters use interfaces and polymorphism
• to add a level of indirections to varying APIs
• in other components.

8
Structure of the Adapter Pattern

• Class Adapter

9
Implementation

• myStack Adapter Pattern is an Object Pattern
• abstract class Stack
• abstract Object top()
• abstract Object pop()
• abstract void push(Object v)
• public class myStack
  Adapter class
• private Vector stack new Vector()
  Adaptee object
• public boolean empty() return stack.size()
  0
• pubic Object top() return stack.lastElement()

• public Object pop()
• Object rslt stack.lastElement()
• stack.removeElementAt(stack.size()-1)
• return rslt
• void push(Object v) stack.addElement(v)

Target class
10
Concrete Factory Pattern (GOF)

• Context/Problem
• Who should be responsible for creating objects
  when there are special considerations, such as
  complex logic,a desire to separate the creation
  responsibilities for better cohesion, and so
  forth
• Solution
• Create a Pure Fabrication object called a Factory
  that handles the creation

11
Pattern Factory(a variation of Factory Method,
Abstract Factory)

• a class used to create other objects

12
Problem Bulky GUI code

• GUI code to construct many components quickly
  becomes redundant (here, with menus)
• homestarItem new JMenuItem("Homestar
  Runner")
• homestarItem.addActionListener(this)
• viewMenu.add(homestarItem)
• crapItem new JMenuItem("Crappy")
• crapItem.addActionListener(this)
• viewMenu.add(crapItem)
• another example (with buttons)
• button1 new JButton()
• button1.addActionListener(this)
• button1.setBorderPainted(false)
• button2 new JButton()
• button2.addActionListener(this)
• button2.setBorderPainted(false)

13
Factory pattern

• Factory a class whose sole job is to easily
  create and return instances of other classes
• a creational pattern makes it easier to
  construct complex objects
• instead of calling a constructor, use a static
  method in a "factory" class to set up the object
• saves lines and complexity to quickly construct /
  initialize objects
• examples in Java borders (BorderFactory), key
  strokes (KeyStroke), network connections
  (SocketFactory)

14
Using existing factories in Java

• setting borders on buttons and panels
• use built-in BorderFactory class
• myButton.setBorder(
• BorderFactory.createRaisedBevelBorder())
• setting hot-key "accelerators" on menus
• use built-in KeyStroke class
• menuItem.setAccelerator(
  KeyStroke.getKeyStroke('T',
• KeyEvent.ALT_MASK))

15
Factory implementation details

• when implementing a factory of your own
• the factory itself should not be instantiated
• make constructor private
• factory only uses static methods to construct
  components
• factory should offer as simple an interface to
  client code as possible
• don't demand lots of arguments possibly overload
  factory methods to handle special cases that need
  more arguments
• factories are often designed for reuse on a later
  project or for general use throughout your system

16
Factory sequence diagram
17
Factory example

• public class ButtonFactory
• private ButtonFactory()
• public static JButton createButton( String
  text, ActionListener listener, Container panel)
• JButton button new JButton(text)
• button.setMnemonic(text.charAt(0))
• button.addActionListener(listener)
• panel.add(button)
• return button

18
GoF's variations on Factory

• Factory Method pattern a factory that can be
  constructed and has an overridable method to
  create its objects
• can be subclassed to make new kinds of factories
• Abstract Factory pattern when the topmost
  factory class and its creational method are
  abstract

19
Advantages of Factory Objects

• Separate the responsibility of complex creation
  into cohesive helper objects.
• Hide potentially complex creation logic
• Allow introduction of performance-enhancing
  memory management strategies,such as object
  caching or recycling.

20
Singleton Pattern (GOF)

• The Factory raises a new problem in the design
• Who creates the factory itself?
• How is it accessed?
• One solution is pass the Factory instance around
  as a parameter to wherever a visibility need is
  discovered for it, or to initialize the objects
  that need visibility to it,with a permanent
  reference.
• Alternative is Singleton pattern.

21
Solution

• Define a static method of the class that returns
  the singleton.
• With this approach, a developer has global
  visibility to this single instance,via the static
  getInstance method of the class.

22
Visibility to Single Instance

• public class Register
• public void initialize()
• do some work
• //accessing the singleton Factory via the
  getInstance call
• AccountingAdapter ServiceFactory.getInstance(
  )
• do some work
• //other methods

23
Lazy Initialization

• public static synchronized ServiceFactory
  getInstance()
• if(instancenull)
• //critical section if multithreaded application
• instance new ServicesFactory()
• return instance

24
Eager Initialization

• public class ServiceFactory
• //eager initialization
• private static ServicesFactory instnace new
  ServicesFactory()
• public static servicesFactory getInstance()
• Return instance
• //other methods

25
Reasons to prefer lazy Initialization

• Creation work is avoided, if the instance is
  never actually accessed.
• The getInstance lazy initialization sometimes
  contains complex and conditional creation logic.

26
Implicit getInstance Singleton Pattern Message
27
Why not use static methods?

• Instance-side methods permit subclassing and
  refinement of the singleton class into
  subclasses.
• Most object-oriented remote communication
  mechanisms only support remote-enabling of
  instance methods,not static methods.
• A class is not always a singleton in all
  application contexts.

28
Strategy Design Pattern (GoF)

• Context/Problem
• How to design for varying, but related,algorithms
  or policies?
• How to design for the ability to change these
  algorithms or policies
• Solution
• Define each algorithm/policy/strategy in a
  separate class, with a common interface

29
Strategy Pattern

• Many different algorithms exists for the same
  task
• Examples
• Breaking a stream of text into lines
• Parsing a set of tokens into an abstract syntax
  tree
• Sorting a list of customers
• The different algorithms will be appropriate at
  different times
• Rapid prototyping vs delivery of final product
• We dont want to support all the algorithms if we
  dont need them
• If we need a new algorithm, we want to add it
  easily without disturbing the application using
  the algorithm

30
Strategy Pattern
Policy
Context ContextInterface()

ConcreteStrategyA AlgorithmInterface()
ConcreteStrategyB AlgorithmInterface()
ConcreteStrategyC AlgorithmInterface()
Policy decides which Strategy is best given the
current Context
31
Applying a Strategy Pattern in a Database
Application
Database Search() Sort()

Strategy
32
Applicability of Strategy Pattern

• Many related classes differ only in their
  behavior. Strategy allows to configure a single
  class with one of many behaviors
• Different variants of an algorithm are needed
  that trade-off space against time. All these
  variants can be implemented as a class hierarchy
  of algorithms

33
Strategy In Collaboration

• A strategy object is attached to a context
  object- the object to which it applies the
  algorithm.
• In this example the context object is a sale.

34
Pattern Composite

• objects that can serve as containers

35
Composite pattern

• composite an object that is either an individual
  item or a collection of many items
• composite objects can be composed of individual
  items or of other composites
• recursive definition objects that can hold
  themselves
• often leads to a tree structure of leaves and
  nodes
• ltnodegt ltleafnodegt ltcompositenodegt
• ltcompositenodegt ltnodegt
• examples in Java
• collections (a List of Lists)
• GUI layout (panels containing panels containing
  buttons, etc.)

36
Composite example layout

• Container north new JPanel(new FlowLayout())
• north.add(new JButton("Button 1"))
• north.add(new JButton("Button 2"))
• Container south new JPanel(new BorderLayout())
• south.add(new JLabel("Southwest"),
  BorderLayout.WEST)
• south.add(new JLabel("Southeast"),
  BorderLayout.EAST)
• Container cp getContentPane()
• cp.add(north, BorderLayout.NORTH)
• cp.add(new JButton("Center Button"),
  BorderLayout.CENTER)
• cp.add(south, BorderLayout.SOUTH)

37
Facade(GOF)

• Context/Problem
• A common, unified interface to a disparate set of
  implementations or interfaces- such as within a
  subsystem-is required.There may be undesirable
  coupling to many things in the subsystem, or the
  implementation of the subsystem may change.What
  to do?

38
Facade Pattern (GOF) (2)

• Solution
• Define a single point of contact to the
  subsystem- a facade object that wraps the
  subsystem. This facade object presents a single
  unified interface and is responsible for
  collaboration with the subsystem components.

39
Facade

• A Facade is a front-end object that is the single
  point of entry for the services of a subsystem
  the implementation and other components of the
  subsystem are private and can't be seen by
  external components.
• Facade provides Protected Variations from changes
  in the implementation of a subsystem.

40
Example for a facade

• Define a rule engine subsystem, whose specific
  implementation is not yet known.It will be
  responsible for evaluating a set of rules against
  an operation, and then indicating if any of the
  rules invalidated the operation.
• The facade object to this subsystem will be
  called POSRuleEngineFacade.
• The designer decides to place calls to this
  facade near the start of the methods that have
  been defined as the points for pluggable rules.

41
Object code for the Example

• public class Sale
• public void makeLineItem(Productspecification
  spec,int quantity)
• SaleLineItem sli new SalesLineItem(spec,
  quantity)
• //call to the Facade
• if(POSRuleEngineFacade.getInstance().isInvalid(sli
  ,this)
• return
• lineItems.add(sli)
• //....//end of class

42
Explanation

• With this design, the complexity and
  implementation of how rules will be presented and
  evaluated are hidden in the rules engine
  subsystem.accessed through the POSRuleEngineFacade
  facade.
• The subsystem hidden by the facade object could
  contain dozens or hundreds of classes of objects,
  or even a non-object-oriented solution, yet as a
  client to the subsystem one can see only its one
  public access point.

43
Summary of Facade Objects

• Facades are often accessed through singleton.
• The facade pattern is simple, and widely used.
• It hides a subsystem behind an object.

44
UML package notation
45
Observer/Publish-Subscribe/ Delegation Event
Model

• Context/Problem
• Different kinds of subscriber objects are
  interested in the state changes or events of a
  publisher object, and want to react in their own
  unique way when the publisher generates an event.

• Moreover, the publisher wants to maintain low
  coupling to the subscribers.

46
Solution

• Define a subscriber or Listener interface.
  Subscribers implement this interface.
• The publisher can dynamically register
  subscribers who are interested in an event, and
  notify when an event occurs.

47
Updating the interface when the sale total
changes
48
The Observer Pattern
49
The Observer Pattern

• Observer Is not only for connecting UIs and Model
  Objects but also used for GUI widget event
  handling in both Java technology and Microsoft's
  .Net.
• One publisher can have many subscribers for an
  event.

50
Observer

• Observer provides a way to loosely coupled
  objects in terms of communication.
• Publishers know about subscribers only through an
  interface, and subscribers can register
  dynamically with the publisher.

51
Conclusion

• Objects can be designed and responsibilities
  assigned with the support of patterns.
• They provide an explainable set of idioms by
  which well designed object-oriented systems can
  be built.
