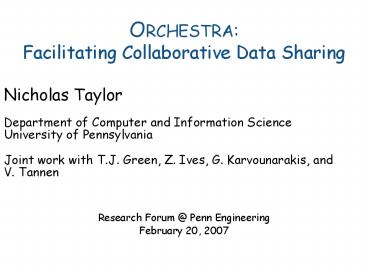

ORCHESTRA: Facilitating Collaborative Data Sharing

1
ORCHESTRA Facilitating Collaborative Data
Sharing
Nicholas Taylor Department of Computer and
Information Science University of
Pennsylvania Joint work with T.J. Green,
Z. Ives, G. Karvounarakis, and V. Tannen

• Research Forum _at_ Penn Engineering
• February 20, 2007

2
The Data Integration Problem
3
Standards-Based Data Sharing

• Works well for applications that
• Query but do not make updates
• Are not worried about contradictory information
• Downsides
• Need to design standard
• Difficult to change standard once implemented
• Can be difficult to represent all information
• Sources may lack some of the data

4
Conflicting Data is Inevitable

• Independent sources, conflicting data
• Database constraints often reveal conflicts
• e.g. more than one rating for a given restaurant

Inquirer DB
Daily News DB
5
Multiple Users Conflicting Data!

• Synchronizing PDA and computer calendars
• HotSync, iSync, etc.
• Many possible conflicts
• Collaborators share citation databases
• Different abbreviation styles
• Different citation programs
• Biologists databases
• Collect new information from published databases
• Store information from own experiments
• Disagree about key data points

6
A New Model for Data Sharing

• Single global database not possible
• Participants prefer their own data
  representations
• Conflicting data is present, but conflicts are
  localized
• Collaborative Data Sharing System (CDSS)
• Synchronize databases by sharing updates made to
  individual databases
• Each participant creates its own global
  database by deciding which updates to apply
• ORCHESTRA is our implementation of a CDSS

7
CDSS Overview
Participant 2
Participant 1
CDSS (ORCHESTRA)

• CDSS coordinates with other participants
• Stores updates (publication)
• Finds updates participant wants to apply
  (reconciliation)
• Other participants may use a different data
  representation
• or introduce contradictory information

8
Trust Policies in a CDSS
Pasion! ééé
Pats ééé
Pats éé
Pasion! ééé
Alma de Cuba éé
Pats éé
Pats ééé

• Allow participants to trust all, some, or none of
  another participants updates
• Specify preferences in the event of conflicting
  updates

Pasion! ééé
Alma de Cuba éé
Pats ééé
Pats éé
I trust the Inquirer, and the Daily News only for
restaurants in South Philly.
I trust both papers, but I prefer the Daily News
for steak shops.
Pats ?
9
Challenges solved in a CDSS

• Intermittent participation
• Need for consistent, predictable behavior
• Translating updates between different data
  representations
• Reference Z. Ives et al., ORCHESTRA Rapid,
  Collaborative Sharing of Dynamic Data, CIDR 05.

10
Data Sharing Operations

• Operations involve only one participant
• Publishing
• Reconciliation
• Participant applies consistent subset of updates
• May get its own unique instance

d
Publish New Updates
request
Reconciliation Requests
Published Updates
Local Database
Update Log
d?
d?
11
Implementation Details

• Peer-to-Peer Java implementation
• Efficient algorithm for reconciliation
• Distributed processing
• First implementation scales to 10s to 100s of
  participants
• Reference N.E. Taylor Z.G. Ives, Reconciling
  while Tolerating Disagreement in Collaborative
  Data Sharing, SIGMOD 06.

12
Ongoing work

• Improving performance using caching and
  pre-computation
• Improving reliability using replication
• Incorporate update translation
• First implementation assumes a single data
  representation

13
Conclusions

• Flexible model of data sharing
• Synchronization tolerates disagreement
• P2P network for reliable data storage and
  distributed processing

http//www.cis.upenn.edu/zives/orchestra/
14
Related Work

• Inconsistency repair
• Bry97, ABC99
• Causal ordering in distributed DBs with
  replication
• Optimistic Concurrency Control KR81,
  Version vectors PPR83,
• Distributed file systems
• Ivy MMGC02, Coda Braam98,KS95,
  Bayou TTP96,
• File synchronization
• Unison PV04, Harmony BVP06
• Version control (CVS, Subversion, etc.)
