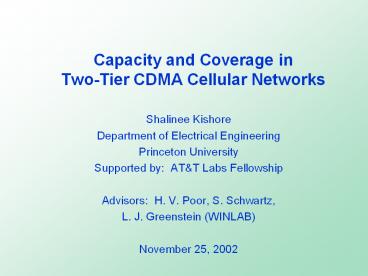

Capacity and Coverage in Two-Tier CDMA Cellular Networks

1
Capacity and Coverage in Two-Tier CDMA Cellular
Networks

• Shalinee Kishore
• Department of Electrical Engineering
• Princeton University
• Supported by ATT Labs Fellowship
• Advisors H. V. Poor, S. Schwartz,
• L. J. Greenstein (WINLAB)
• November 25, 2002

2

• Two-Tier System Macrocells and
  Microcells
• Macrocells - cells in the traditional cellular
  system
• Cell radii are 1 to 10 km.
• Base stations are costly, antenna tower heights
  ? 30 m.
• Microcells - smaller cells embedded within
  macrocells
• Cell radii are less than 1 km.

3
Why Microcells? An Example
Desired Coverage
High Density of Users
Actual Coverage
Due to high-user-density regions, actual
performance of macrocell falls short of desired
performance.
4
Why Microcells? (Contd)

• Other Reasons Users can be separated based on
• mobility
• desired data rates

Fast moving users ? Macrocell Slow moving users
? Microcell
Voice users ? Macrocell Data users ? Microcell
5
Microcells in Single-Frequency Code Division
Multiple Access (CDMA) Systems

• CDMA is employed in current cellular phones in
  US and is
• standard for third generation systems
  worldwide.
• CDMA uplink (user-to-base) users assigned
  random codes.
• Every users signal interferes with signals
  from every other user.
• In single-tier systems (macrocells only), there
  is in-cell and out-of-cell
• interference.
• CDMA downlink (base-to-user) base station
  uses orthogonal
• codes to transmit to all in-cell users.
• In single-tier systems, there is ideally only
  out-of-cell interference.
• Dispersive wireless channels cause
  loss-of-orthogonality, leading to
• in-cell interference.

• In both the uplink and downlink of two-tier
  systems, there is
• additionally cross-tier interference.

6
Two Classes of CDMA
Microcells Hotspots Small cells
Clusters/Overlay Small embedded inside a
larger cells that tesselate and span macrocell
to provide almost all of macrocell coverage in
small region coverage area. No handoff with
high user/traffic between tiers. density or
poor coverage. Handoff between tiers. -
Single-frequency (near-far problem) -
Dual-frequency (spectral efficiency
issues) Focus of our research
7
Previous Work on CDMA Microcells

• Hotspots
• Shapira, Microcell Engineering in CDMA
  Cellular Networks, IEEE Transactions on
• Vehicular Technology, 1994.
• Gaytan and Rodriguez, Analysis of Capacity
  Gain and BER Performance for CDMA
• Systems with Desensitized Embedded Microcells,
  ICUPC, 1998.
• Wu, et al., Performance Study for a Microcell
  Hot Spot Embedded in CDMA Macrocell
• Systems, IEEE Transactions on Vehicular
  Technology, 1999.
• Overlays
• I, et al., A Microcell/Macrocell Cellular
  Architecture for Low- and High-Mobility Wireless
• Users, IEEE Journal on Selected Areas in
  Communications, Vol. 11, Issue 6, Aug. 1993.
• Hamalainen, et al., Performance of CDMA Based
  Hierarchical Cell Structure Network,
• IEEE TENCON, 1999.

8
Research Goals

• Expand understanding of Macrocell/Microcell
  architectures in CDMA networks.
• Develop new methods of analysis for evaluating
  such
• systems.
• Evaluate impact of propagation, user
  distribution,
• channel fading, maximum transmit power
  constraints,
• and dispersion on uplink and downlink capacity
  and
• coverage area.
• Devise techniques, tradeoffs, and engineering
  rules for
• performance improvement and system deployment.

9

• Summary of Thesis
• Ideal Conditions

• - Single-Macrocell/Single-Microcell
  (Two-Cell) System
• - Multiple-Macrocell/Multiple-Microcell
  (Multi-Cell) System
• - Other Issues in Two-Cell Systems
• Effect of soft-handoff
• Effect of voice activity detection
• Effect of propagation parameters
• 4) Microcells as Data Access Points (DAPs)

10
Summary of Thesis (Contd)

• Non-Ideal Conditions
• Uplink Capacity and Coverage
• 1) Effect of transmit power constraints
• 2) Effect of received power fading
• Downlink Capacity No Multiuser Detectors
• 1) Effect of Channel Dispersion
• 2) Alternative methods of power control

11
Two-Cell System Uplink and Downlink in Ideal
Conditions
12

• Uplink Capacity of Two-Cell System Problem
  Statement
• Given
• CDMA system with single macrocell and single
  microcell
• Matched filter receiver and SINR-based power
  control
• Probability density of user location over
  coverage region
• Processing gain (W/R) and desired SINR (G )
• Propagation characteristics, including shadow
  fading
• Criterion for base station selection (e.g.,
  strongest path gain,
• minimum required transmit power)
• Hard-handoff each user communicates with only
  one base
• Determine
• Uplink user capacity (number of simultaneous
  voice users)

13
Feasibility
In order to meet SINR requirements for
macrocell and microcell users,
(Feasibility)
where
(single-cell pole capacity)
Cross-Tier Interference Terms
Tij Transmission gain from base i to user j,
d desensitivity
14
Transmission Gain (Path Gain) Model
T Transmission Gain d Distance Between User
and Base b Breakpoint Distance of Median Path
Gain H Proportionality Constant, Accounts for
Antenna Gains and Wavelength c Lognormal
Shadow Fading
15
Finding the CDF for one term of IM Let TMj/Tmj
vM
Exact analysis is doable but extremely
complicated.
16
Simpler Analysis Mean Approximation

• Since IM and Im are sums, they converge fairly
  tightly to
• their means.

• Instead of computing distribution of and
  , we
• compute their mean values
• Obtain the following requirement on NM and Nm

17
Capacity Contours for Single-Macrocell/Single-Micr
ocell System
Number of Microcell Users
Exact Analysis
Simulation
Approximation
Number of Macrocell Users
18
Multicell System Under Ideal Conditions
19

• Multicell Systems Key
  Results
• Showed total user capacity is maximum when there
  are an
• equal number of users served by each cell.
• Showed total user capacity is approximately
  linear in L and
• M (number of macrocell bases) for L small.
  Specifically,

and can be calculated using two-cell
techniques.
20
Mutlicell Systems Key Results (Contd)

• Derived a simple and reliable approximation for
  NTm

• Similar analysis yields reliable approximation
  for NTM.

21
Single-Macrocell/Multiple-Microcell System
Simulation Results, ? s error bar
Linear Approximation
Total Average Number of Users, 95 Feasibility
L, Number of Microcells
22
9-Macrocell/Multiple-Microcell System
Simulation Results, ? s error bar
Linear Approximation
Total Average Number of Users, 95 Feasibility
L, Number of Microcells
23
Other Issues in Ideal Two-Cell Systems Soft-Hand
off, Voice Activity Detection, Propagation
Parameter Sensitivity, and Microcells as DAPs
24
Other Issues in Two-Cell Systems Key Results

• Effect of Soft-Handoff Both base stations
  receive each
• users signal two signals added
• using
  maximal ratio combining.
• - Developed analytical methods to
  approximate user
• capacity under soft-handoff.
• - Showed user capacity increases by at most
  20 over
• hard-handoff.

25
Other Issues in Two-Cell Systems Key Results
(Contd)

• Effect of Voice Activity Factor Let a be the
  fraction of time voice users speak. Under
  voice activity detection, mean approximation
  contour is modified as

• Sensitivity to Propagation Parameters Fairly
  insensitive

26
Microcells as Data Access
Points DAP Base station with limited coverage
that provides high-speed data access to users
one-at-a-time.
Email, voice mail, and fax to the pedestrian
Downloading a map to a passing car
Low bit-rate cellular coverage
High bit-rate DAP coverage
Examples of DAPs Infostations, Dedicated
Short-Range Communications (DSRC), and
Intelligent Transportation Systems (ITS)
27

Problem Statement Recall Microcell
coverage shrinks as desensitivity (d )
reduces. Question What happens when
and microcell coverage
area shrinks to that of a DAP?
Determine Per-user throughput, tu , and total
DAP throughput, t , as
functions of d.
28
Normalized Average Throughput (E t / W ) Versus
d
Normalized Average Throughput
d, Desensitivity
29
Uplink Capacity and Coverage Max Power
Constraints and Variable Power Fading
30

• Maximum Power Constraints Problem Statement
• Given
• A Single-Macrocell/Single-Microcell System
• User distribution
• Propagation model
• Pmax Maximum transmit power level for any
  user
• dmax Maximum distance over which users are
  distributed
• hW Noise power
• Determine
• Uplink user capacity as a function of Pmax and
  dmax

31

• Maximum Power Constraints Key Results
• Defined P Outage as
• Presented uplink user capacity for given level
  of outage as
• a function of a single, dimensionless
  parameter F, where

P Outage (1-P Feasibility) P
Feasibility P Transmit Power gt Pmax.
32
Capacity in System with Max Power Constraints
N, Total Number of Users, 5 Outage
33
Variable Power Fading Background

• Thus far considered infinitely-dispersive
  uplink channel ?
• user signal has constant output power after RAKE
  processing.
• Actual channels have finite number of paths
  with variation
• about mean path power ? user signal has variable
  fading.
• Can model fading with modified transmission
  gain
• Tij kTij, k is a unit-mean random variable.
• Examine performance for four scenarios
• Rural Area (RA) environment
• Typical Urban (TU) environment
• Hilly Terrain (HT) environment
• Uniform multipath channel

34
Uniform Multipath Channel
Channel Delay Profile
power
Height of each path is mean square value of a
Rayleigh random-variable.
delay
Lp Number of Paths

• Diversity Factor (DF) measures the amount of
  multipath
• diversity in channel. Computable for any delay
  profile.
• Uniform channel has DF Lp.
• Non-uniform channels with Lp paths have DF lt
  Lp. For example,
• DFRA 1.6, DFHT 3.3, and DFTU 4.0.

35

• Variable Power Fading Problem
  Statement
• Given
• Single-macrocell/single-microcell system
• Propagation model with variable fading
• Pmax Maximum transmit power level
• dmax Maximum distance over which users are
  distributed
• hW Noise power
• Determine
• Uplink user capacity so that POutage does not
  exceed g.
• for the three standard environments, i.e., RA,
  TU, and HT,
• as functions of F.
• for any environment when F gtgt F (unlimited
  terminal
• power).

36
Variable Power Fading Key Results

• Uplink capacity constant for RA, HT, and TU
  environments when
• F lt 0.1 and decreases sharply in F when F lt 0.1.
• Capacity reduces by as much as 15 for the RA
  environment.
• When F gtgt F, user capacity in uniform
  multipath channel can be approximated as

, for Lp gt 1.

• Showed uplink capacity is the same for channels
  with the same
• DF.

Replace Lp in with DF
DF
Napprox
Non-Uniform Delay Profile
37
Obtaining NT for RA, HT, and TU Channels via the
Uniform Channel
RA
HT
TU
Uplink Capacity using Simulation
33
36
37
Uplink Capacity using Approximation (via Uniform
Channel)
37.1429
32.5
35.86
38
Downlink Capacity Channel Dispersion and Effect
of Alternate Power Control
39
Downlink Capacity Background

• CDMA downlink Base stations transmit
  orthogonal
• signals to users.
• Channel dispersion causes loss of orthogonality
  at user
• terminals.
• Orthogonality factor, b, captures
  loss-of-orthogonality of
• user signals in a channel. b ? 0,1, where b
  0 when no
• dispersion in channel and b 1 when infinite
  dispersion.
• b can be computed from channel delay profile.
• Thus far assumed b 1 (infinite dispersion)
  but ideal
• multiuser detectors removed all in-cell
  interference.

40

• Downlink Capacity Problem Statement
• Given
• Single-macrocell/single-microcell system
• Channel delay profile, i.e., orthogonality
  factor, b.
• Conventional receivers at user terminals
• Base station k transmits total power PTk, k ?
  M,m
• Macrocell user i assigned fraction xi of PTM
• Microcell user j assigned fraction yj of PTm
• Downlink power control scheme for allocating xi
  and yj
• Determine
• Downlink user capacity, number of simultaneous
  voice
• users

41

• Downlink Capacity Key Results
• Recast uplink capacity, NT, as a function of b.
• Capacity of any channel ( b ) approximated
  using
• capacity of uniform channel.
• For two of three power control strategies
  studied (uniform and slow), overall capacity
  dominated by uplink for all b.
• Under fast power control, user capacity can be

• approximated (by relating b to bu) as

42

• Conclusion
• Analytical methods developed for estimating
  attainable
• uplink user capacity in two-tier CDMA systems.
• Analysis done in progression from
  single-macrocell/single-
• microcell, to single-macrocell/multiple-microcel
  ls, to
• multiple-macrocells/multiple-microcells.
• Results general with respect to system and
  propagation
• parameters and accurate, as confirmed via
  simulation.
• Analysis extended to DAP, showing how microcells
  can
• be modified to support high speed data.

43

• Computed effect of soft-handoff and voice
  activity detection on uplink user capacity.
• Quantified effect of maximum power constraints
  on coverage area and capacity.
• Used the uniform multipath channel to
  approximate the uplink user capacity and downlink
  user capacity under fast power control for
  finitely-dispersive channels.
• Demonstrated the importance of fast downlink
  power control in two-tier CDMA systems.
