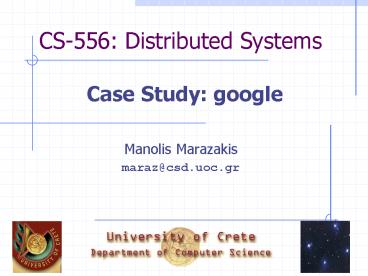

CS-556 Distributed Systems
Case Study google

• Manolis Marazakis
• maraz_at_csd.uoc.gr

2
Google cluster architecture

• 15,000 commodity-class PCs
• running custom fault-tolerant software
• Replication of services across many different
  machines
• Automatic fault detection handling
• rather than a smaller number of high-end
  servers
• Overall system throughput vs single-thread
  performance
• Throughput-oriented workload
• Easy parallelism
• Raw data several 10s of TBs
• Different queries can run of different processors
• The overall index is partitioned, so that a
  single query can use multiple processors
• Key metrics
• Energy efficiency
• Price/performance ratio

3
Google query-serving architecture

• Coordination of
• query execution
• Formatting of
• results

DNS-based load balancing among geographically
distributed data centers
H/W-based load balancer at each cluster
4
Query Execution

• Phase-I
• Cluster of index servers
• consult an inverted index that maps each query
  keyword to a set of matching documents
• Hit-list per keyword
• Intersection of hit-lists
• Computation of relevance rankings
• Result ordered list of doc-ids
• Phase-II
• Cluster of document servers
• Fetch each document from disk
• Extract URL, title keyword-in-context snippet

5
Index servers

• The inverted index is divided into shards
• each having a randomly chosen subset of
  documents from the overall index
• Pool of machines per shard
• Intermediate load balancer
• Each query goes to a subset of machines assigned
  to each shard
• If a replica goes down, the load balancer will
  avoid using it, until it is recovered/replaced,
  but all parts of the index still remain available
• During the downtime, system capacity is reduced
  in proportion to the total fraction of capacity
  that this machine represented.

6
Document servers

• Partition the processing of documents
• Randomly distribute documents into smaller shards
• Multiple servers per shard
• Routing requests through a load balancer
• Access an online, low-latency copy of the entire
  Web
• actually, multiple copies !!

7
Replication for capacity (I)

• Mostly read-only accesses to the index other
  data structures
• Relatively infrequent updates
• Sidestep consistency issues, by temporarily
  diverting queries from a server until an update
  is completed
• Divide the query stream into multiple streams,
  each handled by a cluster
• lookup of matching documents ? many lookups for
  matching documents in much smaller indices,
  followed by a merging step

8
Replication for capacity (II)

• Adding machines to each pool increases serving
  capacity
• Adding shards accommodates index growth
• Divide the computation among multiple CPUs
  disks
• No communication/dependency bet. shards
• Nearly linear speedup
• The CPU speed of individual machines does not
  limit search performance
• We can increase the number of shards to
  accommodate slower CPUs

9
Design principles

• Software reliability
• rather than high-quality components, RAID,
  redundant power-supplies,
• Replication for better throughput and
  availability
• Purchase the CPU generation that currently gives
  the best performance per unit price
• not the CPUs that give the best absolute
  performance
• Using commodity PCs reduces the costs of
  computation
• making it affordable to use more computational
  resources per query
• Search a larger index
• Employ elaborate ranking algorithms

10
Rack organization

• 40-80 x86-class custom-made PCs
• Several CPU generations are in active service
• 533 MHz Celeron, , dual 1.4 GHz Pentium-III
• IDE 80 GB hard disks, one or more per machine
• 100 Mbps Ethernet switch for each side of a rack
• Each switch has one or two uplink connections
  to a gigabit switch that interconnects all the
  racks

Selection criterion cost per query (capital
expense operating costs)
Realistically, a server will not last more than
2-3 years, due to disparities in performance
when compared with newer machines
11
A rough cost comparison

• Rack of 88 dual-CPU 2-GHz Intel Xeon servers with
  2 GB of RAM 1 80-Gbyte HDD 278,000 ? monthly
  capital cost 7,700 for a period of 3 years
• Capacity 176 CPUs, 176 GB of RAM, 7 TB disk
  space
• Multiprocessor containing 8 2-GHz Xeon CPUs, 64
  Gbytes of RAM, and 8 Tbytes of disk space
  758,000 ? monthly capital cost 21,000 for a
  period of 3 years
• 22 times fewer CPUs, 3 times less RAM

Much of the cost difference derives from the much
higher interconnect bandwidth reliability of a
high-end server. - Googles highly redundant
architecture does not rely on either of these
attributes.
12
Power consumption cooling

• Power consumption for a dual 1.4-GHz Pentium III
  server 90 W of DC power under load
• 55 W for the two CPUs, 10 W for a disk drive, 25
  W for DRAM motherboard.
• 120 W of AC power per server
• Efficiency of ATX power supply 75
• Power consumption per rack 10 kW.
• A rack fits in 25 ft2 of space
• Power density 400 W/ft2
• With higher-end processors, the power density of
  a rack can exceed 700 W/ft2

Typical data centers power density 150 W/ft2
What counts is watts per unit of performance, not
watts alone.
13
H/W-level application characteristics
The index application traverses dynamic data
structures control flow is data dependent,
creating a significant of difficult-to-predict
branches.
There isnt that much exploitable
instruction-level parallelism (ILP) in the
workload.

• Exploit thread-level parallelism
• Processing each query shares mostly
• read-only data with the rest of the system,
• and constitutes a work unit that requires
• little communication.
• SMT simultaneous multithreading
• CMP chip multiprocessor

Early experiments with dual-context Intel
Xeon 30 improvement
14
The Google File System (GFS)

• Component failures are the norm rather than the
  exception
• constant monitoring, error detection, fault
  tolerance automatic recovery
• Huge files
• Each file typically contains many application
  objects, such as web documents
• A few millions of files, of size 100 MB or larger
• Fast growing data sets of many TBs
• Most files are mutated by appending new data
• rather than overwriting existing data
• Random writes within a file are practically
  non-existent.
• Once written, the files are only read, often only
  sequentially.
• Co-design of applications the GFS API
• Relaxed consistency model
• Atomic file-append operation

15
GFS workloads

• Large streaming reads
• Individual operations typically read hundreds of
  KBs, more commonly 1 MB or more
• Successive operations from the same client often
  read through a contiguous region of a file
• Small random reads
• typically read a few KBs at some arbitrary offset
• Many large sequential writes that append data to
  files
• Once written, a file is seldom modified again
• Files are often used as producer-consumer queues,
  or for N-way merging
• Need for well-defined semantics for multiple
  processes that append to the same file
• High sustained throughput is more important than
  low-latency

16
GFS API

• Files are organized in a hierarchy of directories
  identified by pathnames
• Operations
• create, delete, open, close, read, write
• Snapshot
• Record-append
• GFS does not implement the POSIX API
• User-space servers client library
• No file data caching at clients
• because marginal benefit is expected
• Only file metadata are cached at clients.
• No special caching at chunk-servers
• Files are stored as local files, so the OS
  buffer cache is employed

17
GFS Architecture (I)
- Files are divided into fixed-size chunks, each
stored at a of chunk-servers (default 3) -
Immutable, globally unique 64-bit handle per
chunk - Chunkservers store chunks on local disks
as Linux files read or write chunkdata
specified by a chunk handle and byte range.
18
GFS Architecture (II)

• The master maintains all file system metadata.
• namespace
• access control information
• mapping from files to chunks
• current locations of chunks
• Also controls system-wide activities
• Chunk-lease management
• garbage collection of orphaned chunks
• Chunk-migration between chunkservers.
• The master periodically communicates with each
  chunkserver in HeartBeat messages to give it
  instructions collect its state.

19
GFS Architecture (III)

• Clients never read/write file data through the
  master.
• Instead, a client asks the master which
  chunk-servers it should contact.
• Using the fixed chunk size, the client translates
  the file name byte offset specified by the
  application into a chunk index within the file.
• Then, it sends the master a request containing
  the file name chunk-index.
• The master replies with the corresponding chunk
  handle locations of the replicas.
• In fact, the client typically asks for multiple
  chunks in the same request the master can also
  include the information for chunks immediately
  following those requested.
• This extra information sidesteps several future
  client-master interactions at practically no
  extra cost.
• The client caches this information using the file
  name chunk index as the key.
• It caches this information for a limited time
  interacts with the chunk-servers directly for
  many subsequent operations.

20
Chunk size 64 MB

• Much larger than in traditional file systems
• Large chunk size benefits
• Reduces the need for client-master interaction
• Sequential access is most common
• The client can cache the location info of all
  chunks even for a multi-TB working set
• On a large chunk, the client is more likely to
  perform multiple reads/writes
• Client keeps a persistent TCP connection to a
  chunk-server over an extended period of time
• Reduces volume of metadata kept at the master
• Allows master to keep metadata in-memory
• Disadvantages
• Potential for chunk-servers holding small files
  to become hot-spots
• Waste of disk space, due to fragmentation

21
Metadata

• Metadata are kept in in-memory data structures
• Persistent
• Namespace
• File-to-chunk mapping
• Operation log is used to record mutations
• Stored at local disk and replicated to remote
  machines
• Volatile
• Location of replicas
• Info requested by the master at start-up and when
  a new chunk-server joins the system
• Periodic state scan
• Chunk garbage collection
• Chunk re-replication
• Handling chunk-server failures
• Chunk migration
• Balancing load disk space usage

22
Master operations

• Chunk locations are volatile
• A chunk-server has the final word over what
  chunks it does or does not have on its own disks.

• There is no point in trying to maintain a
  consistent view of this information on the master
  because errors on a chunk-server may cause chunks
  to vanish spontaneously or an operator may rename
  a chunk-server.
• Operation log
• Defines logical timeline
• Do not make changes visible to clients until
  metadata changes are made persistent
• Replicate log on multiple remote machines
  respond to a client operation only after flushing
  the corresponding log record to disk both locally
  remotely.
• The master batches several log records together
  before flushing thereby reducing the impact of
  flushing and replication on overall system
  throughput
• Recovery by replay of operation log
• Keep log size manageable by checkpointing
• Checkpoint is a compact B-tree, ready to map into
  memory use to answer lookup requests

23
Consistency Model (I)

• File namespace mutations are atomic
• Handled exclusively by the master
• The state of a file region after a data mutation
  depends on the type of mutation, whether it
  succeeds or fails, and whether there are
  concurrent mutations.

24
Consistency Model (II)

• Consistent file region
• All clients see the same data, regardless of
  which replica they read from
• Defined file region
• Region is consistent and
• Clients see what the data mutation writes in its
  entirety
• The mutation executed without interference from
  concurrent writes
• Undefined file region
• Mingled fragments from multiple mutations
• Different clients may see different data at
  different times

25
Consistency Model (III)

• Write
• Causes data to be written at an
  application-defined file offset
• Record-append
• Causes data to be appended atomically, at least
  once even in the presence of concurrent
  mutations, but at an offset of the systems
  choosing
• GFS may insert duplicates or padding
• Apply mutations to a chunk in the same order at
  all its replicas
• Use chunk version numbers to detect stale chunks
  (that have missed mutations)

26
Consistency Model (IV)

• Application idioms
• Rely on record-appends rather than overwrites
• Checkpointing self-identifying, self-validating
  records
• Consistent mutation order using leases
• Master grants a chunk lease to primary replica
• New lease ? increment chunk version number
• Primary assigns serial numbers to mutations
• Decouple control-flow from data-flow
• Data is pushed linearly along a chain of
  chunk-servers in a pipelined fashion
• Fully utilize servers outbound B/W
• Each server forwards data to its closest server
  that has not received it
• Avoid network bottlenecks high-latency links
  (eg inter-switch links)
• Pipelining Once a server receives some data, it
  immediately starts forwarding it

27
Consistency Model (V)

• Atomic record-append
• Client pushes data to all replicas of the last
  chunk of the file
• Client sends operation to the primary
• Primary checks if appending the record would
  cause the chunk to exceed its max. allowable size
• If so, it pads the chunk, tells replicas to do
  the same, and asks client to retry on next chunk
• Otherwise
• If the append fits the chunk, the primary
  performs the operation instructs replicas to
  write the data at the exact same file offset
• If a replica fails, the client will retry the
  operation
• Thus we may get different data for the same chunk
  !
• Snapshot
• Deferred execution, copy-on-write

28
Replica placement

• Maximize data availability and
• Maximize network B/W utilization
• It is not enough to spread replicas across
  machines.
• We must also spread replicas across racks
• Initial placement, based on several factors
• Place new replicas on servers with below-average
  disk utilization
• Keep limit on number of recent chunk creations on
  each server
• keep cloning traffic from overwhelming client
  traffic
• Re-replication re-balancing
• By priority

29
Fault tolerance diagnosis

• Master
• Replication of operation log checkpoints
• Shadow masters for read-only file access
• Chunk-servers
• It would be impractical to detect data corruption
  by comparison with other replicas !
• Checksums to detect data corruption
• Chunk-server verifies integrity of data
  independently
• 32-bit checksum per 64 KB data block
• Diagnostic tools
• Logs of significant events all RPC interactions
• By matching requests with replies collating RPC
  records on different machines, we can reconstruct
  the entire interaction history to diagnose a
  problem.
• Logs readily server as traces for load testing
  performance analysis

30
References

• S. Brin L. Page, The Anatomy of a Large-Scale
  Hypertextual Web Search Engine, Proc. 7th WWW
  Conf., 1998
• L.A. Barroso, J. Dean, H. Holze Web Search for
  a Planet The Google Cluster Architecture, IEEE
  Micro, 2003
• S. Ghemawat, H. Gobioff, S.T Leung The Google
  File System, Proc. ACM SOSP, 2003
