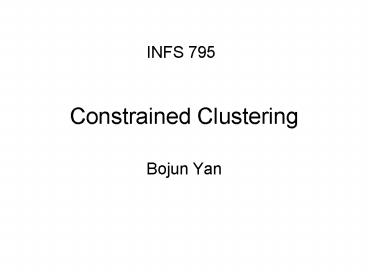

Constrained Clustering

1
Constrained Clustering
INFS 795

• Bojun Yan

2
Outline

• 1. Introduction and background knowledge
• 2. Constrained-based methods
• a. COP-KMeans algorithm
• b. Seeded-KMeans
• c. Constrained-KMeans
• 3. Metric-based methods
• a. Mahalanobis distance trained using
• convex optimization

3
1. Introduction and background knowledge

• In many learning tasks, there is a large supply
  of unlabeled data but insufficient labeled data
  since it can be expensive to generate.
  Semi-supervised learning combines labeled and
  unlabeled data during training to improve
  performance. Semi-supervised learning is
  applicable to both classification and clustering.


4

• In supervised classification, there is a known,
  fixed set of categories and category-labeled
  training data is used to induce a classification
  function.
• In semi-supervised classification, training also
  exploits additional unlabeled data, frequently
  resulting in a more accurate classification
  function(Blum Mitchell, 1998 Ghahramani
  Jordan, 1994)

5

• In unsupervised clustering, an unlabeled dataset
  is partitioned into groups of similar examples,
  typically by optimizing an objective function
  that characterizes good partitions.
• In semi-supervised clustering, some labeled data
  is used along with the unlabeled data to obtain a
  better clustering.

6

• Clustering algorithm are generally used in an
  unsupervised fashion. The algorithm has access
  only to the set of features describing each
  object It is not given any information (e.g.
  labels) as to where each of the instance should
  be placed within the partition.
• However, in real application domains, it is often
  the case that the experimenter possesses some
  background knowledge( about the domain or the
  dataset) that could be useful in clustering the
  data.

7

• Traditional clustering algorithms have no way to
  take advantage of this information even when it
  does exist.
• The semi-supervised clustering integrate
  background information into clustering algorithm,
  and its focus is on clustering large amounts of
  supervised data in the presence of a small amount
  of supervised data.

8

• Some real-world tasks
• a. similar text searching
• b. image retrieve
• c. speaker identification in a conversation
• d. visual correspondence in multiview
• image procossing

9
2. Constrained-based methods

• a. COP-KMeans algorithm
• b. Seeded-KMeans
• c. Constrained-KMeans

10
a. COP-KMeans algorithm

• In the Cop-KMeans, the initial background
  knowledge provided in the form of constraints
  between instances in the datasets, is used in the
  clustering process.
• There are two types of constraints, must-link
  (two instances have to be together in the same
  cluster) and cannot-link (two instances have to
  be in different clusters).

11

• The must-link constraints define a transitive
  binary relation over the instances. Consequently,
  when making use of a set of constraints (of both
  kinds), we take a transitive closure over the
  constraints. The full set of derived constraints
  is then presented to the clustering algorithm.
• In general, constraints may be derived from
  partially labeled data or from background
  knowledge about the domain or dataset.

12

• How to do transitive closure?
• If di must link to to dj, dj must link to dh,
  dl must link to dk, di can not link to dl, then
  we can do tansitive closure like the following
• di must-link dj
• dj must-link dh gt di must-link dh
• dl must-link dk

13

• di cannot link dl gt dj cannot link dl
• dh cannot link
  dl
• di cannot link
  dk
• dj cannot link
  dk
• dh cannot link dk

14
(No Transcript)
15
b. Seeded-KMeans
c. Constrained-KMeans
16
Seeding
17
(No Transcript)
18
(No Transcript)
19

• In Seeded-KMeans, the seed clustering is used
  to initialize the KMeans algorithm. Thus, rather
  than initializing KMeans from K random means, the
  mean of the lth cluster is initialized with the
  mean of the lth partition Sl of the seed set. The
  seed clustering is only used for initialization,
  and the seeds are not used in the following steps
  of the algorithm.

20

• In Constrained-KMeans, the seed clustering is
  used to initialize the KMeans algorithm as
  described for the Seeded-KMeans algorithm.
  However, in the sub-sequent steps, the cluster
  memberships of the data points in the seed set
  are not re-computed in the assign cluster steps
  of the algorithm -- the cluster labels of the
  seed data are kept unchanged, and only the labels
  of the non-seed data are re-estimated.

21
3. Metric-based methods

• a. Mahalanobis distance trained
• using convex optimization

22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
It is over!

• Question?
• Thanks!
