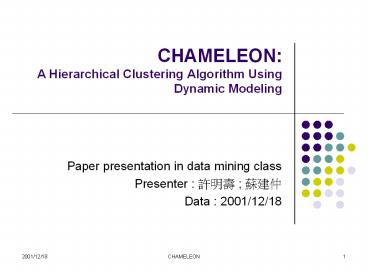

CHAMELEON: A Hierarchical Clustering Algorithm Using Dynamic Modeling

1
CHAMELEONA Hierarchical Clustering Algorithm
Using Dynamic Modeling

• Paper presentation in data mining class
• Presenter ??? ???
• Data 2001/12/18

2
About this paper

• Department of Computer Science and Engineering ,
  University of Minnesota
• George Karypis
• Eui-Honh (Sam) Han
• Vipin Kumar
• IEEE Computer Journal - Aug. 1999

3
Outline

• Problems definition
• Main algorithm
• Keys features of CHAMELEON
• Experiment and related worked
• Conclusion and discussion

4
Problems definition

• Clustering
• Intracluster similarity is maximized
• Intercluster similarity is minimized
• Problems of existing clustering algorithms
• Static model constrain
• Breakdown when clusters that are of diverse
  shapes,densities,and sizes
• Susceptible to noise , outliers , and artifacts

5
Static model constrain

• Data space constrain
• K means , PAM etc
• Suitable only for data in metric spaces
• Cluster shape constrain
• K means , PAM , CLARANS
• Assume cluster as ellipsoidal or globular and are
  similar sizes
• Cluster density constrain
• DBScan
• Points within genuine cluster are
  density-reachable and point across different
  clusters are not
• Similarity determine constrain
• CURE , ROCK
• Use static model to determine the most similar
  cluster to merge

6
Partition techniques problem
7
Hierarchical technique problem (1/2)

• The (c) , (d) will be choose to merge when we
  only consider closeness

8
Hierarchical technique problem (2/2)

• The (a) , (c) will be choose to merge when we
  only consider inter-connectivity

9
Main algorithm

• Two phase algorithm
• PHASE I
• Use graph partitioning algorithm to cluster the
  data items into a large number of relatively
  small sub-clusters.
• PHASE II
• Uses an agglomerative hierarchical clustering
  algorithm to find the genuine clusters by
  repeatedly combining together these sub-clusters.

10
Framework

11
Keys features of CHAMELEON

• Modeling the data
• Modeling the cluster similarity
• Partition algorithms
• Merge schemes

12
Terms

• Arguments needed
• K
• K-nearest neighbor graph
• MINSIZE
• The minima size of initial cluster
• TRI
• Threshold of related inter-connectivity
• TRC
• Threshold of related intra-connectivity
• a
• Coefficient for weight of RI and RC

13
Modeling the data

• K-nearest neighbor graph approach
• Advantages
• Data points that are far apart are completely
  disconnected in the Gk
• Gk capture the concept of neighborhood
  dynamically
• The edge weights of dense regions in Gk tend to
  be large and the edge weights of sparse tend to
  be small

14
Example of k-nearest neighbor graph
15
Modeling the clustering similarity (1/2)

• Relative interconnectivity
• Relative closeness

16
Modeling the clustering similarity (2/2)

• If related is considered , (c) , (d) will be
  merged

17
Partition algorithm (PHASE I)

• What
• Finding the initial sub-clusters
• Why
• RI and RC cant be accurately calculated for
  clusters containing only a few data points
• How
• Utilize multilevel graph partitioning algorithm
  (hMETIS)
• Coarsening phase
• Partitioning phase
• Uncoarsening phase

18
Partition algorithm (cont.)

• Initial
• all points belonging to the same cluster
• Repeat until (size of all clusters lt MINSIZE)
• Select the largest cluster and use hMETIS to
  bisect
• Post scriptum
• Balance constrain
• Spilt Ci into CiA and CiB and each sub-clusters
  contains at least 25 of the node of Ci

19
(No Transcript)
20
Merge schemes (Phase II)

• What
• Merging sub-clusters using a dynamic framework
• How
• Finding and merging the pair of sub-clusters that
  are the most similar
• Scheme 1
• Scheme 2

21
Experiment and related worked

• Introduction of CURE
• Introduction of DBSCAN
• Results of experiment
• Performance analysis

22
Introduction of CURE (1/n)

• Clustering Using Representative points
• 1. Properties
• Fit for non-spherical shapes.
• Shrinking can help to dampen the effects of
  outliers.
• Multiple representative points chosen for
  non-spherical
• Each iteration , representative points shrunk
  ratio related to merge procedure by some
  scattered points chosen
• Random sampling in data sets is fit for large
  databases

23
Introduction of CURE (2/n)

• 2. Drawbacks
• Partitioning method can not prove data points
  chosen are good.
• Clustering accuracy with respect to the
  parameters below
• (1) Shrink factor s CURE always find the right
  clusters by range of s values from 0.2
  to 0.7.
• (2) Number of representative points c CURE
  always found right clusters for value of
  c greater than 10.
• (3) Number of Partitions p with as many as 50
  partitions , CURE always discovered the
  desired clusters.
• (4) Random Sample size r
• (a) for sample size up to 2000 , clusters found
  poor quality
• (b) from 2500 sample points and above , about
  2.5 of the data set size , CURE always
  correctly find the clusters.

24

• 3. Clustering algorithm Representative points

25

• Merge procedure

26
Introduction of DBSCAN (1/n)

• Density Based Spatial Clustering of Application
  With Noise
• 1. Properties
• Can discovery clusters of arbitrary shape.
• Each cluster with a typical density of points
  which is higher than outside of cluster.
• The density within the areas of noise is lower
  than the density in any of the clusters.
• Input the parameters MinPts only
• Easy to implement in C language using R-tree
• Runtime is linear depending on the number of
  points.
• Time complexity is O(n log n)

27
Introduction of DBSCAN (2/n)

• 2. Drawbacks
• Cannot apply to polygons.
• Cannot apply to high dimensional feature spaces.
• Cannot process the shape of k-dist graph with
  multi-features.
• Cannot fit for large database because no method
  applied to reduce spatial database.
• 3. Definitions
• Eps-neighborhood of a point p
• NEps(p)qD dist(p,q)ltEps
• Each cluster with MinPts points

28
Introduction of DBSCAN (3/n)

• 4. p is directly density-reachable from q
• (1) p NEps(q) and
• (2) NEps(q) gtMinPts (core point condition)
• We know directly density-reachable is symmetric
  when p and q both are core point , otherwise is
  asymmetric if one core point and one border
  point.
• 5. p is density-reachable from q if there is a
  chain of points between p and q
• Density-reachable is transitive , but not
  symmetric
• Density-reachable is symmetric for core points.

29
Introduction of DBSCAN (4/n)

• 6. A point p is density-connected to a point q if
  there is a point s such that both p and q are
  density-reachable from s.
• Density-connected is symmetric and reflexive
  relation
• A cluster is defined to be a set of
  density-connected points which is maximal
  density-reachability.
• Noise is the set of points not belong to any of
  clusters.
• 7. How to find cluster C ?
• Maximality
• ? p , q if p C and q is density-reachable from
  p , then q C
• Connectivity
• ? p , q C p is density-connected to q
• 8. How to find noises ?
• ? p , if p is not belong to any clusters , then p
  is noise point

30
Results of experiment
31
Performance analysis (1/2)

• The time of construct the k-nearest neighbor
• Low-dimensional data sets based on k-d trees ,
  overall complexity of O(n log n)
• High-dimensional data sets based on k-d trees not
  applicable , overall complexity of O(n2)
• Finding initial sub-clusters
• Obtains m clusters by repeated partitioning
  successively smaller graphs , overall
  computational complexity is O(n log (n/m))
• Is bounded by O(n log n)
• A faster partitioning algorithm to obtain the
  initial m clusters in time O(nm log m) using
  multilevel m-way partitioning algorithm

32
Performance analysis (2/2)

• Merging sub-clusters using a dynamic framework
• The time of compute the internal
  inter-connectivity and internal closeness for
  each initial cluster is which is O(nm)
• The time of the most similar pair of clusters to
  merge is O(m2 log m) by using a heap-based
  priority queue
• So overall complexity of CHAMELEONs is O(n log
  n nm m2 log m)

33
Conclusion and discussion

• Dynamic model with related interconnectivity and
  closeness
• This paper ignore the issue of scaling to large
  data
• Other graph representation methodology??
• Other Partition algorithm??
