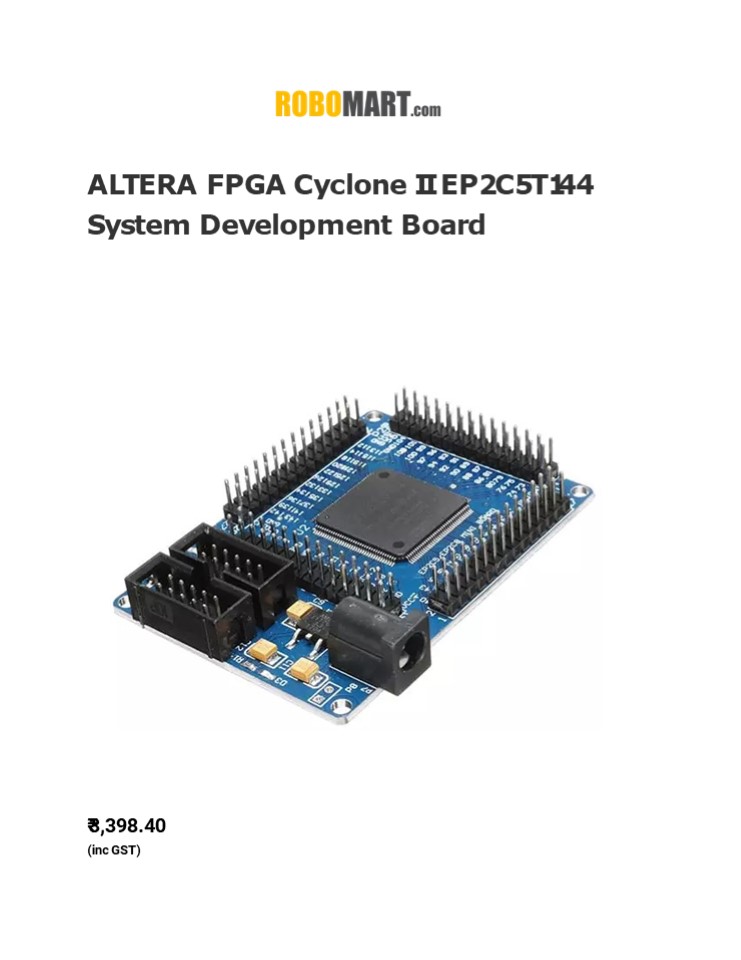

ALTERA FPGA Cyclone II EP2C5T144 System Development Board

1
ALTERA FPGA Cyclone II EP2C5T144 System
Development Board
? 3,398.40 (inc GST)
2

• ? 2,880.00 ( 18.00 Gst Extra )
• Product Highlights
• Onboard EP2C5T144 chip
• EPROM chip con?guration using EPCS4, the size of
  4Mbit
• Onboard 50M active patch crystal (Crystal
  Slaughter halfback)
• Power supply with a largemouth outlet, single 5V
  power supply
• Onboard 3 SMD LED, the LED test can be done an
  experiment, more experiments using lead to
  complete

• DESCRIPTION
• Using ALTERA companys Cyclone II EP2C5T144 chip
  as the core of the smallest system, the FPGA
  easily embedded in the actual application system.
• Complete from simple logic control, data
  acquisition, signal processing, mathematical
  calculations and other functions All the pins
  of the core board FPGA chip are all led out, and
  the board can be directly inserted into the
  application board. The 5V power supply board on
  the board can be introduced through the socket
  and can also be introduced through the pin
  header.
• Speci?cations and Features
• Onboard the EP2C5T144 chip.
• EPROM chip con?guration using EPCS4, the size of
  4Mbit.
• Onboard 50M active patch crystal (Crystal
  Slaughter halfback).
• Power supply with a largemouth outlet, single 5V
  power supply.
• Board has a power indicator and resets switch.
• Onboard 3 SMD LED, the LED test can be done an
  experiment, more experiments using lead to
  complete.
• More IO ports and clock pins through the pin
  leads through these interfaces can be extended
  to any memory and peripherals.
• Board using a high-quality tantalum capacitor
  power ?lter.
• Support NiosII embedded CPU development.
• Board Dimension (LxWxH) mm 72 x 52 x 13mm.
• Weight 26gm.

Store Address
3
RoboMart.com C-27, Dallupura Rd, Block C Sector
12 Noida-201301 (UP) India Timing 930 AM to
530 PM (Monday to Saturday) Email
admin_at_robomart.com Mobile [phone]
