Magnetism

1
Magnetism

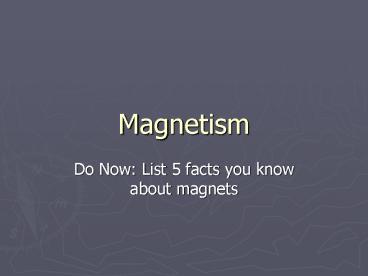

• Do Now List 5 facts you know about magnets

2
Magnet Facts

• Magnets have two poles, N and S
• Opposite poles attract
• Like poles repel
• You can never have an isolated pole
• When you break a magnet in half you get two
  magnets, each with a N and S pole

N S
N S N S
3
Distance Dependence

• Magnetic force is an action at a distance force
• Like gravity and the Coulomb force, magnetic
  force can be expressed as a field
• Lines are closer together where the field is
  stronger
• Field strength is greater at the poles
• Field lines point away from N pole and towards S
  pole
• Compass needle is tangent to field lines

4
Magnetic Field Diagram
5
Imaging a magnetic field
S
Remember the field is in three dimensions!
6
Levitation

• How are the poles oriented for each of the
  magnets?
• What are the forces on each of the magnets?
• Are the distances between the magnets the same?
  Why or why not?
• What will happen if you push down on the top
  magnet?

http//www.arborsci.com/CoolStuff/P8-1129.jpg
7
Aligning a Compass with the Field
Field Lines
Oppositely directed magnetic forces exert a
torque (turning force) to twist the magnet into
alignment
Magnetic Force
N S
8
Electricity and Magnetism

• Different aspects of the same electromagnetic
  force
• Both are action-at-a-distance forces
• Both can be thought of as generating a field
• Moving electric charges produce magnetic forces
• Moving electric charges are affected by magnetic
  fields
• Moving magnets produce electric forces

9
In the field view..

• A changing magnetic field induces an electric
  field
• A changing electric field generates a magnetic
  field

10
Magnetic Field Induced by Current in a Wire

• Right Hand Rule
• Thumb points in direction of current
• Fingers wrap to show field lines

http//my.hrw.com/tabnav/controller.jsp?isbn00307
24848
11
Oersted Experiment

• When current flows through coil, compass points
  along direction of coil axis
• Proves current (moving charges) produces a
  magnetic field

12
Magnetic Induction The Copper Tube Demo

• Changing magnetic fields due to falling magnetic
  induces currents in tube
• Currents create magnetic fields that oppose the
  motion
• Current above magnet is attractive, below magnet
  is repulsive
• Current induced magnetic forces on magnet are
  opposite to the gravitational force, so the
  magnet experiences less net force and acceleration

13
Only Certain Materials Are Magnetic

• Fe, Co, Ni are the main magnetic elements
• In full atomic orbitals, electrons are usually in
  pairs, one with a clockwise spin, one with a
  counterclockwise spin
• The spinning electron is a moving charge so it
  generates a magnetic field
• If the spins are paired they cancel each other
  out
• Fe, Co and Ni have partially filled orbitals with
  unpaired electrons with parallel spins, so the
  magnetic fields add up
• Spins in adjacent atoms feel the field and
  experience a torque that aligns them with the
  field forming domains, regions of aligned spins

14
Domains The Microscopic View

• In unmagnetized iron, domains are randomly
  oriented
• To make a magnet, put iron in a strong magnetic
  field
• from a bar magnet
• from an electromagnet

http//sol.sci.uop.edu/jfalward/physics17/chapter
9/magnetizedbars.jpg
15
Destroying Magnets

• The basic idea is to scramble the domains
• Drop it
• Hit it with a hammer
• Heat it above the Curie temperature
• Thermal motion destroys the alignment of the
  spins in the domains above the Curie temperature

Magnetic Strength vs. Temperature For magnetite,
a natural magnetic mineral
16
Technology Implications

• Electric generators
• Generate currents by moving wires through
  magnetic fields
• Electric motors
• Electric current through coil in field of
  permanent magnet generates magnetic force that
  causes change in motion
• Hard Drives
• Change domain orientation to write
• Sense domain orientation to read
• Video screens
• steer electron beam with magnetic fields from
  current through steering coils (electromagnets)

17
Galvanometers Measuring Current

• Current through the coil creates a magnetic field
• Coil rotates to align in permanent magnetic field
  until stopped by the spring
• Coil rotation depends on the direction of the
  current

http//my.hrw.com/tabnav/controller.jsp?isbn00307
24848
18
Motors Using Magnetic Force to Generate Motion

• Brush makes contact with split ring commutator,
  completing circuit
• Current flows through loop, generating magnetic
  field
• Loop aligns in field of permanent magnetic
• Inertia carries loop around, split ring
  commutator reverses direction of current
• Magnetic field of loop reverses, repelled by
  permanent field, moves the next half turn to
  align

http//my.hrw.com/tabnav/controller.jsp?isbn00307
24848
19
Electric Generators

• Reverse of motor
• Mechanical work is done to turn the coil
• Varying magnetic field experienced by the wire
  causes current to flow

20
Hard Drives Use Magnetic Effects
Writing Direction of current in coil changes
added magnetic field Field orients domains in
recording medium
Reading Shields block fields except
locally Magneto-resistor changes resistance when
field changes Sense change in I or V in circuit
http//www.infomrt.com/readrite/magbasic.html
21
Life on Earth Implications

• Currents in rotating liquid core generate
  magnetic field
• Magnetic field deflects fast moving charged
  particles in solar wind
• The current in the solar wind also generates a
  small magnetic field
