Title: Foundations and Light Compass Case Study

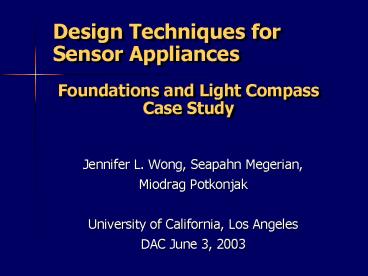

1
Foundations and Light Compass Case Study
Design Techniques for Sensor Appliances
  • Jennifer L. Wong, Seapahn Megerian,
  • Miodrag Potkonjak
  • University of California, Los Angeles
  • DAC June 3, 2003

2
Organization
  • Sensor Network Applications
  • Sensor Appliances
  • Quantitative Sensor-centric Design
  • Light Compass
  • Models and Abstractions
  • Problem Formulation
  • Sensor Fusion
  • Design
  • Experimental Results
  • Future Work
  • Conclusions

3
Embedded Networked Sensing
  • Micro-sensors, on-board processing, and wireless
    interfaces all feasible at very small scale
  • can monitor phenomena up close
  • Embedded Networked Sensing will reveal previously
    unobservable phenomena
  • Borrowed from - Wireless Sensor Networks From
    Rhetoric to(ward) Rigor by D. Estrin

Seismic Structure Response
Contaminant Transport
Ecosystems, Biocomplexity
Marine Microorganisms
4
What is a Light Compass?
  • Sensor Appliance small system with a set of
    sensors organized to provide a particular sensing
    functionality.
  • Light Compass a sensor appliance capable of
  • measuring
  • predicting
  • amount of light in an arbitrary
  • direction
  • position
  • in an enclosed environment.

5
Light Compass Applications
  • Light Monitoring
  • Environment Control
  • Personal lighting preferences
  • (i.e. minimal light into monitor), museums,
    greenhouses
  • Energy Conservation
  • Dimming of light in unnecessary areas
  • Visual Security Privacy
  • Home security

6
Sensor Node State-of-the-Art
  • Components of a sensor node
  • Processing
  • Storage
  • Communication (Radio)
  • Power
  • Sensors
  • Actuators

7
Quantitative Sensor-Centric Design
  • For a given task
  • What types of sensors, and how many?
  • Design
  • How to interpret the data?
  • Sensor Fusion
  • Where should they be placed?
  • Deployment

8
System Development Phases
  • Phase 1 Deployment
  • Typical situations for application,
    boundary/extreme cases
  • Statistical precision for application
  • Phase 2 Design
  • Typical environments (dimensions, lights,
    obstacles)
  • Shape/structure/device size best suited
  • Phase 3 Sensor Fusion
  • Method to determine phenomena at devices
    position
  • Estimate phenomena at arbitrary position in
    environment
  • Determine accuracy reliability of results

9
Organization
  • Sensor Networks
  • Sensor Appliances
  • Quantitative Sensor-centric Design
  • Light Compass
  • Models and Abstractions
  • Problem Formulation
  • Sensor Fusion
  • Design
  • Experimental Results
  • Future Work
  • Conclusions

10
Models and Abstraction
  • Physical World (environment)
  • Space time, plus their interaction
  • Resolution
  • Phenomena
  • Sources rules of propagation
  • Sensors
  • Sensors (position, size, shape)
  • Accuracy, resolution, error, dynamic range and
    latency

11
Models and Abstraction
  • Appliance
  • Physical dimensions, shape
  • Rigidity
  • Operational Mode of Appliance
  • Single/Multiple instances
  • Type of output

12
Equation-Based Models
  • Fundamental Laws such as
  • Newtons Mechanical Laws
  • Theory of Relativity
  • Electromagnetics
  • Quantum Mechanics
  • Have proven to work exceptionally well in
    practice
  • All approximations

13
Point Source Physical Laws
14
A Light Sensing Problem
  • Given n light sensors
  • Sensor positions and orientations
  • Sensor measurements
  • Problem
  • Find the number of point-light sources, their
    positions, and intensities in the environment.
  • Alternate Problem
  • Predict light intensity at a given point from a
    given direction.

15
Point Light Model Formulation
For each sensor-light pair
16
But Errors Will Be There
  • Sensor Measurement Errors
  • Calibration
  • Noise
  • Errors in Parameters
  • Locations of nodes
  • Orientation of nodes
  • Modeling Errors
  • Solution Errors
  • Algorithmic
  • Numerical

17
System of Equations
Resulting in a system of non-linear equations
18
Ways to Solve
  • Non-linear function minimization with non-linear
    constraints (non-linear programming)
  • General application
  • Address many properties of solution, etc
  • Significantly longer runtime
  • Lower likelihood of optimal solution
  • Non-linear function minimization
  • Constraints are part of objective function
  • No guarantee constraints are satisfied
  • Shorter runtime

19
How to Minimize Non-linear Function?
  • Non-linear numerical optimization methods
  • Newtons Method
  • Steepest Descent variations
  • Conjugate Gradients with random restarts
  • Singular Value Decomposition
  • Combinatorial optimization
  • Number of Lights

20
Light Compass Design
  • Sensor placement - distance
  • Blockage between sensor on device

21
Required Number of Sensors
2 Lights
Lights Sensors 1 5-7 2 15-20 3 40-60 4 60-
120
22
Model of Light-Sensing Device
  • Minimal number of sensors needed
  • Single Light need at least 4 sensors
  • System of equations has 4 unknowns (x,y,z,I) of
    light source
  • Only consider structure with 4 sensors
  • Where to place sensors?
  • Guides No Blockage, high probability of light
    placement and intensity
  • Sensor placement in unlimited forms

Parametrizable Structures
23
Example Simulation Experiment
  • 1 light source
  • 1000 x 1000 x 500 room
  • Device is in the middle on the floor
  • Light can be anywhere s.t.
  • 100 z 500
  • 1 Device
  • 5 sensors (max)
  • Pyramid and cut-pyramid structures
  • Assume sensors are at same position

24
5-Sensor Light Appliance ExampleAve. source
position error all solutions vs. pyr. angle
25
5-Sensor Light Appliance ExampleFraction of
valid solutions vs. pyramid angle
26
Light Compass Prototypes
  • Sensors
  • Miniature silicon solar cell
  • Photovoltaic element
  • does not require external bias
  • 0.78cm x 0.58cm x 0.18cm
  • 400 mV in moderate light

27
Light Compass Prototype
  • ADC Hardware
  • Maxim MAX186 ADC
  • 8 analog channels
  • 12-bit resolution
  • 10?s conversion time
  • 8-bit Latch
  • PC parallel port
  • Effective sampling 10Hz

28
Light Appliance Advantages
Small Example (10m x 10m x 5m room, 1 light)
sensor errors 1 measurement, 2 cm position, no
orientation errors (flat)
Reduced Number of devices by 6 (50)
29
Light Compass Prototype
30
Future Work
  • Multi-modal appliances
  • Distributed appliance
  • Sensor placement strategies
  • Statistical error modeling

31
Conclusion
  • Sensor networks and sensor applications are
    emerging
  • Sensor-centric design
  • Quantitative techniques for Light Compass
  • Simulation and experimentation demonstrate
    effectiveness
