Nuclear Magnetic Resonance

1

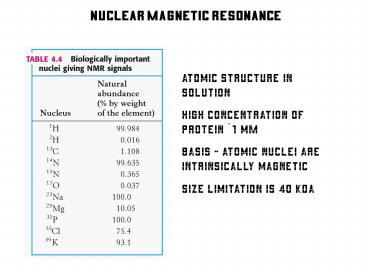

Nuclear Magnetic Resonance
Atomic structure in solution High concentration
of protein 1 mM Basis - Atomic nuclei are
intrinsically magnetic Size limitation is 40 kDa
2
Basis of NMR
Hydrogen has alpha and beta spin states Alpha can
be excited to beta by applying a pulse of
electromagnetic radiation
Energy difference is proportional to the strength
of the imposed magnetic field. The Resonance
spectrum change between alpha and beta states
3
Chemical shifts reveal information about
structural changes
Degree of shielding of nucleus by electrons that
flow around nucleus is a measure of the electron
density Difference frequency chemical shifts
(ppm) relative to a reference sample scale
between 0-9 ppm
4
Nuclear Overhauser Effect
Interaction of nuclei of two protons in close
proximity allows determination of distance
between them (Less than 5 angtroms apart)
5
Converting a spectrum to 3-D structure
Distance constraints between proton pairs allows
determination of structure Spectrum generated on
a large number of molecules in multiple
conformations range of conformations a protein
adopts in solution
6
Protein Crystallography
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Protein Structural Analysis
http//www.rcsb.org/pdb/holdings.htmlgrowth
Number PDB Entries
year

• High-Resolution Structural Techniques
• (determination of atom positions)
• Crystallography (solid-state)
• NMR (solution-state)

• limited by the ability of the molecule to
  crystallize

• limited to soluble peptide or protein molecules

13
Small-angle X-ray Scattering

• Low-Resolution Techniques can be used to provide
  molecular envelope shapes
• Electron Microscopy with Image Reconstruction
• solid-state (often cryo-cooled)
• Limited to relatively large proteins and protein
  complexes such as viruses, membrane protein
  complexes, muscle proteins and the ribosome
• Small-angle Solution Scattering with
  Computational Modeling Methods
• solution-state
• useful range 10 - 1000 Å (15 500 kDa)

14
Small-angle X-ray Scattering

• X-rays
• 1.54Å
• or neutrons

Q ? 4?sin?/?
15
Probable Frequency Distribution of Inter-atomic
Vectors
Inverse Fourier Transform
46 Å

• P (r) - The probability of finding a vector of
  length r between scattering centers (atoms)
  within the scattering particle.

16
Introduction to Protein Structure Building Blocks
of Proteins The 20 Amino Acids
17
Introduction to Protein Structure Peptide Bonds
Connect the Building Blocks
side group
side group
18
Introduction to Protein Structure Peptide Bonds
Connect the Building Blocks
19
Introduction to Protein Structure Steric
Restrictions on PHI and PSI Angles
Ramachandran Plot for Typical Residue
20
Introduction to Protein Structure Flexible
Backbone of a Protein
?1
?3
?3
?1
C-terminus
?2
?2
N-terminus
The set of ?i,?i angles define internal degrees
of freedom
21
Three Dimensional Structure of Proteins
Secondary Structure Local regions of regular
folding helix, beta-sheet, random coil,
irregular folds Tertiary Structure Structure of
entire polypeptide chain Quanternary Structure
More than one polypeptide chain arranged in a
regular manner
22
Secondary Structure

• Rules that protein structure must obey
• Little distortion of bond length and bond angles
  from those found in x-ray diffraction studies
• Van der Waals radii dictates how close to atoms
  can approach one another
• The amide group must remain in a trans
  configuration. Rotation is only possible about
  the two bonds adjacent to the ?-carbon.
• Noncovalent bonding is necessary to stabilize a
  regular folding. Hydrogen bonding between amide
  nitrogen and carbonyl oxygen.

psi
phi
23
Alpha helix and Beta-sheets

• Each of these structures satisfied the 4 rules
• Peptide groups are planar, and each amide proton
  and carbonyl oxygen participates in hydrogen
  bonding
• Other possibilities not as common in proteins
  310 helix and ? helix (not been observed)

24
Alpha-Helix

• -Repeats after 18 residues, 5 turns, c h x m
• -3.6 residues per turn, 0.15 nm/residue
• p nh 3.6 x 0.15 0.54 nm/turn
• -Each amido proton is hydrogen bonded to the
  carbonyl oxygen on the 4th residue up the helix
• -Hydrogen bonded loop (N) 13 atoms in
  alpha-helix

25
Alpha Helix
26
Beta-sheet

• Beta-sheet is equivalent to a n2 helix,
• Stabilized by hydrogen bonding between two stands
• Each residue is rotated 180 degrees to one
  another
• Linear hydrogen bonds can form between adjacent
  chains, allowing correct bond angles with minimal
  strain
• Parallel and anti-parallel beta-sheet

27
Parallel and Antiparallel Beta-Sheets
Parallel
Anti-parallel
28
Ramachandran Plots

• Examination of steric crowding of R-groups in the
  secondary structures
• Phi and Psi angles clockwise when looking in
  either direction form the ?-carbon (-180 to
  180)

29
Ramachandran Plots

• Which structures are sterically possible
• Only a small area of possible angles exists
  because of van der Waals radii
• Right handed helix more favored than left all
  amino acids are in the L-form, and steric
  interference is less in a right handed helix.
  Synthesis of proteins from D-amino acids are left
  handed

30
Ramachandran Plots

• Ramachandran plot of actual protein structure.
  Some difference from alpha-helix and beta-sheet.
  Glycine can adopt angles outside the allowable
  angles because of small side chain.

31
Fibrous Proteins

• Major proteins of skin and connective tissue
  mechanical properties
• Alpha-keratins hair and finger nails
  intermediate filament proteins
• Predominantly alpha-helical
• Alpha-helices pair together in a left-handed coil
• Each 4th residue is nonpolar hydrophobic strip
  of hydrophobic residues on each alpha-helix
  allows two helices to stick together by
  hydrophobic interactions.
• The dimers then form into larger structures and
  are stabilized by disulfide cross-links within
  the fibers.

32
Formation of keratin type intermediate filaments

• Monomers pair by coiled-coil
• Form 4-stranded protofilament
• 8-strand protofibril
• Disulfide cross-links stiffen fibers

33
Fibroin

• Fibers spun by silkworms and spiders B-sheet
  utilized
• Repetitive sequence
• Allows the B-sheets to pack together by
  interdigitation of glycine and alanine or serine.
• Strong and flexible fiber (weak interactions
  between sheets, van der Waals).
• Small amounts of bulky amino acids disrupt
  beta-sheet. Increases stretchiness.

34
Collagen

• Most abundant protein in vertebrates matrix
  that holds tissues together
• Composed of a triple helix of 3 polypeptide
  chains
• Individual chains are left-handed helices with
  3.3 residues per turn and the 3 chains wrap
  around one another in a right handed manner
  stabilized by hydrogen bonds between chains
• Each 3rd residue must be glycine which lies
  near the center of the triple helix, Gly Pro
  HydroxyProline, other residues are possible at
  2nd and 3rd position
• Hydroxylation of proline enzyme that catalyzes
  requires Vitamin C scurvy is Vit. C deficiency.
  Lesions on skin and gums
• Collagen Cross-linking between topocollagen
  molecules lysine oxidized to aldehyde react
  with another lysine via aldol condensation and
  dehydration.

35
(No Transcript)
36
Elastin

• Mostly random coil with little 2ndary structure
• Cross-links between several chains
• Prevent over stretching and allows the fibers to
  snap back into place when tension is removed

37
Globular Proteins

• Folded into compact structure
• Example myoglobin 70 alpha-helix, heme
  (prosthetic) group to carry oxygen
• Bovine pancreatic trypsin inhibitor helix,
  beta-sheet and nonregular folding

38
Patterns in protein folding

• Domain compact locally folded region of
  tertiary structure, multiple domains occur in
  many larger proteins and perform specific
  functions
• Folding patterns
• Built on a packing of alpha-helices
• Built on a framework of Beta-sheets

39
Rules of Tertiary Folding

• All globular proteins have a defined inside and
  out
• Hydrophobic amino acids are inside the protein
• Hydrophilic amino acids are outside
• Beta-sheets are usually twisted or wrapped into
  barrel structures
• Twist is usually left-handed, structure of silk
  is not completely planar but slightly twisted
• Not all parts of globular proteins are classified
  as helix, sheet or turn
• Random coil flexible regions not resolved by
  x-ray crystallography
• Irregularly structured regions not flexible

40
Turns

• The polypeptide chain can turn corners in a
  number of ways to go from B-sheet to a-helix
• ??-turn, reversal of polypeptide chain direction
• 4 residues , i carbonyl is hydrogen bonded to the
  amide hydrogen of i 3
• ?-turn, the hydrogen bond is i and i 2.
• Proline usually plays a role and turns are
  usually at surface of protein

41
Quanternary structure

• Two or more subunits stabilized by non-covalent
  forces and disulfide bonds
• Helical symmetry actin and tobacco mosiac virus
