Pedagogical Review on Solar Cycles

1

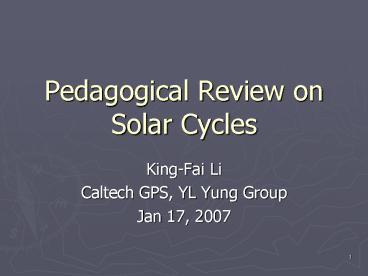

Pedagogical Review on Solar Cycles

• King-Fai Li
• Caltech GPS, YL Yung Group
• Jan 17, 2007

2
Outline

• What are solar cycles?
• How are they related to climate?
• Our groups efforts

3
What are solar cycles?

• First observed in the time series of sunspot
  number

4
Solar and Heliospheric Observatory (SOHO)

• Michelson Doppler Imager (MDI)
• Ni I 6768 Å solar absorption line from the
  photosphere.
• Extreme ultraviolet Imaging Telescope (EIT)
• 171, 195, 284, and 304 Å, corresponding to light
  produced by highly ionized Fe-XI/X, XII, XV, and
  He-II
• Corona emissions

5
MDI
6
(No Transcript)
7
(No Transcript)
8
Babcock Model
27-day differential surface rotation
9
Direct Observations

• Total Spectral Irradiances

• 0.1 change in the 11-yr solar cycle

10
Direct Observations

• F10.7 cm radio flux

11
Direct Observations

• Lyman-a line (1215 Å)

• 72 change in the 11-yr solar cycle

12
Direct Observations (More)

• Mg-II core-to-wing index (2800 Å)
• Active and passive sunspot projected areas

13
How are they related to climate?
Y L Yungs Talk in CUHK, 2004
14
(No Transcript)
15
(No Transcript)
16
How much is due to the solar cycle effect?
17
Empirical Data in Ozone Columns
18
Solar Cycles and Climate

• Corti et al. (1999) External perturbation
  changes only the occurrence frequency of the
  natural modes due to the non-linearity of the
  system.
• QBO and Annular Modes are two examples of natural
  modes.

19
Our groups effort

• Solar cycle Northern/Southern Annular Modes
  interactions from NCEP Reanalysis data
• Solar cycle QBO interactions from THIN AIR
  model
• Solar cycles on atmospheric chemical species from
  observations over Table Mountain Caltech/JPL
  photochemical Model
• Variability of Fraunhofer structures in the
  spectra (3080 Å) observed over Table Mountain.

20
Fraunhofer lines
Measured on ground
21
Fraunhofer lines
22
Limb Spectra from Table Mountain
2005/6/13
OH absorption lines
OH absorption lines
We have discovered some time-varying asymmetry
between east and west limb Fraunhofer
structures!
2005/9/23
23
Summary

• What are solar cycles?
• How are they related to climate?
• Our groups efforts
• To distinguish between natural variabilities and
  anthropogenic effects on climate
• To analysis the asymmetry between Fraunhofer
  structures at the solar limbs

24
References

• Babcock, H.W., The Topology of the Sun's Magnetic
  Field and the 22-YEAR Cycle, Astrophys. J., 133,
  572-587, 1961
• Camp, C. D., M. S. Roulston, and Y. L. Yung,
  Temporal and Spatial Patterns of the Interannual
  Variability of Total Ozone in the Tropics, J.
  Geophys. Res., 108(D20), 4643, 2003.
• Corti, S., F. Molteni, and T. N. Palmer,
  Signature of recent climate change in frequencies
  of natural atmospheric circulation regimes,
  Nature, 398(6730), 799-802, 1999.
• Pap, J. M., Periodicities of Solar Irradiance and
  Solar Activity Indices, I, Solar Physics, 129,
  165-189,1990.
• Rind, D., The Sun's Role in Climate Variations,
  Science, 296, 673 (2002).
