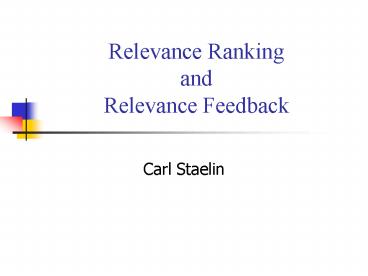

Relevance Ranking and Relevance Feedback

1
Relevance RankingandRelevance Feedback

• Carl Staelin

2
Motivation - Feast or famine

• Queries return either too few or too many results
• Users are generally looking for the best document
  with a particular piece of information
• Users dont want to look through hundreds of
  documents to locate the information
• ? Rank documents according to expected relevance!

3
Model

• Can we get user feedback?
• Document score is influenced by similarity to
  previously user-rated documents
• Can we utilize external information?
• E.g., how many other documents reference this
  document?

4
Queries

• Most queries are short
• One to three words
• Many queries are ambiguous
• Saturn
• Saturn the planet?
• Saturn the car?

5
Sample Internal Features

• Term frequency
• Location of term appearance in document
• Capitalization
• Font
• Relative font size
• Bold, italic,
• Appearance in lttitlegt, ltmetagt, lth?gt tags
• Co-location with other (relevant) words

6
Sample External Features

• Document citations
• How often is it cited?
• How important are the documents that cited it?
• Relevance of text surrounding hyperlink
• Relevance of documents citing this document
• Location within website (e.g. height in the
  directory structure or click distance from /)
• Popularity of pages from similar queries
• Search engine links often connect through search
  site so they can track click-throughs
• Your idea here

7
Problem

• Given all these features, how do we rank the
  search results?
• Often use similarity between query and document
• May use other factors to weight ranking score,
  such as citation ranking
• May use an iterative search which ranks documents
  according to similarity/dissimilarity to query
  and previously marked relevant/irrelevant
  documents

8
Relevance Feedback

• Often an information retrieval system does not
  return useful information on the first try!
• If at first you dont succeed, try, try, again
• Find out from the user which results were most
  relevant, and try to find more documents like
  them and less like the others
• Assumption relevant documents are somehow
  similar to each other and different from
  irrelevant documents
• Question how?

9
Relevance Feedback Methods

• Two general approaches
• Create new queries with user feedback
• Create new queries automatically
• Re-compute document weights with new information
• Expand or modify the query to more accurately
  reflect the users desires

10
Vector Space Re-Weighting

• Given a query Q with its query vector q
• Initial, user-annotated results D
• Dr relevant, retrieved documents
• Dn irrelevant, retrieved documents
• di are the document weight vectors
• Update weights on query vector q
• Re-compute similarity score to new q

11
Vector Space Re-Weighting

• Basic idea
• increase weight for terms appearing in relevant
  documents
• Decrease weight for terms appearing in irrelevant
  documents
• There are a few standard equations

12
Vector Space Re-Weighting

• Rochio
• q' ?q (?/Dr)?di ?Dr di - (?/Dn)?di ?Dn di

• Ide regular
• q' ?q ??di ?Dr di - ??di ?Dn di
• Ide Dec_hi
• q' ?q ??di ?Dr di - ?maxdi ?Dn (di )

13
Vector Space Re-Weighting

• The initial query vector q0 will have non-zero
  weights only for terms appearing in the query
• The query vector update process can add weight to
  terms that dont appear in the original query
• Automatic expansion of the original query terms
• Some terms can end up having negative weight!
• E.g., if you want to find information on the
  planet Saturn, car could have a negative weight

14
Probabilistic Re-Weighting

• After initial search, get feedback from user on
  document relevance
• Use relevance information to recalculate term
  weights
• Re-compute similarity and try again

15
Probabilistic Re-Weighting

• Remember from last time
• Simij ??kwikwjk (ln(P(tkR)/(1-P(tkR)))
  ln((1-P(tkR))/P(tkR)))
• P(tkR) 0.5
• P(tkR) ni /N ni docs containing tk
• gt
• Simij ?k wik wjk ln((N - ni)/ni)

16
Probabilistic Re-Weighting

• Given document relevance feedback
• Dr set of relevant retrieved docs
• Drk subset of Dr containing tk
• gt
• P(tkR) Drk / Dr
• P(tkR) (ni - Drk) / (N - Dr)

17
Probabilistic Re-Weighting

• Substituting the new probabilities gives
• Simij ?k wik wjk ln((Drk / (Dr-Drk)) ?
  ((ni - Drk) / (N - Dr- (ni - Drk))))
• However small values of Drk, Dr can cause
  problems, so usually a fudge factor is added

18
Probabilistic Re-Weighting

• Effectively updates query term weights
• No automatic query expansion
• Terms not in the initial query are never
  considered
• No memory of previous weights

19
Query Expansion Via Local Clustering

• Create new queries automatically
• Cluster initial search results
• Use clusters to create new queries
• Compute Sk(n), which is the set of keywords
  similar to tk that should be added to the query
• D set of retrieved documents
• V vocabulary of D

20
Association Clustering

• Find terms that frequently co-occur within
  documents
• skl ckl ?i fik fil
• Or, normalized association matrix s
• skl ckl / (ckk cll ckl)
• Association cluster Sk(n)
• Sk(n) n largest skl s.t. l ? k

21
Metric Clustering

• Measure distance between keyword appearances in a
  document
• r(tk, tl) words between tk and tl
• ckl ?k?l (1 / r(tk, tl))
• Normalized skl ckl / (tk ? tl)
• tk of words stemmed to tk
• Sk(n) is the same as before

22
Scalar Clustering

• Terms with similar association clusters are more
  likely to be synonyms
• sk is the row vector from association clustering
  skl
• skl (sk ? sl) / (sk ? sl)
• Sk(n) is the same as before

23
Query Expansion Via Local Context Analysis

• Combine information from initial search results
  and global corpus
• Break retrieved documents into fixed-length
  passages
• Treat each passage as a document, and rank order
  them using the initial query
• Compute the weight of each term in top ranked
  passages using a TFIDF-like similarity with query
• Take the top m terms and add them to the original
  query with weight
• w 1 0.9(rank / m)

24
Local Context Analysis

• Compute weight of each term in top ranked
  passages
• N of passages
• nk of passages containing tk
• pfik frequency of tk in passage pi
• f(tk, tl) ?i pfik pfil
• idfk max(1, log10(N/nk)/5)
• Sim(q, tk) ?tl ?query(? ln(f(tk,tl) ?
  idfk)/ln(N) )idfl

25
Global Analysis

• Examine all documents in the corpus
• Create a corpus-wide data structure that is used
  by all queries

26
Similarity Thesaurus

• itfi ln(V / Vi)
• wik ((0.5 0.5fik/maxi(fik))itfi) / ?(?j(0.5
  0.5fjk/maxj(fjk))2itfi2)
• ckl ??i wik wil

27
Query Expansion With Similarity Thesaurus

• wqk weight from above with query
• sim(q,tl) ?k wqk ckl
• Take top m terms according to sim(q,tl)
• Assign query weights to new terms
• wk sim(q,tk) / ?l wql
• Re-run with new (weighted) query

28
SONIA Feedback

• SONIA is a meta-search engine
• Clusters search results
• Extracts keywords describing each cluster
• Allow user to expand search within cluster

29
ifile Feedback

• ifile is an automatic mail filer for mh
• Email is automatically filed in folders
• User refile actions provide feedback on poor
  classification decisions
• Does not use positive feedback
• No reinforcement of correct decisions, only
  correction based on bad decisions

30
Search Engine Feedback

• Search engines rarely allow relevance feedback
• Too CPU-intensive
• Most people arent willing to wait
• Search engines typically operate near the edge of
  their capacity
• Google has 2,000 servers(?) and 300TB of data

31
Meta-Search Engine Feedback

• Meta-search engines collect and process results
  from several search engines
• Most search engines do not allow users to specify
  query term weights
• Some search engines allow users to specify
  negative query terms
• User relevance feedback might be used to weight
  results by search engine

32
Pet Peeves

• What are your pet peeves when trying to locate
  information from
• Web?
• Intranet?
• Email?
• Local disk?
• Peer-to-peer network?
• Who knows?

33
Information Types

• What types of information do you typically try to
  find?
• Technical papers?
• Product information? (e.g., books, motherboards,
  )
• Travel? (e.g., where to go for vacation, and what
  to do there?)
• People? (e.g., Mehran Sahami)

34
Project

• First draft of search is available
• It is incomplete and buggy
• Can look at architecture to see how you might
  extend it
• Python w/ extensions
• Should be installed on cluster
• RPMs/SRPMs available on web
• http//www.hpl.hp.com/personal/Carl_Staelin/cs2366
  01/software/
