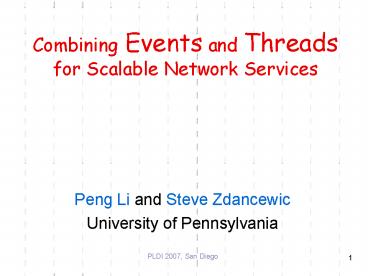

Combining Events and Threads for Scalable Network
Services

• Peng Li and Steve Zdancewic
• University of Pennsylvania
• PLDI 2007, San Diego

2
Overview

• A Haskell framework for massively concurrent
  network applications
• Servers, P2P systems, load generators
• Massive concurrency
• 1,000 threads? (easy)
• 10,000 threads? (common)
• 100,000 threads? (challenging)
• 1,000,000 threads? (20 years later?)
• 10,000,000 threads? (in 15 minutes)
• How to write such programs?
• The very first decision to make the programming
  model
• Shall we use threads or events?

3
Threads vs. Events

• The event-driven model
• One thread ? 10000 clients
• Asynchronous I/O
• Scheduling programmer
• while(1)
• nfdsepoll_wait(kdpfd, events, MAXEVT,-1)
• for(n0 nltnfds n)
• handle_event(eventsn)

• The multithreaded model
• One thread ? one client
• Synchronous I/O
• Scheduling OS/runtime libs
• int send_data(int fd1, int fd2)
• while (!EOF(fd1))
• size read_chunk(fd, buf, count)
• write_chunk(fd, buf, size)

?
4
Can we get the best of both worlds?
One application program

• Programming with each client threads
• Synchronous I/O
• Intuitive control-flow primitives

The bridge between threads/events? (some kind of
continuation support)

• Resource scheduling events
• Written as part of the application
• Tailored to applications needs

5
Roads to lightweight, application-level
concurrency

• Direct language support for continuations
• Good if you have them
• Source-to-source CPS translations
• Requires hacking on compiler/runtime
• Often not very elegant
• Other solutions?
• (no language support)
• (no compiler/runtime hacks)

6
The poor mans concurrency monad

• A poor mans concurrency monad by Koen
  Claessen, JFP 1999. (Functional Pearl)
• The thread interface
• The CPS monad
• The event interface
• A lazy, tree-like data structure called trace

SYS_NBIO(write_nb)
7
Questions on the poor mans approach

• Does it work for high-performance network
  services?
• (using a pure, lazy, functional language?)
• How does the design scale up to real systems?
• Symmetrical multiprocessing? Synchronization?
  I/O?
• How cheap is it?
• How much does a poor mans thread cost?
• How poor is it?
• Does it offer acceptable performance?

8
Our experiment

• A high-performance Haskell framework for
  massively-concurrent network services!!!
• Supported features
• Linux Asynchronous IO (AIO)
• epoll() and nonblocking IO
• OS thread pools
• SMP support
• Thread synchronization primitives
• Applications developed
• IO benchmarks on FIFO pipes / Disk head
  scheduling
• A simple web server for static files
• HTTP load generator
• Prototype of an application-level TCP stack
• We used the Glasglow Haskell Compiler (GHC)

9
Multithreaded code example
Nested function calls
Exception handling
Conditional branches
Synchronous call to I/O lib
Recursion
10
Event-driven code example
A wrapper function to the C library call using
the Haskell Foreign Function Interface (FFI)
An event loop running in a separate OS thread
Put events in queues for processing in other OS
threads
11
A complete event-driven I/O subsystem
One virtual processor event loop for each CPU
Haskell Foreign Function Inteface (FFI)
Each event loop runs in a separate OS thread
12
Modular and customizable I/O system (add a TCP
stack if you like)
Define / interpret TCP syscalls (22 lines)
Event loop for incoming packets (7 lines)
Event loop for timers (9 lines)
13
How cheap is a poor mans thread?
48 bytes

• Minimal memory consumption 48 bytes
• Each thread just loops and does nothing
• Actual size determined by thread-local states
• Even an ethernet packet can be gt1,000 bytes
• Pay as you go --- only pay for things needed
• In contrast
• A Linux POSIX threads stack has 2MB by default
• The state-of-the-art user-level thread system
  (Capriccio) use at least a few KBs for each
  thread
• Observation
• The poor mans thread is extremely
  memory-efficient
• (Challenging most event-driven systems)

14
I/O scalability test

• Comparison against the Linux POSIX Thread Library
  (NPTL)
• Highly optimized OS thread implementation
• Each NPTL threads stack limited to 32KB
• Mini-benchmarks used
• Disk head scheduling (all threads running)
• FIFO pipe scalability with idle threads (128
  threads running)

15
A simple web server
16
How poor is the poor mans monad?

• Not too shabby
• Benchmarks shows comparable (if not higher)
  performance to existing, optimized systems
• An elegant design is more important than 10
  performance improvement
• Added benefit type safety for many dangerous
  things
• Continuations, thread queues, schedulers,
  asynchronous I/O

17
Related Work

• We are motivated by two projects
• Twisted the python event-driven framework for
  scalable internet applications
• - The programmer must write code in CPS
• Capriccio a high-performance user-level thread
  system for network servers
• - Requires C compiler hacks
• - Difficult to customize (e.g. adding SMP
  support)
• Continuation-based concurrency
• Wand 80, Shivers 97,
• Other languages and programming models
• CML, Erlang,

18
Conclusion

• Haskell and The Poor Mans Concurrency Monad are
  a promising solution for high-performance,
  massively-concurrent networking applications
• Get the best of both threads and events!
• This poor mans approach is actually very cheap,
  and not so poor!
• http//www.cis.upenn.edu/lipeng/homepage/unify.ht
  ml
