Shared Memory Programming

1

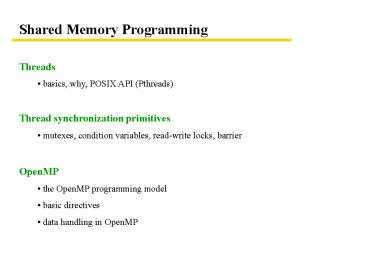

Shared Memory Programming

• Threads
• basics, why, POSIX API (Pthreads)
• Thread synchronization primitives
• mutexes, condition variables, read-write locks,
  barrier
• OpenMP
• the OpenMP programming model
• basic directives
• data handling in OpenMP

2
Threads

• What is a thread?
• a single stream of control in the flow of a
  program
• Logical memory model of a thread
• shared variables in the global address space
• local variables on the threads own stack
• Why threads?
• software portability
• latency hiding
• scheduling and load balancing
• ease of programming, widespread use

3
Thread synchronization primitives I
Race condition can easily occur when using
threads Example // each thread tries to update
variable best_cost as follows if (my_cost lt
best_cost) best_cost my_cost Assume that
at the beginning best_cost 100 thread
1 my_cost 75 thread 2 my_cost 50 If both
threads execute the comparison simultaneously,
the outcome depends on which thread finishes
first. It is possible that best_cost 75, i.e.
the program is incorrect.
4
Thread synchronization primitives II

• What is needed atomic operations
• Basic terms
• mutual exclusion
• critical section
• Mutual exclusion lock (mutex)
• acquire the lock when entering the critical
  section
• pthread_mutex_lock()
• release the lock when leaving the critical
  section
• pthread_mutex_unlock()
• additional mutex functions
• pthread_mutex_init()
• pthread_mutex_trylock()

5
Mutex example
Example Find and print the first k matching
database records. Each thread executes
findEntries() with a different starting pointer,
so that each handles about n/p records.
void findEntries(void start_ptr)
,,,db_rec_t next_rec
,,,int count ,
,,,curr_ptr
start_ptr ,,,do

,,,,,,next_rec nextEntry(curr_ptr)
,,,,,,count
outputRecord(next_rec)
,,, while (count lt k)

,

int outputRecord(db_rec_t rec_ptr)
,,,int count ,

,,,pthread_mutex_lock(out_cnt_lock)
,,,out_cnt
,,,count out_cnt ,,,pthread_mutex_un
lock(out_cnt_lock) ,,,if (count lt
k)
,,,,,,printRecord(rec_ptr)
,,,return count

6
pthread_mutex_trylock() example
int outputRecord(db_rec_t rec_ptr)
,,,int count ,
,,,int lock_status
,

,,,lock_status pthread_mutex_trylock(out_cnt_lo
ck) ,,,if (lock_status EBUSY)
,,,,,,insert_into_local_list(rec_ptr)
,,,,,,return(0)
,,, else
,,,,,,count out_cnt
,,,,,,out_cnt
number_on_local_list1
,,,,,,pthread_mutex_unlock(out_cnt_lock)
,,,,,,printRecords(rec_ptr,
local_list, k-count)
,,,,,,return(count number_on_local_list1)
,,,

• pthread_mutex_trylock() is much faster then
  pthread_mutex_lock()
• the number of locking operations is reduced
• the number of records searched increases a bit

7
Thread synchronization primitives III

• Condition variables
• always associated with a mutex
• a thread waits until the specified condition is
  satisfied and the mutex is granted (or
  interrupted by OS signal)
• allow efficient, non-polling synchronization
• Read-write locks
• advantageous when there are many reads and few
  writes
• several threads can read simultaneously
• only one can write (and no readers can be
  present)
• Barrier
• the usual meaning

8
OpenMP

• The OpenMP programming model
• high level directives translated by the
  preprocessor into low, Pthread level calls
• Basic directives
• parallelisation - thread creation and joining
• parallel for, sections
• synchronization directives barrier, single,
  master, critical, atomic
• Data handling in OpenMP
• different data classes private, shared,
  firstprivate, lastprivate,
• see www.openmp.org

9
OpenMP Examples I
int a, b
main()
,,,// serial segment
,,,pragma
omp parallel num_threads(8) private (a) shared
(b) ,,,
,,,,,,// parallel segment
,,,
,,,//
rest of serial segment

int a, b
main()
,,,// serial segment

,,,for(i0 ilt8 i)
,,,,,,pthread_create(, thread_fn_name,
) ,,,for)i0 jlt8 i)

,,,,,,pthread_join(
)

,
void thread_fn_name(void
arguments) ,,,//parallel
segment
10
OpenMP Examples II
Simple OpenMP program for calcularing B
pragma omp parallel default(private)
shared(npoints) ,,,,,,,,,,,,,,,,,,,,,reduction(
sum) num_threads(8)

,,,num_threads omp_get_num_threads()
,,,sample_points_pt
npoints/num_threads ,,,sum
0
,,,for(i0 iltsample_points_pt i)
,,,,,,rx random()-0.5 //
random number in 0.5 0.5 range
,,,,,,ry random()-0.5
,,,,,,if ((rxrx)(ryry)lt0.25)
,,,,,,,,,sum
,,,


11
OpenMP Examples III
Calcularing B different way
pragma omp parallel default(private)
shared(npoints) ,,,,,,,,,,,,,,,,,,,,,reduction(
sum) num_threads(8)

,,,sum 0
,,,pragma omp for
,,,for(i0 iltsample_points_pt
i) ,,,,,,rx
random()-0.5 // random number in 0.5 0.5
range ,,,,,,ry random()-0.5
,,,,,,if
((rxrx)(ryry)lt0.25)
,,,,,,,,,sum
,,,

12
Scheduling parallel for loops

• pragma omp parallel schedule(scheduling
  class,parameter)
• The parameter is typically chunk size
• Scheduling classes
• static
• dynamic
• guided progressively reducing chunk size
• runtime chosen at runtime depending on
  environment variable

13
OpenMP Examples IV
pragma omp parallel sections

,,,pragma omp
section ,,,
,,,,,,
,,,,,,,,,// producer thread

,,,,,,,,,taskproduce_task()
,,,,,,,,,pragma omp
critical(task_queue)
,,,,,,,,,
,,,,,,,,,,,,insert_into_task_queue(tas
k) ,,,,,,,,,
,, ,,,,,, ,

,,,pragma omp section
,,,,,,,,,,,, ,,,,,,,,,taskproduce_tas
k() ,, ,,,,,,,bb// consumer thread
,,,,,,,,,pragma omp
critical(task_queue)
,,,,,,,,,
,,,,,,,,,,,,itask
extract_from_queue()
,,,,,,,,,
,, ,,,,,,consume_task(task)
,,,,,,

14
Data handling in OpenMP

• Data classes
• specified in the directives
• private threads private copy
• first_private private copy, initialized
• last_private updated by the last
  section/iteration of the loop
• shared shared, use cautiously
• threadprivate persists in the thread across
  for loops, sections
• Good practice
• use private as much as possible
• divide and distribute data and combine them
  later using e.g. reduction clause
