Parallel Programming Platforms

1
Parallel Programming Platforms

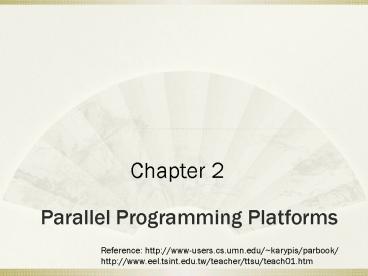

Chapter 2
Reference http//www-users.cs.umn.edu/karypis/pa
rbook/ http//www.eel.tsint.edu.tw/teacher/ttsu/te
ach01.htm
2
Introduction

• The traditional logical view of a sequential
  computer (?????) consists of
• a memory connected to a processor via a datapath.

• All these three components processor, memory,
  and datapath
• Present bottlenecks to the overall processing
  rate of a computer system.

3
Introduction

• A number of architectural innovations?? over the
  years have addressed these bottlenecks. One of
  the most important innovation is multiplicity(??)
  in
• processor units,
• datapaths, and
• memory units.
• This multiplicity is either entirely hidden from
  the programmer, as in the case of implicit
  parallelism, or exposed to the programmer in
  different forms.

4
Introduction

• Learning objectives in this chapter
• An overview of important architecture concepts as
  they relate to parallel processing.
• To provide sufficient detail for programmers to
  be able to write efficient code on a variety of
  platforms.
• It develops cost models and abstractions for
  quantifying the performance of various parallel
  algorithms, and identifying bottlenecks resulting
  from various programming constructs.

5
Introduction

• Parallelizing sub-optimal serial codes often has
  undesirable effects of unreliable speedups and
  misleading???runtimes.
• It advocates??optimizing serial performance of
  codes before attempting parallelization.
• The tasks of serial and parallel optimization
  often have very similar characteristics.

(????????????????,???????????????????????????,????
????????????)
6
Outline

1. Implicit Parallelism
2. Limitations of Memory System Performance
3. Dichotomy???of Parallel Computing Platforms
4. Physical Organization of Parallel Platforms
5. Communication Costs in Parallel Machines
6. Routing Mechanisms for Interconnection Networks
7. Impact of Processor-Processor Mapping and Mapping
   Techniques
8. Case Studies

7
Implicit Parallelism ????

• Trend in Microprocessor Architecture
• Pipelining and Superscalar Execution
• Very Long Instruction Word Processors VLIW

8
Trend in Microprocessor Architecture

• Clock speeds of microprocessors have posted
  impressive???????gains two to three orders of
  magnitude over the past 20 years.
• However, these increments are severely diluted??
  by the limitations of memory technology.
• Consequently, techniques that enable execution of
  multiple instructions in a single clock cycle
  have become popular.

9
Trend in Microprocessor Architecture

• Mechanisms used by various processors for
  supporting multiple instruction execution.
• Pipelining and Superscalar Execution (?????????)
• Very Long Instruction Word Processors (????????)

10
Pipelining and Superscalar Execution

• By overlapping various stages in instruction
  execution, pipelining enables faster execution.
  (????????????????,????)
• To increase the speed of a single pipeline, one
  would break down the tasks into smaller and
  smaller units, thus lengthening the pipeline and
  increasing overlap in execution.
  (?????????????????,??????????,?????)

11

Pipelining and Superscalar Execution

• For example, the Pentium 4, which operate at 2.0
  GHz, at a 20 stages pipeline.
• Long instruction pipelines therefore need
  effective techniques for predicting branch
  destinations so that pipelines can be
  speculatively??filled.????????????????????????,???
  ???????
• An obvious way to improve instruction execution
  rate beyond this level is to use multiple
  pipelines.
• During each clock cycle, multiple instructions
  are piped into the processor in parallel.
  .(????????????,????????,?????????????)

12
Superscalar Execution Example 2.1
Example of a two-way superscalar execution of
instructions.
13

• Consider Fig. 2.1(a) first code
• t0 The first and second instructions are
  independent and therefore can be issued
  concurrently.
• t1
• The next two instructions (row 3,4) are also
  mutually independent, although they must be
  executed after the first two instructions (t0)
• They can be issued concurrently at t1 since the
  processors are pipelined.
• t2 Only add instruction is issued
• t3 Only store instruction is issued
• Two instructions (row 5,6) cannot be executed
  concurrently since the result of the former is
  used by the latter.

14
Superscalar Execution

• Scheduling of instructions is determined by a
  number of factors
• True Data Dependency The result of one operation
  is an input to the next.
• Resource Dependency Two operations require the
  same resource.
• Branch Dependency Scheduling instructions across
  conditional branch statements cannot be done
  deterministically a-priori???.

15
Superscalar Execution

• Scheduling of instructions is determined by a
  number of factors
• The scheduler, a piece of hardware looks at a
  large number of instructions in an instruction
  queue and selects appropriate number of
  instructions to execute concurrently based on
  these factors.
• The complexity of this hardware is an important
  constraint on superscalar processors.

16
Dependency- True data dependency

• The results of an instruction must be required
  for subsequent instructions.
• Consider the 2nd code fragment, there is a true
  data dependency between load R1, _at_1000 and add
  R1, _at_1004,
• Since the resolution is done at runtime, it must
  supported in hardware. The complexity of this
  hardware can be high.
• The amount of instruction level of parallelism in
  a program is often limited and is a function of
  coding technique.

17
Dependency- True data dependency

• In 2nd code fragment, there can be no
  simultaneous issue, leading to poor resource
  utilization.
• The third code fragments also illustrate in many
  cases it is possible to extract more parallelism
  by reordering the instructions and by altering
  the code.
• The code reorganization corresponds to
  exposing??parallelism in a form that can be used
  by the instruction issue mechanism.

18
Dependency- Resource dependency

• The form of dependency in which two instructions
  compete for a single processor resource.
• As an example, consider the co-scheduling of two
  floating point operations on a dual issue machine
  with a single floating point unit.
• Although there might be no data dependencies
  between the instructions, they cannot be
  scheduled together since both need the floating
  point unit.

19
Dependency- Branch or procedural dependencies

• Since the branch destination is known only at the
  point of execution, scheduling instructions a
  priori across branches may lead to errors.
• These dependencies are referred to as branch or
  procedural dependencies and are typically handled
  by speculatively scheduling across branches and
  rolling back in case of errors.

20
Dependency- Branch or procedural dependencies

• On average, a branch instruction is encountered
  between every five to six instructions.
• Therefore, just as in populating instruction
  pipelines, accurate branch prediction is critical
  for efficient superscalar execution.
• The ability of a processor to detect and
  concurrent instruction is critical to superscalar
  performance.

21
Dependency- Branch or procedural dependencies

• The 3rd code fragment is merely semantically
  equivalent reordering of the 1st code fragment.
  However, there is a data dependency between load
  R1, _at_1000 and add R1, _at_1004 .
• Therefore, these instructions cannot be issued
  simultaneously. However, if the processor has
  ability to look ahead, it would realize that it
  is possible to schedule the 3rd instruction with
  the 1st instruction.
• In this way, the same execution schedule can be
  derived for the 1st and 3rd code fragments.
  However, the processor needs the ability to issue
  instruction out-of-order to accomplish desired
  ordering.

22
Dependency- Branch or procedural dependencies

• Most current microprocessor are capable of
  out-of-order issue and completion.
• The model, also referred as dynamic instruction
  issue, exploits maximum instruction level
  parallelism. The processor uses a window of
  instructions from which it selects instructions
  for simultaneous issue. This window corresponds
  to the look ahead of the scheduler. (Dynamic
  Dependency Analysis)

23
Dependency-Branch or procedural dependencies

• In Fig. 2.1(C)
• These are essentially wasted cycles from the
  point of view of the execution unit. If, during a
  particular cycle, no instructions are issued on
  the execution units, it is referred to as
  vertical waste. If only part of the execution
  units are used during a cycle, it is termed
  horizontal waste.
• In all, only three of the eight available cycles
  are used for computation. This implies that the
  code fragment will yield no more than
  three-eighths of the peak rated FLOPS count of
  the processor.

24
Dependency- Branch or procedural dependencies

• Often, due to limited parallelism, resource
  dependencies, or the ability of a processor to
  extract parallelism, the resources of superscalar
  processors are heavily under-utilized.
• Current microprocessors typically support up to
  four-issue superscalar execution.

25
Very Long Instruction Word Processors VLIW

• The parallelism extracted by superscalar
  processors is often limited by the instruction
  look ahead.
• The hardware logic for Dynamic Dependency
  Analysis is typically in the range of 5-10 of
  the total logic on conventional microprocessors.
• The complexity grows roughly quadratic????with
  the number of issues and become a bottleneck.

26
Very Long Instruction Word Processors (VLIW)

• An alternate concept for exploiting
  instruction-level parallelism used in every long
  instruction word (VLIW) processors relies on the
  compiler to resolve dependencies and resource
  availability at compile time.

27
Very Long Instruction Word Processors VLIW

• Instruction that can be executed concurrently are
  packed into groups and parceled?? off the
  processor as a single long instruction word to be
  executed on multiple functional units at the same
  time.

28
Very Long Instruction Word Processors (VLIW)

• VLIW advantages
• Since the schedule is done in software, the
  decoding and instruction issue mechanisms are
  simpler in VLIW processors.
• The compiler has a larger context from which to
  select instructions and can use a variety of
  transformations to optimize parallelism when
  compared to a hardware issue unit.
• Additional parallel instructions are typically
  made available to the compiler to control
  parallel execution.

29
Very Long Instruction Word Processors VLIW

• VLIW disadvantages
• Compilers does not have the dynamic program state
  (e.g. the branch history buffer) available to
  make scheduling decisions.
• This reduces the accuracy of branch and memory
  prediction, but allows the use of more
  sophisticated???static predictions schemas.
• Others runtime situations are extremely
  difficulty to predict accurately.
• This limits the scope and performance of static
  compiler-based scheduling.

30
Very Long Instruction Word Processors VLIW

• VLIW is very sensitive to the compilers ability
  to detect data and resource dependencies and R/W
  hazards, and to schedule instructions for maximum
  parallelism. Loop unrolling, branch prediction,
  and speculative execution all play important
  roles in the performance of VLIW processors.
• While superscalar and VLIW processors have been
  successful in exploiting implicit parallelism,
  they are generally limited to smaller scales of
  parallelism concurrency in the range of
  four-to-eight-way parallelism.

31
Limitations of Memory System Performance
32
Limitations of Memory System Performance

• Memory system, and not processor speed, is often
  the bottleneck for many applications.
• Memory system performance is largely captured by
  two parameters, latency and bandwidth.

33
Limitations of Memory System Performance

• Latency is the time from the issue of a memory
  request to the time the data is available at the
  processor.
• Bandwidth is the rate at which data can be pumped
  to the processor by the memory system.

34
Example2.2 Effect of memory latency on
performance

• Consider a processor operating at 1GHz (1 ns
  clock) connected to a DRAM with a latency of 100
  ns (no caches) 100 cycles.
• Assume that the processor has two multiple-add
  units and is capable of executing four
  instructions in each cycle of 1 ns. The peak
  processor rating is therefore 4 GFLOPS.
• (4 FLOPS/cycle x 109 cycles/s4x109FLOPS)

35
Example2.2 Effect of memory latency on
performance

• Since the memory latency is equal to 100 cycles
  and the block size is one word, every time a
  memory request is made, the processor must wait
  100 cycles before it can process the data.
• It is easy to see that the peak speed of this
  computation is limited to one floating point
  operation every 100 ns(10010-910-7), or a
  speed of 10 MFLOPS (10106107).

36
Limitations of Memory System Performance

• Improve Effective Memory Latency Using Caches
• Impact of Memory Bandwidth
• Alternate Approaches for Hiding Memory Latency
• Multithreading for Latency Hiding
• Prefetching for Latency Hiding
• Tradeoffs of Multithreading and Prefetching

37
Improve Effective Memory Latency Using Caches

• One innovation??address the speed mismatch by
  placing a smaller and faster memory between the
  processor and the DRAM.
• The fraction of data references satisfied by the
  cache is called the cache hit ratio.
• The notation of repeated reference to a data item
  in a small time window is called temporal
  locality.

38
Improve Effective Memory Latency Using Caches

• The effective computation rate of many
  applications is bounded not by the processing
  rate of the CPU, but by the rate at which data
  can be pumped into the CPU. Such computations are
  referred to as being memory bound.

39
Example2.3 Impact of caches on memory system
performance

• As Example2.2, consider a 1GHz processor with a
  100 ns latency DRAM and we introduce a cache of
  size 32 KB with a latency of 1ns or one cycle. We
  use this setup to multiply two matrices A and B
  of Dimension 32x32
• A32x322101K B32x322101K then, 1K1K2K
  words2000 words
• Fetching two matrices into cache takes about
  2000x100ns 200 µs
• Multiplying two n x n matrices takes 2n3
  operations 2(32)3 64K operations

40
Example2.3 Impact of caches on memory system
performance

• Because the processor has two multiple-add units
  and is capable of executing four instructions in
  each cycle of 1 ns.
• Then 64K4x16K cycles (or 16 µs) at four
  instructions per cycle
• Total 200 µs 16 µs 216 µs
• Peak computation rate 64K / 216 303.4074 x
  106 303 MFLOPS
• Compare with example 2.2
• Improvement ratio 303 / 10 30.3 about thirty
  fold

41
Impact of Memory Bandwidth

• Memory Bandwidth
• The rate at which data can be moved between the
  processor and memory.
• It is determined by the memory bus as well as the
  memory units.
• The single memory request returns a
  contiguous???block of four words. The single unit
  of four words in this case is also referred to as
  a cache line.

42
Impact of Memory Bandwidth

• In following example, the data layouts were
  assumed to be such that consecutive data words in
  memory were used by successive instructions. In
  other words, if we take a computation-centric
  view, there is a spatial locality of memory
  access.

43
Example2.4 Effect of block size dot-product of
two vectors

• A peak speed of 10 MFLOPS as illustrated in
  example 2.2
• If the block size is increased to four words
  i.e., the processor can fetch a four-word cache
  line every 100 cycles
• For each pair of words, the dot-product performs
  one multiply-add, i.e., 2 FLOPs,
• then four words need 8 FLOPs can be performed in
  2x100 200 cycles
• The corresponds to a FLOP every 200/8 25 ns, for
  a peak of 1/25ns109/25 40 MFLOPs

44
Impact of Memory Bandwidth

• If we take a data-layout centric point view, the
  computation is ordered so that successive
  computations require contiguous data.
• If the computation (or access pattern) does not
  have spatial locality, then effective bandwidth
  can be much smaller than the peak bandwidth.

45
Row majority vs. Column Majority

• Row majority
• for( i0 ilt100 i )
• for( j0jlt100j )
• aijbijcij
• Column majority
• for( j0jlt100j )
• for( i0 ilt100 i )
• aijbijcij

46
Impact of strided??access Example 2.5

• Consider the following code fragment
• for (i 0 i lt 1000 i)
• column_sumi 0.0
• for (j 0 j lt 1000 j)
• column_sumi Aji
• The code fragment sums columns of the matrix A
  into a vector column_sum.
• Assumption the matrix has been stored in a
  row-major fashion in memory.

47

• Example2.5 Impact of strided? access

Example 2.5 column sum
Example 2.6 column sum II
48
Eliminating strided access Example 2.6

• We can fix the above code as follows
• for (i 0 i lt 1000 i)
• column_sumi 0.0
• for (j 0 j lt 1000 j)
• for (i 0 i lt 1000 i)
• column_sumi Aji
• In this case, the matrix is traversed in a
  row-order and performance can be expected to be
  significantly better.

49
Memory System Performance Summary

• The series of examples presented in this section
  illustrate the following concepts
• Exploiting spatial and temporal locality in
  applications is critical for amortizing??memory
  latency and increasing effective memory
  bandwidth.
• The ratio of the number of operations to number
  of memory accesses is a good indicator of
  anticipated??tolerance to memory bandwidth.
• Memory layouts and organizing computation
  appropriately can make a significant impact on
  the spatial and temporal locality.

50
Alternate Approaches for Hiding Memory Latency

• Imaging sitting at your computer browsing the web
  during peak network network traffic hours. The
  lack of response from your browser can be
  alleviated??
• Multithreading for Latency Hidinglike we open
  multiple browsers and access different pages in
  each browser,thus while we are waiting for one
  page to load, we could be reading others
• Prefetching for Latency Hiding like we
  anticipate??which pages we are going to browse
  ahead of time and issue requests for them in
  advance.
• Spatial locality in accessing memory wordslike
  we access a whole bunch?of pages in one go.

51
Multithreading for Latency Hiding

• A thread is a single stream of control in the
  flow of a program.
• We illustrate threads with a simple example 2.7
• for (i 0 i lt n i)
• ci dot_product(get_row(a, i), b)
• Each dot-product is independent of the other, and
  therefore represents a concurrent unit of
  execution. We can safely rewrite the above code
  segment as
• for (i 0 i lt n i)
• ci create_thread(dot_product,get_row(a,
  i), b)

52
Multithreading for Latency Hiding Example 2.7

• In the code, the first instance of this function
  accesses a pair of vector elements and waits for
  them.
• In the meantime, the second instance of this
  function can access two other vector elements in
  the next cycle, and so on.
• After l units of time, where l is the latency of
  the memory system, the first function instance
  gets the requested data from memory and can
  perform the required computation.
• In the next cycle, the data items for the next
  function instance arrive, and so on.
• In this way, in every clock cycle, we can perform
  a computation.

53
Multithreading for Latency Hiding

• The execution schedule in the previous example is
  predicated upon two assumptions
• the memory system is capable of servicing
  multiple outstanding???requests, and
• the processor is capable of switching threads at
  every cycle.

54
Multithreading for Latency Hiding

• It also requires the program to have an explicit
  specification of concurrency in the form of
  threads.
• Machines such as the HEP and Tera rely on
  multithreaded processors that can switch the
  context of execution in every cycle.
• Consequently, they are able to hide latency
  effectively.

55
Prefetching for Latency Hiding

• Misses on loads cause programs to stall.
• Why not advance the loads so that by the time the
  data is actually needed, it is already there!
• The only drawback is that you might need more
  space to store advanced loads.
• However, if the advanced loads are overwritten,
  we are no worse than before!

56
Example 2.8 Hiding latency of perfecting

• Consider the problem of adding two vectors a and
  b using a single loop.
• In the first iteration of the loop
• The processor request a0 and b0
• Since these are not in the cache, the processor
  must pay the memory latency.
• While these requests are being serviced, the
  processor also requests a1 and b1.
• Assuming that each request is generated in one
  cycle (1ns) and memory requests are satisfied in
  100 ns
• After 100 such requests the first set of data
  items is return by the memory system
• Subsequently, one pair of vector components will
  be returned every cycle.

57
Example2.9 Impact of bandwidth on multithreaded
programs

• Consider a computation running on a machine with
  a 1GHz clock, 4 word cache line, single cycle
  access to the cache, and 100 ns latency to DRAM.
  The computation has a cache hit ratio at 1 KB of
  25 and at 32 KB of 90.
• A single threaded execution in which the entire
  cache (32KB) is available to the serial context
• A multithreaded execution with 32 threads where
  each thread has a cache residency of 1 KB
• If the computation makes one data request in
  every cycle of 1 ns

58
Example2.9

• In the first case
• DRAM latency 100ns
• 4 words/cycle computation
• 4 words/ns ( 4-ways)
• 100ns need support 400 words to CPU
• 1s need support 107x400words4000MB
• 10 from DRAM then, 10x4000MB400MB/s
• DRAM bandwidth 400MB/s
• A single thread

59
Example2.9

• In the second case,
• DRAM latency 100ns
• 4 words/cycle computation
• 4 words/ns ( 4-ways)
• 100ns need support 400 words to CPU
• 1s need support 107x400words4000MB
• 75 from DRAM then, 75x4000MB3000MB3GB
• DRAM bandwidth 3GB/s
• 32 threads

60
Tradeoffs of Multithreading and Prefetching

• Bandwidth requirements of a multithreaded system
  may increase very significantly because of the
  smaller cache residency of each thread.
• Multithreaded systems become bandwidth bound
  instead of latency bound.
• Multithreading and prefetching only address the
  latency problem and may often exacerbate?? the
  bandwidth problem.
• Multithreading and prefetching also require
  significantly more hardware resources in the form
  of storage.

61
Dichotomy???of Parallel Computing Platforms
62
Dichotomy of Parallel Computing Platforms

• Logical
• Control Structure of Parallel Platformsthe
  former
• Communication Model of Parallel Platforms(chap
  10) the latter
• Shared-Address-Space Platforms(chap 07)
• Message-Passing Platforms(chap 06)
• Physical
• Architecture of an ideal Parallel Computer
• Interconnection Networks for Parallel Computers
• Network Topologies
• Evaluating Static Interconnection Networks
• Evaluating Dynamic Interconnection Networks
• Cache Coherence in Multiprocessor Systems

63
Control Structure of Parallel Programs

• Parallelism can be expressed at various levels of
  granularity??- from instruction level to
  processes.
• Between these extremes exist a range of models,
  along with corresponding architectural support.

64
Example2.10 Parallelism from single instruction
on multiple processors

• Consider the following code segment that adds two
  vectors
• for (i0 ilt1000 i)
• ciaibi
• C0a0b0C1a1b1..etc.,can be
  executed independently of each other.
• If there is a mechanism for executing the same
  instruction, all the processors with appropriate
  data, we could execute this loop much faster.

65
SIMD and MIMD
66
SIMD

• SIMD (Single instruction stream, multiple data
  stream) Architecture
• A single control unit dispatches instructions to
  each processing unit.
• In an SIMD parallel computer, the same
  instruction is executed synchronously by all
  processing units.
• These Architectural enhancements rely on the
  highly structured (regular) nature of underlying
  computations, for example in image processing and
  graphics, to deliver improved performance.

67
MIMD

• MIMD (Multiple instruction stream, multiple data
  stream) Architecture
• Computers in which each processing element can
  execute a different program independence of the
  other processing elements
• A simple variant of this model, called the
  single program multiple data (SPMD), relies on
  multiple instances of the same program executing
  on different data.
• The SPMD model is widely used by many parallel
  platforms and requires minimal architecture
  support. Examples of such platforms include the
  SUN Ultra Servers, Microprocessor PCs,
  workstation clusters, and the IBM SP.

68
SIMD vs. MIMD

• SIMD computers require less hardware than MIMD
  computers because they only one global control
  unit.
• Furthermore, SIMD computers require less memory
  because only one copy of the program needs to be
  stored.
• Platforms supporting the SIMD paradigm can be
  built from inexpensive off-the-shelf components
  with relatively little effort in a short amount
  of time.

69
SIMD Disadvantages

• Since the underlying serial processors change so
  rapidly, SIMD computers suffer from fast
  obsolescence??.
• The irregular nature of many applications makes
  SIMD architecture less suitable.
• Example 2.11 illustrates a case in which SIMD
  architectures yield poor resource utilization in
  the conditional execution.

70
Example2.11 Conditional Execution in SIMD
Processors
71
Communication Model of Parallel Platforms

• There are two primary forms of data exchange
  between parallel tasks
• Shared-Address-Space Platforms(ch 07)
• Message-Passing Platforms(ch 06)

72
Shared-Address-Space Platforms

• Part (or all) of the memory is accessible to all
  processors.
• Processors interact by modifying data objects
  stored in this shared-address-space.
• If the time taken by a processor to access any
  memory word in the system global or local is
  identical, the platform is classified as a
  uniform memory access (UMA), else, a non-uniform
  memory access (NUMA) machine.

73
Shared-Address-Space Platforms
74
Shared-Address-Space Platforms

• The Shared-Address-Space view of a parallel
  supports a common data space that is accessible
  to all processors.
• Processors interact by modifying data objects
  stored in this Shared-Address-Space.
• Memory in Shared-Address-Space platforms can be
  local or global
• Shared-Address-Space platforms supporting SPMD
  programming are also referred to as
  multiprocessors.

75
Shared-Address-Space vs. Shared Memory Machines

• It is important to note the difference between
  the terms shared address space and shared memory.

• We refer to the former as a programming
  abstraction and to the latter as a physical
  machine attribute.
• It is possible to provide a shared address space
  using a physically distributed memory

76
Message-Passing Platforms

• These platforms comprise of a set of processors
  and their own (exclusive) memory.
• Instances of such a view come naturally from
  clustered workstations and non-shared-address-spac
  e multicomputers.
• These platforms are programmed using (variants
  of) send and receive primitives.
• Libraries such as MPI and PVM provide such
  primitives.

77
Message Passing vs. Shared Address Space
Platforms

• Message passing requires little hardware support,
  other than a network.
• Shared address space platforms can easily
  emulate??message passing. The reverse is more
  difficult to do (in an efficient manner).
