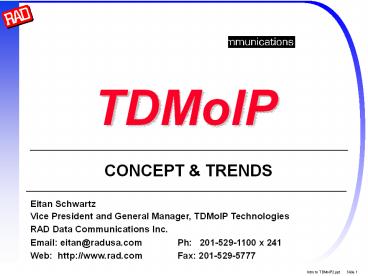

TDMoIP
CONCEPT TRENDS
Eitan Schwartz Vice President and General
Manager, TDMoIP Technologies RAD Data
Communications Inc. Email eitan_at_radusa.com Ph
201-529-1100 x 241 Web http//www.rad.com Fax
201-529-5777
2
Contents

• Trends
• The opportunity and problem
• Solution Circuit Extension over IP
• TDMoIP architecture and RADs Implementation
• Comparing TDMoIP with ATM and VoIP
• Benefits of TDMoIP
• Service Provider Solutions
• Enterprise Solutions
• Summary

3
Packet over TDM

• Today, Voice and data traffic traverse the TDM,
  circuit switched network

IP, FR, ATM carried across PSTN, T1, T3 and
SONET Highways
4
Trend TDM Voice Data over Packet

• Tomorrow, TDM based voice and data will be
  carried across packet networks

Cable
DWDM

• Because IP services are
• Fast (GbE rates)
• Cheap (low /Mbps)
• Reliable (QoS)
• Scalable (up to 10Gbps)
• Ubiquitous

Wireless
Gigabit Ethernet
5
Trends

• Carriers installing more IP and Gigabit Ethernet
• Packet-based networks are scalable and cost less
  than traditional T1 and T3 leased lines
• Powerful Ethernet switches are dominating the
  enterprise because they are cheap and simple
• Enterprises consider migrating their legacy voice
  networks over IP, but are concerned that voice
  quality, service reliability and existing
  features may be compromised
• Service providers are looking to provide
  additional services over cost-effective IP
• Simple, low cost solutions continue to beat
  complex, expensive alternatives

6
The Opportunity and Problem

• Opportunity
• Convergence of voice and data reduces redundant
  administration, cabling and hardware costs
• Problem
• Connecting PBXs and TDM equipment over IP is
  problematic due to signaling, timing and
  specialized features
• Most solutions are complex and expensive they
  usually compromise quality and functionality

Feature transparency is often compromised
7
Solution TDMoIP GatewaysCircuit Extension over
IP

• Transparent extension of T1/E1 circuits over IP
• The synchronous bit stream is chopped into
  packets
• IP headers are added
• Packets are forwarded to destination over the IP
  network
• At destination, the original bit stream is
  reconstructed by removing IP headers,
  concatenating the packets, and regenerating the
  clock
• This technology is called TDMoIP

8
Reversing the Approach
Reverse approach over IP
Classic approach IP over...
IP
TDM
IP
ATM/FR
TDM/SONET
Ethernet
Fiber
Fiber
So now TDM simply becomes the legacy migration
application running over an IP infrastructure
9
TDMoIP ArchitectureCircuit Extension over IP
User Interface Standards based (e.g.T1,
E1) Unframed or framed/channelized Transparent to
protocol - Any data (BSC, FR,..) - Any voice
(PCM, ADPCM,..) - Any signaling (PRI, DPNSS,
SS7,..)

• Network Interface
• Low cost (e.g. 10/100BaseT)
• Configurable QoS options
• - VLAN for layer 2 priority (802.1pq)
• ToS for IP level priority
• known UDP Ports for layer 4 priority
• Compensate packet delay variation

Traditional Circuits
Packet Networks
TDMoIP
External / adaptive clock regeneration Low
processing delay Scalability, redundancy,
management diagnostics
10
IPmux Family
IPmux-1
IPmux-16
IPmux-4
Back Panel

• 1, 4 or 16 T1/E1 ports over Ethernet uplink
• TDM payload configurable from 48 to 384 octets
• Overhead as low as 7
• Low processing delay (under 1ms)
• QoS support for 802.1pq, ToS IANA UDP ports
• SNMP management with graphic interface
• Performance monitoring for T1/E1 and LAN ports

11
TDMoIP Architecture Challenge
IPMux
Architecture

• Standard Framed Unframed E1/T1 supported

Standard Interface supports full and Fractional
services

• 10/100BaseT Ethernet

High speed, low cost network interface

• Physical layer extension over IP

Transparent to Protocol

• Supports 802.1pq (layer2), IP ToS (layer3)
  IANA UDP ports (layer 4)

Complete support for QoS facilities

• Low processing delay (under 1ms).

Low delay

• Jitter buffer compensates for up to 32ms delay
  variation (300ms on IPmux-1)

Support packet delay variation

• Clock recovered through network

Support for cross network clock regeneration

• Scalable through Ethernet switch

Easily scalable

• Redundant power supply and uplink

High availability
12
Price Comparison IP vs. TDM
/Mbps
T1, T3 circuit costs
Conclusion Price of IP bandwidth decreasing at a
much faster rate than that of T1 or T3
T1/T3 circuit costsusing IPmux
IP costs
time
13
TDMoIP vs. ATM

• TDMoIP provides similar benefits to ATM
• low end-to-end delay
• maintaining integrity of framed or unframed T1/E1
• In contrast to ATM, TDMoIP
• is simpler and less expensive
• has configurable packet size for optimizing
  overhead/delay trade off
• is carried over ubiquitous IP and Ethernet
  networks

14
TDMoIP vs. VoIP

• TDMoIP and VoIP both offer convergence over IP
• In contrast to VoIP, TDMoIP
• is transparent to protocols and signaling
• is simpler and less expensive
• supports installed PBXs with no loss of
  functionality
• supports all modem and fax rates
• is suitable for sync/async data protocols
• maintains integrity of framed and unframed T1/E1
  circuits

15
TDMoIP and VoIP
Have same goals - convergence, ...but a
few critical differences

• TDMoIP (Telephony over IP)
• Simple evolutionary
• uses standard, mature, and well known protocols
  T1, IP
• low cost of ownership
• Maintain installed PBXs
• significant cost savings
• little disruption to business
• No loss of PBX functionality
• Low delay
• transparent to signaling and protocols
• Configurable packet size
• low delay
• configurable overhead
• Data voice circuit extension
• DS0 level bundling X-connect

• VoIP (IP Telephony)
• Complex revolutionary
• new evolving protocols such as H.323, MGCP, and
  SIP
• complexity requires retraining IT
• Fork lift upgrade (reinvent the telephone switch)
• compatibility issues
• Limited today, new features possible
• Long call setup times
• translation between signaling formats (SS7,
  ISDN,..)
• Packets depend on codec samples
• delays as sample is recorded
• overhead on each voice session
• Primarily voice
• Voice switching per call

16
Alternatives for Migrating Legacy PBXs to IP
Networks
VoIP
TDMoIP
The alternative for customers who have fully
depreciated their telephony equipment
An inexpensive migration strategy to IP

• If youre happy with your telephony features,
  but you wish to migrate to IP networking without
  fork lift upgrades and lost functionality

• If current telephony features are insufficient
  and youre ready to take on the challenges of new
  and evolving protocols

Simple, Low cost of ownership
Complex, Expensive
17
Benefits for End-Users and Integrators

• End User
• Simple, low cost voice/data convergence solution
  over IP and Ethernet
• Protect investments in PBX and TDM equipment with
  no fork lift upgrades and no loss of
  functionality
• Integrators
• Tie the circuit switched world into the IP
  economy
• Help build reliable enterprise and institutional
  networks
• Address enterprise business concerns by providing
  evolutionary rather than revolutionary solutions

18
Benefits for Vendors Complimentary Solutions

• PBX vendors
• PBXs with proprietary signaling and unique
  feature sets are now fully supported over IP
• Ethernet switch and router vendors
• Now are empowered with traditional TDM voice,
  video data capabilities
• Wireless radio and laser equipment vendors
• Systems designed for LAN extension can now
  deliver leased line services to remote buildings

19
Benefits for Competitive Carriers

• Compete with ILEC by providing voice and leased
  line services over Ethernet or IP infrastructure
• Expand market share quickly into tier 4 towns
  with scalable solution that reduces risk
• Efficiently groom T1/E1 circuits onto optical
  and wireless networks (DS0 granularity)
• Provide access to ATM, Frame Relay, ISDN and X.25
  over IP networks

20
Circuit Extension over IP -Generic Carrier
Application
Enhanced Services
Customers
Basic Transport
IPmux
n x T1/E1 Circuits extended to customers
3rd party service offerings
Multi-tenant Unit (MTU)
IPmux
PSTN Centrex Clearinghouse VoIP ATM Frame
Relay etc.
IPmux
m x T1/E1
n x T1/E1 Circuits extended to customers
Service POP
Regional POP
KEY
TDM Synchronous link (e.g T1)

• Gigabit Ethernet Switch
• Wireless Ethernet Modem
• IP Router
• DSLAM

Packet (e.g 10/100BaseT)
21
Service Provider Solutions

• Circuit Extension over IP - Generic carrier
  application
• Wireless and optical local loop
• Voice and data services to multi-tenant buildings
• Expand market Share using ILEC for local loop
• Connecting cellular networks over IP
• Grooming DS0 channels onto T1/E1 and Ethernet
• Bundled services PSTN, VoIP and Internet

22
Circuit Extension over IP -Generic Enterprise
Application
23
Enterprise Applications

• Circuit Extension over IP - Generic application
• Centralized Voice Services
• Voice and Video across Campus LAN
• Metro Area networks Adding Voice to Optical
  Packet Networks
• Building a Wireless Campus Voice and Data
  integration over Ethernet
• Adding Voice to Wireless LAN Networks
• Drop-and-Insert over Fiber (Max 500 T1)
• Adding Voice to LAN over ATM Networks
• PSTN Bypass
• Secure Government / Military Networking over IP
• Legacy TDM Multiplexing over IP - Generic
  Application
• Extending Analog or ISDN Telephones over Ethernet
  or IP networks
• Channelized T3/E3 High-Speed Serial Data over
  Ethernet or IP
• SCADA System Control and Data Acquisition

24
Summary

• Simple, inexpensive migration path to IP without
  compromising current telephony features
• Transparent to all signaling and protocols
• Protects investment in PBX and TDM equipment with
  no fork lift upgrades Circuit Extension over IP
  provides the benefits of IP networks without the
  dangers of a new technology
• Supports legacy telephony services over IP with
  no loss of functionality
• Empowers IP networks with leased line
  capabilities for Voice, ATM, Frame Relay, SNA,
  etc.
