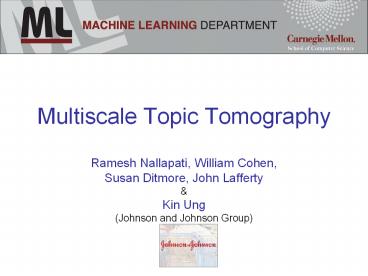

Multiscale Topic Tomography

1
Multiscale Topic Tomography

• Ramesh Nallapati, William Cohen,
• Susan Ditmore, John Lafferty
• Kin Ung
• (Johnson and Johnson Group)

2
Introduction

• Explosive growth of electronic document
  collections
• Need for unsupervised techniques for
  summarization, visualization and analysis
• Many probabilistic graphical models proposed in
  the recent past
• Latent Dirichlet Allocation
• Correlated Topic Models
• Pachinko Allocation
• Dirichlet Process Mixtures
• ..
• All the above ignore an important dimension that
  reveals huge amount of information
• Time!

3
Introduction

• Recent work that models time
• Topics over Time Wang and McCallum, KDD06

• Key ideas
• Each sampled topic generates a word as well as a
  time stamp
• Beta distribution to model the occurrence
  probability of topics
• Collapsed Gibbs sampling for inference

4
Introduction

• Recent work that models time
• Topics over Time (ToT) Wang and McCallum, KDD06

5
Introduction

• Recent models proposed to address this issue
• Dynamic Topic Models (DTM) Blei and Lafferty,
  ICML06

• Key ideas
• Models evolution of topic content, not just
  topic occurrence
• Evolution of topic multinomials modeled using
  logistic-normal prior
• approximate variational inference

6
Introduction

• Recent models proposed to address this issue
• Dynamic Topic Models (DTM) Blei and Lafferty,
  ICML06

7
Introduction

• Issues with DTM
• Logistic normal not a conjugate to the
  multinomial
• Results in complicated inference procedures
• Topic tomography a new time series topic model
• Uses a Poisson process to model word counts
• A wedding of multiscale wavelet analysis with
  topic models
• Uses conjugate priors
• Efficient inference
• Allows Visualization of topic evolution at
  various time-scales

8
Topic Tomography A sneak-preview
9
Topic Tomography (TT) whats with the name?

• From the Greek words " tomos" (to cut or
  section) and "graphein" (to write)

• LDA models how topics are distributed in each
  document
• Normalization is per document
• TT models how each topic is distributed among
  documents !
• Normalization is per topic

10
Topic Tomography model
11
Multiscale parameter generation
scale
Haar multiscale wavelet representation
epochs
12
Multiscale parameter generation
13
Multiscale Topic Tomographywhere is the
conjugacy?

• Recall multiscale canonical parameters are
  generated using Beta distribution
• Data likelihood w.r.t. the Poissons can be
  equivalently expressed in terms of the binomials

14
Multiscale Topic Tomography

• Parameter learning using mean-field variational
  EM

15
Experiments

• Perplexity analysis on Science data
• Spans 120 years split into 8 epochs each
  spanning 15 years
• Documents in each epoch split into 50-50 training
  and test sets
• Trained three different versions of TT
• Basic TT basic tomography model with no
  multiscale analysis, applied to the whole
  training set
• Multiple TT same as above, but one model for
  each epoch
• Multiscale TT full multiscale version

16
Experiments
Perplexity results
Multiple TT
Multiscale TT
LDA
Basic TT
17
Experiments Topic visualization of Particle
physics
18
ExperimentsTopic visualization Particle
physics
19
Experiments Evolution of content-bearing words
in particle physics
electron
heat
atom
quantum
20
ExperimentsTopic occurrence distribution
Genetics
Neuroscience
Climate change
Agricultural science
21
Conclusion

• Advantages
• Multiscale tomography has the best features of
  both DTM and ToT
• In addition, it provides a zoom feature for
  time-scales
• A natural model for sequence modeling of counts
  data
• Conjugate priors, easier inference
• Limitations
• Cannot generate one document at a time
• Not easily parallelizable
• Future work
• Build a GaP like model with Gamma weights

22
Demo

• Analysis of 32,000 documents from PubMed
  containing the word cancer, spanning 32 years
• Will be shown this evening at poster 9
• Also available at
• http//www.cs.cmu.edu/nmramesh/cancer_demo/multis
  cale_home.html
• Local copy

23
Inference Mean field variational EM

• E-step
• M-step

Variational multinomial
Variational Dirichlet
24
Related Work

• Poisson distribution used in 2-Poisson model in
  IR
• Not successful, but inspired the famous BM25
• Gamma-Poisson topic model Canny, SIGIR04
• Poisson to model word counts and Gamma to model
  topic weights
• does not follow the semantics of a pure
  generative model
• Optimizes the likelihood of complete-data
• Topic tomography model is very similar
• We optimize the likelihood of observed-data
• Use Dirichlet to model topic weights

25
Related Work

• Multiscale Topic Tomography model originally
  introduced by Nowak et al Nowak and Kolaczyk,
  IEEE ToIT00
• Called Poisson inverse problem
• Applied to model gamma ray bursts
• Topic weights assumed to be known
• a simple EM algorithm proposed
• We cast topic modeling as a Poisson inverse
  problem
• Topic weights unknown
• Variational EM proposed

26
Outline

• Introduction/Motivation
• Related work
• Topic Tomography model
• Basic model
• Multiscale analysis
• Learning and Inference
• Experiments
• Perplexity analysis
• Topic visualizations
• Demo (if time permits)

27
ExperimentsMultiple senses of word reaction
Total count
chemistry
particle physics
Blood tests
