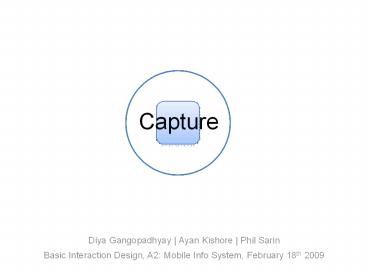

Capture

1
Capture

• Diya Gangopadhyay Ayan Kishore Phil Sarin
• Basic Interaction Design, A2 Mobile Info System,
  February 18th 2009

2
problem statement

• cellphones with basic multimedia capability
  (camera and speaker) are pervasive
• but there isnt an application or service
  available that integrates multimedia capabilities
  to capture interesting or important occurrences
  and their location

3
proposed solution

• Capture is a simple tool that allows you to take
  a photo, or voice recording to capture something
  noteworthy. Capture auto-tags it with location
  information. These captures can be retrieved at
  will, or pop-up automatically when one is the
  vicinity of a previous capture. Further, one has
  basic ability to share captures via MMS.
• Capture can serve as a mobile memory aid, an
  organizer for cellphone photos or voice
  recordings, an auto-fill MMS template

4
system navigation

• add Capture
• view Capture

5
Keyword (Location) Time Date
Keyword (Location) Time Date
Done Save and Proceed Save and Add more Images
View All
Add
Back
Skip
Back
Skip
_ _ _ _
_ _ _ _
add Capture
Back
Done
Back
Done
6
Keyword (Location) Time Date
Keyword (Location) Time Date
Keyword (Location) Time Date
Keyword (Location) Time Date
View All
Add
Back
Options
Back
Options
T9 Abc

Voice annotation screen from add Capture sequence
Change Keyword
Re-record Voice Delete Capture Share Capture
view Capture
Keyword (Location) Time Date
via confirmation screen
Back
Select
Back
Done
Brings up auto-populated MMS in cell phone MMS app
7
design process

• persona
• brainstorming and sketching
• sketching interaction
• scenario and prototype

8
persona
Erica Brewer
Erica stays with her husband Frank, who is also
retired. She has two grown sons who stay in the
same city, and 3 grandchildren aged 5, 8 and
12. Nearly everyday, she meets up with her
buddies for coffee. She is part of a local
charity organization that raises funding for
research of juvenile diabetes. On an average, she
spends 10 hours a week for the cause. She tries
to get the full family together at her place
about once a month. Once in a while, she picks
up her grandkids from school and they stay the
night with her and Frank. She looks forward to
those days and even plans in advance for them.

• Age 71
• Retired Pharmacist

Goals
life
experience
end

• Keep the family united
• Be a good grandmother
• Be independent and occupied
• Feel useful to the community
• Live on a limited budget inconspicuously

• Not to feel like an old person
• Enjoy shopping

• Find the best price
• Remember what Im looking for
• Remember recipes
• Make a good meal
• Look for inspiration

Photo Credits Lisa Ruokis
9
brainstorming and sketching
10
sketching interaction
11
scenario and prototyping

• Erica gets drawn to Capture

12
beyond Erica

• capture interesting places while travelling, and
  share with friends
• capture the place where you parked your car
• take a series of captures (landmarks) to trace
  path
• multimedia wallet photo

13
grounded in persona

• for low-end cell phones
• doesnt use data plan doesnt need to connect
  to carrier signal
• design favored photo and voice annotation over
  text tagging
• limited share capability (keeping away from
  social networking)

14
competitor analysis

• note-taking applications are text tagging and
  hierarchical organization intensive, are complex,
  and are for high end phones. e.g. Evernote,
  reQall
• basic voice recording or camera apps on phones
  dont integrate multimedia capabilities, and are
  hardly employed for note-taking
• Unique Selling Point auto-tagging of
  geographical information, and location based
  retrieval

15
the short story

• Capture is primarily a mobile memory aid. We
  designed it to meet the needs of Erica Brewer, a
  fictional 71-year-old persona whose calendar is
  filled with volunteering activities, coffee with
  friends, and indulging her grandkids.
• Erica is not a gadget freak. Unlike many other
  mobile applications, Capture specifically
  supports older phones with low-cost service
  plans. Capture also favors image and voice
  interaction over typing on a tiny telephone
  keypad.

16
(No Transcript)
17
Capture
