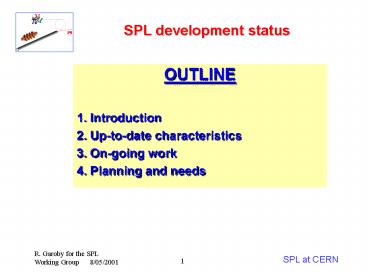

SPL development status

• OUTLINE
• 1. Introduction
• 2. Up-to-date characteristics
• 3. On-going work
• 4. Planning and needs

2
SPL Working Group
3
1. Introduction
CERN baseline scenario for a Neutrino Factory
4
Other applications of the proton driver

• Approved physics experiments
• CERN Neutrinos to Gran Sasso (CNGS) increased
  flux ( 2)
• Anti-proton Decelerator increased flux
• Neutrons Time Of Flight (TOF) experiments
  increased flux
• ISOLDE increased flux, higher duty factor,
  multiple energies...
• LHC faster filling time, increased operational
  margin...
• Future potential users
• Conventional neutrino beam from the SPL
  super-beam
• Second generation ISOLDE facility (EURISOL
  -like)
• ???

5
2. Up-to-date SPL characteristics
H- source, 25 mA 14 duty cycle
CCDTL
new SC cavities b0.52,0.7,0.8
Fast chopper (2 ns transition time)

• RF system
• freq. 352 MHz
• ampli. tetrodes and LEP klystrons

6
Improvements w.r.t. the reference design

• Improved transitions between sections ? better
  beam stability
• Doubled period length above 1.1 GeV ? save 25
  doublets, 8m, 3 MCHF
• Improved error studies ? 100 beam radius lt 20
  mm, even for large error case (30 ) ? quad.
  radius reduced from 100 mm to 60 mm, (17rms) ?
  save 2 - 3 MCHF
• Reduced longitudinal emittance 0.6 ? 0.3 ?ºMeV
  ? improved design of the transfer line (drift
  length 230 ? 175 m, bunch length 180 ? 130 ps)
• Use of beta0.8 cavities up to the highest energy
  ? shorter tunnel (- 100 m), less cavities per
  klystron, better control of mechanical resonances

7

Revised SPL beam specifications
8
Accumulator-Compressor scheme for a Neutrino
Factory
9
Proton beam characteristics influence on the
rest of the complex
p production
Cycling rate of all the facility
m burst length
Distance between m bunches
10
SPL sequencing and beam delivery
Fast deflection kickers
11
3. On-going work
12
Study of RT structures for the SPL front-end
bl
Alvarez Drift Tube Linac unsurpassable lt20
MeV good but expensive for 20-120 MeV
bl
Cell Coupled Drift Tube Linac attractive solution
for 20-150 MeV (a cold model is being designed)
bl/2
Coupled-Cell Cavity (LEP1) better efficiency
gt110 MeV
quadrupole
quadrupole
The final choice will depend on preferred
apertures, RT final energy, etc.
13
Intensity increase programme possible location
of the SPL front-end in the PS South Hall
Þ 1.8 the flux to CNGS (provided upgrades are
made to PSB, PS SPS) Þ cheap installation,
giving benefits from SPL related hardware before
the full machine is operational shortening the
final setting-up
14
4. Final comments

• Planning (guesses ...) and consequences
• 2009 SPL commissioning with beam
• 2005 Start of construction (civil engineering,
  preparation and test of SC cavities in SM18,
  etc.)
• beginning of 2004 land acquisition and
  authorisation of construction
• end 2003 decision
• Þ detailed design report for 2004
• Þ increase the design effort at CERN in
  interested laboratories by an order of magnitude
  before 2004 !
