Title: New Networking Architectures and Technologies


1

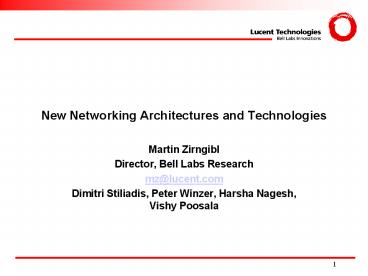

New Networking Architectures and Technologies
  • Martin Zirngibl
  • Director, Bell Labs Research
  • mz_at_lucent.com
  • Dimitri Stiliadis, Peter Winzer, Harsha Nagesh,
    Vishy Poosala

2
Background
  • Fiber amplifier and WDM have allowed orders of
    magnitude increase in point-to-point bandwidth
  • Data traffic dominates, but voice traffic still
    creates most revenues
  • Problems
  • Switching has become bottleneck
  • Legacy networks not optimized for data traffic
  • Outline of Talk
  • Are there network architectures that can be
    efficient for both, voice traffic and data
    traffic?
  • How can we scale SONET/SDH networks?
  • How can we scale packet switches?

3
Network Architectures for Bursty Traffic
  • Point-to-Point
  • Logical point-to-point
  • Use SONET/SDH layer for muxing
  • Packet Switched
  • Muxing is done in IP
  • Burst Switched
  • Dynamic provisioning of the network resources
  • Load-Balanced
  • New proposal to combine advantages of
    point-to-point and packet switched.

4
Statistical Multiplexing
Bandwidth demand
  • Statistical Muxing aggregates Bandwidth gt Better
    Efficiency
  • Will be used when traffic is bursty and bandwidth
    expensive

C
C
C
Packet Buffer And mux
C
C
Total demand
  • Where will statistical muxing be used, core or
    edge?
  • Not Clear Because
  • Edge bandwidth Bursty but Transport Cheap
  • Core Traffic Smooth but Bandwidth Expensive

5
Todays Network Architecture
Logical mesh Between edge and access routers
High Order Circuit Switching (STS-1)
High Order Circuit Switching (STS-1)
Data over SONET
Enterprise Data Access DSO/DS1/DS3
HUB
POP Ethernet Network
SONET/WDM Optical Core
Low Order Circuit Switching (VT1.5)
Enterprise Voice DSO/DS1
TDM
Core Routers
Edge Routers ATM/Frame Relay
Circuit switched core SONET/SDH optical
Circuit-switched access network
Packet aggregation on customer premise
Packet aggregation At edge of core network
6
Statement of the Problem
  • N nodes want to exchange packet traffic
  • Each node wants to deliver and receive packets
    at an average rate C
  • Packets from any node may go to any other
    node(s) at a rate(s) between 0 and C

C
C
C
C
1
2
C
Demand X to Y
3
4
C
C
C
C
time
7
Solution 1 Point-to-Point Bandwidth of Cbetween
all Nodes
  • Requires Transport Network with N(N-1)C
    Bandwidth
  • Logical Point-to-Point can be provided through
    SONET network
  • - Very inefficient for bursty traffic
  • Transport Network Static
  • No Packet Switching Necessary in Intermediate
    Nodes (Single Hop Routing)

C
C
C
1
2
C
3
4
C
C
C
C
gt Preferred Solution When Bandwidth is Cheap or
Traffic is Static
8
Solution 2 Multi-Hop Packet Switching
  • Nodes Are Packet Routers
  • Each Node is Only Connected to Nearest Neighbors
  • Requires Transport Network with NC Bandwidth
  • Very efficient for bursty traffic
  • Transport Network Static
  • - Intermediate Nodes Complex and Costly

C
C
C
1
2
C
3
4
C
C
C
C
gt Preferred Solution When Bandwidth is Expensive
and Traffic is Bursty
9
Solution 3 Burst Switching
Switch Transport bandwidth the Follow Traffic
Pattern gt Transport network Dynamic Needs NC
Transport Bandwidth Needs Global Control Plane
(MPLS, ATM, .)
C
C
  • Complex Network control
  • Cannot follow traffic faster than time
  • of-flight changes (ms)
  • Needs large buffers
  • Latency and probability of loss issues

C
C
1
2
3
4
C
C
C
C
  • Complexity of control plane and intrinsic slow
    response
  • is a problem for this technique

10
Solution 4 Load-Balancing
  • Send C/N traffic to every node
  • Needs 2NC bandwidth
  • Packet routing Less Complex than in IP-router
    Network
  • Transport network static
  • will work for any traffic pattern

C
C
C
1
2
C
3
4
C
C
C
C
  • New Solution that eliminates packet switching,
  • no new control planes needed.

11
Load-Balancing Capacity Comparison
Uni-Directional Ring
Mesh Network
C
C
1
2
C
C/N
C
C/N
3
4
C
C/N
C
C
C
12
Conclusions Network Architectures
  • Load balancing
  • scales more favorably in transmission capacity
    than point-to-point (by factor 2/N)
  • scales more favorably in packet switching
    requirements than IP (by factor N)
  • scales more favorably in circuit switching
    capacity than point-to-point (by factor 2/N)
  • TDM network sufficient
  • Some other benefits
  • No global control plane, topologic maps, etc.
  • No node ever sees full information (high degree
    of data security)
  • Easy restoration possible (overhead packets,
    similar to FEC)
  • Some open questions
  • Latency (more time of flight propagation delay,
    but single-hop routing)
  • Required resequencing buffer sizes

13
The Next Step
  • Load-balancing takes THRU traffic from layer 2/3
    into layer 1 (SONET/SDH/MPLS) gt simplified
    switches, but still needs O-E-O for all THRU
    traffic
  • Can we take the THRU traffic from layer 1 into
    physical layer gt no O-E-O on THRU traffic?

14
The SONET/SDH Ring Scalability Problem
  • SONET ring
  • Good granularity (STS-1) but
  • O-E-O, data processing at each node
  • Amount of thru-traffic increases withnumber of
    nodes
  • ? limited scalability
  • WDM ring
  • Connect nodes with static wavelengths
  • Good scalability, but
  • Granularity too coarse
  • N-1 transponders at each node
  • ? Expensive solution

15
Time Multiplexed WDM (T-WDM) TDM Aggregation
Traffic De- aggregator
Traffic Aggregator
10 Gb/s
16
Time Multiplexed WDM (T-WDM) Coloring the Packets
Traffic Aggregator
Filter
10 Gb/s
  • T-WDM
  • Allows to connect in all-optical domain
    sub-wavelength granularity channels
  • Routes channels with simple, passive optical
    filters
  • Scalability of WDM
  • Granularity of SONET

17
Solution Time-Multiplexed WDM
  • T-WDM SONET ring
  • Drop single wavelengthat each node
  • Tunable transmitters provide WDM connections
    without intermediate O-E-Os
  • Time-multiplexed packet transmission (TDM)
    provides fine bandwidth granularity
  • Periodic global schedule provisions capacity
    between nodes and ensures 100 throughput and
    fixed low latencies

18
T- WDM Ring
19
Performance Comparison for N-Node Ring
  • T-WDM has Bandwidth Granularity of SONET
  • T-WDM has Scalability and Efficiency of WDM

20
Experimental Setup
  • OC-12 generator produces scrambled SONET frames
    with PRBS 231-1 payload
  • Unused 10 Gb/s time slots are filled with dummy
    packets
  • All Txs switch packets based on a global,
    periodic schedule
  • De-aggreators reassemble packets with SONET data
    back into OC-12 stream
  • BER measurements on OC-12 outputs
  • Span 1 21 dB, 400 ps/nm. Span 2 22 dB,
    -100 ps/nm

21
Fast Tunable Laser Module
3
2
SG -DBR Laser
Gain Source
Wavelocker
TEC Control
  • Tunes between 64 ITU channels in less than 45 ns
  • Wavelocker feedback improves frequency accuracy
    and prevents long-term drift

Without Locker
With Locker
22
Aggregator / De-Aggregator Hardware
10 Gb/sPackets out
10 Gb/sPackets in
10 Gb/s Mux(161) board
10 Gb/s Demux(116) board
AggregatorFPGA
DeaggregatorFPGA
15 x OC-12(622 Mb/s)Data out
15 x OC-12(622 Mb/s)Data in
23
Aggregator creates Optical Data Packets
  • Aggregator FPGA compresses622 Mb/s chunks by
    factor 16 in time and adds dead time and training
    pattern
  • 15 packets in 16 time slots? overhead 1/16 (lt
    7)? dead time training pattern equals
    1/16 of payload
  • Currently, the aggregator receives one OC-12
    stream and creates 14 dummy packets for every
    real data packet
  • Extension to multiple OC-12 channels to be
    programmedin the near future

1.4 ms
64 ns
25 ns
24
BER measurements
  • BER of OC-12 data versus optical power of 10 Gb/s
    packets
  • small penalty (lt 0.5 dB) between back-to-back and
    node-to-node transmission
  • T-WDM can tolerate 24 dB span loss and 400
    ps/nm and -100 ps/nm dispersion

25
Scheduling Similarity of T-WDM and PON
Time-multiplexed WDM
Tx
Tx
Tx
Tx
Tx
Tx
Tx
Tx
Tx
Rx
Upstream Passive Optical network
Tx
Tx
Tx
Nx1 Passive Combiner
Tx
Tx
Rx
Tx
Tx
26
Summary T-WDM
  • T-WDM has bandwidth granularity of SONET
  • Grooming in optical domain
  • Aggregation/deaggregation similar to ATM
  • Single 10Gtransmitter shared over multiple
    end-nodes
  • T-WDM has scalability and cost-efficiency of WDM
  • Multiple wavelengths simultaneously in fiber
  • Optical Add/drop
  • Periodic scheduling assures 100 efficiency and
    SONET like QoS
  • Key technologies
  • Fast tunable transmitters
  • Burst-mode receivers
  • Aggregator/Deaggregator
  • Global scheduler

27
Benefits of Load-Balancing in Packet Routers
  • Removes Central Scheduler
  • Only local decisions per port-card
  • Much better scalability for scheduling
  • Guarantees close to 100 throughput
  • Replaces Switch Fabric by Hard-Wired Bandwidth
  • Allows to reuse STS1 fabric of a SONET xconnect
  • Fabric does not need to be strictly non-blocking
  • Fabric complexity of O(N) instead of O(N2)
  • 1N protection scheme
  • Graceful upgrade

28
Request by US Defense Agency A Scalable Optical
Router
  • Optical Router Architecture Scalable to gt100Tb/s
  • Believe is that current router architecture will
    not scale to more than a few Tb/s throughput
  • Main Bottleneck is electronics
  • No Electronics in Data-Path
  • Complicated functions like regeneration,
    buffering, header recognition must be implemented
    in optics
  • Innovative All-optical Signal Processing and
    Buffering Techniques
  • Currently known techniques do not allow for above
    processing functions
  • Push Density of Monolithic Integration
  • DARPA believes that optical technologies must
    follow path of electronics to achieve high levels
    of functionality

29
Bell Labs won 12.5M Research Contract with IRIS
Proposal
  • Optical Three Stage Load-Balanced Architecture
  • Solves Scheduling problem
  • Optimally Designed to Take Advantage of Simple
    Buffers
  • High Scalability Because Does Not Require
    Strictly Non-Blocking Stages
  • Photonic Integrated Circuit (PIC) with more than
    100 Semiconductor Optical Amplifier
  • Regenerative Multi-Wavelength Switch
  • Optical Time Buffer
  • Multi-Wavelength Optical Header Look-Up
  • Total Throughput Scales To 256 Tb/s, 6400 Ports
    at 40Gb/s
  • Exploit Space and Wavelength Dimension
  • Wavelength Routing in a 80x80 AWG on 80
    Wavelength Channels
  • Wavelength Switching Below 1 ns

30
Wavelength Switching
Buffer
From Input Port
Output
T-Tx
40G Rx
retiming
T-Tx
40G Rx
Sche- duler
T-Tx
40G Rx
T-Tx
40G Rx
Clock
31
N2 Scalability of the AWG
wavelength
insensitive
Combiners
10
Arrayed
Waveguide
Output Ports
Input Ports
Grating
32
Conclusions
  • Scalability of current networks architecture for
    data traffic is an issue
  • SONET/SDH inefficient because not statistical
    muxing
  • Packet switched networks very complex
  • WDM networks have too coarse bandwidth
    granularity
  • Load-balancing allows for more scalability
  • Static SONET/SDH network can now be used for
    statistical muxing across network.
  • Removes scheduling bottleneck from packet
    switching
  • Allows for optical switching technology
  • T-WDM for scaling SONET/SDH
  • Maintains bandwidth granularity of SONET/SDH
  • Scalability of WDM
Write a Comment
User Comments (0)
About PowerShow.com
