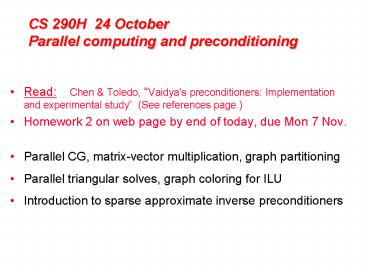

CS 290H 24 October Parallel computing and preconditioning

1
CS 290H 24 OctoberParallel computing and
preconditioning

• Read Chen Toledo, Vaidya's
  preconditioners Implementation and experimental
  study (See references page.)
• Homework 2 on web page by end of today, due Mon 7
  Nov.
• Parallel CG, matrix-vector multiplication, graph
  partitioning
• Parallel triangular solves, graph coloring for
  ILU
• Introduction to sparse approximate inverse
  preconditioners

2
Preconditioned conjugate gradient iteration
x0 0, r0 b, d0 B-1 r0, y0
B-1 r0 for k 1, 2, 3, . . . ak
(yTk-1rk-1) / (dTk-1Adk-1) step length xk
xk-1 ak dk-1 approx
solution rk rk-1 ak Adk-1
residual yk B-1 rk
preconditioning
solve ßk (yTk rk) / (yTk-1rk-1)
improvement dk yk ßk dk-1
search direction

• Several vector inner products per iteration (easy
  to parallelize)
• One matrix-vector multiplication per iteration
  (medium to parallelize)
• One solve with preconditioner per iteration (hard
  to parallelize)

3
Matrix-vector product Parallel implementation

• Lay out matrix and vectors by rows
• Hard part is matrix-vector product
  y Ax
• Algorithm
• Each processor j
• Broadcast x(j)
• Compute y(j) A(j,)x
• May send more of x than needed
• Partition / reorder matrix to reduce communication

4
Graph partitioning in theory

• If G is a planar graph with n vertices, there
  exists a set of at most sqrt(6n) vertices whose
  removal leaves no connected component with more
  than 2n/3 vertices. (Planar graphs have
  sqrt(n)-separators.)
• Well-shaped finite element meshes in 3
  dimensions have n2/3 - separators.
• Also some other classes of graphs trees, graphs
  of bounded genus, chordal graphs,
  bounded-excluded-minor graphs,
• Mostly these theorems come with efficient
  algorithms, but they arent used much.

5
Graph partitioning in practice

• Graph partitioning heuristics have been an active
  research area for many years, often motivated by
  partitioning for parallel computation. See CS
  240A.
• Some techniques
• Spectral partitioning (uses eigenvectors of
  Laplacian matrix of graph)
• Geometric partitioning (for meshes with specified
  vertex coordinates)
• Iterative-swapping (Kernighan-Lin,
  Fiduccia-Matheysses)
• Breadth-first search (GLN 7.3.3, fast but dated)
• Many popular modern codes (e.g. Metis, Chaco) use
  multilevel iterative swapping
• Matlab graph partitioning toolbox see course web
  page

6
Parallel Incomplete Cholesky and ILU Issues

• Computing the preconditioner
• Parallel direct methods well developed
• But IC/ILU is sparser gt harder to speed up
• Still, you only have to do it once
• Applying the preconditioner
• Triangular solves are not very parallel
• Reordering by graph coloring (see example)
• But the orderings are not great for convergence

7
Sparse approximate inverses

• Compute B-1 ? A explicitly
• Minimize A B-1 I F (in parallel, by
  columns)
• Variants factored form of B-1, more fill, . .
• Good very parallel, seldom breaks down
• Bad effectiveness varies widely
