Title: Goal: To understand light


1

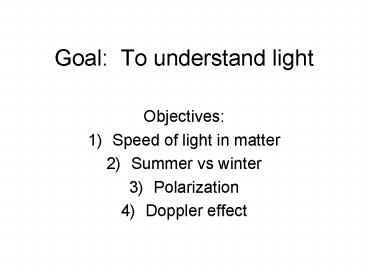

Goal To understand light
  • Objectives
  • Speed of light in matter
  • Summer vs winter
  • Polarization
  • Doppler effect

2
Speed of light in matter
  • In matter light is slowed.
  • The fraction it is slowed is called the index of
    refraction (n)
  • n c / v where v is the velocity of light in
    that material and c is the speed of light in a
    vacuum.
  • And good to know that v ?f
  • Quick sample If the speed of light in a fluid
    is half the speed of light in a vacuum then what
    is the index of refraction for that material?

3
Why are summers hotter than winters?
4
Why are summers hotter than winters?
  • http//www.astro.uiuc.edu/projects/data/Seasons/se
    asons.html

5
Polarization
  • A light photon is a 2 dimensional wave (i.e. a
    wave in a 2 dimensional plane) with some velocity
    in some direction.
  • Usually each photon will come in at some random
    plane.
  • This is unpolarized light.
  • However, if the light is emitted preferentially
    in some plane, or is forced into it, then it will
    become polarized.

6
Linear polarization
  • One way to polarize light is linearly.
  • This means that some percentage of light comes in
    at some specific plane.
  • The is the polarization.

7
Circular polarization
  • If the plane rotates with time in some way it is
    circularly polarized.
  • However we will not deal with this type of
    polarization.

8
Polarizers
  • There are filters called polarizers.
  • These devices absorb all the parts of light not
    polarized in a specific plane.
  • The parts in the plane get through (sort of like
    a door for people not paying attention to it).

9
Light through a polarizer
  • The polarizer has a set angle it wants light to
    go through.
  • If you shine unpolarized light through it then on
    average half will line up with it and half will
    not.
  • So, half the light will get through.
  • I ½ I0
  • Furthermore the transmitted light will be
    linearly polarized in the direction of the
    polarizer.

10
Polarized light through polarizer
  • If polarized light goes through a polarizer then
    only the parts of the polarized light going in
    the direction of the polarizer get though.
  • So, I I0 cos2(?)
  • Where is the angle between the directions of the
    polarized light and the polarizer.
  • This is called Maluss law

11
Sample
  • Unpolarized light of intensity 5 W/m2 passes
    through a polarizer oriented up and down. The
    light going through the polarizer is then allowed
    to pass through a 2nd polarizer which is tilted
    at a 45 degree angle from up and down.
  • What is the intensity of light entering and
    leaving the 2nd polarizer?

12
Sample
  • Unpolarized light of intensity 5 W/m2 passes
    through a polarizer oriented up and down. The
    light going through the polarizer is then allowed
    to pass through a 2nd polarizer which is tilted
    at a 45 degree angle from up and down.
  • What is the intensity of light entering and
    leaving the 2nd polarizer?
  • For unpolarized I ½ I0 2.5 W/m2
  • and is polarized up and down
  • This enters the 2nd polarizer
  • I I0 cos2(?) 2.5 W/m2 cos2(45 degrees)
  • I 1.25 W/m2

13
Try a harder one
  • Unpolarized light with intensity of 12 W/m2
    enters a polarizer which is oriented up and down.
  • This light is split in 2.
  • Half goes into a 2nd polarizer which is oriented
    60 degrees from up and down.
  • This light is then sent to a 3rd polarizer which
    is oriented 90 degrees from up and down (sideways
    basically).
  • The other half of the light skips the 2nd
    polarizer and goes straight to the 3rd.
  • What is the intensity of light going into and out
    of the 3rd polarizer?

14
Try a harder one
  • Unpolarized light with intensity of 12 W/m2
    enters a polarizer which is oriented up and down.
  • I ½ I0
  • 6 W/m2 comes out of the 1st polarizer.
  • This light is split in 2.
  • Half goes into a 2nd polarizer which is oriented
    60 degrees from up and down.
  • I I0 cos2(?) 3 W/m2 cos2(60 degrees) 0.75
    W/m2

15
Try a harder one
  • This light is then sent to a 3rd polarizer which
    is oriented 90 degrees from up and down (sideways
    basically).
  • I I0 cos2(?) but here the angle is from 60
    degrees (the direction of the polarized light)
    and 90, which is 30 degrees.
  • So, I 0.75 W/m2 cos2(30 degrees) 0.56 W/m2
  • The other half of the light skips the 2nd
    polarizer and goes straight to the 3rd.
  • Here we go from 0 to 90, so the angle is 90.
  • Since cos (90 degrees) 0, then I 0

16
Add up
  • Going into the 3rd is 3.75 W/m2 (3 from the
    shortened path 0.75 from the longer one)
  • However, only 0.56 W/m2 comes out because the 3
    from the long path is ALL absorbed!

17
Doppler Effect
  • You have seen this hopefully in P218 (but with
    sound)
  • Light does the same thing.
  • If something is moving then the wavelength of the
    light emitted will change.
  • If it is moving towards you, wavelength will
    decrease and frequency will go up.
  • If it is moving away from you, wavelength will
    increase and frequency will go down.

18
Equations
  • fobserved fsource (1 v/c)
  • Where v is the relative velocity between observer
    and source.
  • Simple as that.
  • You try a harder one
  • A cop car moves at 40 m/s to catch up to a car
    going 10 m/s.
  • The cop car emits a 10 GHz beam at the car.
  • What is the shift in the frequency that the cop
    car gets back?
  • Hint, you will have to find what the frequency
    the chased car sees because that will be the
    reflected frequency.

19
Equations
  • fobserved fsource (1 v/c)
  • A cop car moves at 40 m/s to catch up to a car
    going 10 m/s.
  • The cop car emits a 10 GHz beam at the car.
  • Frequency car sees (since the cop car is
    approaching it)
  • fo fs (1 v/c) 10 GHz (1 30 / 3108)
  • This is reflected and comes back
  • Since the cop car sees the car coming towards it
    also
  • fo fs (1 v/c)
  • 10 GHz (1 30 / 3108) (1 30 / 3108)
  • 10 GHz 10 GHz 60 / 3108
  • So, the change is 10 GHz 60 / 3108 2000 Hz

20
Conclusion
  • We have learned about the index of refraction
    when materials slow down light
  • We learned why it is soooo cold in the winter.
  • We learned about polarization and how to
    calculate fluxes through polarizers.
  • We learned how to calculate the Doppler effect
    for light.
