Web programming

1

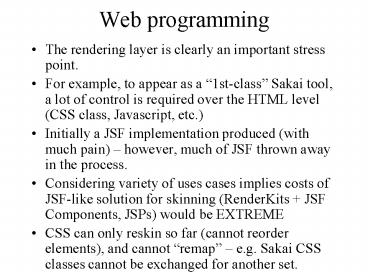

Web programming

• The rendering layer is clearly an important
  stress point.
• For example, to appear as a 1st-class Sakai
  tool, a lot of control is required over the HTML
  level (CSS class, Javascript, etc.)
• Initially a JSF implementation produced (with
  much pain) however, much of JSF thrown away in
  the process.
• Considering variety of uses cases implies costs
  of JSF-like solution for skinning (RenderKits
  JSF Components, JSPs) would be EXTREME
• CSS can only reskin so far (cannot reorder
  elements), and cannot remap e.g. Sakai CSS
  classes cannot be exchanged for another set.

2
What has JSF got right?

• One of the first web systems with a clean bean
  model (no external dependencies)
• With JSF-Spring integration, can be extended from
  request to application scope.
• Abstract component tree helps to separate logic
  from content.
• Clear 7-stage pipeline for handling of request
  logic.
• (Relatively) minimal internal interfaces allow
  replacement of key functionality (ViewHandler,
  StateHandler)

3
What is so terrible about JSF? (part 1)

• Default model is reliant on JSPs, the heart of
  evil. However, this can be replaced (see Hans
  Bergstens ClassViewHandler, basis of first
  FlowTalk system.
• Jackboot event processing pipeline leads to
  events happening at awkward times, with little
  control. Many extremely obscure timing problems.
• It is too complex and heavyweight. UIComponent
  is 750 lines, UIComponentBase is 2200, and you
  probably need to know them well to develop
  effectively. Many extraneous dependencies.

4
What is so terrible about JSF? (part 2)

• Very poor, restrictive HTTP semantics - no
  GET/POST redirect, browser back button or
  browser forking are impossible. Too much session
  reliance.
• Reskinning is VERY HARD. Creating a new JSF
  component is a lot of work, and difficult to
  preview ones results.
• JSF component tree is rather inefficient and
  unnecessary. Perennial problem of where to keep
  it, either on client or server, both involving
  various penalties.

5
What is so terrible about JSF? (part 3)

• Default JSF rendering REQUIRES Javascript to
  operate. Already a philosophical problem, BUT
• As a result, JSF is VERY designer-unfriendly. Web
  designers like to move around HTML in, e.g.
  Dreamweaver, and apply Javascript and test it at
  will. JSF/JSP destroys this model.
• NB web designers are experts in their field,
  and in general also cost less per
  man-hour/results than programmers! Their design
  model should be respected.

6
What is the GREAT BEAST of Web Programming?
7
The GREAT BEAST
is LOGIC in the PRESENTATION LAYER

• Fosters an amorphous, intractable design on a
  project no clear point of control, and
  multi-way, circular dependencies
• Confuses designers who have the power to cause
  devastating effects, and have to tread extremely
  carefully through reams of incomprehensible
  tags/code
• Is GENERALLY BAD.

8
Web Technologies compared part 1

• On these grounds, JSP is the ultimate evil,
  allowing entirely arbitrary Java code to appear
  at the presentation level.
• JSPs appear(ed) attractive owing to near-magic
  performance once compiled, pile out output at
  close to the maximum possible rate.
• However, JSP and still worse JSF/JSP applications
  are intractable, not least because the
  presentation files are not anything neither
  XML or even HTML of any kind, nor are they Java.
• Special tools required, that somehow magically
  manage to be optimised for both designers and
  coders.
• It aint gonna happen!

9
Web Technologies compared part 2

• There are more web technologies in the world than
  almost anything else. (Why do you think?)
• Almost all try to improve matters in some
  respects by introducing some from of MVC
  separation. Survey a few
• Struts/Tiles Claims view-neutral, but really a
  JSP shop (loads of taglibs). Also intrudes on
  controller layer with Actions.
• Spring MVC Actually IS view-neutral, but doesnt
  actually do a lot! Takes care of dispatch, some
  navigation and decoding but has no ideas about
  view

10
Web Technologies compared part 3 (Tapestry)

• Tapestry interesting in that view layer IS
  valid HTML. However still contains logic!!
• Full OGNL allowable, library of 12 parameter
  binding prefixes including HiveMind.
• However, main problem is at the other end
  highly intrusive at the Java level with mandatory
  interfaces and base classes everything is an
  IComponent
• Spring/beans integration not planned until
  Tapestry 5.0 (if ever)

11
Web Technologies compared part 4 (Velocity)

• Velocity is admirably simple and fast however
  actually TOO simple to serve as the entire UI of
  a webapp!
• Understands nothing about document and tag
  structure, nor about HTTP submission model.
• And despite being so simple STILL depends on
  logic embedded in the template macro directives
  if, looping with for.
• One of the few safe technologies, but continues
  to fall into the error of trying to be a
  one-stop-shop for specifying render behaviour.

12
The Holy Grail

• Technology based on pure HTML view templates, for
  complete pages that can be rapidly shoved around
  by designers or even end clients.
• Pure backing beans model, easy to integrate with
  other bean-friendly technologies (Hibernate data
  model, Spring webapp IDEs)
• Extremely rapid rendering, simple execution
  model.
• Easy to write new components.

13
RSF/IKAT

• RSF is a programming model with roughly the same
  scope as JSF (in fact derived from all the bits
  of it that were hacked off)
• Content rendering model is codenamed IKAT
  largely functionally independent (in particular
  can be used to render pages without any active
  web context)
• Incorporates Request Scope Application Context
  (RSAC) which bridges Spring to provide equivalent
  of JSFs request-scope beans

14
IKAT

• A kind of Javanese weaving. Most of the catchy
  Java-name gimmicks were taken years ago!

15
IKAT

• IKAT is extremely fast.
• Parse 10k template file in 5ms (almost no need to
  cache structures)
• Render 10k document in 2.5ms (cost dominated
  largely by writing bytes avoiding use of
  Java.io.Writer saved 25).
• Like Tapestry, the template looks EXACTLY like a
  rendered page, but system is much simpler.
• Only addition to DOM is ONE special attribute
  rsfid. Can easily ensure validating X(HT)ML for
  designer by inline internal subset.

16
IKAT rendering

• During render time, IKAT template file is paired
  up with a component tree, matching template
  rsfid attribute to component ID.
• Unlike JSF, component tree exists only
  momentarily, between construction by producer
  (main app) logic and rendering THROWN AWAY
  between request cycles.
• RSF UIComponent 50 lines of code. 4 fields and
  one method.
• IKAT remains logic-free, while alternating
  (weaving) between template-driven order and
  component-driven order to render desired view.

17
RSF Component Hierarchy
Looks a little familiar. ?
18
rsfid

• The only template attribute added to the target
  render (XML) language.
• Only three interpretations
• simple string denotes a (leaf) component peer,
  e.g. UIOutput
• string containing colon denotes a container peer
  (UIContainer), which is a function call/branch
  point
• string containing equals sign denotes target of
  static rewrite rule (e.g. URL rewrite or other
  runtime binding)

19
How could this possibly work?

• The interesting step involves how the template
  file gets structurally rewritten, while remaining
  a pure X(HT)ML file free of logic.
• The colon type tag specifies a branch point
  within the template.
• Normal template processing involves scanning
  through template in order, pairing up each rsfid
  with a leaf UIComponent with a matching ID in the
  current scope. V.fast.
• On hitting a branch point with a colon ID,
  renderer performs a function call within the
  template, which may resolve to ANY instance of an
  rsfid attribute with matching prefix before
  colon.

20
IKAT function call resolution

• The resolution of the function call is performed
  using an argument matching procedure, which
  compares
• i) the upcoming rsfid attributes on children of
  the prospective function call target in the
  template, and
• ii) the ID values on UIComponent children in the
  component tree, representing producer demand on
  template
• Resolution is performed first in current
  container scope, then at global scope across
  template file (ultimately across multiple
  template files for true modular rendering
  architecture with reusable components)
• Highest penalty is for missing components in
  template, second-level penalty for extra
  components
• After function call, normal scanning resumes at
  the target template tag, returning once an XML
  tag is encountered with lower nesting level.
• Function call is also fast, and lookup decisions
  are candidates for caching.

21
IKAT consequences

• Making large scale alterations in UI skinning
  (not just reordering/reorganising components, but
  completely suppressing/restoring them is just a
  matter of editing HTML files.
• E.g. Sakai skin (will, once a competent HTML
  designer looks at it!) provide a first-class
  Sakai look-and-feel with correct CSS styles/JS
  c, while at the same time the same codebase can
  serve entirely different UI requirements.
• All this while ensuring that pages are rendered
  ONLY ONCE no rewrites required at consumer end,
  can begin copying bytes to client the moment
  request resolves.
• Designers can experiment with complex Javascript
  (AJAX) interfaces in situ.

22
MAKE YOUR WEBAPPS
A LOGIC-FREE ZONE
23
RSF architecture

• Larger-scale RSF architecture provides mapping
  between component contents and Actions
• Very similar to JSF components have value
  bindings and method bindings which are expressed
  in EL with the same syntax beanname.methodname

• TargettedMessage system provides reliable
  delivery of validation/error messages across
  POST/GET redirect cycle (vide FacesMessage)
• Unique tokens (GUIDs) allocated to each request,
  allowing robust and correct behaviour in the face
  of i) multiple submissions, ii) back button, iii)
  browser forking

24
RSF Request Cycle
X(HT)ML View Template
Template lookup
View token
ViewParameters
IKAT
GET
Rendered X(HT)ML View
Component Tree (Logic or XML/XSLT)
25
How to write an RSF component

• In general you dont need to!
• Most cases can be taken care of by just writing
  some HTML.
• If you really need to, extremely simple.
• Component class itself just holds dumb data (5
  lines)
• Renderer simply chucks Strings from template to
  output stream (10 lines)
• Since RSF is entirely Spring-based, much less
  bureaucracy in registering component (RenderKit?
  c)
• Unlike JSF components, RSF component is only
  concerned with data binding function, not with
  rendering.

26
UIOutputMultiline

• public class UIOutputMultiline extends UIBound
• public StringList value
• public UIOutputMultiline(UIContainer parent,
  String ID, String binding, StringList value)
• this.ID ID
• this.valuebinding binding
• this.value value
• parent.addComponent(this)

27
UIOutputMultilineRenderer

• StringList value ((UIOutputMultiline)
  torendero).value
• if (value null)
• RenderUtil.dumpTillLump(lumps, lumpindex 1,

• close.lumpindex 1,
  pos)
• else
• RenderUtil.dumpTillLump(lumps, lumpindex 1,

• endopen.lumpindex 1,
  pos)
• for (int i 0 i lt value.size() i)
• if (i ! 0)
• pos.print("ltbr/gt")
• xmlw.write(value.stringAt(i))
• pos.print(close.text)

28
RSAC Request Scope Application Context

• All of RSF and its bean model is defined in pure
  Spring no awkward static configuration and
  files to manage.
• Request-scope beans have become more powerful
  than JSF beans, since they may contain other
  request-scope bean dependencies.
• This has a rather interesting architectural
  effect, which is not yet fully understood, but
  seems extremely powerful.
• Same offloading of dependency management that
  Spring brought to webapps happens in miniature
  during a request, removing much uninteresting
  logic and enabling static checking of application
  structure by Eclipse IDE.

29
Use of RSAC within RSF

• Since much of RSFs logic itself is implemented
  using RSAC, there have been startling increases
  in cleanliness.
• The ideal final evolution of a Servlet ??

public class ReasonableServlet extends
HttpServlet private WebApplicationContext
wac public void init(ServletConfig config)
ServletContext sc config.getServletContext()
wac WebApplicationContextUtils.getWebApplic
ationContext(sc) protected void
service(HttpServletRequest request,
HttpServletResponse response)
wac.getBean(request.getMethod().equals(GET
)? gethandler
posthandler)
30
Summer Lightning

• RSFs RSAC was initially implemented very simply
  using a Spring GenericApplicationContext, but
  performance was found to be too dreadful to be
  conceivable for a web request cycle (sometimes
  over 1s for a getBean()
• Since then, core Spring functionality has been
  reimplemented in a fast and lean clone
  (retaining Spring code for reading config files)
• Available in RSAC
• Autowire dependencies back to RSAC
• FactoryBeans
• List and Set properties
• BeanPostProcessors

31
Reflections on Java performance

• Benchmarking of Java primitive operations has led
  to interesting conclusions/recommendations

32
Results (107 its, P4-1.6Ghz)
33
Performance Commentary

• JDK 1.5 is considerably faster than 1.4 across
  the board (20), ESPECIALLY for object
  construction.
• Reflection performance is AWFUL for all JDKs,
  running to be nearly 100x slower than direct
  equivalent.
• Synchronized blocks (even uncontended) are really
  pretty bad, no matter what they tell you.
• Since synchronized has NOT improved in 1.5, sync
  block has gone from equivalent of 2 object
  constructions to 8.
• Object.clone is the real shocker. Consistently
  about 1.6x the cost of a reflective operation.

34
FastClass

• Part of the CGLib bytecode engineering library on
  sourceforge
• (CGLib is used by Hibernate, AOP among other
  high-profile libraries)
• Provides direct equivalents for
  java.reflect.Method, java.reflect.Constructor c
• FastClass.invokeMethod() tested at 35ns on JDK
  1.4.2
• I.e. down from 100x performance penalty to 45x.
  FastClass is indeed VERY FAST.
• Spring introspection uses javax.beans and so very
  hard to accelerate. RSAC can be easily altered
  however.
