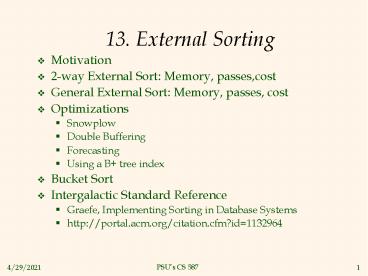

13. External Sorting

1
13. External Sorting

• Motivation
• 2-way External Sort Memory, passes,cost
• General External Sort Memory, passes, cost
• Optimizations
• Snowplow
• Double Buffering
• Forecasting
• Using a B tree index
• Bucket Sort
• Intergalactic Standard Reference
• Graefe, Implementing Sorting in Database Systems
• http//portal.acm.org/citation.cfm?id1132964

2
Learning Objectives

• Derive formula for cost of external merge sort
• Derive amount of memory needed to sort a file in
  2 passes, using merge or bucket sort
• Describe algorithm for generating longer initial
  runs and identify its best and worst cases
• Describe forecasting and why it is useful
• Identify when indexes should be used for sorting
• Identify the pros and cons of external bucket vs
  merge sort.

3
Why sort?

• A classic problem in computer science!
• Exercises many software and hardware features
• Data is often requested in sorted order
• e.g., find students in increasing gpa order
• Sorting is first step in bulk loading B tree
  index.
• Sorting useful for some query processing
  algoritms (Chapter 14)
• Problem sort 1Gb of data with 1Mb of RAM.
• why not virtual memory?

4
Sort algorithms?

• If the data can fit in memory, which sort
  algorithm is best?
• But most DBMS files will not fit in available
  memory
• If the data is larger than memory, try the same
  alg.
• Suppose
• for this data, your sort alg. requires 220 random
  memory accesses
• Memory access takes 1 microsec, disk takes 10
  millisecs.
• How much time is required to do your sort
  algorithms memory accesses?
• If there is enough memory to hold the data?
• If the data is four times the size of memory?

5
External Sorts

• Definition When data is larger than memory.
• An aside What is Memory?
• Physical memory? The DBMS is not the only player
• We concluded that most in-memory sort algs wont
  be effective for external sorting.
• What sort algorithms are best for external sort?
• Sort-based
• Hash-based

6
2-Way External Merge Sort Memory?
13. Sorting

• Pass 0 Read a page, sort it, write it.
• How many buffer pages needed?
• Pass 1, 2, 3, , etc.
• How many buffer pages needed?

INPUT 1
OUTPUT
INPUT 2
Main memory buffers
Result of Pass k1
Result of Pass k
7
2-Way External Merge Sort Passes?

• Assume file is N pages
• Run sorted subfile
• What happens in pass Zero?
• How many runs are produced?
• What is the cost in I/Os?
• What happens in pass 1?
• What happens in pass i?
• How many passes are required?
• What is the total cost?

8
Two-Way External Merge Sort Cost
13. Sorting
Input file
6,2
2
3,4
9,4
8,7
5,6
3,1

• Each pass we read write each page in file.
• N pages in the file gt the number of passes
• So total cost is
• Idea Divide and conquer sort subfiles and merge

PASS 0
1-page runs
1,3
2
3,4
5,6
2,6
4,9
7,8
PASS 1
4,7
1,3
2,3
2-page runs
8,9
5,6
2
4,6
PASS 2
2,3
4,4
1,2
4-page runs
6,7
3,5
6
8,9
I/Os
PASS 3
1,2
2,3
3,4
8-page runs
4,5
6,6
7,8
9
9
General External Merge Sort
13. Sorting

• Suppose we have more than 3 buffer pages.

• To sort a file with N pages using B buffer pages
• Pass 0 use B buffer pages. How many sorted runs
  of B pages each are produced? Cost?
• Pass 1,2, , etc. merge B-1 runs.
• How many runs are created after pass i?
  Cost of pass i?
• How many passes? Total Cost?

10
Cost of External Merge Sort
13. Sorting

• Number of passes
• Cost 2N ( of passes)
• E.g., with 5 buffer pages, to sort 108 page file
• Number of passes is (1 ? log4 ? 108/5 ? ?) 4
• Cost is 2(108)4
• Pass 0 Output is 22 sorted
  runs of 5 pages each (last run is only 3 pages)
• Pass 1 6 sorted runs of 20
  pages each (last run is only 8 pages)
• Pass 2 2 sorted runs, 80 pages and 28 pages
• Pass 3 Sorted file of 108 pages

11
How much memory is needed to sort a file in one
or two passes?

• N number of data pages, B memory pages
  available
• To sort in One pass N ? B
• To Sort in Two passes 1logB-1?N/B? ? 2
• N/B ? (B-1)1
• Approximating B-1 by B, this yields
• ?N ? B
• For example, if pages are 4KBytes, a 4GByte file
  can be sorted in Two Passes with ? buffers.

12
Sorting in 2 passes graphical proof

• File is B pages wide
• Each run is B pages
• File is x pages high
• Merge x runs in pass 1
• x?B since we must merge x runs in B pages of
  memory
• So NxB ?BB or ? N?B

Each run, 1xB pages
The File, N pages
x
B
13
Memory required for 2-pass sort
Assuming page size of 4K
N Pages in File File size in Bytes B Buffer Pages Bytes to sort in Two passes
210 4Meg 25 128K
220 4 Gig 210 4 Meg
226 256 Gig 213 32 Meg
14
Can we always sort in 1 or 2 passes?

• Assume only one query is active, and there is at
  least 1 gig of physical RAM.
• Yes DB2,Oracle, SQLServer, MySQL
• They allocate all available memory to queries
• Tricky to manage memory allocation as queries
  need more memory during execution
• No Postgres
• Memory allocated to each query, for sort and
  other purposes, is fixed by a config parameter.
• Sort memory is typically a few meg, in case there
  may be many queries executing.

15
Extremes of Sorting
One Pass N B, 1-pass sort, cost N
N
B
N
Original Data
Sorted Data
Quick-sort
Two Pass N B2, 2-pass sort, cost 3N
B
B
N
B
12..B
B
Sorted Data
Original Data
B
Runs
Merge
Quicksort into B runs, length B
16
Extreme Problems

• Most sorting of large data falls between these
  two extremes
• If we apply the intergalactic standard sort-merge
  algorithm, in every textbook, the cost for any
  dataset with BltNltB2 will be 3M.
• Must we always pay that large price?
• Might there be an algorithm that is a hybrid of
  the two extremes?

17
Hybrid Sort when N ? 3B

• The key idea of hybrid sort is dont waste
  memory.
• Here is an example of the hybrid sort algorithm
  when N is approximately 3B.

One Pass M ? 3B, 2-pass sort, cost 3M 2B
B
B
N
Sorted Data
B
B
Original Data
Runs
Merge the runs on disk with the run in memory
Quicksort into runs, length B, leaving the last
run in memory
18
Hybrid Sort in general

• Let k N/B
• Arrange R so the last run is B-k pages
• Cost is N 2(N (B-k)) 3N -2B 2(N/B) 3N
  2( B-N/B)
• When NB, cost is N1. When NB2, cost is 3N

19
13.3.1 Maximizing initial runs

• Defn making initial runs as long as possible.
• Why is it helpful to maximize initial runs?
• If initial run size is doubled, what is the time
  savings?
• How can you maximize initial runs?
• What algorithm is best?

20
Replacement Selection
13. Sorting

• Initialize empty priority queues CUR, NEXT
• Read B buffer pages of data into CUR
• Do
• Pop record s with smallest key from CUR to
  current run
• // key of s is now highest key in current run
• If key of next input r gt key of s
• //Can put in current run
• insert r into CUR
• else
• insert r into NEXT
• If CUR is empty
• interchange NEXT and CUR and start a new run
• Until (input is empty)

21
More on Replacement Selection
13. Sorting

• Cf. Knuth, vol 3 442, page 255.
• Theorem average length of a run in replacement
  sort is 2B
• Worst-Case
• What is min length of a run?
• How does this arise?
• Best-Case
• What is max length of a run?
• How does this arise?
• Quicksort is faster, but ...

22
How can we prove the Theorem?
13. Sorting

• Begin with some modeling assumptions
• Data to be sorted are real numbers between 0 and
  1
• Data appear at a uniform rate and distribution
• A snowplow picks up one datum as one falls
• Picking up a datum pop( ) off the queue
• Each datum is infinitesimal
• Each run begins when the plow passes zero

23
13. Sorting
CUR NEXT
B
0
1
2B
2B
24
Snowplow Conclusion

• The figures on the previous page show that
• At any time after run 0, the amount of snow
  size of memory B.
• After the first run, the volume of snow removed
  in one circuit is 2B.
• Cf. Larson and Graefe 471
• In spite of memory management problems, the
  snowplow optimization is very effective.

25
13.4 I/O for External Merge Sort
13. Sorting

• What else can we do to improve performance?
• We have assumed I/O is done a page at a time
• Text suggests reading a block of pages
  sequentially.
• Pass 0 No problem
• Pass 1,2, lowers fanin
• Sometimes a win

26
External Sorts jerky behavior

• Recall that each input is one page
• What happens after the last record on a page is
  output?

27
Double Buffering
13. Sorting

• To reduce wait time for I/O request to complete,
  can prefetch into shadow block.
• This could increase the number of passes
• In practice, most files still sorted in 1-2
  passes.

INPUT 1
INPUT 1'
INPUT 2
OUTPUT
INPUT 2'
OUTPUT'
b
block size
Disk
INPUT k
Disk
INPUT k'
B main memory buffers, k-way merge
28
Forecasting
A B C

• Cf. Knuth, vol 3, pg 324-7
• Double Buffering requires Doubling memory
• What a huge waste!
• Most shadow buffers lie idle, unused, wasted.
• How can we forecast which shadow buffers will be
  needed first?
• Forecasting can achieve performance of double
  buffering with little memory

3 5 14 34
1 33 45 55
4 6 7 9
88 91 93 99
50 65 74 83
56 57 58 59
29
Sorting Records!
13. Sorting

• Sorting has become a blood sport!
• Parallel sorting is the name of the game ...
• www.research.microsoft.com/barc/SortBenchmark

30
Using B Trees for Sorting
13. Sorting

• Scenario Table to be sorted has B tree index on
  sorting column(s).
• Idea Can retrieve records in order by traversing
  leaf pages.
• Is this a good idea?
• Cases to consider
• B tree is clustered Good idea!
• B tree is not clustered Could be a very bad idea!

31
Clustered B Tree Used for Sorting

• Cost root to the left-most leaf, then retrieve
  all leaf pages (Alternative 1)
• If Alternative 2 is used? Additional cost of
  retrieving data records each page fetched just
  once.

Index
(Directs search)
Data Entries
("Sequence set")
Data Records

• Always better than external sorting!

32
Unclustered B Tree Used for Sorting

• Alternative (2) for data entries each data entry
  contains rid of a data record. In general, one
  I/O per data record!

Index
(Directs search)
Data Entries
("Sequence set")
Data Records
33
Bucket Sort

• Suppose search key values are 0-K
• B pages in memory, N pages in the file
• Pass 0 Partition the file into B-1 intervals
• Inervals are not runs!
• If the interval fits in one page, sort it

0,K/(B-1))
. . .
K/(B-1),2K/(B-1))
OUTPUT 2
INPUT
. . .
OUTPUT B-1
(B-2)K/(B-1),K)
B Main memory buffers
Disk
34
Bucket sort cost

• What happens after pass 0
• ? intervals, each ? long
• After pass 1?
• ? intervals, each ? long
• How much memory is required to sort in two
  passes?
• Each interval is at most one page, or ?
• Same as for external merge sort

35
External Merge Sort vs External Bucket Sort

• Approximately the same I/O cost
• Same memory requirement for two passes
• Same number of passes required to sort
• Bucket sort has less CPU cost
• Bucketizing is much cheaper than sorting/merging
• But bucket sort is subject to skew
• Thus merge sort is used in practice
