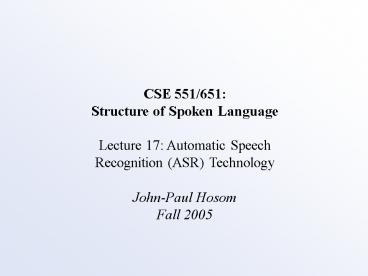

CSE 551/651 Structure of Spoken
Language Lecture 17 Automatic Speech
Recognition (ASR) Technology John-Paul
Hosom Fall 2005
2
ASR Technology Segment-Based Approaches

• SUMMIT System
• developed at MIT by Zue, Glass, et al.
• based on knowledge of human spectrogram reading
• competitive performance at phoneme
  classification
• segment-based recognition (a) segment the
  speech at possible phonetic boundaries (b)
  create network of (sub-)phonetic segments (c)
  classify each segment (d) search segment
  probabilities for most likely sequence of
  phonetic segments
• complicated

3
ASR Technology Segment-Based Approaches

• SUMMIT System Dendrogram

spectral change

• segment network can also be created using
  segmentation by recognition

4
ASR Technology Segment-Based Approaches

• Feature System
• developed at CMU by Cole, Stern, et al.
• also based on spectrogram-reading techniques
• competitive performance at alphabet
  classification
• segment-based recognition of a single
  letter (a) extract information about signal,
  including spectral properties, F0, energy in
  frequency bands (b) locate 4 points in
  utterance beginning of utterance, beginning
  of vowel, offset of vowel, end of
  utterance (c) extract 50 features (from step (a)
  at the 4 locations) (d) use decision tree to
  determine the probabilities of each letter
• fragile errors in feature extraction
  segmentation can not be recovered from

5
ASR Technology Frame-Based Approaches

• Stochastic Approach
• includes HMMs and HMM/ANN hybrids

6
ASR Technology Frame-Based Approaches
7
ASR Technology Frame-Based Approaches

• HMM-Based System Characteristics
• System is in only one state at each time t at
  time t1, the system transfers to one of the
  states indicated by the arcs.
• At each time t, the likelihood of each phoneme
  is estimated using Gaussian mixture model or
  ANN. The classifier uses a fixed time window
  usually extending no more than 60 msec. Each
  frame is typically classified into each phoneme
  in a particular left and right context, e.g.
  /y-ehs/, and as the left, middle, or right
  region of that context-dependent phoneme (3
  states per phoneme).
• The probability of transferring from one state
  to the next is independent of the observed
  (test) speech utterance, being computed over
  the entire training corpus.
• The Viterbi search determines the most likely
  word sequence given the phoneme and
  state-transition probabilities and the list
  of possible vocabulary words.

8
ASR Technology Frame-Based Approaches

• Issues with HMMs
• Independence is assumed between frames
• Implicit duration model for phonemes is
  Geometric, whereas phonemes actually have
  Gamma distributions
• Independence is required between features within
  one frame for GMM classification (not so for
  ANN classification)
• All frames of speech contribute equally to final
  result
• Duration is not used in phoneme classification
• Duration is modeled using a priori averages over
  the entire training set
• Language model uses probability of word N given
  words N-1, N-2, etc. (bigram, trigram, etc.
  language model) infrequently occurring word
  combinations poorly recognized (e.g. black
  Monday, a stock-market crash in 1987)

9
ASR Technology Frame-Based Approaches

• Why is HMM Dominant Technique for ASR?
• well-defined mathematical structure
• does not require expert knowledge about speech
  signal (more people study statistics than
  study speech)
• errors in analysis dont propagate and
  accumulate
• does not require prior segmentation
• does not require a large number of templates
• results are usually the best or among the best

10
Issues in Developing ASR Systems

• Type of Channel
• Microphone signal different from telephone
  signal, land-line telephone signal different
  from cellular signal.
• Channel characteristics pick-up pattern
  (omni-directional, unidirectional,
  etc.) frequency response, sensitivity, noise,
  etc.
• Typical channels desktop boom
  mic unidirectional, 100 to 16000 Hz hand-held
  mic super-cardioid, 40 to 20000 Hz
  telephone unidirectional, 300 to 8000 Hz
• Training on data from one type of channel
  automatically learns that channels
  characteristics switching channels degrades
  performance.

11
Issues in Developing ASR Systems

• Speaker Characteristics
• Because of differences in vocal tract length,
  male, female, and childrens speech have
  different characteristics.
• Regional accents are expressed as differences in
  resonant frequencies, durations, and pitch.
• Individuals have resonant frequency patterns and
  duration patterns that are unique (allows us
  to identify speaker).
• Training on data from one type of speaker
  automatically learns that group or persons
  characteristics.
• Training on data from all types of speakers
  results in lower overall performance.

12
Issues in Developing ASR Systems

• Speaking Rate
• Even the same speaker may vary the rate of
  speech.
• Most ASR systems require a fixed window of input
  speech.
• Formant dynamics change with different speaking
  rates and speaking styles (e.g. frustrated
  speech).
• ASR performance is best when tested on same rate
  of speech as training data.
• Training on a wide variation in speaking rate
  results in lower overall performance.

13
Issues in Developing ASR Systems

• Noise
• two types of noise additive, convolutional
• additive white noise (random values added to
  waveform)
• convolutional filter (additive values in log
  spectrum)
• techniques for removing noise RASTA, Cepstral
  Mean Subtraction (CMS)
• (nearly) impossible to remove all noise while
  preserving all speech
• stochastic training learns noise as well as
  speech if noise changes, performance degrades.

14
Issues in Developing ASR Systems

• Vocabulary
• Vocabulary must be specified in advance
  (cant recognize new words)
• Pronunciation of each word must be specified
  exactly (phonetic substitutions may degrade
  performance)
• Grammar either very simple or very structured
• Reasons
• phonetic recognition so poor that confidence
  in each recognized phoneme usually very low.
• humans often speak ungrammatically or
  disfluently.

15
Issues in Developing ASR Systems

• How Well Does ASR Do?

100
Conversational Speech
Read Speech
Structured Speech
Broadcast Speech
Spontaneous Speech (2-3k)
20k
19
Varied Microphones
Noisy Speech
Word Error Rate
10
5k
Noisy
1k
human speech recognition of Broadcast Speech
(0.9WER)
2.5
1988 1989 1990 1991 1992 1993 1994 1995 1996
1997 1998 1999 2000 2001 2002 2003
1
Error Rates on Increasingly Difficult Problems
16
ASR Technology vs. Spectrogram Reading

• HMM-Based ASR
• frame based - no identification of landmarks in
  speech signal
• duration of phonemes not identified until end of
  processing
• all frames are equally important
• cues are completely unspecified, learned by
  training
• coarticulation model context-dependent phoneme
  models
• Spectrogram Reading
• first identify landmarks in the signal ?
  Wheres the vowel? Is that change in energy a
  plosive?
• identify change over duration of a phoneme,
  relative durations
• ? Is that formant movement a diphthong or
  coarticulation?
• identify activity at phoneme boundaries
• ? F2 goes to 1800 Hz at onset of voicing,
• ? voicing continues into frication, so its a
  voiced fric.
• specific cues to phoneme identity
• ? 1800 Hz implies alveolar, F3 ? 2000 Hz implies
  retroflex
• coarticulation model tends toward locus theory

17
ASR Technology vs. Spectrogram Reading

• HMM-Based ASR
• frame based - no identification of landmarks in
  speech signal
• duration of phonemes not identified until end of
  processing
• all frames are equally important
• cues are completely unspecified, learned by
  training
• Spectrogram Reading and Human Speech Recognition
• first identify landmarks in the signal ?
  Humans thought to have landmark (e.g. plosive)
  detectors
• identify change over duration of a phoneme,
  relative durations
• ? Humans very sensitive to small changes,
  especially at vowel/consonant boundaries
• identify activity at phoneme boundaries
• ? Transition into the vowel most important
  region for human speech perception
• specific cues to phoneme identity
• ? Humans use (large) set of specific cues, e.g.
  VOT

18
The Structure of Spoken Language

• Final Points
• Speech is complex! Not as simple as sequence
  of phonemes
• There is structure in speech, related to broad
  phonetic categories
• Identifying formant locations and movement is
  important
• Duration is important even for phoneme identity
• Phoneme boundaries are important
• There are numerous cues to phoneme identity
• Little is understood about how humans process
  speech
• Current ASR technology is incapable of
  accounting for all information that humans use
  in reading spectrograms, and what is known
  about human speech processing often not used
  this implies (but does not prove) that current
  technology may be incapable of reaching human
  levels of performance.
• Speech is complex!
