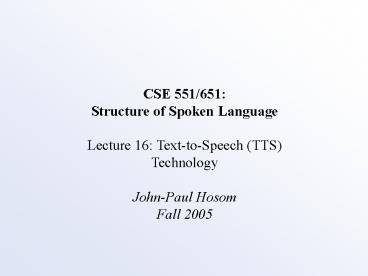

CSE 551/651 Structure of Spoken
Language Lecture 16 Text-to-Speech (TTS)
Technology John-Paul Hosom Fall 2005
2
Text-to-Speech (TTS) Synthesis

• Having looked at theories of human speech
  production and speech perception, now well look
  at structures and algorithms currently used to
  implement these technologies.
• Text-to-Speech (TTS) has three main
  approaches(1) formant-based(2)
  concatenative(3) articulatory
• All TTS approaches must address(a) text
  analysis from text, predicting phonemes,
  stress, and phrase boundaries(b) prosody from
  text-analysis output, predicting pitch contour,
  energy contour, duration of each phoneme(c)
  signal processing given phoneme symbols and
  timing, generate speech waveform

3
Text-to-Speech (TTS) Synthesis

• From a linguistic perspective, there may be many
  more things to consider

(from Klatt 1987)
4
Text-to-Speech (TTS) Synthesis

• Text Analysis
• First, convert words to phonemes hello h eh
  l ow read r iy dcl d or r eh dcl d
  ?? Send 2.50 to 1024 Clough Dr. ASAP.
• Also, syllabification aeon ae/on aortae
  a/or/tae tasty tas/ty tast/y ta/sty
• Plus, stress conduct vs. conduct
• And, accent I want to go now, not later!
• Tones not in English (whew!)

5
Text-to-Speech (TTS) Synthesis

• Text Analysis
• Three basic techniques/approaches
• (1) Dictionaries including word pronunciation,
  accent marks, syllabification, etc. but many
  words are not in the dictionary, and some words
  have multiple pronunciations depending on context
• (2) Rules such as morphological
  analysis parallelization ? parallel ize
  ation
• (3) CART (Classification and Regression
  Trees) utilize context to make binary decisions
  leading to final decision

noun?
conduct
sent_begin? prev_wordthe?
6
Text-to-Speech (TTS) Synthesis

• Prosody Pitch, Duration, Energy, Allophones
• Pitch modeling, superposition of phrase accent
  Fujisaki model

(from van Santen,2000)
7
Text-to-Speech (TTS) Synthesis

• Pitch contours
• However, more detailed approaches available (van
  Santen),and pitch contour modeling is not a
  solved problem

(from Klatt 1987)
8
Text-to-Speech (TTS) Synthesis

• Factors affecting duration include
• Current phoneme, Previous phoneme, Next phoneme,
• Word stress, Phrase accent, Degree of emphasis,
• Position in syllable (onset vs. coda, open vs.
  closed), Position in word, Position in phrase,
  Position in foot
• Models of Duration
• Hand-Tuned Rules (Klatt)
• PRCNT based on 11 Rules pause insertion rule,
  clause-final lengthening, phrase-final
  lengthening, non-word-final shortening,
  polysyllabic shortening, non-initial-consonant
  shortening, unstressed shortening, lengthening
  for emphasis, postvocalic context of vowels,
  shortening in clusters, lengthening due to
  plosive aspiration

9
Text-to-Speech (TTS) Synthesis

• Duration Modeling using CART
• Given large corpus, annotated with duration,
  phoneme, stress, phrase information, train a CART
  classifier
• Doesnt generalize well to data not seen in
  training
• Sums-of-Products Approach (van Santen)
• Dur(/p/ c2, c3, c4, ...) where cn is
  particular context
• A11(/p/) A21(/p/) ?A22(c2)
  A33(c3) ? A34(c4)
• duration is combined function of contexts
• statistical, not rule based simple to train
  generalizes well

plosive?
vowel? word-initial?
more rules here
0.98
1.13
10
Text-to-Speech (TTS) Synthesis

• Generating a Waveform Articulatory Synthesis
• The vocal tract is divided into a large number of
  short tubes, as in the electrical transmission
  line analog (Lecture 11), which are then combined
  and resonant frequencies calculated.

from Sinder, 1999 (thesis work with Flanagan,
Rutgers)
11
Text-to-Speech (TTS) Synthesis

• Generating a Waveform Articulatory Synthesis
• Vocal-tract sources include noise and a buzz
  source for voiced sounds
• Articulatory synthesis important for validating
  the Motor Theory of Speech Perception
• Demos from 1976 and circa 1992 (Haskins
  Labs)

12
Text-to-Speech (TTS) Synthesis

• Generating a Waveform Formant Synthesis
• Instead of specifying mouth shapes, formant
  synthesis specifies frequencies and bandwidths of
  resonators, which are used to filter a source
  waveform.
• Formant frequency analysis is difficult
  bandwidth estimation is even more difficult. But
  the biggest perceptual problem in formant
  synthesis is not in the resonances, but in a
  buzzy quality most likely due to the glottal
  source model.
• Formant synthesis can sound identical to natural
  utterance if details of the glottal source and
  formants are well modeled. NATURAL
  SPEECH SYNTHETIC SPEECH(John Holmes, 1973)

13
Text-to-Speech (TTS) Synthesis

• Formant TTS Synthesis Architecture
• Formant-synthesis systems contain a number of
  sound sources, which are passed to filters in
  either parallel or cascade series. Each filter
  corresponds to one formant (resonance) or
  anti-resonance.

(From Yamaguchi, 1993)
14
Text-to-Speech (TTS) Synthesis

• Formant systems Rule-Based Synthesis
• For synthesis of arbitrary text, formants and
  bandwidths for each phoneme are determined by
  analyzing speech of a single person.
• The models of each phoneme may be a single set of
  formant frequencies and bandwidths for a
  canonical phoneme at a single point in time, or a
  trajectory of frequencies, bandwidths, and source
  models over time.
• The formant frequencies for each phoneme are
  combined over time using a model of
  coarticulation, such as Klatts modified locus
  theory.
• Duration, pitch, and energy rules are applied
• Result something like this

15
Text-to-Speech (TTS) Synthesis

• Despite great success in copy synthesis,
  synthesis by rule using formants has severely
  degraded quality. Its not clear why Problem
  with glottal source? Problem with coarticulation
  and formant transitions? Problem with prosody?
• Formant synthesis was main TTS technique until
  the early or mid 1990s, when increasing memory
  size and CPU speed allowed concatenative
  synthesis to be viable approach.
• Concatenative synthesis uses recordings of small
  units of speech (typically the region from the
  middle of one phoneme to the middle of another
  phoneme, or a diphone unit), and glues these
  units together to forms words and sentences.
• Concatenative synthesis means that you dont have
  to worry about glottal source models or
  coarticulation, since the synthesis is just a
  concatenation of different waveforms containing
  natural glottal source and coarticulation.

16
Text-to-Speech (TTS) Synthesis

• Concatenative Synthesis Units
• The basic unit for concatenative synthesis is the
  diphone
• More recent TTS research is on using larger
  units. Issues include (a) how to decide what
  units will be used? (b) how to select
  best unit from very large database?
• With increasing size and variety of units, there
  is an exponential growth in the database size.
  Yet, despite massive databases that may take
  months to record, coverage is nowhere near
  complete. There is a very large number of
  infrequent events in speech.

sil-jh jh-aa aa-n n-sil
17
Text-to-Speech (TTS) Synthesis

• Concatenative Synthesis Signal Processing
• Waveform-based Pitch-Synchronous Overlap Add
  (PSOLA)
• Perform pitch modification by spacing of
  pitch-synchronous units
• Or, use Line Spectral Frequencies (LSFs), which
  areconceptually the harmonics in a spectrogram

18
Text-to-Speech (TTS) Synthesis

• DEMOS
• Klatts DEC Talk
• sample 1
• ATT
• sample 1 sample 2
• Bell Labs
• sample 1 sample 2
• OGI
• sample 1 sample 2
